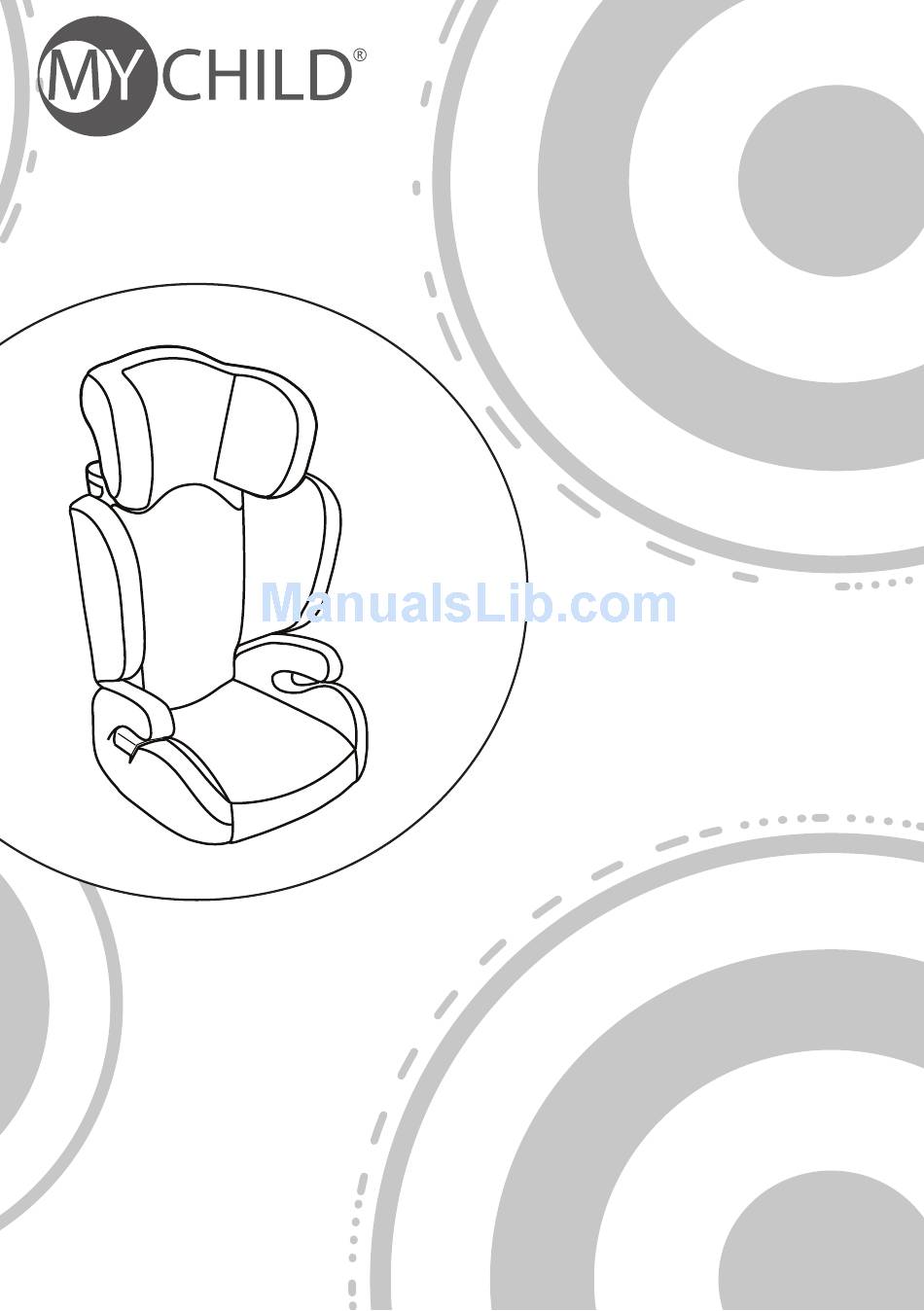

Expanda Car Seat
Group 2+3 child car seat
This product conforms to ECE R44.04
Group 2+3 child car seat.
Suitable for children from 15kg to 36kg (approx 3 to 12 years old)
Instructions: Please read carefully and keep for future reference.
Your child's safety may be affected if you do not follow these
instructions.
V2
Advertisement
Related Manuals for My Child Expanda
Summary of Contents for My Child Expanda
- Page 1 Expanda Car Seat Group 2+3 child car seat This product conforms to ECE R44.04 Group 2+3 child car seat. Suitable for children from 15kg to 36kg (approx 3 to 12 years old) Instructions: Please read carefully and keep for future reference.
- Page 2 Notices 1. The child car seat must only be used in vehicles which are fitted with a three point seat belt system that has been approved by regulation ECE-16 or similar. 2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle hand book that the vehicle is capable of accepting a ‘Universal ’child restraint for this group.
- Page 3 EXTREME HAZARD NEVER USE IN FRONT PASSENGER SEATS EQUIPPED WITH AIRBAGS (SRS) THIS CAN INCLUDE REAR PASSENGER SEATS THAT ARE EQUIPPED WITH AIRBAGS* *Consult car manufacturer for suitability. Children’s bodies are not able to withstand the forces exerted on them by a deploying air-bag When Using the Child Car Seat Warning: Make sure that the child car seat is placed somewhere so that rigid items and plastic parts do not become trapped in doors or movable seat units when the seat is in...
-
Page 4: Table Of Contents
Sunlight/Hot days Warning: Don’t leave your child in the child car seat while parked in direct sunlight or on a hot day. Warning: Do not subject the child car seat to prolonged direct sunlight as this may be dangerous for your child (the metal and plastic fittings could become hot) and may cause the fabric to fade. -
Page 5: Welcome
Welcome Thank you for purchasing the Expanda child car seat. Please read these instructions carefully before use to ensure safe and satisfactory operation of this product. Your child’s safety is your responsibility. If you have a query with this product or require replacement parts, please contact your nearest MyChild retailer. -
Page 6: Positioning The Seat
Positioning the seat The child car seat can only be used with an automatic 3-point safety belt (A) and NOT with a 2-point lap belt (B). The child car seat can be secured in a forward-facing position in the rear seats of the vehicle by using the existing seat belts. - Page 7 Installing the child car seat (continued) Put the child in the child car seat and adjust the size and fit of the seat (see previous step) then pass the vehicle’s shoulder belt through the belt hook (A) and the lap belt through the lap belt guide (B).
-
Page 8: Removing The Seat Cover
Installing the car seat (continued) NOTE: The seatbelt buckle should not foul, jam or wedge itself under the lap belt guide, as shown opposite. Removing the seat cover The seat cover is a safety feature. Never use the child car seat with out its cover. Removing the headrest cover: Remove the headrest cover (A), by holding the elasticed band and pulling... -
Page 9: Replacing The Seat Cover
Replacing the seat cover The seat cover is a safety feature. Never use the child car seat with out its cover. Replacing the seat base cover: Slide the base cover onto each armrest (A), then pull the cover over the front (B) and down around the back of the base and secure the Velcro tab at the back... -
Page 10: Maintenance And Cleaning
Maintenance and cleaning Storage 1) Store this child car seat in a safe place when not in use. 2) DO NOT place heavy objects on top of it. 3) Always store the child car seat in a dry environment. 4) DO NOT store the child car seat near a direct heat source such as a radiator. Covers 1) The seat cover is easily removable and should be handwashed with a pH neutral soap and cold water. - Page 11 page 10...
- Page 12 Customerservice@kooltrade.co.uk Imported by MyChild. M34 3QA www.mychildonline.co.uk Tel: 0161 335 2508...
