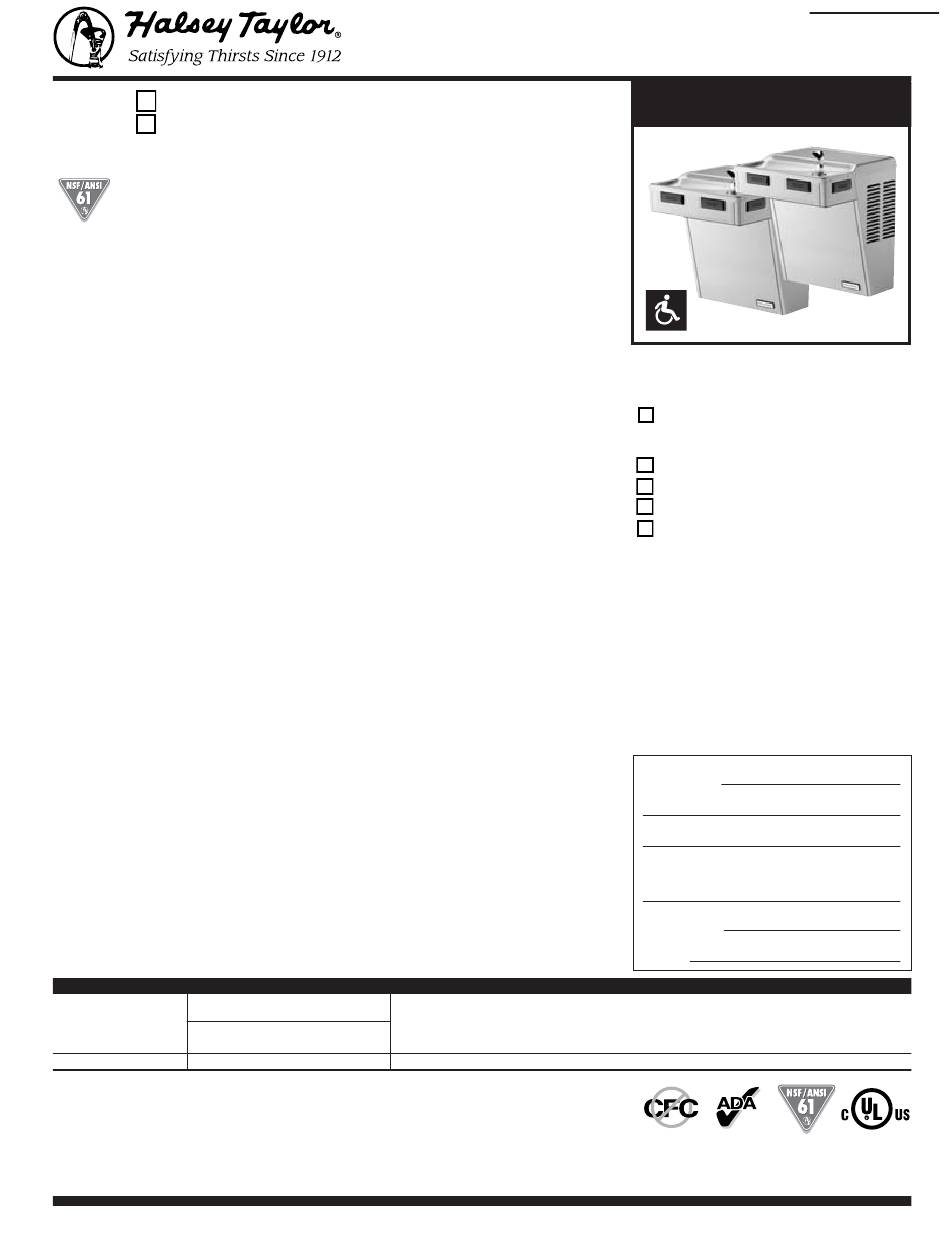

Halsey Taylor HAC8FSBLR-Q ADA Manual

■ ■
MODEL:
HAC8FSBLR-Q ADA
■ ■
HACFSDBLR-L/R ADA
This water cooler is certified to
NSF/ANSI 61.
GENERAL

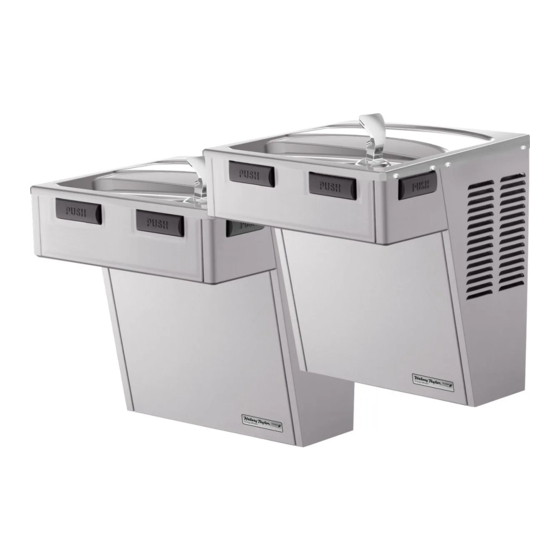

Self-contained, electric refrigerated, bi-level
wall-mounted water cooler designed to be
easily accessible to physically challenged
individuals. When properly installed, unit meets
state and federal requirements for both
children or adults as defined by the
Americans with Disabilities Act. Barrier walls
required or apron installed to meet cane touch
prerequisite. Unit is certified to NSF/ANSI 61,
and meets requirements of the Safe Drinking
Water Act. Unit provides 50° F water at 80° F
inlet water and 90° F ambient.
CABINET
Stainless steel panels resist wear and corrosion.
Durable satin finish helps hide water spots and
fingerprints.
COOLER TOP
Non-corrosive stainless steel cooler top, no.
300 series with satin finish resists stains and
corrosion and is easy to maintain. Anti-splash
ridge reduces splatter. Contoured to insure
proper drainage.
BUBBLER
Exclusive one-piece, chrome-plated two-stream
mound-building bubbler with non-removable
anti-squirt feature and integral hood insures a
satisfying drink of water.
PUSH BAR ACTUATION MECHANISM
Self-closing, light-touch push bars on front and
sides with raised letters for the visually
impaired.
AUTOMATIC STREAM HEIGHT REGULATOR
Self-closing assembly is located inside unit to
prevent tampering. Unit resists corrosion and
liming. A constant stream height is automatically
maintained under line pressures that vary from
20 to 105 psi.
INLET STRAINER
Easily cleaned in-line strainer screen traps
particles of 140 microns or larger before they
enter the waterway.
TEMPERATURE CONTROL
Positive sensing thermostat for controlling
temperature of storage tank water. Factory set
at 50° F Adjustable ± 5° F.
HAC-Q BARRIER-FREE SERIES
Model
No.
70°F
HAC8FSBLR-Q ADA 9.7
*
With projector service and tap water at 80° F
† UL listed and complies with ARI Standard 1010
Trap and service stop not included
STORAGE TANK
Stainless steel evaporator/storage tank for long
life. Waterways are certified to NSF/ANSI 61,
far exceeding the requirements of the Safe
Drinking Water Act.
REFRIGERATION SYSTEM
Hermetically sealed, positive start compressor
with lifetime lubrication and built-in overload
protection, efficient capillary sizing, large
capacity dryer-strainer, and self-lubricated fan
cools copper/aluminum condenser. System
uses R134A refrigerant. Protected by Halsey
Taylor's Limited 5 Year Warranty.
VENTILATION
Insure proper ventilation by maintaining
6" (152mm) minimum clearance from
cabinet louvers to wall.
SUGGESTED SPECIFICATIONS
Shall deliver 8.0 GPH of 50° F water at 90° F
ambient and 80° F inlet water. Shall have
stainless steel basin with removable drain
strainer. Bubbler shall be two-stream, mound
building type. Separate valve and automatic
stream regulator shall be mounted within
cabinet. Refrigeration system shall employ high
efficiency, positive start compressor using
R134A, stainless steel tank with totally
encapsulated insulation and be controlled by
positive sensing thermostat. Shall have front
and side push-bar water controls with raised
lettering for the visually impaired. Cooler shall
comply with ANSI 117:1 and ADA for visual
and motion disabilities. The manufacturer shall
certify the unit to meet the requirements of
NSF/ANSI 61, and the Safe Drinking Water Act.
Unit complies with ARI Standard 1010.
NOTE: Continued product improvement
makes specifications subject to change
without notice. See Halsey Taylor website
for most current spec sheet.
GPH Capacity
Cooled to 50° F*
Ambient Air Temp
80°F 90°F † 100°F
8.8 8.0 7.2
HALSEY TAYLOR, 2222 CAMDEN COURT, OAK BROOK, ILLINOIS 60523
Base F.L.
Rate Amps
Cap.
8.0 4.0
halseytaylor.com
Bi-Level
Barrier-Free Cooler
Standard Finish Is Stainless Steel
Optional Finish
■ ■
Platinum Vinyl
Optional Accessories (extra cost)
■ ■
Glass Filler Kit
■ ■
Water Filter
■ ■
Easy-Flex ™ Bubbler
■ ■
Cane Touch Apron
JOB NAME:
ENGINEER/CONTRACTOR NAME:
APPROVAL:
DATE:
Shipping Rated
Weight Watt
lb. Usage
92 370
A16 /
8-2007
