Summary of Contents for Dragonfly DFM-TAB-84

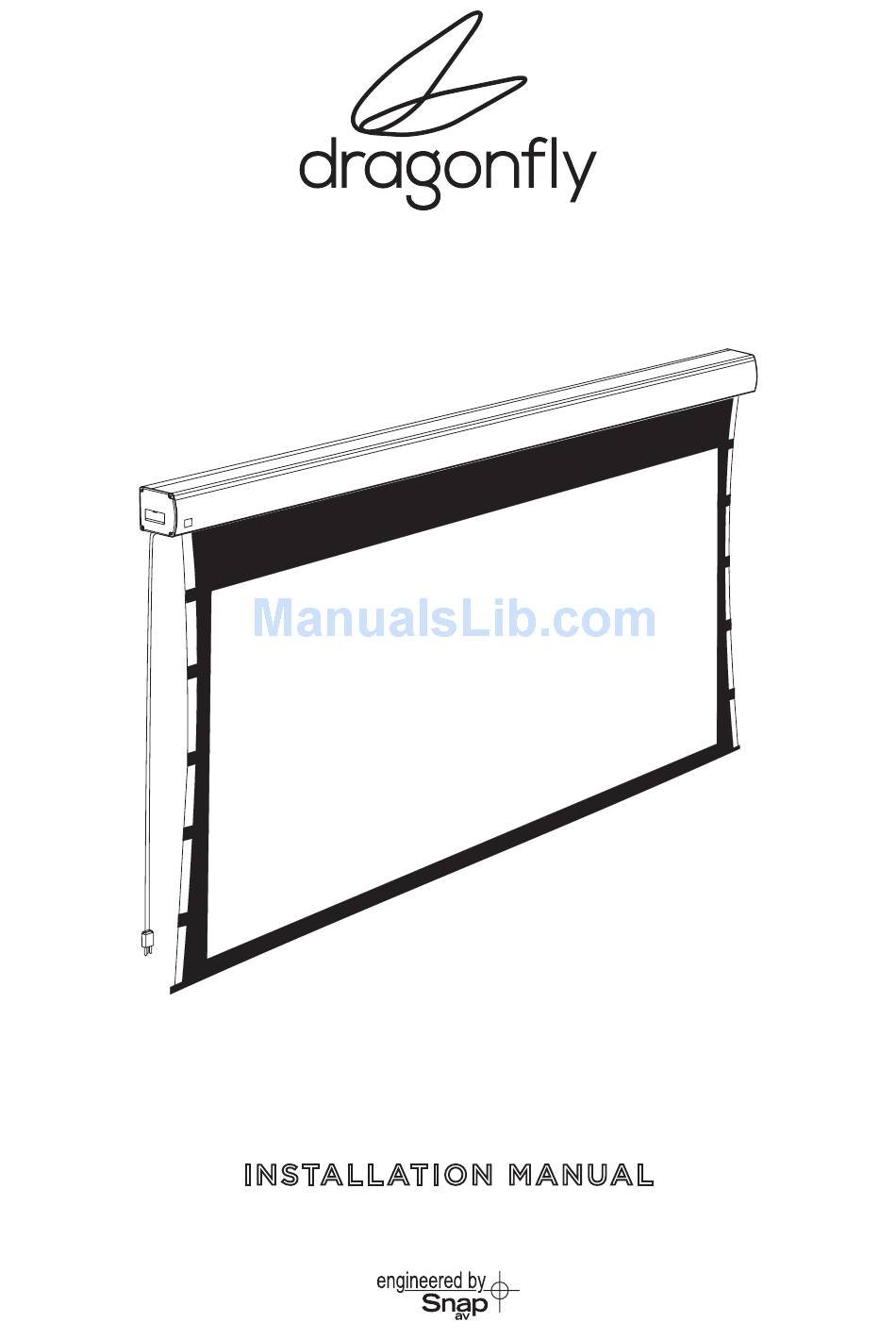

- Page 1 I N STALL AT ION MA N UA L Motorized Tab-Tension Projection Screens...
-
Page 2: Important Safety Precautions And Warnings
Before you unpack the projection screen, read the entire manual to become familiar with the steps involved for installation and operation. If you feel uncomfortable performing any of the steps required, stop and consult a qualified installation professional. Dragonfly is not responsible for any damage or injury that occurs from incorrect installation or operation. -
Page 3: Table Of Contents
DFM-TAB Installation Manual Table of Contents 1. Important Safety Precautions and Warnings 2. Overview 3. Package Contents 4. Pre-Installation 4.1. Required for Installation 4.2. Unpacking the Projection Screen 4.3. Powering the Screen 4.4. Mounting Considerations 4.5. Control Method 5. Installation 5.1. -
Page 4: Overview
DFM-TAB Installation Manual 2. Overview Thank you for purchasing a Dragonfly™ Motorized Projection Screen. These projection screens can be hidden away when not in use and are designed to be easy to operate and reliable. They feature several convenient mounting methods, can be controlled manually or automatically by a control system or projector, and are fully adjustable. -
Page 5: Pre-Installation
4.5. Control Method Dragonfly motorized screens can be controlled via manual wall switch, IR remote, 12 volt trigger, or RS232. Complete instructions for each method are described in the Control Setup section (Page 8). Decide on the method that will be used before installation begins. -
Page 6: Installation
Use a 7/32” masonry bit to drill a hole for each screw. • Insert the anchors into the holes until they are flush. • Do not install anchors into mortar joints. • Use 4 of the 8 included screws to mount each bracket as pictured. Pg. 6 © 2013 Dragonfly... -
Page 7: Hanging Mount
DFM-TAB Installation Manual 5.1.2. Hanging Mount Optional adapters are included for converting the projector mounting brackets into hanging brackets. To hang the projection screen, a suspension system (not included) must be installed and attached to the ceiling structure that is rated for use in the location. Consult with local building code enforcement to determine the best suspension method to use before installing the screen. -
Page 8: Installing The Screen On The Brackets
If everything is working correctly, continue with the installation. For any issues see the Troubleshooting section on page 13. Control Connections Viewing Manual Power Area Button (Bottom View of Screen) Pg. 8 © 2013 Dragonfly... -
Page 9: Control Setup
Mount the IR receiver using the adhesive foam tape on the back. Note: The included external IR receiver is proprietary to Dragonfly projection screens. Other IR receivers will not work correctly. -
Page 10: Ext Ctrl Port Wiring Diagram
3. Terminate conductors in the Cat5e/6 to the desired pins of the RJ12 connector as shown in the diagram above. Insulate the ends of the unused RJ12 conductors to prevent short circuits. 4. Terminate the same conductors to the appropriate wires on the RS232 port or contact/relay connection of the control system processor. Pg. 10 © 2013 Dragonfly... -
Page 11: Screen Adjustments
DFM-TAB Installation Manual 7. Screen Adjustments Before making any changes to the screen limit adjustment screws, read this section entirely. Turning the wrong screw may cause the screen to bind under certain conditions, possibly resulting in permanent damage. Damage of this type is NOT covered under warranty. Open Limit Screw (closer to viewing area) Grommet... -
Page 12: Tab Tension Adjustments
If the string is loose, rotate the adjustment knob on that side. Turn clockwise to increase the tension. If the string is over-tensioned, press the release button and then rotate the adjustment knob counter-clockwise to suitable tension. String Releasing Button String Adjustment Knob Pg. 12 © 2013 Dragonfly... -
Page 13: Using The Screen
9. Cleaning the Projection Screen Dragonfly screens are designed to provide many years of trouble-free use. After the screen is installed and adjusted, no further maintenance is required for the operation of the screen, unless the viewing surface gets dirty. Follow these guidelines to clean any marks or residue from the viewing surface: •... -
Page 14: Troubleshooting
If you have trouble, check the installation while reviewing all instructions. Some of the most common issues and solutions are also listed below. If you continue to have trouble, please contact an authorized Dragonfly dealer, or Dragonfly support at Info@dragonflyscreens.com or (866)838-5052. -
Page 15: Dimensions And Weight
DFM-TAB Installation Manual 12. Dimensions and Weight Model DFM-TAB-84 4.99” 93.07” 4.72” 41.14” 73.23” 4.2” 17.7” max 4.92” 4.72” 86.69” DFM-TAB-92 4.99” 99.96” 4.72” 45.01” 80.19” 4.2” 17.7” max 4.92” 4.72” 93.66” DFM-TAB-100 4.99” 107.00” 4.72” 49.01” 87.16” 4.2” 17.7” max 4.92”... -
Page 16: Warranty
DFM-TAB Installation Manual 13. Warranty 2 Year Limited Warranty Dragonfly Motorized and Tab-Tension Motorized Projection Screens have a 2-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in year material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. - Page 17 © 2013 Dragonfly 140106-1427...
