INSTALLATION MANUAL

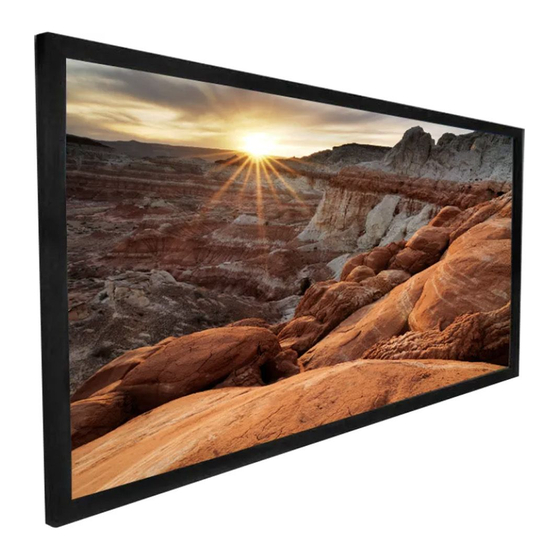

Ultra White and Ultra Acoustiweave™ Thin-Bezel Fixed Projection Screens

IMPORTANT: BEFORE YOU BEGIN

•

To avoid staining or scratching the screen, wear the included

gloves during installation. Wash your hands and clean the work

area before starting.

•

Do not use knives or sharp objects to open the packing boxes.

•

To avoid a serious fire hazard, DO NOT install the screen over an

electrical outlet or switch.

Need help?

Do you have a question about the Ultra White and is the answer not in the manual?

Page 1 INSTALLATION MANUAL Ultra White and Ultra Acoustiweave™ Thin-Bezel Fixed Projection Screens IMPORTANT: BEFORE YOU BEGIN • To avoid staining or scratching the screen, wear the included gloves during installation. Wash your hands and clean the work area before starting. •...
Page 3 Please ensure all 14 sliding nuts are on the frames prior to installing and tightening the corner brackets. C. Install the corner brackets to the top and bottom slots of the short frame sections. All corner brackets are the same size and interchangeable. 181015-1400 © 2018 Dragonfly...
Page 4 Use the M5x6mm screws to tighten. Note: There are 4 additional sliding nuts on the horizontal frames, 2 on each side. These sliding nuts are used to install the wall brackets. 181015-1400 © 2018 Dragonfly...
Page 5 5mm to hang the screen. Install the lower 2 magnet pieces using 2 M5x50mm magnet screws. Hang the screen on the upper brackets and attach the lower part of the frame to the wall with the magnets. 181015-1400 © 2018 Dragonfly...
Page 6: Care And Cleaning
Avoid using excessive amounts of water on the felt. Dimensions (in Inches) 92" 45.4 80.2 45.7 80.7 100" 87.2 49.6 87.7 106" 92.4 52.5 92.9 110" 53.9 95.9 54.5 96.5 120" 58.8 104.5 59.4 105.1 Technical Support p.866.838.5052 181015-1400 © 2018 Dragonfly...
