Baumatic IBERNA BWCU60SS User Manual

60 cm 46 bottle dual temperature wine cabinet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

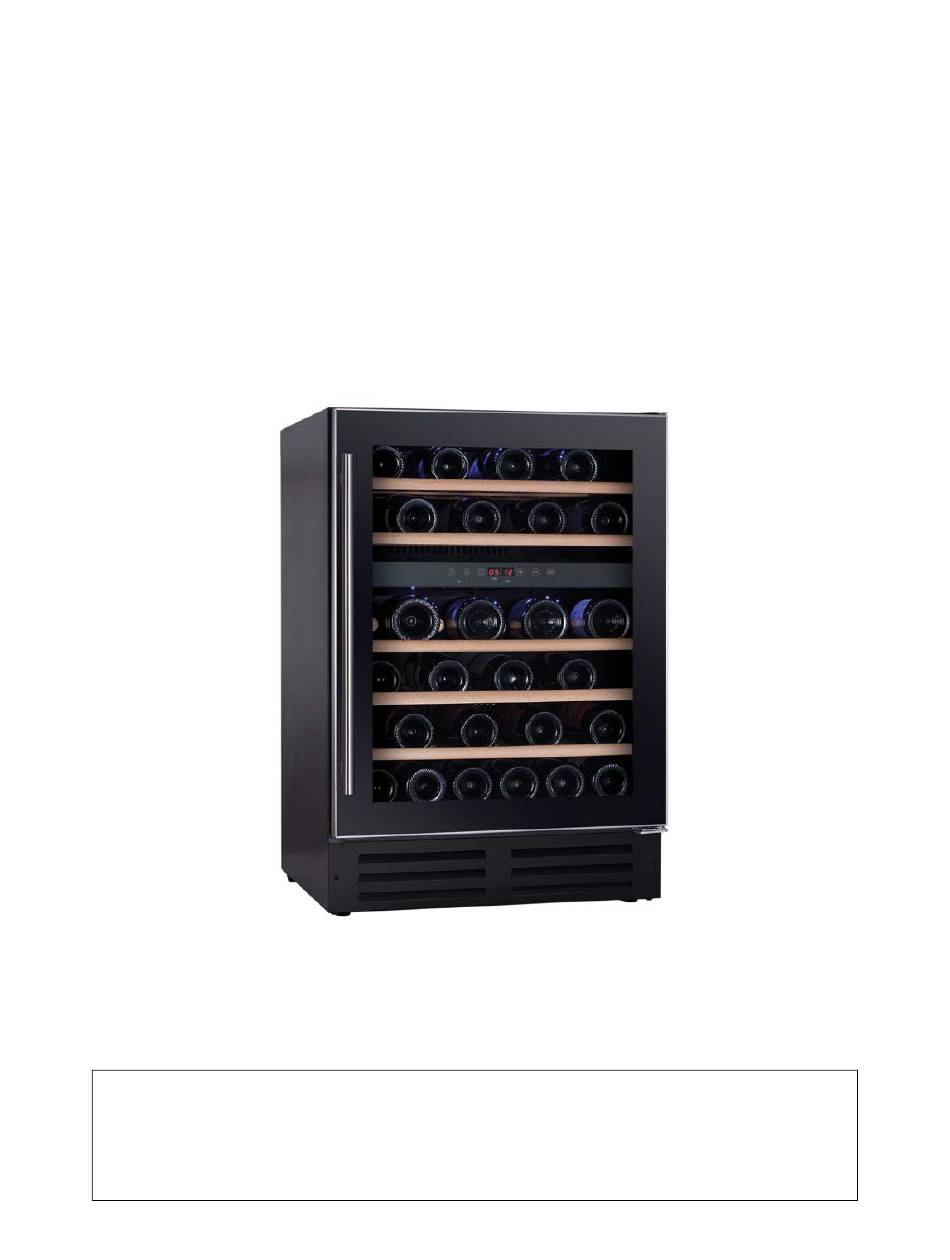

USER MANUAL FOR YOUR
BWCU60SS
60 cm 46 Bottle dual
temperature wine cabinet
NOTE
: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference, for
you or any person not familiar with the operation of the appliance.
GS 12/04/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IBERNA BWCU60SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baumatic IBERNA BWCU60SS

Summary of Contents for Baumatic IBERNA BWCU60SS

  • Page 1 USER MANUAL FOR YOUR BWCU60SS 60 cm 46 Bottle dual temperature wine cabinet NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference, for you or any person not familiar with the operation of the appliance.

  • Page 2: Table Of Contents

    Contents Environmental note Important safety information 5 – 6 Specifications of your wine cabinet 7 – 8 Dimensions Product specifications 7 - 8 Description of the appliance Product features Control panel Description of the product features Using your wine cabinet 10-13 Before switching on During first use...

  • Page 3: Environmental Note

    Environmental note Note : Before discarding an old appliance, sw itch off and disconnect it from the pow er supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent m isuse. This should be undertaken by a com petent person. Disable the door lock to m ake sure that children cannot get stuck inside the appliance.

  • Page 4: Important Safety Information

    Important safety information Your safety is of the utmost importance to us. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact Customer Care.
  • Page 5 Child safety o Packaging material should be kept away from children. o Children should not be allowed to touch the controls or play with the appliance. General safety o Do not pull on the power supply cable to remove the plug from your mains supply socket.

  • Page 6: Specifications Of Your Wine Cabinet

    Specifications of your wine cabinet Dimensions of appliance Height: 870 - 890 mm, Width: 595 mm, Depth: 570 mm ** Please refer to the installation instructions for specific information on the size of aperture that you will require. o Gross capacity: 144 litres o Net capacity: 143 litres...

  • Page 7: Description Of The Appliance

    IMPORTANT: When you install your appliance it is important to bear in mind its climatic rating. In order to find out the climatic rating of your appliance, you should check the rating plate. The rating plate is located on the front left edge of the appliance.

  • Page 8: Control Panel

    Control panel The control panel is located in the middle of the appliance. Description of the product features Control panel o The control panel is located in the middle of the appliance, behind the glass door. This means it is easy to set the temperature of the appliance and see what temperature the appliance is set to.

  • Page 9: Using Your Wine Cabinet

    Using your wine cabinet Before switching on o Make sure that it has been installed by a suitably qualified person, as per the information contained in the manufacturer’s installation instructions. o After delivery, wait for eight hours before connecting the appliance to your mains supply.

  • Page 10: During First Use

    During first use IMPORTANT: When you use the wine cabinet for the first time or restart the appliance after it has been turned off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED display.

  • Page 11: The Interior Light

    The interior light o When the control panel is unlocked, you can use the light button to switch the interior light on and off. o The light will remain on unless it is turned off manually by pressing the light button. Setting the temperature o The temperature setting for the upper zone is adjustable within the range of 5°C - 12°C / 41°F - 54°F.

  • Page 12: Loading The Wine Cabinet

    Loading the wine cabinet IMPORTANT: Your appliance is ideally suited to store 0.75 litre Bordeaux style wine bottles. While it can store larger bottles, you must make sure that they do not prevent the door from shutting properly. o Always check that you can close the door without it fouling on a wine bottle, before shutting it.

  • Page 13: Storing Your Wines

    Storing your wines The chart below indicates the ideal storage temperatures for different types of wine:- Temperature Temperature Type of wine (Celsius) (Fahrenheit) Red wine (*) 15.5 – 18.5°C 59.9 – 65.3°F White wine (**) 10 - 15°C 50 – 59°F Sparkling 7.2 –...

  • Page 14: Wine Storage Problems

    o Special stoppers that keep wine sparkling and Champagne bubbling for one or two days after opening, can be bought at most good wine shops. o When stored correctly, white wines can keep well for up to two years. Full bodied reds will age well for ten years and dessert wines will age well for up to twenty years.

  • Page 15: Cleaning And Maintenance

    Slight effervescence in still wine- this isn’t really a problem with the way the wine has been stored, but as a result of incomplete malolactic fermentation before the wine was bottled. A good way to get rid of the effervescence is to let the wine breathe. Alternatively you can use a bottle vacuum device, after about five minutes the effervescence will vanish.

  • Page 16: Defrosting

    o After washing the appliance, wipe over the area that you have cleaned with a damp cloth and then dry it thoroughly. o When cleaning is complete, dry your hands and then reconnect the plug to your mains supply. Defrosting o Defrosting occurs automatically inside of the wine cabinet during operation.

  • Page 17: Moving Your Wine Cabinet

    o Make sure the shelves are fully engaged before loading any bottle into the cabinet. Pull the shelves out all the way to the STOP position and push them back in several times to make sure the shelves are properly engaged. Moving your wine cabinet If you need to move your wine cabinet to another location you should follow the steps outlined below.

  • Page 18: Installation

    Installation IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found on the front left edge of the inside of the wine cabinet.

  • Page 19: Positioning

    The green and yellow wire must be connected to the terminal marked “E” (earth), or by the earth symbol, or coloured green and yellow. o When the connection is completed, no stray strands or cut wire should be present. The cord clamp must be secured over the outer sheath.

  • Page 20: Built-In Installation

    Built-in installation o Your wine cabinet can be used as a freestanding or a built in unit. The clearances shown in the above drawing should be followed for both types of installation. o In particular the depth dimension must be observed. o IMPORTANT: The vent at the base of the appliance is for ventilation.

  • Page 21: Adjusting The Height And Levelling Off Your Wine Cabinet

    Adjusting the height and levelling off your wine cabinet o The appliance is equipped with adjustable feet, so that the height may be adjusted to level the cabinet on uneven floor surfaces. o We recommend that two people carry out this procedure. o The height must be adjusted prior to building the appliance into the housing unit and it should be set at such a height that the top panel of the appliance fits exactly below the kitchen worktop.

  • Page 22: Installing The Handle

    Installing the handle o Remove the door gasket on the side you wish to install the handle. You can see two designated holes for handle installation. o Install the handle tightly as shown in the diagram above with the two screws, lock washers and flat washers provided. o Replace the door gasket.
  • Page 23 o Remove the right top hinge and right lower hinge. Right Top Hinge Right Lower Hinge o Pull out the 6 Plastic Caps at the front left corner of the cabinet. And move them all to the right side. Right Lower Hinge o Take the left top hinge and left lower hinge from the plastic bag that contained this manual then install them in the...
  • Page 24 Insert the Support Rod into the Left Lower Hinge hole of the door Left Lower Hinge o Install the door to the left hinge side by tightening the Support Rod with the 2 screws. Support Rod Screws IMPORTANT: Check that the door opens and shuts correctly, without fouling, after you have completed the door reversal process.

  • Page 25: Troubleshooting

    IMPORTANT: DO NOT HEAT THE DOOR SEAL ON ANYTHING BUT THE LOWEST HEAT SETTING, OR HEAT THE SEAL FOR A LONG PERIOD OF TIME. OTHERWISE DAMAGE MAY BE CAUSED TO THE DOOR SEAL, WHICH WOULD NOT BE RECTIFIED UNDER THE GUARANTEE FREE OF CHARGE. IMPORTANT: WHEN YOU HAVE REVERSED THE DOOR OF THE APPLIANCE, IF YOU HAVE PLACED THE APPLIANCE ON ITS BACK, YOU MUST WAIT FOR 8 HOURS BEFORE SWITCHING THE...
  • Page 26 IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply then contact Customer Care Department. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.

  • Page 27: Technical Data

    Technical Data Manufacturer IBERNA Model Number BWCU60SS Product Category 2 – Refrigeration-cellar, Cellar and wine storage appliances Energy Efficiency Class (1) Annual Energy Consumption (2) 248 kWh Storage Volume of Fridge 143 litres Compartment Storage Volume of Freezer Compartment Star Rating Coldest Storage Temperature 5°C Frost Free Compartments...

  • Page 28: Contact Details

    United Kingdom Baumatic 6 Bennet Road, Reading, Berkshire RG2 0QX United Kingdom Service Telephone 0844 692 3605 Spares Telephone 0844 692 3606...
