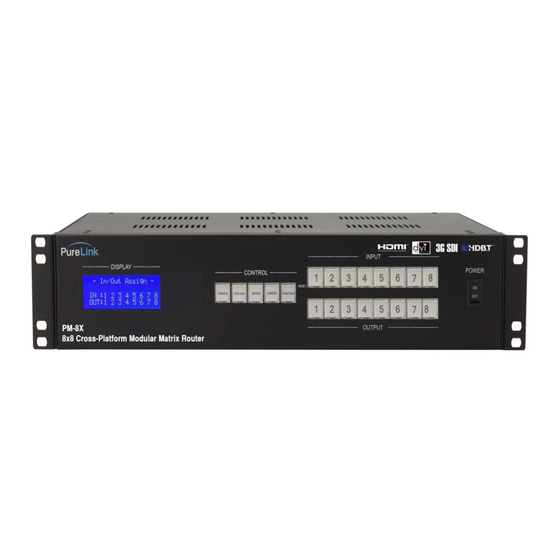

- Page 1 PM Series Matrix Router Owner’s Manual PM-8X PM 8 x 8 Cross-Platform Modular Matrix Router PureLink For Technical Support, contact us at 535 East Crescent Ave support@purelinkav.com Ramsey, NJ 07446 Tel: 201.488.3232 Fax: 201.621.6118 Website : www.purelinkav.com E-mail : info@purelinkav.com...
-
Page 2: Table Of Contents
PureLink by Dtrovision ABLE OF ONTENTS Chapter 1. Introduction 1.1 Safety Precautions --------------------------------------------------------------------------- 1.2 Product Introduction -------------------------------------------------------------------------- 1.3 Front View -------------------------------------------------------------------------------------- 1.4 Rear View ----------------------------------------------------------------------------------------- Chapter 2. Features and Specifications 2.1 Features ----------------------------------------------------------------------------------------- 2.2 Router Frame Specifications --------------------------------------------------------------- 12 2.3 Input Boards Specifications ----------------------------------------------------------------... - Page 3 PureLink by Dtrovision Chapter 4. Operation 4.1 Front Panel Button Operation ------------------------------------------------------------- 4.2 RS-232/422 Command Line Operation ------------------------------------------------- General Rules for Command Codes ------------------------------------------------------ 44 Command Acknowledge Value Response ----------------------------------------------- 48 Connecting Switches ------------------------------------------------------------------------ Disconnecting Switches --------------------------------------------------------------------- 51 Connection Status Check ------------------------------------------------------------------- 52...
-
Page 4: Chapter 1. Introduction
PureLink by Dtrovision Chapter 1. Introduction 1.1 Safety Precautions When using and installing Dtrovision PureLink product, adhere to the following basic safety precautions. Read and understand all instructions before using and installing this product. The safety and operating instructions should be retained for future reference. -
Page 5: Product Introduction
Each Matrix Router is assembled from field installable I/O (Input/Output) Boards. The PM-8X Matrix Router can support up to 2 I/O Boards of any of the above type. The Matrix Router can switch any Input signal to any combination of Outputs. For example, HDMI Input signal can be Output to 3G/HD-SDI Output, Fiber Optic Output, and CATx Output. -
Page 6: Rear View
Figure 1-2. Actual rear view will vary depending on the configuration of Input/Output Board type. The rear view of PM-8X in Figure 1-2 is fully populated each of 3G/HD-SDI, and CATx Input Board, and Fiber, and HDMI Output Board in PM-8X main frame. - Page 7 PureLink by Dtrovision ➀ Input Board Section (6 Board options are available) ➁ Output Board Section (7 Board options are available) ➂ Independent Audio Matrix Router (Balanced or Unbalanced), 5-pin Phoenix Connector ➃ Communication Board ➄ Audio Insertion/Extraction on Input Board...
-
Page 8: Chapter 2. Features And Specifications
PM series Matrix Router offers a wide range of Input/Output configuration to match various sized installations. Total eight size of main frames are available PM-8X (up to 8x8), PM-16X (up to 16x16), PM-32X (up to 32x32), PM-48X (up to 48x48), PM-64X... - Page 9 PM series Matrix Router frame offers independent built-in Balanced/Unbalaned Audio Matrix Router. Depending on the frame size, it comes as a standard feature and some of them are optional. PM-8X-AD: Optional Internal 8x8 Audio Matrix Router for PM-8X ▶ Audio Attenuation and Muting Every PM series Matrix Router allows volume attenuation and muting on the Audio Matrix Router's Output.
- Page 10 Matrix Router. In lock-out mode, a password entered from the touch screen or special command sent from controller can disable the lock-out mode. ▶ Auto-EDID (EDID Library, Emulation) PureLink's EDID library and emulation features failsafe EDID capture & storage to provide constant and continuous EDID for source devices.
- Page 11 PureLink by Dtrovision ▶ Various Input/Output Choices There are five Input Board types and six Output Board types to support every conceivable digital Video format. ▶ HDCP Compliant ▶ Modular, Field-upgradeable PM Matrix Router is designed to expand, upgrade, and reconfigure the Matrix Router in the field by simply installing or replacing Input/Output Board .
-
Page 12: Router Frame Specifications
PureLink by Dtrovision ▶ Plug-N-Play ▶ Standard 19'' Rack-mountable PM-8X (3 RU) ▶ Resolutions up to WUXGA 1920x1200, HD 1080p @ 60Hz, and 4K2K (Optional) ▶ Integrated Noise-cancellation and Error-correct Logic for both Input and Output Ports to prevent any damage caused by Electrical Noise. - Page 13 PureLink by Dtrovision 3G/HD-SDI, CATx (HDBaseT), Fiber Optic Power External Power Supply DC12V, 6.6A Power Consumption (max) 120W + 120W (Dual) = 240W Operational Temperature 32° ~ 117° F (0° to 47° C) Storage Temperature - 40° ~ 158° F (-40° to 70° C)
-
Page 14: Input Boards Specifications
PureLink by Dtrovision 2.3 Input Boards Specification HDMI Input Board (PM-HIS4) HDMI Input Board (PM-HIS4) Specifications Number of Port 4 HDMI ports, 4 Stereo In/out ports Connector Type Female HDMI connector, Female 3.5mm stereo jack Signal Type RGB digital Video (DVI and HDMI standards) -
Page 15: Pm-Dis4 (Dvi Input Board)
PureLink by Dtrovision DVI Input Board (PM-DIS4) DVI Input Board (PM-DIS4) Specifications Number of Port 4 DVI ports, 4 HDMI ports, 4 Stereo In/out ports Connector Type Female DVI connector, Female HDMI connector, Female 3.5mm stereo jack Signal Type RGB digital Video (DVI and HDMI standards) -
Page 16: Pm-Cis4 (Catx (Hdbaset) Input Board)
PureLink by Dtrovision CATx (HDBaseT) Input Board (PM-CIS4) CATx (HDBaseT) Input Board (PM-CIS4) Specifications Number of Port 4 CATx ports, 4 HDMI ports, 4 Stereo In/out ports Connector Type Female RJ45 connector, Female HDMI connector, Female 3.5mm stereo jack Supported Twisted Cable Type... -
Page 17: Pm-Fis4 (Fiber Input Board)
PureLink by Dtrovision Fiber Optical Input Board (PM-FIS4) Fiber Optical Input Board (PM-FIS4) Specifications Number of Port 4 Optical ports, 4 HDMI ports, 4 Stereo In/out ports Connector Type Female 2 LC connector, Female HDMI connector, Female 3.5mm stereo jack Mode Type Supports both single mode &... -
Page 18: Pm-Sis4 (3G/Hd-Sdi Input Board)
PureLink by Dtrovision 3G/HD-SDI Input Board (PM-SIS4) 3G/HD-SDI Input Board (PM-SIS4) Specifications Number of Port 4 3G/HD-SDI ports, 4 Stereo In/out ports Connector Type Female BNC connector, Female 3.5mm stereo jack Audio Extraction Via 3.5mm stereo Audio out ports Audio Insertion Via 3.5mm stereo Audio in ports... -
Page 19: Pm-Ais4 (Analog Vga/Component Input Board)
PureLink by Dtrovision VGA/Component Input Board (PM-AIS4) VGA Input Board (PM-AIS4) Specifications Number of Port 4 VGA ports, 4 Stereo Input ports Connector Type Female 15-pin D-Sub connector, Female 3.5mm stereo jack Signal Type RGBHV or YPbPr component Video Bandwidth... -
Page 20: Output Board Specifications
PureLink by Dtrovision 2.4 Output Boards Specification HDMI Output Board (PM-HOS4) HDMI Output Board (PM-HOS4) Specifications Number of Port 4 HDMI ports, 4 Stereo In/out ports Connector Type Female HDMI connector, Female 3.5mm stereo jack Signal Type RGB digital Video (DVI and HDMI standards) -
Page 21: Pm-Hos4S (Hdmi Output Board W/Scaling)
PureLink by Dtrovision HDMI Output Board with Scaling (PM-HOS4S) HDMI Output Board with Scaling (PM-HOS4S) Specifications Number of Port 4 HDMI ports Connector Type Female HDMI connector, Signal Type RGB digital Video (DVI and HDMI standards) YCrCb digital component Video (HDMI) -
Page 22: Pm-Dos4 (Dvi Output Board)
PureLink by Dtrovision DVI Output Board (PM-DOS4) DVI Output Board (PM-DOS4) Specifications Number of Port 4 DVI ports, 4 HDMI ports, 4 Stereo In/out ports Connector Type Female DVI connector, Female HDMI connector, Female 3.5mm stereo jack Signal Type RGB digital Video (DVI and HDMI standards) -
Page 23: Pm-Dos4S (Dvi Output Board W/Scaling)
PureLink by Dtrovision DVI Output Board with Scaling (PM-DOS4S) DVI Output Board with Scaling (PM-DOS4S) Specifications Number of Port 4 DVI ports Connector Type Female DVI connector, Signal Type RGB digital Video (DVI and HDMI standards) YCrCb digital component Video (HDMI) -
Page 24: Pm-Cos4 (Catx (Hdbaset) Output Board)
PureLink by Dtrovision CATx (HDBaseT) Output Board (PM-COS4) CATx (HDBaseT) Output Board (PM-COS4) Specifications Number of Port 4 CATx ports, 4 HDMI ports, 4 Stereo In/out ports Connector Type Female RJ45 connector, Female HDMI connector, Female 3.5mm stereo jack Supported Twisted Cable Type... -
Page 25: Pm-Fos4 (Fiber Output Board)
PureLink by Dtrovision Fiber Optical Output Board (PM-FOS4) Fiber Optical Output Board (PM-FOS4) Specifications Number of Port 4 Optical ports, 4 HDMI ports, 4 Stereo In/out ports Connector Type Female 2 LC connector, Female HDMI connector, Female 3.5mm stereo jack Mode Type Supports both single mode &... -
Page 26: Pm-Sos4 (3G/Hd-Sdi Output Board)
PureLink by Dtrovision 3G/HD-SDI Output Board (PM-SOS4) 3G/HD-SDI Output Board (PM-SOS4) Specifications Number of Port 4 3G/HD-SDI ports, 4 Stereo In/out ports Connector Type Female BNC connector, Female 3.5mm stereo jack Audio Insertion Via 3.5mm stereo Audio in ports Nominal Level 0.8 Vp-p ±10 %... -
Page 27: Pm Matrix Boards And Pm Extenders Compatibility Chart
PureLink by Dtrovision 2.5 PM Matrix Boards and PM Extenders Compatibility Chart Boards PM-CIS4 PM-FIS4 PM-COS4 PM-FOS4 Extenders PM-CT101 ● PM-CT102 ● PM-CT103 ● PM-CT101-D ● PM-CT102-D ● PM-CT101-RF6 ● PM-CT102-RF6 ● PM-CT101-RF6-D ● PM-CT102-RF6-D ● PM-FT101 ● PM-FT102 ●... - Page 28 PureLink by Dtrovision PM-FR101-RF6-D ● PM-FR102-RF6-D ● PM-CT101 : PM series HDMI over CATx (HDBaseT) Extender Transmitter, Stand alone type, HDMI Loop-Through, single 3.5mm Audio in, POE+, RS-232+, 330 ft PM-CT102 : PM series HDMI over CATx (HDBaseT) Extender Transmitter, Stand alone type, HDMI and VGA selectable Input, dual 3.5mm Audio in,...
- Page 29 PureLink by Dtrovision PM-FT101-D : PM series DVI over Fiber Optic Extender Transmitter, Stand alone type, HDMI Loop-Through, single 3.5mm Audio in, RS-232+, 6,600 ft PM-FT102-D : PM series DVI over Fiber Optic Extender Transmitter, Stand alone type, HDMI and VGA selectable Input, dual 3.5mm Audio in,...
- Page 30 PureLink by Dtrovision PM-CR102-RF6-D: PM series DVI over CATx (HDBaseT) Extender Receiver, RF6 Rack mountable type, Built-in Scaler, single 3.5mm Audio out, POE+, RS-232+, 330ft Note) Scaling Receiver (PM-CR102-RF6-D) does not support POE PM-FR101 : PM series HDMI over Fiber Optic Extender Receiver, Stand alone type, Single 3.5mm Audio out, RS-232+, 6,600 ft...
-
Page 31: Chapter 3. Installation
PureLink by Dtrovision Chapter 3. Installation 3.1 Package Contents The shipping group consists of the followings: 1 x PM series Matrix Router Main Frame ▶ Input / Output Boards (purchased separately) ▶ AC Power Cords ▶ 1 x RS-232C Cable (crossed type) ▶... -
Page 32: Installation
Installing and Removing Input and Output Board PM-8X has total 4 horizontal Board slots; 2 Input Board slots section on the top side and 2 Output Board slots section on the middle side, to configure maximum of 8 Inputs and 8 Outputs. -
Page 33: Installation And Setup
PureLink by Dtrovision PM-8X is designed to be mounted in a standard 19'' (48.26 cm) AV rack. It takes 3 RU rack space and it is recommended to have at least one empty rack unit space above and below of the Matrix Router to prevent overheating. -
Page 34: Cable Termination
PureLink by Dtrovision Note) For most of cases, PureLink's Auto EDID factory default setting will result in a satisfactory image on the display. It's almost plug-n-play system. There may be cases where additional adjustment is required, please refer to Auto-EDID management system section pg. 63 or contact PureLink technical support team for the assistance. - Page 35 PureLink by Dtrovision versus RS-422. DB9 cables are available with male-to-male, female-to-female, and male-to- female connectors. PM series Matrix Router's RS-232/422 port uses a male DB9 connector and therefore requires a cable with a female connector. RS-232 RS-422 Not used...
- Page 36 PureLink by Dtrovision Green/ White Green/ White Blue Blue Blue/ White Blue/ White Orange Orange Brown/ White Brown/ White Brown Brown Audio Cable Termination (for Audio Matrix Router) 5-pin Phoenix connector is used for Audio Matrix Router's Input/Output. Please ensure to follow the picture below for Audio cable termination before connecting the cable.
-
Page 37: Chapter 4. Operation
PureLink by Dtrovision Chapter 4. Operation PM series Matrix Router can be operated via three convenient methods; 1) Front panel LCD touch screen 2) RS-232/422C 3) LAN (TCP/IP) 4.1 Front Panel Button Operation Turn the power switch on Once all channel indicator lights are on, the first step is completed. - Page 38 PureLink by Dtrovision 10. Firmware Version 11. Factory Reset 1. EDID 1) Ext M.EDID Load 2) Ext S.EDID Load 3) Int M.EDID Load 4) Int S.EDID Load 1) Ext M.EDID Load & 2) Ext. S.EDID Load - This menu is to emulate EDID data from any display devices that are connected to the Matrix Router's Output via copper cables and save it on to Matrix Router's Input EEPROM.
- Page 39 PureLink by Dtrovision Select Output # Selected Output's display device's EDID information will be displayed Select empty slot on EDID library where selected EDID data will be saved on to. Push enter button to save. EDID status display: o Write OK : EDID save process was successfully completed o N.C : Not connected, when Output Board or monitor are not installed, or detected.
- Page 40 PureLink by Dtrovision 4. LAN - PM series Matrix Router can be controlled through the 10/100 base Ethernet port using a command line interface. There are four values that need to be set for LAN communication; IP address, Gateway address, Subnet mast, and Mac address. Please use below button indication to configure LAN settings;...
- Page 41 PureLink by Dtrovision Some of the configuration applies to certain Input Board type only. For example, HDMI Input Board does not need to configure Video because there are no choices to make. First select Input # that wishes to make a change on Input section and then configure setting using Create (UP) / Preview (Down) and Enter buttons.
- Page 42 PureLink by Dtrovision 9. Firmware Version Matrix Router’s firmware version can be checked using Up/Down buttons 10. Factory Reset Factory reset will put the general setting back to the factory default mode. Factory default setting value: RS-232 Baud rate: 19200 Bps IP Address: 192.168.000.002...
-
Page 43: Rs-232/422 Command Line Operation
This section is designed for programmers who wish to create their own control programs using the command code. All PureLink digital Matrix Routers provide a simple character stream control used by external control devices attached to a PureLink device. Command codes are used primarily for control, during system installation and setup, and for diagnostic purposes. -
Page 44: General Rules For Command Codes
PureLink by Dtrovision *255CI01O01! Ack value *255sC I01O01! Ex 2) Command (Check Input connection status on Output 3) *255?O03! Ack Value *255s? I03O03! General Rules for Command Codes The commands are coded in ASCII and HEXA. Please refer to Table 5.1 on pg.68 for detailed descriptions of keys and functions. - Page 45 PureLink by Dtrovision Function Description and Example Byte ASCII 0x2A Start the command Header Code 0x21 End the command Tail Code 0D0A Execute the command Execute the command Initiates a Connect (switch) 0x43 Connect* command for both Video and...
- Page 46 PureLink by Dtrovision numbers Input Video select Input Video select command; (M: HDMI/SDI, this must precede Input # and S: DVI/CATx, Fiber, Video selection specification A: Auto mode) Input Audio select Input Audio select command; (M: Embedded Audio, this must precede Input # and S: 3.5mm Stereo,...
- Page 47 PureLink by Dtrovision T04: 1280 x 720p T05: 1920 x 1080p P01: Color bars P02: Cross Hatch P03: 16 Gray P04: 256 Gray P05: 4 Color Gray Output channel information Output channel information request command : this must precede Output #...
-
Page 48: Command Acknowledge Value Response
PureLink by Dtrovision 0x6E command: - IP Setting *255NIP125.135.199.004! - Subnet Mask Setting *255NSM255.255.255.000! - Gate Way Setting *255NGW192.168.000.001! - MAC Address Setting *255NMA00.50.C2.B0.20.05! - Port Number Setting *255NPN3000! - Network Information *255NNI000! Router communication... -
Page 49: Connecting Switches
PureLink by Dtrovision Command Code Ack Value as appears in the Explanation of Result Entered control program The command was successfully *255CI01O01! *255sC I01O01! Executed The command was not executed *255CO01! Command Code Error because the Input number was not... - Page 50 PureLink by Dtrovision Input 01 (I001), Input 05 (I005), Output 01 (O001) and Output 100 (O100) Examples (Connect Video and Audio): Command Codes Action *255CI01O01! Connect both Video and Audio Input 1 to Output 1 *255CI01O08,I08O02! Connect both Video and Audio Input 1 to Output 8 and Input 8 to Output 2 *255CI01O01,I02O02,I03O03!...
-
Page 51: Disconnecting Switches
PureLink by Dtrovision 03O003! Input 3 to Output 3 *255VCI001O001,002,003! Connect Video Input 1 to Output 1, 2, and 3 *255VCI001O001-007! Connect Video Input 1 to Output 1, 2, 3, 4, 5, 6, and 7 Examples (Connect Audio only):... -
Page 52: Connection Status Check
PureLink by Dtrovision Enter the Disconnect command below. Replace the “#”s with the Input and Output number(s). *255DI#O#! Note) For PM-128X and PM-256X, input and output # uses three digit format, instead of two digits. For example; Input 01 (I001), Input 05 (I005), Output 01 (O001) and Output 100 (O100) -
Page 53: Input Board Function Configuration
PureLink by Dtrovision *255?I#! or *255?O#! Note) For PM-128X and PM-256X, input and output # uses three digit format, instead of two digits. For example; Input 01 (I001), Input 05 (I005), Output 01 (O001) and Output 100 (O100) Examples (Video status):... - Page 54 PureLink by Dtrovision Input 01 (I001), Input 05 (I005), Output 01 (O001) and Output 100 (O100) For example, the command code *255IVI01A,I02M,I03S! can be interpreted as follows: (*) Starting the command code (255) Router ID is 255 (IV) Input Video selection on (I01) Input 01 to (A) auto mode, (I02) Input 02 to (M) HDMI/SDI, (I03) Input 03 to (S) DVI/CATx/Fiber (!) take the command.
- Page 55 PureLink by Dtrovision Input Audio Source Select A: Auto, M: Embedded Audio, S: 3.5mm Stereo Audio (M) Embedded Audio refers to embedded Audio from the HDMI source or inserted Audio from Extender Transmitter for CATx and Fiber Input Boards (S) 3.5mm stereo Audio refers to inserted Audio from Input Board's 3.5mm stereo jack...
- Page 56 PureLink by Dtrovision For example, the command code *255IFI01! can be interpreted as follows: (*) Starting the command code (255) Router ID is 255 (IF) Input channel general information request on (I01) Input 01 (!) take the command. For a complete list of command characters and their functions, see examples below.
- Page 57 PureLink by Dtrovision The "IP" is an initiation command for sending command to the device that is connected to the Input Extender's rs-232/422 port. The characters and numbers that follow the "IP" command tell the system, send a command to the device through Input Extender.
-
Page 58: Output Board Function Configuration
#7 at 115200 bps baud rate IALL"pm " Send command (pm) to all open ports I02"purelink " Send command (purelink) to Input #2 I01-04"pm-256x " Send command (pm-256x) to Input #1 ~ 4 Output Board Function Configuration Output Board's Video and/or Audio function can be configured via command control. - Page 59 PureLink by Dtrovision A: Auto, M: Embedded Audio, S: 3.5mm Stereo Audio (M) Embedded Audio refers to embedded Audio from Input source side 3.5mm stereo Audio refers to inserted Audio from Output Board's 3.5mm stereo jack Note) For PM-128X and PM-256X, input and output # uses three digit format, instead of two digits.
- Page 60 PureLink by Dtrovision 3.5mm stereo Audio refers to inserted Audio from Output Board's 3.5mm stereo jack Example: Command Codes Action *255OSALLM! Set all CATx/Fiber Output Audio selection to embedded *255OSO01A,O02M,O03S! Set CATx/Fiber Output Audio on Output 1 (Auto), Output 2 (embedded), and Output 3 (3.5mm stereo Audio)
- Page 61 PureLink by Dtrovision *255OTO01-09T05P05! Set Output1~9 to 1920x1080p and 4 color gray test Pattern *255OTALLT00P00! Disable test pattern to all outputs OF: Output Channel Information Request The "OF" is an initiation command for Output channel general information request. The characters and numbers that follow the "OF"...
- Page 62 PureLink by Dtrovision 1080i (60Hz) SXGA (1280x1024@60Hz) Example: Command Codes Action *255OEO01T00! Set Output 1 Extender Scaler timing to Auto *255OEO02T11! Set Output 2 Extender Scaler timing to 1080p OP: Output Extender Command Transmission (Pass Through Mode) The "OP" is an initiation command for send command to the device that is connected to the Output Extender's rs-232/422 port.
- Page 63 Output #7 at 115200 baud rate OALL"pm " Send command (pm) to all open ports O02"purelink " Send command (purelink) to output #2 O01-04"pm-256x " Send command (pm-256x) to output #1 ~ 4 OH: 3G/HD-SDI Output Scaler timing select command The "OH"...
-
Page 64: Audio Matrix Volume Configuration
PureLink by Dtrovision AV: Output Audio Volume Setting (1.0dB Step Attenuation) The "AV" is an initiation command for Audio Matrix Router's Output Audio volume setting. The characters and numbers that follow the "AV" command tell the system, set Audio volume on desired Audio Matrix Router's Output. The last character “!” is found at the end of a command code which tells the system to execute the command. -
Page 65: Router Id Check
PureLink by Dtrovision can be interpreted as follows: (*) Starting the command code (255) Router ID is 255 (AF) request Audio volume information on (O01) Output 01(!) take the command. For a complete list of command characters and their functions, see examples below. -
Page 66: Network Configuration
PureLink by Dtrovision Example: Command Codes Action *255@001! Set baud rate at 19200 *255@002! Set baud rate at 38400 *255@003! Set baud rate at 57600 *255@004! Set baud rate at 115200 Network Configuration: User can check and set network configuration for LAN control. -
Page 67: Telnet Protocol With Lan (Tcp/Ip)
PureLink by Dtrovision The PM series Matrix Router can be controlled from remote locations through the LAN port using WINDOWS XP DOS prompts, hyper-terminal, or TELNET program (the control code is fully compliant with RS-232C). Enter TELNET <Router IP Address> in the DOS... -
Page 68: Http Protocol With Lan (Tcp/Ip)
PureLink by Dtrovision Control PC Search Searching data for channel configuration Character train should begin with “LCD.CGI” to “O01=I08” to Output 01 = Input 8. The sequence and size of the character train must be the same. To RESET the Protocol, a new connection to the server (Switcher) must be established. -
Page 69: Chapter 5. Additional Information
Confirm if PM series Matrix Router (USB serial port) is properly connected to the PC on PC's device manager section. 3. Create a hyper terminal connection (connect it using same com port number; COM1) Create a name (ex, PureLink) Bits per second: 115200bps ... - Page 70 PureLink by Dtrovision 4. Hyper terminal setting Go to file --> Properties setting --> ASCII setup...
- Page 71 PureLink by Dtrovision Check on "Echo typed characters locally" and then ok. 5. Type "program" and enter 6. Type "1" and enter...
- Page 72 PureLink by Dtrovision 7. Go to send (T) menu and then => send file Select Ymodem Protocol...
- Page 73 PureLink by Dtrovision 8. Select firmware file (.rom) and then, => Send (S) 9. Firmware update progress window Firmware update completion window => Once firmware update is completed, disconnect USB cable and power cycle the unit (OFF/ON) Set baud rate back to 19200...
-
Page 74: Warranty
PureLink by Dtrovision 5.2 Manufacturer’s Warranty (2-Year) Dtrovision warrants this PM series Matrix Router to be free from defects in workmanship and materials, under normal use and service, for a period of five (5) years parts for PM series Matrix Routers and its I/O Boards, and three (3) years on labor from the date of purchase from Dtrovision or its authorized resellers.
