Summary of Contents for PureLink MAX2 Series

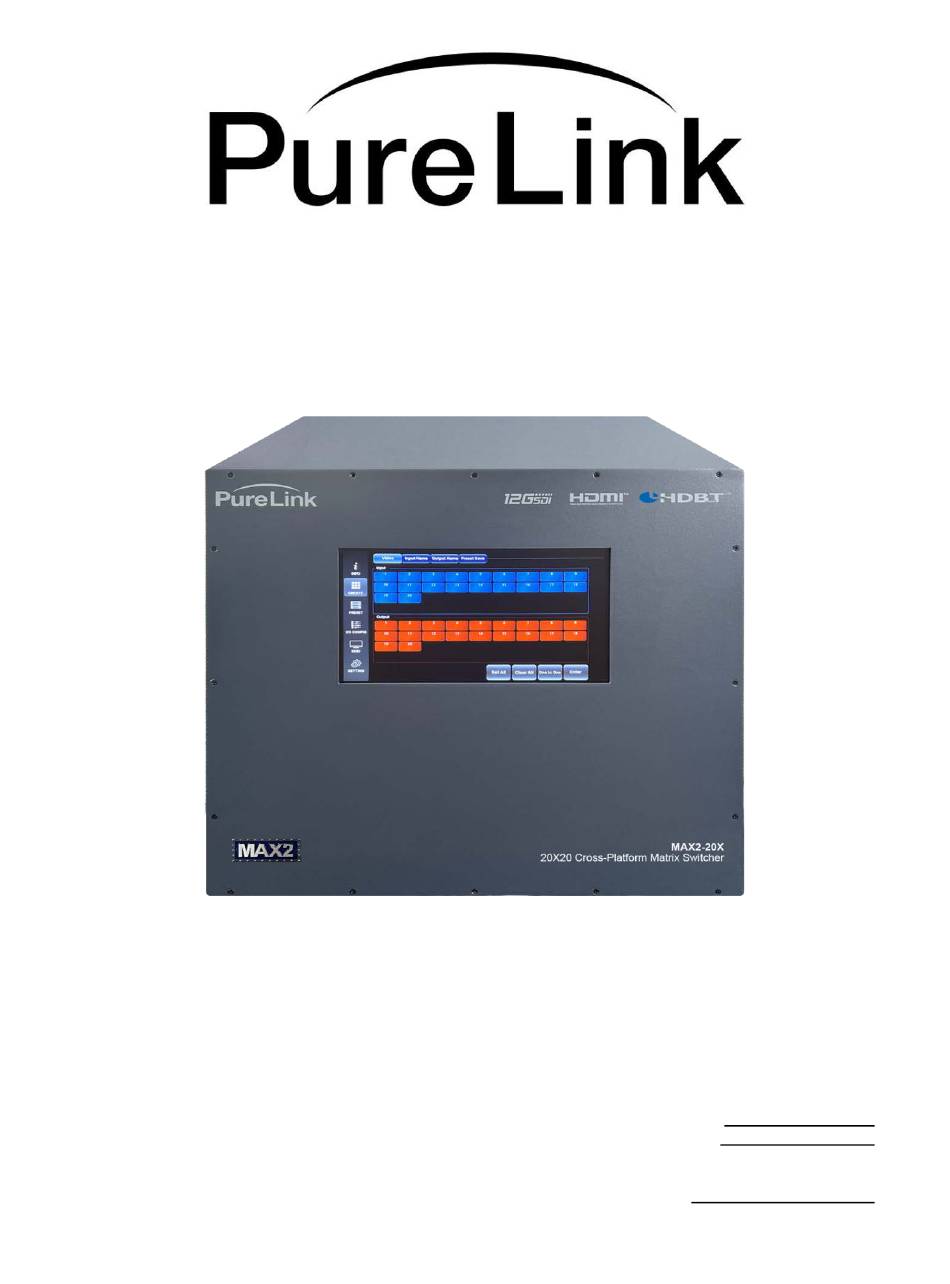

- Page 1 MAX2 4K60 Cross Platform Matrix Router Owner’s Manual PureLink 22-10 State Route 208 Fair Lawn, NJ 07410 Tel: 201.488.3232 Fax: 201.621.6118 Website : www.purelinkav.com E-mail : info@purelinkav.com For Technical Support, contact us at : support@purelinkav.com...
-
Page 2: Table Of Contents
MAX2 4K60 Cross Platform Matrix Router Contents Contents ..........................2 Introduction ........................ 4 Product Introduction ......................4 Front View: ......................... 6 Rear View: .......................... 7 Features and Specifications ..................8 Features ..........................8 Router Frame Specifications .................... 13 MAX2-12X ........................... 13 MAX2-20X ........................... - Page 3 MAX2 4K60 Cross Platform Matrix Router 1LC Fiber Transmitter - MAX2-FT100 ..................34 1 LC Fiber Wall plate transmitter - 1 Gang Wall Plate - MAX2-FT100-WP ....... 35 1LC Fiber Receiver - MAX2-FR100 ................... 36 POE Injector Specifications ....................37 POE Injector - MAX2-POE-PSU ....................
-
Page 4: Introduction
MAX2 4K60 Cross Platform Matrix Router Introduction Product Introduction The MAX2 series Matrix Router is a Cross-Platform Matrix Router providing connectivity and ability to convert multiple different digital signal types in a single system. PureLink's unique "Cross-Platform" feature makes the MAX2 the most flexible and simple solution for today's sophisticated digital AV environment. - Page 5 HDMI input is protected by HDCP, a 12G-SDI output card will not pass the signal. MAX2 series HDBaseT I/O Cards are used in conjunction with MAX2 HDBaseT Transceiver. MAX2 series Fiber Optic I/O Cards are used in conjunction with their relative MAX2 Fiber Transmitter or Receiver.
-

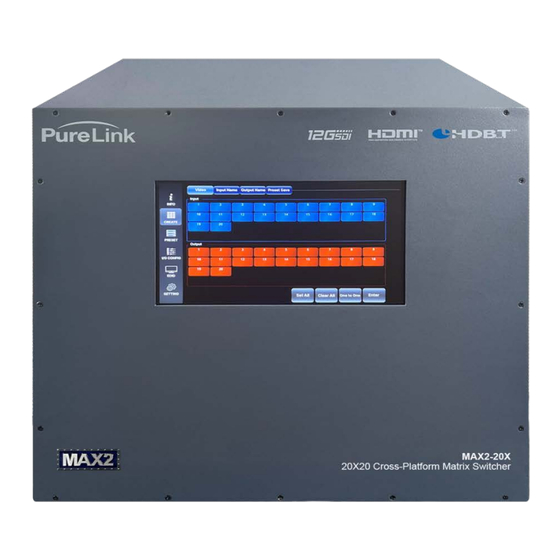

Page 6: Front View
MAX2 4K60 Cross Platform Matrix Router Front View: The MAX2 Matrix Router frame is mountable in a 19'' standard rack. The frame height varies with each model. The touch screen control panel allows you to set up and operate the MAX2. The touch panel can be locked to avoid unintended or unauthorized use. -
Page 7: Rear View
MAX2 4K60 Cross Platform Matrix Router Rear View: The input and output card section, MCU card (which includes communication ports and Dante™ ports, fan blade, and power supplies are found on the rear panel. Actual rear view will vary depending on the configuration of input and output cards that you choose to populate in the frame. -
Page 8: Features And Specifications
MAX2 4K60 Cross Platform Matrix Router Features and Specifications Features ▶ End to EndUltra HD / 4K MAX2 offers a complete solution of distribution and extension solutions for 4K60 connectivity that can be customized for any application. From 4K matrix switcher frames to 4K extenders, all with TOTALWIRE™... - Page 9 MAX2 4K60 Cross Platform Matrix Router ▶ Available in various I / O sizes from 12x12 to 288x288 MAX2 series Matrix Router offers an effective range of frames to match your applications. Seven frame sizes are available: o MAX2-12X (up to 12X12)
- Page 10 Full 4K60 bandwidth of 18Gbps for each signal ensures lossless High- Definition digital AV signal switching and distribution. ▶ Standard Redundant Power Every MAX2 series Matrix Router is equipped dual redundant power supply as standard ▶ LCD Touch-Screen Display w/ Security Lock-Out Every MAX2 frame includes a front panel LCD Touch Screen for intuitive set up, diagnostics, and operation.
- Page 11 MAX2 4K60 Cross Platform Matrix Router ▶ Modular, Field-upgradeable MAX2 is designed to expand, upgrade, and reconfigure in the field. Install or replace input and output cards, fan blade cards, and power supplies. ▶ Custom Programmable Matrix Presets Multiple matrix presets can be programmed and saved to memory. Your custom matrix presets can be recalled via the front panel control or API commands.
- Page 12 MAX2 4K60 Cross Platform Matrix Router ▶ Video Sync Detect Push Notification When a video signal is lost or found on an input port, MAX2 will automatically send an API command to advise the third-party controller. ▶ HDMIVideo Wall / Multi View HDMI outputs can be configured for either Video Wall or Multiview.
-
Page 13: Router Frame Specifications
MAX2 4K60 Cross Platform Matrix Router Router Frame Specifications MAX2-12X Maximum # of Input Card load (3) Three Available Input Card HDMI 2.0 MAX2-HIS100 DisplayPort 1.3 MAX2-DIS100 12G SDI MAX2-SIS100 HDBaseT 3.0 MAX2-HIS100 Fiber Optic 1LC MAX2-FIS100 Dante with HDMI outputs MAX2-AID100 Maximum # of Output Card load (3) Three... -
Page 14: Max2-20X
MAX2 4K60 Cross Platform Matrix Router MAX2-20X Maximum # of Input Card load (5) Five Available Input Card HDMI 2.0 MAX2-HIS100 DisplayPort 1.3 MAX2-DIS100 12G SDI MAX2-SIS100 HDBaseT 3.0 MAX2-HIS100 Fiber Optic 1LC MAX2-FIS100 Dante with HDMI inputs MAX2-AID100 Maximum # of Output Card load (5) Five Available Output Card HDMI 2.0... -
Page 15: Max2-36X
MAX2 4K60 Cross Platform Matrix Router MAX2-36X Maximum # of Input Card load (9) Nine Available Input Card HDMI 2.0 MAX2-HIS100 DisplayPort 1.3 MAX2-DIS100 12G SDI MAX2-SIS100 HDBaseT 3.0 MAX2-HIS100 Fiber Optic 1LC MAX2-FIS100 Dante with HDMI inputs MAX2-AID100 Maximum # of Output Card load (9) Nine Available Output Card HDMI 2.0... -
Page 16: Max2-72X
MAX2 4K60 Cross Platform Matrix Router MAX2-72X Maximum # of Input Card load (18) Eighteen Available Input Card HDMI 2.0 MAX2-HIS100 DisplayPort 1.3 MAX2-DIS100 12G SDI MAX2-SIS100 HDBaseT 3.0 MAX2-HIS100 Fiber Optic 1LC MAX2-FIS100 Dante with HDMI inputs MAX2-AID100 Maximum # of Output Card load (18) Eighteen Available Output Card HDMI 2.0... -
Page 17: Max2-144X
MAX2 4K60 Cross Platform Matrix Router MAX2-144X Maximum # of Input Card load (36) Thirty-six Available Input Card HDMI 2.0 MAX2-HIS100 DisplayPort 1.3 MAX2-DIS100 12G SDI MAX2-SIS100 HDBaseT 3.0 MAX2-HIS100 Fiber Optic 1LC MAX2-FIS100 Dante with HDMI inputs MAX2-AID100 Maximum # of Output Card load (36) Thirty-six Available Output Card HDMI 2.0... -
Page 18: Max2-216X
MAX2 4K60 Cross Platform Matrix Router MAX2-216X Maximum # of Input Card load (54) Fifty-four Available Input Card HDMI 2.0 MAX2-HIS100 DisplayPort 1.3 MAX2-DIS100 12G SDI MAX2-SIS100 HDBaseT 3.0 MAX2-HIS100 Fiber Optic 1LC MAX2-FIS100 Dante with HDMI inputs MAX2-AID100 Maximum # of Output Card load (54) Fifty-four Available Output Card HDMI 2.0... -
Page 19: Max2-288X
MAX2 4K60 Cross Platform Matrix Router MAX2-288X Maximum # of Input Card load (72) Seventy-two Available Input Card HDMI 2.0 MAX2-HIS100 DisplayPort 1.3 MAX2-DIS100 12G SDI MAX2-SIS100 HDBaseT 3.0 MAX2-HIS100 Fiber Optic 1LC MAX2-FIS100 Dante with HDMI inputs MAX2-AID100 Maximum # of Output Card load (72) Seventy-two Available Output Card HDMI 2.0... -
Page 20: Input Cards Specification
MAX2 4K60 Cross Platform Matrix Router Input Cards Specification HDMI Input Card - MAX2-HIS100 Number of Port 4 HDMI ports, 4 audio In/out ports Connector Type Female HDMI connector, Female phoenix stereo jack Signal Type RGB digital Video (DVI and HDMI standards) or YCbCr digital component Video (HDMI) Digital Audio Dolby Digital®... -
Page 21: Displayport Input Card - Max2-Dis100
MAX2 4K60 Cross Platform Matrix Router DisplayPort Input Card - MAX2-DIS100 Number of Port 4 DisplayPort ports, 4 audio In/out ports Connector Type Female HDMI connector, Female phoenix stereo jack Signal Type RGB digital Video (DVI and HDMI standards) or YCbCr digital component Video (HDMI) Digital Audio Dolby Digital®... -
Page 22: Hdbaset 3.0 Input Card - Max2-Cis100
MAX2 4K60 Cross Platform Matrix Router HDBaseT 3.0 Input Card - MAX2-CIS100 Number of Port 4 HDBaseT ports, 4 audio In/out ports Connector Type Female RJ45 connector, Female phoenix stereo jack Supported Twisted Cable Type CAT5/5e, CAT6/6e, CAT6a, CAT7 Digital Audio Supported when HDMI signal source used Audio Extraction Via phoenix stereo Audio out ports... -
Page 23: Fiber Optical Input Card - Max2-Fis100
MAX2 4K60 Cross Platform Matrix Router Fiber Optical Input Card - MAX2-FIS100 Number of Port 4 SFP+ Optical ports, prepopulated with SFP+ modules (multi-mode) 4 audio In/out ports Connector Type Female 1 LC connector, Female phoenix stereo jack Mode Type Supports both single mode &... -
Page 24: 12G-Sdi Input Card Max2-Sis100
MAX2 4K60 Cross Platform Matrix Router 12G-SDI Input Card MAX2-SIS100 Number of Port 4 12G-SDI ports, 4 audio In/out ports Connector Type Female BNC connector, Female phoenix stereo jack Audio Extraction Via phoenix stereo Audio out ports Audio Insertion Via phoenix stereo Audio in ports Nominal Level 0.8 Vp-p ±10 % Impedance... -
Page 25: Dante Audio Input Card Max2-Aid100
MAX2 4K60 Cross Platform Matrix Router Dante Audio Input Card MAX2-AID100 Number of Port 4 HDMI ports, 4 stereo audio, 2 dante ports Connector Type Female HDMI connector, Female RJ45 Female 3 pin phoenix connector Signal Type RGB digital Video (DVI and HDMI standards) or YCbCr digital component Video (HDMI) Digital Audio Up to 8ch LPCM... -
Page 26: Output Cards Specification
MAX2 4K60 Cross Platform Matrix Router Output Cards Specification HDMI Output Card - MAX2-HOS100 Number of Port 4 HDMI ports, 4 audio out ports Connector Type Female HDMI connector, Female phoenix stereo jack Signal Type RGB digital Video (DVI and HDMI standards) or YCbCr digital component Video (HDMI) Digital Audio Dolby Digital®... -
Page 27: Displayport Output Card - Max2-Dos100
MAX2 4K60 Cross Platform Matrix Router DisplayPort Output Card - MAX2-DOS100 Number of Port 4 DisplayPort ports, 4 audio out ports Connector Type Female HDMI connector, Female phoenix stereo jack Signal Type RGB digital Video (DVI and HDMI standards) or YCbCr digital component Video (HDMI) Digital Audio Dolby Digital®... -
Page 28: Hdbaset 3.0 Output Card - Max2-Cos100
MAX2 4K60 Cross Platform Matrix Router HDBaseT 3.0 Output Card - MAX2-COS100 Number of Port 4 HDBaseT ports, 4 Audio out ports Connector Type Female RJ45 connector, Female phoenix stereo jack Supported Twisted Cable Type CAT5/5e, CAT6/6e, CAT6a, CAT7 Digital Audio Supported when HDMI signal source used Audio Extraction Via phoenix stereo Audio out ports... -
Page 29: Fiber Optical Output Card - Max2-Fos100
MAX2 4K60 Cross Platform Matrix Router Fiber Optical Output Card - MAX2-FOS100 Number of Port 4 Optical ports, 4 Audio out ports Connector Type Female 1 LC connector, Female phoenix stereo jack Mode Type Supports both single mode &multi mode Digital Audio Supported when HDMI signal source used Audio Extraction... -
Page 30: 12G Sdi Output Card - Max2-Sos100
MAX2 4K60 Cross Platform Matrix Router 12G SDI Output Card - MAX2-SOS100 Number of Port 4 HDMI ports, 4 Audio out ports Connector Type Female SDI connector, Female phoenix stereo jack Signal Type RGB digital Video (DVI and HDMI standards) or YCbCr digital component Video (HDMI) Digital Audio Dolby Digital®... -
Page 31: Dante Audio Output Card - Max2-Aod100
MAX2 4K60 Cross Platform Matrix Router Dante Audio Output Card - MAX2-AOD100 Number of Port 4 HDMI ports, 2 Dante ports Connector Type Female HDMI connector, Female RJ45 Signal Type RGB digital Video (DVI and HDMI standards) or YCbCr digital component Video (HDMI) Digital Audio Up to 8ch LPCM Audio Insertion... -
Page 32: Extenders Specifications
MAX2 4K60 Cross Platform Matrix Router Extenders Specifications HDBaseT 3.0 Transceiver - MAX2-CTR100 Connector Types (1) HDBaseT port (1) Female HDMI port (1) 5-pin Phoenix for RS-232/Audio out Signal Type HDMI, HDBaseT w/Deep Color, 3D, & 4K Supported Twisted Cable Type CAT5/5e, CAT6/6e, CAT6a, CAT7 Digital Audio Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus,... -
Page 33: Hdbaset 3.0Wall Plate - 1 Gang Plate - Max2-Ct100-Wp
MAX2 4K60 Cross Platform Matrix Router HDBaseT 3.0Wall Plate - 1 Gang Plate - MAX2-CT100-WP Connector Types (1) HDBaseT port (1) Female HDMI port (1) Analog Audio port Signal Type HDMI, HDBaseT w/Deep Color, 3D, & 4K Supported Twisted Cable Type CAT5/5e, CAT6/6e, CAT6a, CAT7 Digital Audio Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus,... -
Page 34: 1Lc Fiber Transmitter - Max2-Ft100
MAX2 4K60 Cross Platform Matrix Router 1LC Fiber Transmitter - MAX2-FT100 Connector Types (1) 1LC Fiber input port (1) Female HDMI port (1) 3-pin Phoenix stereo audio for Extraction (1) 3-pin Phoenix for ES-232 Signal Type Fiber w/Adaptive Singlemode & Multimode processing Digital Audio Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby®... -
Page 35: Lc Fiber Wall Plate Transmitter - 1 Gang Wall Plate - Max2-Ft100-Wp
MAX2 4K60 Cross Platform Matrix Router 1 LC Fiber Wall plate transmitter - 1 Gang Wall Plate - MAX2-FT100-WP Connector Types (1) 1LC Fiber input port (1) Female HDMI port (1) Analog Audio port Signal Type Fiber w/Adaptive Singlemode & Multimode processing Digital Audio Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby®... -
Page 36: 1Lc Fiber Receiver - Max2-Fr100
MAX2 4K60 Cross Platform Matrix Router 1LC Fiber Receiver - MAX2-FR100 Connector Types (1) 1LC Fiber output port (1) Female HDMI port (1) 3-pin phoenix for audio extraction (1) 3-pin Phoenix for ES-232 Signal Type Fiber w/Adaptive Singlemode & Multimode processing Digital Audio Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby®... -
Page 37: Poe Injector Specifications
MAX2 4K60 Cross Platform Matrix Router POE Injector Specifications POE Injector - MAX2-POE-PSU Voltage Per output INPUT VOLTAGE RANGE 90 - 264 Vac; 127 - 350 Vdc NUMBER OF OUTPUTS UP TO 16 ( Module ) REGULATION ±2% RIPPLE 480mV MAX CONTINUOUS LOAD ( FREE AIR ) 8.3 A MAX PEAK LOAD ( FREE AIR ) - Page 38 MAX2 4K60 Cross Platform Matrix Router Application Diagram for MAX2-POE-PSU...
- Page 39 MAX2 4K60 Cross Platform Matrix Router HDBaseT 3.0 (MAX2-CIS100, MAX2COS100, MAX2-CTR100) Work distance Cable Type Bandwidth HDBaseT Max Video Distance Link rate Resolution 100m(straight) 450 < Mcsc < 16Gbps 4K 4:4:4 @60 70m(with patches) CAT6a (U/FTP) 100m(with <= 450 12Gbps 4K 4:2:0 @60 patches) 40m(straight)
-
Page 40: Installation
MAX2 4K60 Cross Platform Matrix Router Installation Package Contents The shipping group consists of the followings: ▶ 1 x MAX2 series Matrix Router MainFrame ▶ Input / Output Cards purchased separately ▶ AC Power Cords ▶ 1 x RS-232C Cable (crossed type) ▶... -
Page 41: Installing The Matrix Router In A Rack
MAX2 4K60 Cross Platform Matrix Router Install Card as follows. 1. Align the Card with metal guide rail. 2. Gently slide the Card into the frame until it connects to the main frame. 3. Tighten the top and bottom screw knobs (clockwise) to lock the Card to the main frame. -
Page 42: Installation And Setup
● Turn on the power of Matrix Router ● Turn on the power of source devices. Note) For most cases, PureLink's Auto EDID factory default setting will result in a satisfactory image on the display. It's almost a plug-n-play system. There may be cases where additional... -
Page 43: Cable Termination
MAX2 4K60 Cross Platform Matrix Router Cable Termination ● HDBaseT (HDBaseT) cable ● RS-232/422 cable (MAX2 Matrix) ● LAN cable ● Audio cable ● RS-232/422 cable (MAX2 Extenders) HDBaseT Cable Termination (for HDBaseT Input/Output Cards) PM series Matrix Router and Extenders are designed TIA/EIA-566-B Standard. Please ensure that each PIN layout of the cable corresponds with the picture below before connecting the cable. - Page 44 MAX2 4K60 Cross Platform Matrix Router 232/422 port uses a male DB9 connector and therefore requires a cable with a female connector. RS-232 RS-422 Not used Not used Rx-: Receive (-) Receive Tx-: Transmit (-) Transmit Not used Not used Ground Ground Not used...
-
Page 45: Operation
5. Info – Check system, input, and output status 6. I/O Configuration - Configure I/O options 7. Dante 1. Create MAX2 series Matrix Router is designed to create and switch. This section will guide users how to create/disconnect switching Video connections. 1.1) Video... - Page 46 MAX2 4K60 Cross Platform Matrix Router This section is to switch Video connection only. Select Input and Output numbers to route source signal to destination devices. EX) select 2->1 = input 2 is routed to output 1. 1.2) Channel info ●...
- Page 47 MAX2 4K60 Cross Platform Matrix Router 3) Input MAX2 Matrix Router has a built-in signal analyzing function which enables the user to check the detailed information of incoming and outgoing signals. ● It displays Input port number, Card type, firmware version, Status information, EDID information, incoming signal's resolution, Video format, and transmission status.
- Page 48 MAX2 4K60 Cross Platform Matrix Router 4) Output MAX2 Matrix Router has a built-in signal analyzing function which enables the user to check the detailed information of incoming and outgoing signals. ● It displays Output port number, Card type, firmware version, selected Input channel number, connected monitor's EDID information, incoming signal's resolution, Video format, and transmission status.
- Page 49 MAX2 4K60 Cross Platform Matrix Router Name Edit (video and audio) MAX2 matrix series allows you to change/edit names of both input and output devices. *Name Edit page for video Press the input to change/edit using the keypad shown as above (video)
- Page 50 Input #15 to Output #15, Input #16 to Output #16. Settings MAX2 series Matrix Router's communication setting can be configured using a front panel touch screen LCD not needing an external PC or device. This section will demonstrate how to set RS-232, LAN, and Product ID information.
- Page 51 MAX2 4K60 Cross Platform Matrix Router 1) RS232 There are four values that need to be set for serial communication; baud rate, data bits, stop bits, and parity. Click and select each value using the touch screen and push enter button to save. Factory default (recommended) settings for serial communication are: Baud rate - 19200 Data bits - 8...
- Page 52 MAX2 4K60 Cross Platform Matrix Router 2) LAN MAX2 series Matrix Router can be controlled through the 10/100 base Ethernet port using either GUI (graphic user interfaces) or a command line interface. The graphic user interfaces use a standard web browser such as Microsoft Internet Explorer.
- Page 53 MAX2 4K60 Cross Platform Matrix Router 3) Router ID By setting a different ID to the Matrix Router, up to 255 units of MAX2 series Matrix Router can be connected and operated in the same network either via serial or LAN communication. Router ID can be set between 001 ~ 255.
- Page 54 MAX2 4K60 Cross Platform Matrix Router 1) Preset Select Select preset # where you want to create, edit channel, edit name, delete, or recall preset.
- Page 55 MAX2 4K60 Cross Platform Matrix Router 2) Preset load Select preset # and then press the call button to recall pre-programmed preset settings. I/O Configuration On this I/O configuration menu, users can configure Input and Output Video settings.
- Page 56 MAX2 4K60 Cross Platform Matrix Router 1. Input audio You can configure Source audio or Analog audio ( Embedding/ De- embedding ) You can configure Dante audio ( Embedding/ De-embedding )
- Page 57 MAX2 4K60 Cross Platform Matrix Router 2. Output audio You can configure Source audio or Analog audio ( De-embedding ) You can configure dante audio ( De-embedding )
- Page 58 MAX2 4K60 Cross Platform Matrix Router 3. Output configuration Configuration on each output of Media Axis2 can be changed through the Output Config page.
- Page 59 MAX2 4K60 Cross Platform Matrix Router 4. Scaler out -For scaling output, you can set output resolution independently per output channel. -Select output # -> Output timing -> Enter -Multiple Outputs can be selected at once...
- Page 60 MAX2 4K60 Cross Platform Matrix Router 5. Multiview Configuration multiview on each output of Media Axis2 can be changed through the Output...
- Page 61 MAX2 4K60 Cross Platform Matrix Router 6. SDI Out scaler -For scaling output, you can set output resolution independently per output channel. -Select output # -> Output timing -> Enter -Multiple Outputs can be selected at once...
- Page 62 MAX2 4K60 Cross Platform Matrix Router EDID MAX Matrix Router provides Auto EDID management system; easy and fail-safe way to handle EDID, via EDID library system and EDID emulation. What's EDID? Extended Display Identification Data (EDID) is an information set that digital display provides to describe its capabilities to a Video source.
- Page 63 MAX2 4K60 Cross Platform Matrix Router Note) Certain EDID data may not be compatible with some devices, in this case, it is recommended to use scaling option 1) External EDID (Emulation) This menu is to emulate EDID data from any display devices that are connected to the Matrix Router's Output via copper cables and save it on to Matrix Router's Input EEPROM.
- Page 64 MAX2 4K60 Cross Platform Matrix Router 2) Internal EDID (EDID library) On this menu, select an EDID from the library and save it on to the Input EEPROM. MAX series Matrix Router has 14 selectable most widely used EDID data pre-programmed and 6 empty slots that can be used to upload and save EDID data from any external display device.
-
Page 65: Command Line Operation
Control Programmer’s Guide (Code Structure and Examples) This section is designed for programmers who wish to create their own control programs using the command code. All PureLink digital Matrix Routers provide a simple character stream control used by external control devices attached to a PureLink device. - Page 66 MAX2 4K60 Cross Platform Matrix Router Ex 2) Command (Check Input connection status on Output 3) *255?O03! Ack Value *255s? I03O03! General Rules for Command Codes The commands are coded in ASCII and HEXA. Please refer to Table 5.1 on pg.68 for detailed descriptions of keys and functions.
- Page 67 MAX2 4K60 Cross Platform Matrix Router The following table shows ack value response characters along with their descriptions and meanings, which may appear instead of the initially entered character or number. If these characters appear, all or part of the command has not been executed.
- Page 68 MAX2 4K60 Cross Platform Matrix Router *255CI002O001-005! 8 Connection input 2 to output 1~5 *255CI000O002!8 Disconnect output 2 ▪ Video Disconnecting Switches ☞ *255DI000Oxxx!+0x0D : Command code ☞ I000 : Disconnect input parameter • Oxxx : Output port number Examples (): Command Codes Action *255DI000O012! 8...
- Page 69 MAX2 4K60 Cross Platform Matrix Router ▪ Input Infoamtion Check Command : ☞ *255IFIxxx!+0x0D : Command code • Ixxx : Input number Examples (): Command Codes Action *255IFI001! 8 Input 1 infomation check *255IFI012! 8 Input 12 infomation check ▪ Input Audio Mode Setting Command : ☞...
- Page 70 MAX2 4K60 Cross Platform Matrix Router ▪ Input Test Pattern Command : ☞ *255ITIxxxMxx!+0x0D : Command code ☞ *255ITIxxx-xxxMxx!+0x0D : Command code ☞ *255ITIxxxIxxxMxx!+0x0D : Command code • Ixxx : Input number • Mxx : Test Pattern (M00 : OFF) Examples (): Command Codes Action...
- Page 71 MAX2 4K60 Cross Platform Matrix Router ☞ *255OAOxxx-xxxHxx!+0x0D : Command code ☞ *255OAOxxxOxxxOxxxHxx!+0x0D : Command code • Oxxx : Output port number • Hxx : HDMI Tx Audio Set (H00 : Source Audio , H01 : Dante Audio , H02 : Audio Mute) •...
- Page 72 MAX2 4K60 Cross Platform Matrix Router Examples) Wall mode off *255OWO001-009M00!+0x0D Examples) 2x2 wall(1,2,4,5) , 1x1(3,6,7,8,9) *255OWO001- 009M09H02V02O001O002O004O005H01V01O003O006O007O008O009!+0 Examples) 3x3 wall(1,2,3,4,5,6,7,8,9) *255OWO001- 009M09H03V03O001O002O003O004O005O006O007O008O009!+0x0D Examples) 2x2 wall(1,2,3,4) *255OWO001-004M09H02V02O001O002O003O004!+0x0D Examples) 1x1 wall(1,2,3,4) *255OWO001-004M09H01V01O001O002O003O004!+0x0D ▪ Output Port Wall Switching Command: ☞ *255OWIxxxOxxxOxxxOxxxOxxx!+0x0D : Command code •...
- Page 73 MAX2 4K60 Cross Platform Matrix Router • V xx : Vertical bezel Examples (): Command Codes Action *255OBO001H01V01! 8 Output 1Horizontal bezel 1, Vertical bezel 1 *255OBO001-009H02V02! 8 Output 1-9 Horizontal bezel 2, Vertical bezel 2 *255OBO001O004H02V02!8 Output 1 and 4 Horizontal bezel 2, Vertical bezel 2 ▪...
- Page 74 MAX2 4K60 Cross Platform Matrix Router Examples (): Command Codes Action *255OQO001M13L05! 8 Set the quadview output 1~4 (Timing 3840x2160@59) ▪ Output Port Scaler Timing Setting Command ☞ *255OSOxxxHxx!+0x0D : Command code ☞ *255OSOxxx-xxxHxx!+0x0D : Command code ☞ *255OSOxxxOxxxOxxxHxx!+0x0D : Command code •...
- Page 75 MAX2 4K60 Cross Platform Matrix Router S10: 1920x1080p@60 S11: 3840x2160p@29 S12: 3840x2160p@50 S13: 3840x2160p@59 S14: 3840x2160p@60 S15: 1024x768p@60 S16: 1280x1024p@60 S17: 1920x1200p@60 Examples (): Command Codes Action *255OSO001H01! 8 Output 1 HDMI scaler 720x480p@60 *255OSO001-004H02! 8 Output 1-4 HDMI scaler 720x576p@50 *255OSO001O004H05!8 Output 1,4 HDMI scaler 1280x720p@59...
- Page 76 MAX2 4K60 Cross Platform Matrix Router ▪ Output Graphic Setting Command ☞ *255OGOxxxBxxx!+0x0D : Command code ☞ *255OGOxxx-xxxSxxx!+0x0D : Command code ☞ *255OGOxxxOxxxSxxx!+0x0D : Command code • Oxxx : Output port number • Bxxx : Brightness Set (0~255 , Default : 128) •...
- Page 77 MAX2 4K60 Cross Platform Matrix Router ☞ *255OPCOxxx-xxx!+0x0D : Port Close Command code • Oxxx : Output port number [O000 : All output] ☞ *255OPOxxx"xxxxxx"!+0x0D : Data Stream Command code • Oxxx : Output port number [O000 : All output] Examples (): Command Codes Action...
- Page 78 MAX2 4K60 Cross Platform Matrix Router • Dxxx : (1~255) ▪ System Lock Setting Command ☞ *255SLDxx!+0x0D : Command code • D00 : All Unlock • D01 : RS232 LAN Setting + Touch Setting Menu locked • D01 : RS232 LAN Setting + Touch Create,Preset,I/O Config , Setting locked ▪...
- Page 79 MAX2 4K60 Cross Platform Matrix Router 4.1 LAN (TCP/IP) Operation TELNET Protocol with LAN(TCP/IP) The MAX series Matrix Router can be controlled from remote locations through the LAN port using WINDOWS XP DOS prompts, hyper-terminal, or TELNET program (the control code is fully compliant with RS-232C).
- Page 80 MAX2 4K60 Cross Platform Matrix Router Router ID verification command code Send “ *999I000! ” Router will send response: “ *255sI Router ID 255” HTTP Protocol with LAN(TCP/IP) Control PC Search Searching data for channel configuration Character train should begin with “LCD.CGI” to “O01=I08” to Output 01 = Input 8.
-
Page 81: Additional Information
MAX2 4K60 Cross Platform Matrix Router Additional Information Firmware Update Instruction 1. Set MAX2 series Matrix Router's baud rate to 115200bps using front panel LCD touch screen or control command. (Data bits : 8bit, Stop bits : 1bit, Parity : disable) 2. - Page 82 MAX2 4K60 Cross Platform Matrix Router 4. Hyper terminal setting Go to file --> Properties setting --> ASCII setup...
- Page 83 MAX2 4K60 Cross Platform Matrix Router Check on "Echo typed characters locally" and then ok. 5. Type "program" and enter 6. Type "1" and enter...
- Page 84 MAX2 4K60 Cross Platform Matrix Router 7. Go to send (T) menu and then => send file Select Ymodem Protocol 8. Select firmware file (.rom) and then, => Send (S)
- Page 85 MAX2 4K60 Cross Platform Matrix Router 9. Firmware update progress window Firmware update completion window => Once firmware update is completed, disconnect USB cable and power cycle the unit (OFF/ON) Set baud rate back to 19200...
-
Page 86: Manufacturer's Warranty (5-Year)
(5) years parts for MAX2 series Matrix Routers and its I/O Cards, and three (3) years on labor from the date of purchase from Dtrovision or its authorized resellers. - Page 87 MAX2 4K60 Cross Platform Matrix Router Revision History first manual release...
