Summary of Contents for Audicus Dia
- Page 1 Instruction Manual...
- Page 3 Thank you for choosing Audicus! We are excited for you to experience our hearing aids. If you have any questions, feel free to contact us at 888-979-6918 or help@audicus.com.
-
Page 4: Table Of Contents
Contents Introduction 5 Cleaning Overview 6 Maintenance and Use What’s Inside 7 Technical Information Batteries 9 Returns and Warranty On/Off 14 Serial Identification Standby Mode 15 FDA Information Wearing the Hearing Aid 16 Warnings and Side Effects Memory Programs 24 Contact Us... -
Page 5: Introduction

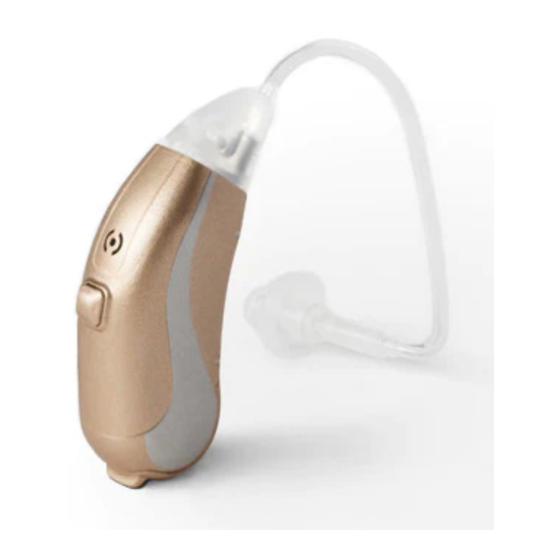

4. Sleek, award-winning design 5. Comfortable, adjustable fit The Dia is programmed based on your personal hearing loss and customized with four memory programs. In addition, its auto-adapt feature allows it to automatically acclimate to your hearing environment. With the optional... -
Page 6: Overview
Overview Tube Push Button Dome Retention Battery Guard Compartment... -
Page 7: What's Inside
What’s Inside? Clam Shell (Opened) Hearing Aid Clam Shell (Closed) - Page 8 What’s Inside? Instruction Manual Manual Size 312 Batteries Ear Domes Cleaning Wire and Brush...
-
Page 9: Batteries
Batteries Battery Compartment The battery compartment is located at the back of the hearing aid, as indi- cated below. Gently pull the tab on the battery door until it opens. Inserting the Battery 1. Open the battery compartment. When opening and closing the battery door you should never have to exert force. - Page 10 Batteries Inserting the Battery Place battery 2. The Dia uses size 312 batteries, which can last up to 200 hours. into battery compartment, with the sticker facing up.
- Page 11 Batteries Inserting the Battery 3. Peel off the sticker from the new battery. This activates the battery. Please wait a few minutes for battery to develop full output. Peel off the Sticker Peel off the sticker...
-
Page 12: Low Battery Warning
Batteries Inserting the Battery Battery Use 4. Close the battery compartment When you are not using your completely. Your hearing aid hearing aid (e.g. when you go to should now be switched ON. sleep) we recommend opening the battery compartment completely to preserve battery power. - Page 13 Batteries Battery Safety Batteries contain harmful substances • Keep batteries away from sources that pollute the environment: of high temperature. • Do not dispose of batteries in • Keep batteries away from household trash. children and pets. • Dispose of batteries according to •...
-
Page 14: On/Off
On/Off Switching Your Hearing aid ON / OFF The Dia can be switched “ON” “On” or “OFF” through its battery compartment. When the battery door is closed, the hearing aid is switched “ON.” When the battery door is fully open, the hearing aid is “OFF.”... -
Page 15: Standby Mode
Standby Mode Standby Mode The standby mode is another way of deactivating your hearing aid. Just press the push button for more than four seconds until the hearing aid goes into standby. To re-activate the hearing aid, simply hold the push button for more than four seconds. -
Page 16: Wearing The Hearing Aid
Wearing the Hearing Aid The Dia can be inserted in 3 easy steps: 1. Place the hearing aid over the top of your ear, so that the hard casing is behind your ear and the tube is in front. - Page 17 Wearing the Hearing Aid 2. Push the ear dome into your ear until it sits comfortably in the canal and the tube lies flat against the side of your head. The ear dome should be just inside the ear canal. You should not see it if placed correctly.
- Page 18 Wearing the Hearing Aid 3. Place the retention guard of the tube into the bowl of your outer ear. If the retention guard is too long, trim off enough of the tail so that it remains in your earbowl, in place. The retention guard provides stability. The retention guard can be shaped to your bowl by bending the tail.
- Page 19 Always wear the tube with the ear dome fully attached. Do not use broken ear domes. If an ear dome becomes lodged in your ear, contact a medical professional for removal. If you feel physical discomfort or experience irritation, contact Audicus and/or a hearing professional.
- Page 20 At some point you will have to replace the tubes and ear domes of your hearing aid. Replacement varies by user, but typically you should replace them every 2-3 months. You can purchase replacement tubes and ear domes from www.audicus.com.
- Page 21 Wearing the Hearing Aid To Remove the Ear Dome: To remove the ear dome, pull it off the tube. The ear dome is elastic; it may slightly stretch when removed, but should return to its original shape. Gently Pull Pull with some force Flip the dome Pinch where dome meets the end of...
- Page 22 Wearing the Hearing Aid To Attach the Ear Dome: Place a new ear dome on the tube by pressing it over the ribbed end portion of the tube. Make sure that the ear dome is securely fastened onto the tube. You should be able to tug it slightly without removing it.
- Page 23 Wearing the Hearing Aid To Remove/Attach Tube: Unscrew the old tube from your hearing aid by rotating the tube counterclockwise. To attach the tube, rotate it in clockwise. Twist the tube counterclockwise...
-
Page 24: Memory Programs
Memory Programs The Dia comes with 4 memory programs for different listening environments. These can be selected by pressing the button on the hearing aid or with the optional remote control: Program 1 Normal situations Program 2 Normal situations + 1 volume... -
Page 25: Cleaning
Cleaning Accumulated earwax in the tube and ear dome will block sound. We highly recommend cleaning the ear dome and tube regularly to prevent damage and health problems. Unscrew the tube from the hearing aid, then clean the tube and ear dome on the outside with a dry cloth. - Page 26 Ear domes and tubes should be replaced every 2-3 months due to regular wear and tear. Clean using the Brush Wipe using a Cloth Never use ear domes worn by someone else or if dirty, torn, or disfigured. Only use original ear domes and tubes provided by Audicus.
-
Page 27: Maintenance And Use
Maintenance and Use If the hearing aid becomes wet, remove the battery and ensure the Your Dia is a very durable hearing hearing aid is dry before using it aid, if handled with care. Therefore, again. be particularly careful in the... - Page 28 Maintenance and Use Temperature Storage Keep your hearing aid away from Always remove the battery from sources of high temperature at all the hearing aid when not in use for times. extended periods. Always store your hearing hearing Keep it away from fires, stoves, aid in its case, in a clean and dry heating systems, boilers, or other environment.
- Page 29 Maintenance and Use Other Do not allow others to use your Do not place your hearing aid in the instrument. microwave. Do not wear a hearing aid when In some countries, restrictions on conducting an X-ray or MRI scan or the use of wireless equipment may exposed to strong magnetic field, apply;...
-
Page 30: Technical Information
Technical Information The Dia is manufactured by Hansaton Akustik GmbH Germany and distributed in USA by Audicus. FCC-ID: WU7-WL002BTE Operating frequencies: Fc = 3.28 MHz Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. -
Page 31: Returns And Warranty
Returns and Warranty The Audicus 100% Happiness Guarantee If for any reason you are not satisfied with your Audicus hearing aid, you may return it within 45 days after ship date for a full refund of the original purchase price. -
Page 32: Serial Identification
Serial Identification Where to locate serial number: You can find your serial number inside the hearing aid. If you open the battery door, you will see a series of numbers. 00000 The serial number usually begins with two alphabetical letters, e.g. PF00459. -
Page 33: Fda Information
FDA Information Use your hearing aid all day long The best way to ensure better hearing is to practice listening with your hearing aids until you are able to wear them comfortably all day. Generally, infrequent use of the hearing aid does not provide you with the full benefit of amplification. - Page 34 FDA Information Warning to Hearing Care Professionals (continued): (i) Visible congenital or traumatic deformity of the ear. (ii) History of active drainage from the ear within the previous 90 days. (iii) History of sudden or rapidly progressive hearing loss within the previous 90 days. (iv) Acute or chronic dizziness.
- Page 35 FDA Information If you have reservations about your ability to adapt to amplification, you should inquire about the availability of a trial-rental or purchase-option program. Many hearing care professionals now offer programs that permit you to wear a hearing aid for a period of time for a nominal fee after which you may decide if you want to purchase the hearing aid.
-
Page 36: Warnings And Side Effects
Audicus so that they can be synchronized. The performance of Bi-com/i-com 2(the coupling technology) may be affected by electromagnetic interference, e.g. from a computer monitor or halogen lamp system controlled by a switching power supply. - Page 37 Warnings and Side Effects Other Warnings Audicus hearing aids are intended to improve the Hearing aids should be used only as directed and hearing of the hearing impaired persons. Diagno- adjusted by your trained hearing aid professional. sis of hearing loss and prescription of hearing aid must be performed by a hearing health specialitst A hearing aid may stop functioning, e.g.
-
Page 38: Contact Us
Contact Us Audicus, Inc. 134 West 29th St, 5th Fl New York, NY 10001 Tel: 888 979 6918 Email: help@audicus.com www.audicus.com...
