- Page 1 Instruction Manual...
- Page 2 Thank you for choosing Audicus! We are excited for you to experience our hearing aids. If you have any questions, feel free to contact us at 888-979-6918 or help@audicus.com.
-
Page 3: Table Of Contents
Contents Introduction 6 Wax Guard System Overview 7 Maintenance and Use What’s Inside 8 Returns and Warranty Batteries 10 Technical Information On/Off 15 FDA Information Wearing the Hearing Aid 16 Warnings and Side Effects Domes 19 Contact Us Cleaning... -
Page 4: Introduction

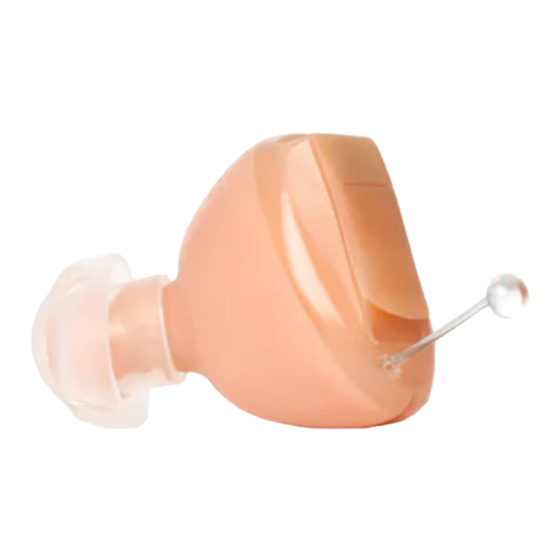

The Uno is equipped with one memory program, customized to your hearing loss. The Uno is practically invisible, as it sits deep in the ear canal. It provides excellent sound quality, and it is comfortable to wear all day long. -
Page 5: Overview
Overview Sound Nozzle Battery Compartment Dome Serial Extraction Extension Number cord Cord... -
Page 6: What's Inside
What’s Inside? Clam Shell (Opened) Hearing Aid Clam Shell (Closed) Domes... - Page 7 What’s Inside? Manual ( Magnetic end for extracting batteries) Instruction Manual Size 10 Batteries Cleaning Brush Earwax Guard Wheel and Insertion tool...
-
Page 8: Batteries
Batteries Inserting the Battery The Uno uses size 10 zinc batteries. 1. Place the battery into the battery compartment, with the sticker facing up. - Page 9 Batteries Inserting the Battery 2. Peel the sticker off the new battery. The “+” sign should be visible on the battery. This activates the battery.
-
Page 10: Low Battery Warning
Batteries Inserting the Battery Battery Use 3. Close the battery compartment When you are not using your device completely. Your device should (e.g. when you go to sleep) we now be switched ON. recommend opening the battery compartment completely to preserve battery power. -
Page 11: Removing The Battery
Batteries Removing the Battery To remove the battery, gently open the battery door with your fingernail. Remove the old battery. You may use the magnetic end of the Cleaning Brush to extract the battery. - Page 12 Batteries Battery Safety Batteries contain harmful substances that pollute the environment: • Keep batteries away from sources • Do not dispose of batteries in of high temperature. household trash. • Keep batteries away from • Dispose of batteries according to children and pets.
-
Page 13: On/Off
On/Off Switching Your Device ON / OFF The Uno can be switched “ON” or “OFF” through its battery compartment. When the battery “On” door is closed, the device is switched “ON.” When the battery door is fully open, the device is “OFF.”... -
Page 14: Wearing The Hearing Aid
Wearing the Hearing Aid Inserting the Device 1. Place the Uno between your thumb and index finger. The side containing the serial number should face in the direction of the front of your face. Right Ear Red: Blue Left Ear Right Ear 2. - Page 15 Wearing the Hearing Aid If you have trouble inserting the hearing aid, please contact us at (888) 979-6918 for assistance.
- Page 16 Do not use broken domes. If a dome becomes lodged in your ear, contact a medical professional for removal. If you feel physical discomfort or experience irritation, contact Audicus and/or a hearing professional.
-
Page 17: Domes
Domes Domes There are six domes included with your Uno order, propeller and mushroom domes in small, medium and large. Other sizes and shapes are available upon request. A medium-sized mushroom dome is already installed on the hearing aid when you receive it. If after properly inserting the aid in your ear you experience whistling/feedback, then the dome is too loose and must be changed to a larger size. - Page 18 Domes To Remove the Domes: After continued use the dome might wear out and need to be replaced. At that time, remove it by pulling it off and placing a new dome onto the device.
- Page 19 Domes To Attach the Domes: Make sure the dome is properly covering the sound nozzle.
-
Page 20: Cleaning
Cleaning Cleaning Cleaning your instrument regularly with the brush or a dry soft cloth will significantly prolong the life of the device. Do not allow liquid to enter any openings on the instruments. Inspect the sound nozzle portion of the hearing aid for any wax buildup and be careful not to push wax into the opening. -
Page 21: Wax Guard System
Wax Guard System Wax Guard System Your Uno hearing aid comes with a Wax Guard System for replacing the Wax Guard. Left Right Wax Guard Insertion Tool Wheel & Insertion Tool Spiral End Plastic End... - Page 22 Wax Guard System For proper functioning of the hearing aid, make sure the Wax Guard remains clean and un-obstructed by using the enclosed brush. You will occasionally have to change the Wax Guard when the hearing instrument appears to be dead or weak. Wax Guard Front View Side View...
- Page 23 Wax Guard System To Remove the Wax Cover 1. Insert the spiral end (A) of the insertion tool into the used Wax Guard as shown in the illustration. Screw the spiral end ~6 times to fasten. Used Wax Guard Side View...
- Page 24 Wax Guard System To Remove the Wax Guard 2. Pull the used Wax Guard out of the hearing aid. 3. Eject the used Wax Guard into the center of the Wax Guard Wheel.
- Page 25 Wax Guard System To Install a new Wax Guard 1. Remove new Wax Guard from the dial-pack using the plastic end (B) of the insertion tool that is provided.
- Page 26 Wax Guard System To Install a New Wax Guard 2. Insert the new 3. Tilt the tool to leave 4. Pull the insertion Wax Guard into the the new Wax Guard tool away from the hearing aid end. inside the hearing hearing instrument, aid end.
-
Page 27: Maintenance And Use
Maintenance and Use Your Uno is a very durable device, If the device becomes wet, remove if handled with care. Therefore, be the battery and ensure the device is particularly careful in the following dry before using it again. everyday circumstances:... - Page 28 Maintenance and Use Temperature Storage Keep your hearing aid away from Always remove the battery from the sources of high temperature at all device when not in use for extended times. periods. Keep it away from fires, stoves, Always store your hearing aid in its heating systems, boilers or other case, in a clean and dry environment.
- Page 29 Maintenance and Use Other Do not place your hearing system in Do not allow others to use your the microwave. instrument. In some countries, restrictions on Do not wear a hearing aid when the use of wireless equipment may conducting an X-ray or MRI scan or apply;...
-
Page 30: Returns And Warranty
Returns and Warranty The Audicus 100% Happiness Guarantee If for any reason you are not satisfied with your Audicus hearing aid, you may return it within 45 days after ship date for a full refund of the original purchase price. - Page 31 Serial Identification Where to locate serial number: You can find your serial number on the surface of the hearing aid. The serial number is 7 digits long. Serial Number...
-
Page 32: Technical Information
Technical Information The Uno is manufactured by Hansaton Akustik GmbH Germany and distributed in USA by Audicus. FCC-ID: WU7-WL002BTE Operating frequencies: Fc = 3.28 MHz Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. -
Page 33: Fda Information
FDA Information Use your hearing aids all day long The best way to ensure better hearing is to practice listening with your hearing aids until you are able to wear them comfortably all day. Generally, infrequent use of the hearing aid does not provide you with the full benefit of amplification. - Page 34 FDA Information Warning to Hearing Care Professionals (continued): (i) Visible congenital or traumatic deformity of the ear. (ii) History of active drainage from the ear within the previous 90 days. (iii) History of sudden or rapidly progressive hearing loss within the previous 90 days. (iv) Acute or chronic dizziness.
- Page 35 FDA Information If you have reservations about your ability to adapt to amplification, you should inquire about the availability of a trial-rental or purchase-option program. Many hearing care professionals now offer programs that permit you to wear a hearing aid for a period of time for a nominal fee after which you may decide if you want to purchase the hearing aid.
-
Page 36: Warnings And Side Effects
Warnings and Side Effects Magnets Magnets may interfere with medical devices (e.g. pacemakers and magnetic valves). Use magnet only if confident of safe distance, e.g. 4 in. (10 cm) of pacemaker. Keep magnets away from children; if swallowed seek medical attention immediately. Magnets can disturb electrical devices and delete stored data. - Page 37 Warnings and Side Effects Other Warnings Keep hearing systems out of the reach of children, Audicus hearing aids are intended to improve pets, and individuals with diminished mental the hearing of the hearing impaired persons. capacity. Diagnosis of hearing loss and prescription of...
-
Page 38: Contact Us
Contact Us Audicus, Inc. 134 West 29th St, 5th Fl New York, NY 10001 Tel: 888 979 6918 Email: help@audicus.com www.audicus.com...
