D.T.S. Illuminazione s.r.l.
Via Fagnano Selve 10/12/14
47843 Misano Adriatico (RN) ITALIA Tel +39 0541 611131 Fax +39 0541 611111
info@dts-lighting.it
http://www.dts-lighting.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DTS EVO

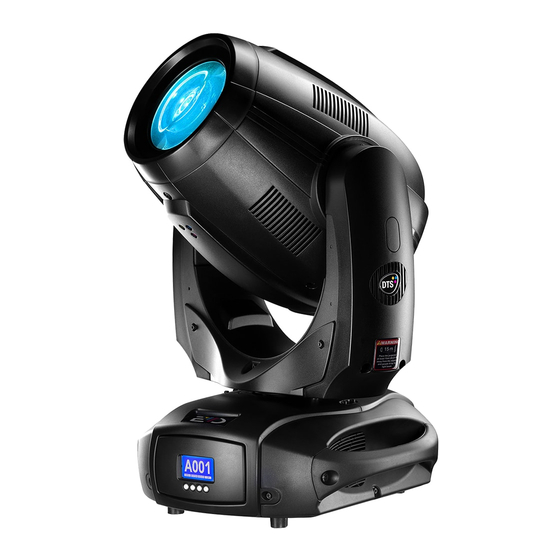

Summary of Contents for DTS EVO

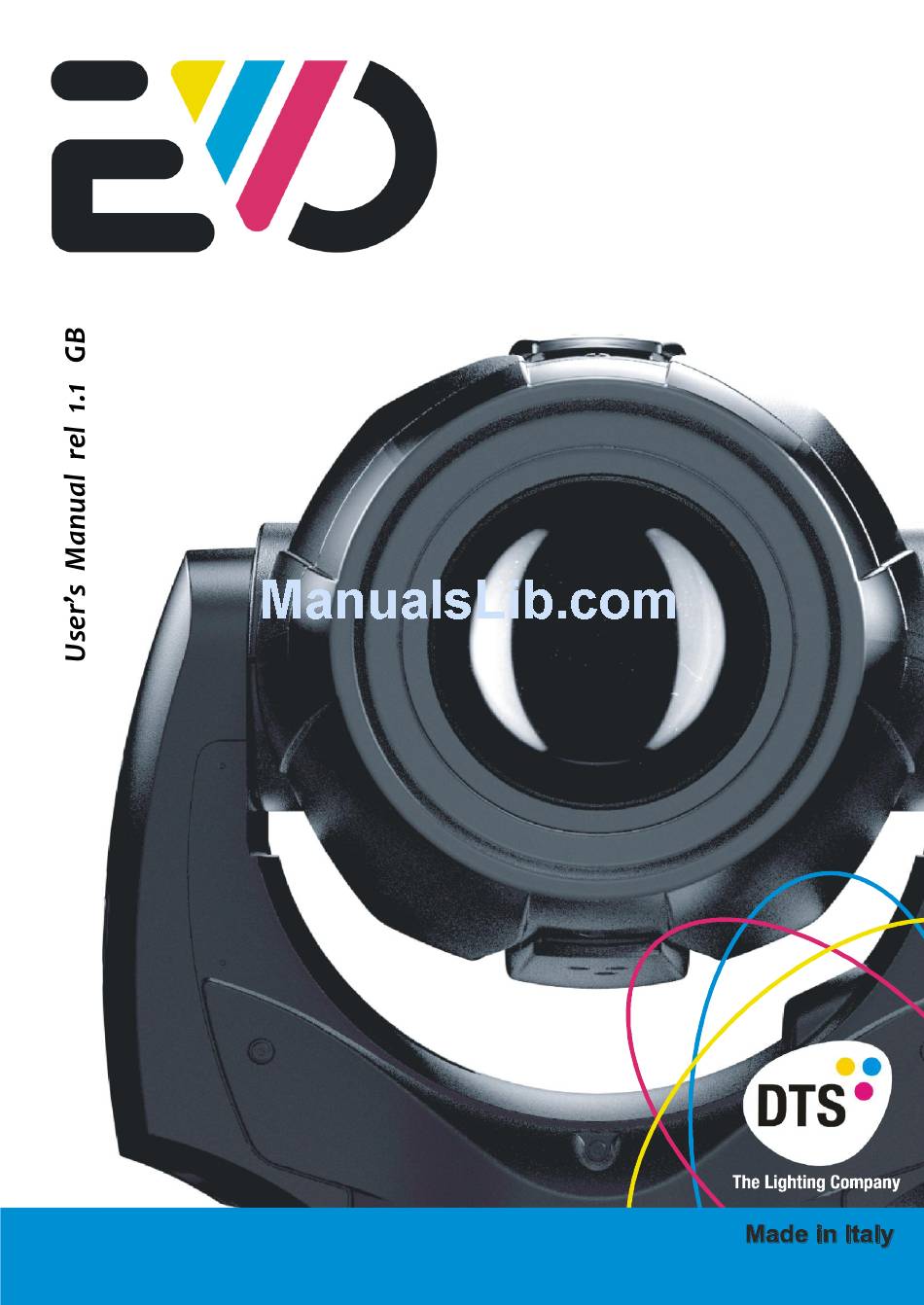

  • Page 1 D.T.S. Illuminazione s.r.l. Via Fagnano Selve 10/12/14 47843 Misano Adriatico (RN) ITALIA Tel +39 0541 611131 Fax +39 0541 611111 info@dts-lighting.it http://www.dts-lighting.it...
  • Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.

  • Page 3: Table Of Contents

    INDEX: 1 - SYMBOLS ........................ 4 2 - GENERAL WARNING ..................... 5 3 - GENERAL WARRANTY CONDITIONS ..............5 4 - TECHNICAL FEATURES ..................6 5 - ACCESSORIES ....................... 8 6 - IMPORTANT SAFETY INFORMATION ..............9 6.1 Fire prevention...................... 9 6.2 Prevention of electric shock ..................

  • Page 4: Symbols

    1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL MEANS “YOU CAN PLACE THE UNIT ON NORMALLY FLAMMABLE SURFACES” THIS SYMBOL MEANS “RADIATION FROM LAMP CAN CAUSE DAMAGE TO EYES AND SKIN”...

  • Page 5: General Warning

    2- GENERAL WARNING Read the instruction contained in this user manual carefully, as they give important information regarding safety during installation, use and maintenance. The unit is not for residential use and must be installed by a qualified electrician or experienced person.

  • Page 6: Technical Features

    Beam and a true Spot in a single unit. So you get the best of both. In “Beam” mode, EVO delivers a stunning 61.200 Lux at 25 meters, and more than 15.300 at 50 meters, as it’s capable of projecting a super concentrated beam of light over very long distances.
  • Page 7 Circular 8-facet and linear rotating prisms Dyna-Prism (D.T.S. Patent Pending) Interface / Control / Programming Li-Fe backup battery for controlling the main parameters even when EVO is not powered LCD graphic display + 4 soft-keys (control / management / monitoring of the main...

  • Page 8: Accessories

    International certifications Safety: EN 60598-1: 1993 EN 60598-2-17: 1989 A1-A3: 1993 EMC: EN 55015 Dimensions Unit Dimensions (LxWxH) Packaging Dimensions (LxWxH) 400 x 400 x 610 mm 665x510x525mm Weight: 23 Kg Weight: 27 Kg 5- ACCESSORIES As standard * 1 x SIRIUS HRI 440W lamp (already installed in the projector) (Code 0505S039) * 1 x POWERCON male cable connector (Code 0520P014) * 1 x XLR 5 Pins male cable connector (Code 0508B066) * 1 x XLR 5 Pins female cable connector (Code 0508B065)

  • Page 9: Important Safety Information

    Unplug the unit prior to performing any function which involves touching the inside of the moving head, including lamp replacement. -The level of technology inherent in the EVO requires the assistance of specialised personnel for all servicing. Please refer to an authorised D.T.S. service centre.

  • Page 10: Waste Electrical And Electronic Equipment (Weee) Directive

    6.6 Waste Electrical and Electronic Equipment (WEEE) directive: -The machine, accessories and packaging should be sorted for environmental-friendly recycling. For EC countries: according to the European Directive 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, luminaires that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

  • Page 11: Mounting / Replacing The Lamp

    7- MOUNTING / REPLACING THE LAMP WARNING Turn off the lamp, switch off the unit and unplug the Mains power cable before opening the unit head covers. Let the projector cool for at least 20 minutes before replacing the lamp. Wear protective gloves prior to performing the replacement.
  • Page 12 1) Loose the 3 “¼ turn” screws which fix the head covers on both sides (picture 1) . PICTURE 1 2) Pull out the covers to access the internal head components (picture 2). PICTURE 2...
  • Page 13 3) Using a phillips screwdriver, loose the marked 4 screws which fix the lamp rear metal plate (picture 3); PICTURE 3 4) Remove the lamp rear metal plate (picture 4) and unplug the two fast-on cable connectors from the lamp terminals. PICTURE 4...
  • Page 14 5) Loose the marked 4 screws on the metal plate that fix the lamp (picture 5) and remove it. PICTURE 5 6) Put in place the new lamp with FASTON pins up or down depending on the hole for lamp cables position (picture 6) and fix it with the “lamp fixing metal plate” as showed in the picture.

  • Page 15: Voltage And Frequency

    Four 1/4 turn Fast Locks connections placed in the base of the unit allow to hang the EVO by using the two omega clamps (provided in the box) in conjunction with fixing clamps for truss (fixing clamps are not included into the unit box).

  • Page 16: Safety Cable

    9.1- Safety cable We recommend the use of a safety cable or chain connected to the EVO and to the suspension truss in order to avoid the fixture accidentally falling should the main fixing point fail. Make sure that the iron cable or chain can bear the weight of the entire unit.

  • Page 17: Movement

    9.3- Movement Pan: limitless rotation, in both directions; 360° rotation in 1.56 sec.; Tilt 270°: 1,5 sec. WARNING Do not place any object in the path of the projector’s movement Free Pan Rotation (‘FPR’) 9.4- Risk of fire Each fixture produces heat and must be installed in a well-ventilated place. It is permissible to place the unit on normally flammable surfaces.

  • Page 18: Mains Connection

    Max 2 EVO Units @ 120Vac MAINS INPUT 90-260Vac 50-60 Hz FUSE 10.1- Protection The use of a thermal magnetic circuit breaker is recommended for each EVO. A good earth connection is essential for the correct operation of the projector.

  • Page 19: Dmx Signal Connection

    11- DMX SIGNAL CONNECTION The unit operates using the digital DMX 512 signal. Connection between the mixer and the projector or between projectors must be carried out using a two pair screened ø 0.5 mm cable and a XLR 5 or 3 pins connector. Ensure that the conductors do not touch each other.

  • Page 20: Dmx Addresses

    11.1-DMX Addresses EVO can be used in 2 different DMX modes: 32 DMX control channels (Default) or 24 DMX control channels. Here below is described the DMX channels addressing for the controller when EVO is set to 32 and 24 DMX control channels:...

  • Page 21: Display Functions

    DOWN DISPLAY FUNCTIONS The EVO display panel shows all the available functions . Using these functions, it is possible to change some of the parameters and add some functions. Changing the D.T.S. setting can vary the functions of the unit so that it does not respond to the DMX 512 used to control it.
  • Page 22 13- DISPLAY FUNCTIONS DISPLAY Display Display Flip Menu Up-Down ENTER Up-Down ENTER ON THE GROUND (Default) DISPLAY FLIP / STAND BY / CONTRAST FLIP FLIP SUSPENDED Display Flip: ON THE GROUND Reverses display's reading depending on the mounting position MENU ENTER DOWN (on the ground or suspended).
  • Page 23 13- DISPLAY FUNCTIONS GOBO ROTATION OFF = Default Gobo Rotation Menu ENTER Up-Down ENTER Up-Down DURING GOBO SCROLLING GOBO ROTATION Gobo rotation during gobo scrolling for rotating gobo wheel MENU ENTER DOWN GOBO 9 OPEN-STUDIO = To have Gobo 9 Menu Up-Down ENTER...
  • Page 24 Lamp life time, lamp strikes, unit life time, R.25 RDM: 000000BB software version, RDM ID, 10 motors boards and Pan&Tilt board MODEL: EVO FPR electronic ballast board software version, RDM ID, electronic MENU ENTER DOWN temperature and unit model ballast board temperature and unit model...

  • Page 25: Error Messages

    14- ERROR MESSAGES ERROR ERROR ERROR PAN LOCKED TILT MENU ENTER DOWN MENU ENTER DOWN MENU ENTER DOWN TILT ENCODER PAN ENCODER PAN MOTOR LOCKED REPOSITIONING ERROR REPOSITIONING ERROR ERROR ERROR ERROR TILT LOCKED DMX ADDRESS DATA ERROR MENU ENTER DOWN MENU ENTER DOWN MENU ENTER DOWN TILT MOTOR LOCKED...
  • Page 26 14- ERROR MESSAGES ERROR ERROR ERROR MAGENTA YELLOW MENU ENTER DOWN MENU ENTER DOWN MENU ENTER DOWN MAGENTA BLADE POSITION ERROR YELLOW BLADE POSITION ERROR CTO BLADE POSITION ERROR ERROR ERROR ERROR GOBO GOBO INDEX SHUTTER MENU ENTER DOWN MENU ENTER DOWN MENU ENTER DOWN ROTATING GOBO WHEEL ROTATING GOBOS INDEX POSITION...

  • Page 27: Hidden Menu

    - Connect the projector to the DMX controller (DMX SIGNAL MUST BE CORRECTLY RECEIVED) - Reset EVO (reset from the MENU, not from the DMX controller). - While reset is running, press the MENU and ENTER keys at the same time.

  • Page 28: Calibration Mode

    15.1 Calibration mode CALIBRATION CALIBRATION CALIBRATION CALIBRATION MOTORS ALIGNMENT MOTORS ALIGNMENT MOTORS ALIGNMENT MOTORS ALIGNMENT TILT DIMMER 1 ZERO DIMMER 2 ZERO MENU ENTER DOWN MENU ENTER DOWN MENU ENTER DOWN MENU ENTER DOWN DIMMER 1 ZERO ALIGNMENT DIMMER 2 ZERO ALIGNMENT PAN ALIGNMENT TILT ALIGNMENT Dimmer blade 1 zero position setting...
  • Page 29 15.1 Calibration mode CALIBRATION CALIBRATION CALIBRATION CALIBRATION MOTORS ALIGNMENT MOTORS ALIGNMENT MOTORS ALIGNMENT MOTORS ALIGNMENT FIXED GOBO SM-FR ZERO SMOOTH 1 PATH FIXED G. 12 MM MENU ENTER DOWN MENU ENTER DOWN MENU ENTER DOWN MENU ENTER DOWN SMOOTH 1 PATH ALIGNMENT FIXED GOBO WHEEL ALIGNMENT FIXED GOBO 12 mm ALIGNMENT SMOOTH-FROST ZERO ALIGNMENT...

  • Page 30: Pan Speed & Tilt Speed

    16- PAN SPEED & TILT SPEED You can set the Pan and Tilt motors at high speed on your EVO. Scroll till “PAN SPEED” or “TILT SPEED” menu, press ENTER and select a speed with UP-DOWN (there are 8 speeds). Confirm by pressing ENTER.

  • Page 31: Removing / Replacing The Rotating Gobos

    18- REMOVING / REPLACING THE ROTATING GOBOS EVO uses a mechanical system which allows the fixture's gobos to be removed without the use of special tools. When replacing gobos, ensure that the projector is switched off. Open the projector housing as described on page 31 and pull out the gobo holder on the rotating gobo wheel as showed in the picture below.

  • Page 32: Periodic Cleaning

    The lamp should be replaced if there is any visible damage or deformation due to heat. This will help to avoid the danger of the lamp exploding. EVO lamp lifespan is about 1500 hours, then it is necessary to replace it. Mechanical parts Periodically check all mechanical parts, gears, guides, belts, etc.

  • Page 33: Dmx Protocol

    21- DMX PROTOCOL 32 CHANNELS MODE PAN msb PAN lsb TILT msb TILT lsb SPEED MOVEMENT DIMMER SHUTTER COLOUR COLOUR MODE CYAN MAGENTA YELLOW SPEED CMY MACRO CMY GOBO GOBO MODE GOBO ROTATION / INDEX GOBO INDEX FINE GOBO SHAKE FIXED GOBO FIXED GOBO SHAKE PRISM MODE...
  • Page 34 Parameter: FPR DMX CHANNEL DMX value Function 000-010 Position mode 540° (standard path) 011-020 Position mode 360° ( 1 turn) 021-030 Position mode 720° ( 2 turns) 031-040 Position mode 1080° ( 3 turns) 041-050 Position mode 1440° ( 4 turns) 051-060 Position mode 1800°...
  • Page 35 Parameter: COLOUR DMX CHANNEL FULL COLOUR (CH10 = 0-63) DMX value Function 000-010 White 011-021 Colour 1 (Orange) 022-032 Colour 2 (Light Pink) 033-043 Colour 3 (Light Red) 044-054 Colour 4 (Purple) 055-065 Colour 5 (Full CTO) 066-076 Colour 6 (Pink) 077-087 Colour 7 (Yellow 2) 088-098...
  • Page 36 Parameter: COLOUR MODE DMX CHANNEL DMX value Function 000-063 Full colour 064-127 Half colour 128-191 Proportional colour 192-255 Rainbow Parameter: CYAN DMX CHANNEL DMX value Function 000-255 Proportional colour Parameter: MAGENTA DMX CHANNEL DMX value Function 000-255 Proportional colour DMX CHANNEL Parameter: YELLOW DMX value Function...

  • Page 37: Dmx Value

    DMX CHANNEL Parameter: MACRO CMY DMX value Function 000-009 No function 010-014 Macro 1 015-019 Macro 2 020-024 Macro 3 025-029 Macro 4 030-034 Macro 5 035-039 Macro 6 040-044 Macro 7 045-049 Macro 8 050-054 Macro 9 055-059 Macro 10 060-064 Macro 11 065-069...
  • Page 38 DMX CHANNEL Parameter: GOBO ROTATION/INDEX GOBO MODE ROTATION DMX value Function 000-009 Stop 010-127 Left rotation (max to min) 128-137 Stop 138-255 Right rotation (min to max) GOBO MODE INDEX DMX value Function 000-255 Gobo index coarse Parameter: GOBO INDEX FINE DMX CHANNEL DMX value Function...
  • Page 39 Parameter: FIXED GOBO DMX CHANNEL DMX value Function 000-010 Open 011-021 Gobo 1 022-032 Gobo 2 033-043 Gobo 3 044-054 Gobo 4 055-065 Gobo 5 066-076 Gobo 6 077-087 Gobo 7 088-098 Gobo 8 099-109 Gobo 9 110-120 Gobo 10 121-131 Gobo 11 132-142...
  • Page 40 Parameter: PRISM ROTATION/INDEX DMX CHANNEL PRISM MODE ROTATION DMX value Function 000-009 Stop 010-127 Left rotation from fast to slow 128-137 Stop 138-255 Right rotation from slow to fast PRISM MODE INDEX DMX value Function 000-255 Prism index Parameter: DYNA PRISM DMX CHANNEL DMX value Function...
  • Page 41 21- DMX PROTOCOL 24 CHANNELS MODE PAN msb PAN lsb TILT msb TILT lsb SPEED MOVEMENT DIMMER SHUTTER COLOUR CYAN MAGENTA YELLOW GOBO GOBO ROTATION / INDEX FIXED GOBO Not used EFFECTS PRISM INSERTION PRISM ROTATION / INDEX DYNA PRISM FOCUS ZOOM RESET + LAMP...
  • Page 42 Parameter: FPR DMX CHANNEL DMX value Function 000-010 Position mode 540° (standard path) 011-020 Position mode 360° ( 1 turn) 021-030 Position mode 720° ( 2 turns) 031-040 Position mode 1080° ( 3 turns) 041-050 Position mode 1440° ( 4 turns) 051-060 Position mode 1800°...
  • Page 43 Parameter: COLOUR DMX CHANNEL DMX value Function 000-003 White 004-007 White-Colour 1(Orange) 008-011 Colour 1 (Orange) 012-015 Colour 1-2 (Orange-Light Pink) 016-019 Colour 2 (Light Pink) 020-023 Colour 2-3 (Light Pink-Light Red) 024-027 Colour 3 (Light Red) 028-031 Colour 3-4 (Light Red-Purple) 032-035 Colour 4 (Purple) 036-039...
  • Page 44 DMX CHANNEL Parameter: CYAN DMX value Function 000-255 Proportional colour DMX CHANNEL Parameter: MAGENTA DMX value Function 000-255 Proportional colour Parameter: YELLOW DMX CHANNEL DMX value Function 000-255 Proportional colour DMX CHANNEL Parameter: CTO DMX value Function 000-007 No function 008-255 Linear CTO from min to max Parameter: GOBO...
  • Page 45 Parameter: FIXED GOBO DMX CHANNEL DMX value Function 000-010 Open 011-021 Gobo 1 022-032 Gobo 2 033-043 Gobo 3 044-054 Gobo 4 055-065 Gobo 5 066-076 Gobo 6 077-087 Gobo 7 088-098 Gobo 8 099-109 Gobo 9 110-120 Gobo 10 121-131 Gobo 11 132-142...
  • Page 46 DMX CHANNEL Parameter: DYNA PRISM DMX value Function 000-255 Dyna prism linear position Parameter: FOCUS DMX CHANNEL DMX value Function 000-255 Linear focus DMX CHANNEL Parameter: ZOOM DMX value Function 000-255 Linear zoom DMX CHANNEL Parameter: RESET + LAMP DMX value Function 000-009 No effect...

  • Page 47: Rotating Gobo Wheel

    22- ROTATING GOBO WHEEL OPEN STUDIO OPEN GOBO 1 DICRO GOBO 2 DICRO GOBO 3 DICRO GOBO 4 DICRO D.T.S. Code: D.T.S. Code: D.T.S. Code: D.T.S. Code: 0516G098 0516G099 0516G097 0516G100 GOBO 5 DICRO GOBO 6 DICRO GOBO 7 DICRO GOBO 8 DICRO D.T.S.

  • Page 48: Fixed Gobo Wheel

    23- FIXED GOBO WHEEL...

  • Page 49: Colour Wheel

    24- COLOUR WHEEL COLOUR 3 COLOUR 5 COLOUR 1 COLOUR 2 COLOUR 4 COLOUR 6 COLOUR 7 COLOUR 8 COLOUR 9 COLOUR 10 COLOUR 11 COLOUR 12 COLOUR 13 COLOUR 14 COLOUR 15 COLOUR 16 COLOUR 17 COLOUR 18 COLOUR 19 COLOUR 20 COLOUR 21 HALF CTB...
  • Page 50 NOTES...
  • Page 51 NOTES...
  • Page 52 ISO 9001:2008 standard D.T.S. products are designed and manufactured at the D.T.S. plants in italy *0517I230* 0517I230 D.T.S. Illuminazione s.r.l. – Via Fagnano Selve 10-12-14 47843 Misano Adriatico (RN) Italia Tel.: +39 0541 611131. Fax + 39 0541 611111 info@dts-lighting.it www.dts-lighting.it...
