FOS 100 POWER FC
User's Manual rel 1.6 GB
D.T.S. Illuminazione s.r.l. – ITALY
http://www.dts-lighting.it
Made in Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FOS 100 POWER FC and is the answer not in the manual?

Questions and answers

Related Manuals for DTS FOS 100 POWER FC

Summary of Contents for DTS FOS 100 POWER FC

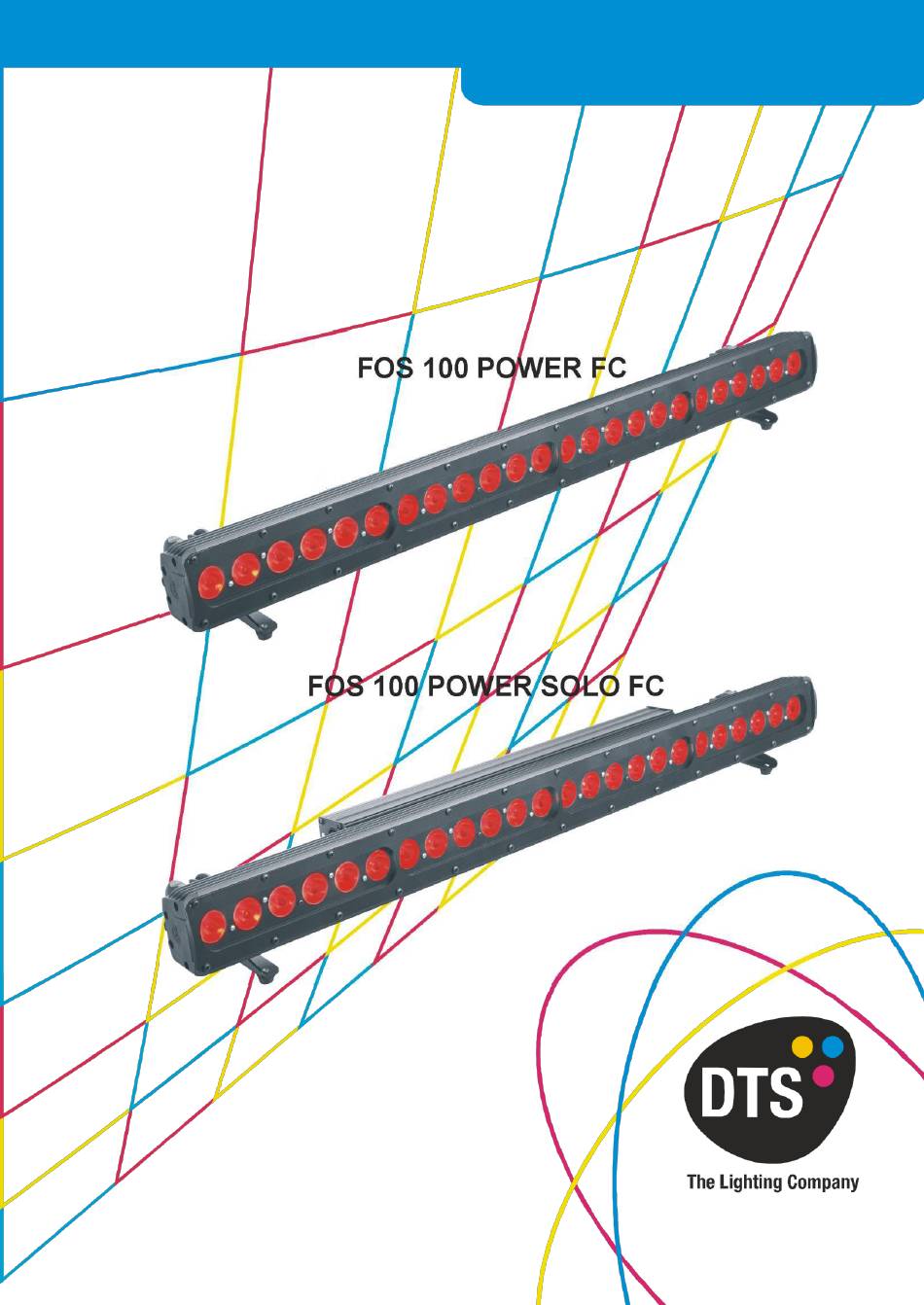

  • Page 1 FOS 100 POWER FC User’s Manual rel 1.6 GB D.T.S. Illuminazione s.r.l. – ITALY http://www.dts-lighting.it Made in Italy...
  • Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.

  • Page 3: Table Of Contents

    INDEX: 1- SYMBOLS ......................4 2- GENERAL WARNING .................... 5 3- GENERAL WARRANTY CONDITIONS ..............5 4- TECHNICAL FEATURES ..................6 5- ACCESSORIES ....................10 6- IMPORTANT SAFETY INFORMATION ............... 11 6.1 Fire prevention ....................11 6.2 Prevention of electric shock ................11 6.3 Safety ........................

  • Page 4: 1- Symbols

    1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL INDICATES THE MAXIMUM OPERATING AMBIENT TEMPERATURE THIS SYMBOL MEANS “DO NOT STARE AT THE OPERATING LIGHT SOURCE” THIS SYMBOL INDICATES PHOTOBIOLOGICAL SAFETY THIS SYMBOL INDICATES THE MINIMUM...

  • Page 5: 2- General Warning

    2- GENERAL WARNING Read the instruction contained in this user manual carefully, as they give important information regarding safety during installation, use and maintenance. The unit is not for household use and must be installed by a qualified electrician or experienced person.

  • Page 6: 4- Technical Features

    Variable linear color temperature 2700K – 8000K Control Multi-function 4-digit 7-segment LED Display + 4 soft keys RDM / DMX 512 protocols Internal operating system updatable via DTS Dongle Firmware Uploader 10 DMX channels (default) Power supply Integrated IP20 or IP65 PSU: full-range 100-240Vac 50-60 Hz Power consumption: 200W max Power Factor: PF >...
  • Page 7 DIMENSIONS FOS 100 POWER SOLO FC...
  • Page 8 4- TECHNICAL FEATURES FOS 100 POWER FC Output 24 Full Color (RGBW) LEDs 8.864 Lumens LEDs lifespan: 50.000 hours (70% lumen output) Optical group 3 lenses sets available: Narrow, Medium, Wide Holographic filters available on request Color generation 16 million colors Wide palette of pure uniform whites Variable linear color temperature 2700K –...
  • Page 9 DIMENSIONS FOS 100 POWER FC...

  • Page 10: 5- Accessories

    - Permanent Installation Kit IP68 (only for IP65-rated PSU) (code 03.LA.216) - G60 ‘’C’’ Clamp – max. load 50 Kg (code 0521A004) - Safety cable 3 mm x 60 cm, max capacity load 60 Kg (code 0521A010) - DTS Dongle Firmware Uploader (code 03.LA.206)

  • Page 11: 6-Important Safety Information

    -The level of technology inherent in the FOS 100 POWER SOLO FC requires the assistance of specialised personnel for all servicing. Please refer to an authorised DTS service centre. -A good earth connection is essential for proper functioning of the projector.

  • Page 12: 7- Installation

    7- INSTALLATION FOS 100 POWER and FOS 100 POWER SOLO IP65 are suitable for wet locations. FOS 100 POWER SOLO IP20 is suitable for dry locations only. The unit may be either floor or ceiling mounted. 7.1 Floor mounting installation For floor mounting installation, FOS 100 POWER is supplied with rubber mounting feet on its brackets.

  • Page 13: 8- Input / Output Connections

    8- INPUT / OUTPUT CONNECTIONS FOS 100 POWER SOLO IP20 MAINS IN 100-240Vac 50-60 Hz PowerCON male panel connector DMX IN MAINS OUT XLR 5 poles male MAX 16A panel connector PowerCON female panel connector LED OUT LED IN Cable with M16 Cable with M16 Female connector Male connector...
  • Page 14 8- INPUT / OUTPUT CONNECTIONS FOS 100 POWER SOLO IP65 DMX IN Cable with XLR 5 poles male IP20 connector (0.8 m length) LED OUT Cable with M16 female connector LED IN Cable with M16 male connector MAINS IN 100-240Vac 50-60 Hz 3x1,5 sq mm power cord (1,5 m) 3 poles terminal block or plug not included.
  • Page 15 8- INPUT / OUTPUT CONNECTIONS FOS 100 POWER (IP65) LED IN 30 cm cable with M16 male connector...

  • Page 16: 9- Dmx Signal Connection

    9- DMX SIGNAL CONNECTION FOS 100 POWER SOLO IP20 FOS 100 POWER SOLO IP65 The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or between units must be carried out using a two pair screened ø 0.5 mm. Ensure that the conductors do not touch each other.

  • Page 17: Dmx Addresses

    9.1 DMX addresses FOS 100 POWER SOLO can be used in 10 DMX modes: 1. RGBW 6 channels 2. RGBW 10 channels (Default) 3. RGBW 15 channels 16 bit 4. WALL 6 channels 5. M4CH 5 channels 6. RGBW 4 channels 7.

  • Page 18: 10- Rdm Functions

    10- RDM FUNCTIONS By using a RDM controller it is possible to set DMX address, DMX mode and other parameters. FOS 100 POWER SOLO accepts the following RDM commands: RDM Device Model ID: 0x0D06 RDM PID DESCRIPTION RDM PID VALUE Category –...
  • Page 19 10- RDM FUNCTIONS RDM PID DESCRIPTION RDM PID VALUE Category – Manufacturer-Specific PIDs DISPLAY STANDBY 0x903C EMERGENCY MODE 0x9008 NO DMX ACTION 0x9002 RED NO DMX 0x9003 GREEN NO DMX 0x9004 BLUE NO DMX 0x9005 WHITE NO DMX 0x9006 INT NO DMX 0x900A RED FINE NO DMX 0x9014...

  • Page 20: 11- Firmware Updating

    Please follow the procedure below to perform the update: 1. Connect the DTS Dongle Firmware Uploader to a spare USB port on the PC. 2. Connect the unit DMX input to the DTS Dongle Firmware Uploader DMX output with a standard DMX cable and turn ON the unit.

  • Page 21: 12- Display Functions

    The FOS 100 POWER SOLO display panel shows all the available control menus. Using these options, it is possible to change the fixture’s setting. Changing the DTS settings can vary the functions of the unit so that it does not respond to the DMX 512 used to control it.
  • Page 22 12- DISPLAY FUNCTIONS MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION     Display normal orientation for floor mounting position (Default)   Display inverted orientation for suspended mounting position    Display always ON (Default) ...
  • Page 23 12- DISPLAY FUNCTIONS MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION     Automatic mode without DMX controller.    Chase with 16 steps previously created in REC mode.  Speed time and wait time values (in ...

  • Page 24: 13- Rec Mode

    13- REC MODE DMX Recorder mode For the programming of ChPr by using a DMX controller, besides the 10 channels necessary to control the unit a further 3 DMX channels are needed. So that in RECORDER mode (via DMX) the unit will need 13 channels to be correctly programmed. The three new DMX channels are: DMX channel 11 = SCENES channel From 0-10 = no function (r001)

  • Page 25: 15- Dmx Protocol

    15- DMX PROTOCOL DMX Personality 1: RGBW 6 channels Name Dmx Levels Ranges And Functions SHUTTER 0..9 Black-out 10..19 Open 20..29 Black-out 30..119 Strobe (from 3,27 s to 30 ms) 120..149 Pulse up (from 42,6 s to 120 ms) 150..179 Pulse down (from 42,6 s to 120 ms) 180..204 Random strobe...
  • Page 26 Proportional color from min to max WHITE 0..55 No function PRE-PROGRAMMED 56..105 RGBW channels at max, dimmed by DIMMER 106..155 DTS WHITE 156..205 CUSTOM WHITE set by the user 206..255 White at color temp set via CTC channel 0..255 Color temperature MACRO 0..14...
  • Page 27 15- DMX PROTOCOL DMX Personality 2: RGBW 10 channels (Default) Name Dmx Levels Ranges And Functions MACRO 0..14 No function 15..22 Macro 1 23..30 Macro 2 31..38 Macro 3 39..46 Macro 4 47..54 Macro 5 55..62 Macro 6 63..70 Macro 7 71..78 Macro 8 79..86...
  • Page 28 Proportional color 16 bit from min to max WHITE 0..55 Disabled PREPROGRAMMED 56..105 RGBW channels at max, dimmed by DIMMER 106..155 DTS WHITE 156..205 CUSTOM WHITE set by the user 206..255 White at color temp set via CTC channel 0..255 Color temperature MACRO 0..14...
  • Page 29 15- DMX PROTOCOL DMX Personality 3: RGBW 15 channels 16 bit Name Dmx Levels Ranges And Functions MACRO 0..14 No function 15..22 Macro 1 23..30 Macro 2 31..38 Macro 3 39..46 Macro 4 47..54 Macro 5 55..62 Macro 6 63..70 Macro 7 71..78 Macro 8...
  • Page 30 15- DMX PROTOCOL DMX Personality 4: WALL 6 channels Name Dmx Levels Ranges And Functions GREEN 0..255 Proportional color from min to max 0..255 Proportional color from min to max BLUE 0..255 Proportional color from min to max DIMMER 0..255 Proportional color from min to max Reserved 0..255...
  • Page 31 15- DMX PROTOCOL DMX Personality 8: RGBW 10 channels 16 bit Name Dmx Levels Ranges And Functions DIMMER 0..255 Proportional dimmer from min to max DIMMER FINE 0..255 Proportional dimmer 16 bit from min to max 0..255 Proportional color from min to max RED FINE 0..255 Proportional color 16 bit from min to max...
  • Page 32 15- DMX PROTOCOL DMX Personality 10: PROM 11 channels Name Dmx Levels Ranges And Functions 0..255 Proportional color from min to max RED FINE 0..255 Proportional color 16 bit from min to max GREEN 0..255 Proportional color from min to max GREEN FINE 0..255 Proportional color 16 bit from min to max...
  • Page 33 NOTES...
  • Page 34 NOTES...
  • Page 35 NOTES...
  • Page 36 ● D.T.S. Illuminazione s.r.l. Via Fagnano Selve 12-14 47843 Misano Adriatico (RN) Italy ● Tel.: +39 0541 611131 Fax +39 0541 611111 ● info@dts-lighting.it www.dts-lighting.it 0517I199 Product and specifications subjects to change without notice.

This manual is also suitable for:

Fos 100 power solo fc
