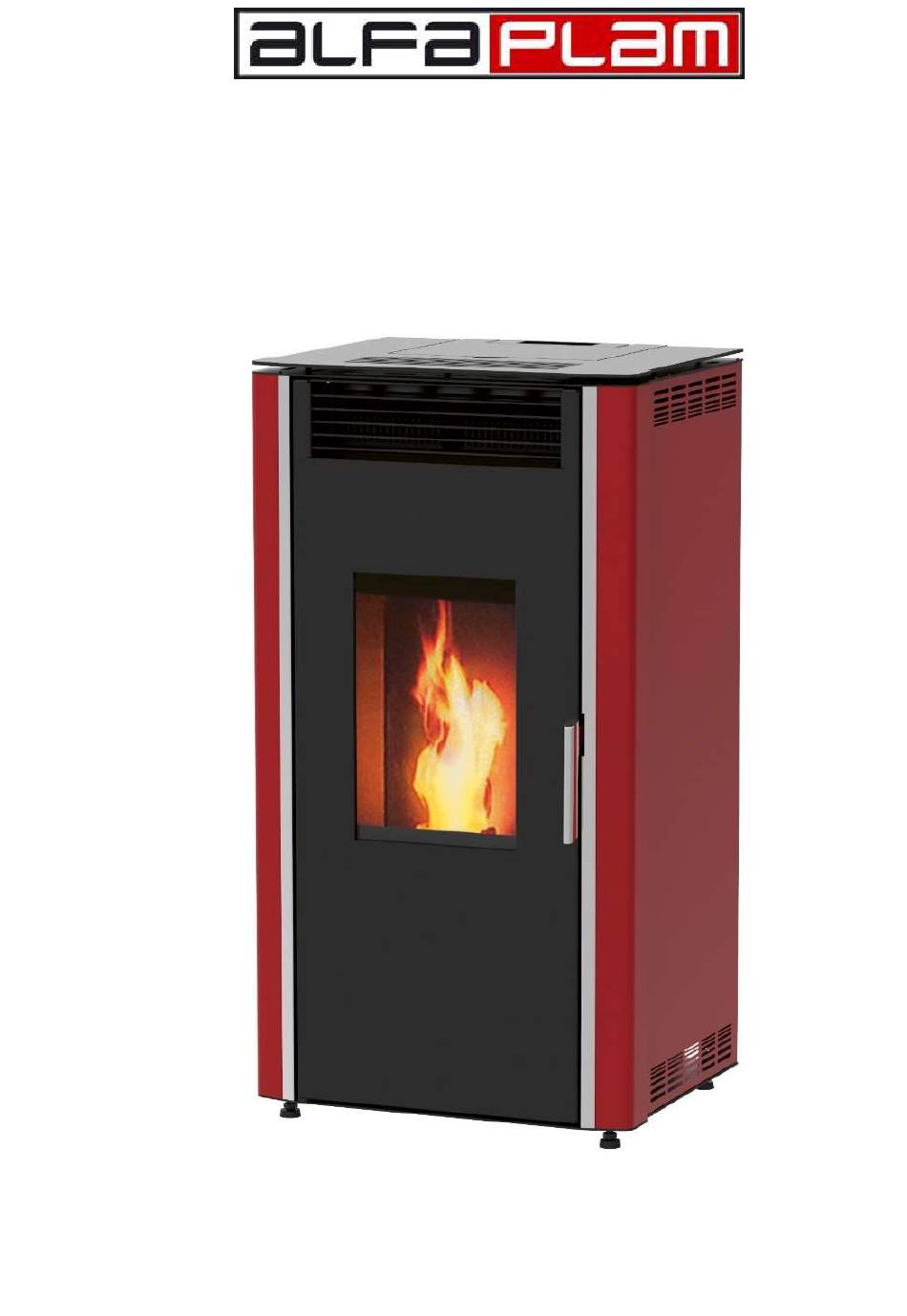

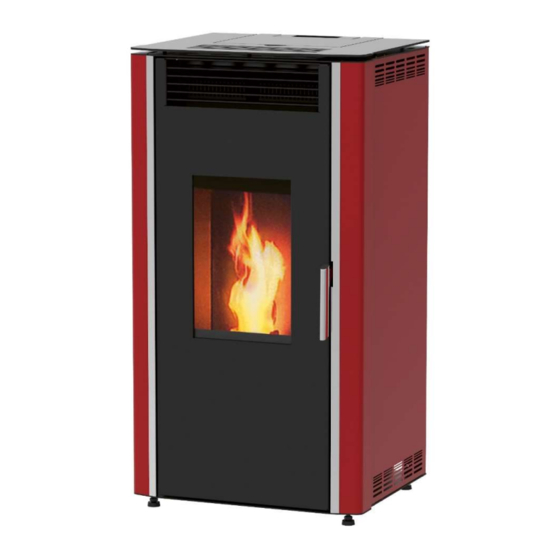

- Page 1 A.D. METALNA INDUSTRIJA VRANJE Radnička br: 1 PELLET STOVE „LUCA 12” INSTRUCTIONS FOR USE AND MAINTENANCE OF LUCA 12 ENG_v.1.0...
-
Page 2: Table Of Contents
Contents Introduction Product serial no. Materials Certification Dimensional features: Technical features of the product Fuel properties Safety recommendations General Recommendations Safety devices Surrounding area for using the product Installation Positioning the appliance Stovepipe properties Smoke exhaust to the outer wall Draining smoke to the roof through a traditional funnel Dismantling and waste disposal Electrical connections... - Page 3 Periodic cleaning of the furnace Shutting down during the ignition phase Possible problems and solutions (Troubleshooting) MAINTENANCE OF THE FURNACE Routine maintenance CLEANING THE DISPLAY AND PARTS OF EXTERNAL INSULATION CLEANING THE CERAMIC GLASS ROUTINE MAINTENANCE, TYPE 1 ACTIVITY Special maintenance SPECIAL MAINTENANCE TYPE 2 ACTIVITIES SPECIAL TYPE 3 MAINTENANCE ACTIVITY CHECK THE SEALS...
-
Page 4: Introduction
⚠ ATTENTION: Safety warning PROHIBITED: Prohibited action INFORMATION: Important information. Alfa Plam bears no responsibility or liability for any direct or indirect personal injury or property damage arising from non-compliance with the indications given and highlighted in this user guide. Product serial no. -
Page 5: Dimensional Features
Dimensional features:... -
Page 6: Technical Features Of The Product
Technical features of the product Product: LUCA 12 Unit of measure Maximum Minimum Thermal power 12.9 Heating power 11.8 CO emission (per 13% of oxygen) 0.015 0.030 Efficiency 95.1 Nominal electrical power Nominal voltage Nominal frequency Fuel Wood pellet Fuel consumption per hour... -
Page 7: Fuel Properties
Fuel properties The furnace is first characterized by the fact that it burns natural fuel (wood pellets), which is environmentally derived from the wood industry waste (chips/sawdust). Once shavings and sawdust are properly cleaned and dried, which arise in the wood processing procedures, they are compressed under extremely high pressure to produce small cylinders of pure wood: pellets. -
Page 8: General Recommendations
⚠ ATTENTION: The product can be used, modified, or programmed by adults only. Incorrect or arbitrary settings can lead to dangerous situations and faults. ⚠ ATTENTION: ALFA PLAM bears no civil or criminal liability for damages in the event that the product is subjected to unauthorized repairs or replacement of parts. -
Page 9: Surrounding Area For Using The Product
⚠ ATTENTION: The appliance must be installed in such a way so that its electrical cable is easily accessible. specified in chapter 3. ALFA PLAM bears no responsibility for any personal injury or property damage that may occur if the furnace is not used in accordance with the conditions listed in this user guide. -
Page 10: Stovepipe Properties
Figure 2.1: Example of the necessary vents Never allow flammable materials to come close or, indeed, come into contact with the outer surfaces of the combustion chamber as it can reach extremely high temperatures when the product is running. If the floor is made of flammable material (e.g. hardwood), it is recommended to protect it by placing a layer of non- flammable material under and around the furnace. -
Page 11: Smoke Exhaust To The Outer Wall
If you need a horizontal segment, it should not exceed 1.5 m in length and a slope of 3 to 5% in order to help drain the smoke; Use the back part which is resistant to wind and water in order to prevent change of state of a slightly higher pressure in the stovepipe (do not put a horizontal part at the end of the stovepipe);... -
Page 12: Dismantling And Waste Disposal
Figure 2.4: Draining smoke to the outer wall of the chimney Figure 2.5: Draining smoke to the roof through a traditional chimney It is recommended that you follow the guidelines set forth in the standards in relation to the size and radius of the chimney (C). -
Page 13: The Necessary Checks And Controls For The First Ignition
The necessary checks and controls for the first ignition The following guidelines must be followed when first igniting the product: Make sure all safety requirements have been met (see section 1.8); • Connect the appliance to the power supply only when you are sure that the voltage power supply is 230 V 50 Hz. •... -
Page 14: The Control Panel (Display): Use And Features
Switch Power cable Flue gas engine Igniter Flue engine …sensor Pressure switch: cables connected positions 1 and 2, and the silicon hose to the P1 connector The control panel (display): use and features K1 00 d is pla y The main frame shows: time and date, chrono activation, combustion energy, heat energy,... -
Page 15: Alarms
Turning on and off (hold down for 3 seconds), reset errors (hold down for 3 seconds), chrono activation and deactivation Enter the user menu 1/submenu, enter the user menu 2 (hold down for 3 seconds), saving data Enter the visualization menu, maximizing Enter the visualization menu, minimizing Feature Feature... -
Page 16: User Menu 1
User menu 1 Short press P3 to activate user menu 1. Keys P4 and P5 list different submenus (combustion management, heating management ...); pressing the P3 key opens any selected submenu. Combustion Management Power In this submenu it is possible to modify the power of the combustion system. Keys P4 and P5 select between the 5 powers ( Power 1, Power 2, Power 3, Power 4 and Power 5). - Page 17 Chrono Daily Modalit Weekly Week-end Chrono program The system provides three types of programming: daily, weekly and weekend programming. Selection is made by pressing P4 and P5 after which the user enters the selected program by pressing P3. Pprogram Daily Programming The following is shown on the display once the Daily submenu or the daily program is entered: Days of the week are selected by pressing P4 and P5.
-
Page 18: User Menu 2
○ 00:00 00:00 ○ 00:00 - 00:00 ○ 00:00 - 00:00 User Menu 2 Long press P3 (3 seconds) to activate user menu 2. Keys P4 and P5 list different submenus ((Keyboard Settings, Keyboard Menu ...); pressing P3 opens any selected submenu. -
Page 19: Stabilization
This phase occurs after the fixed ignition phase. The duration of this phase is a variable period that lasts until the moment of fulfillment of the ignition requirements or until the moment when the flue gas temperature of 50 °C is reached. In case the furnace ignition requirement is met before the expiry of the duration of this phase, it is stopped and the next phase follows, which is the stabilization phase. -
Page 20: Management Of Flue Gas Engine Correction
Before Power 1 = Power 2 = Power 3 = Power 4 = Power 5 = calibration Example Power 1 = Power 2 = Power 3 = Power 4 = Power 5 = Step = -1 2.85 4.75 Never calibrate dispensing of pellets without consulting with the service center first. Ma na g em en t o f f lu e g a s e ng in e c or r ec ti on The user has the option to calibrate the rpm of the flue gas engine in the user menu 1. - Page 21 Missing encoder down then signal press P2 for more than 3 seconds Flue gas engine is not Wait responding furnace shut Er08 Encoder error down then Contact the service center Flue engine press P2 for more operates at a speed that is than 3 seconds different from the set speed...
-
Page 22: Maintenance Of The Furnace
The power cable could be damaged or else could be disconnected frok the electrical outlet The stove is not receiving electrical power (led indicator not lit) The fuse inside the circuit board may have burnt out (in this case, request technical assistance) The combustion chamber may not have been subjected to regular Repeated failed ignitions take place maintenance (see section 5.1.3.4) -
Page 23: Routine Maintenance, Type 1 Activity
RO UT INE M A INT ENAN CE , TY P E 1 A CT IV IT Y These activities should be done daily, depending on conditions of use. After a certain amount of time of using the furnace, the user can specify the appropriate frequency of cleaning and maintaining the furnace. - Page 24 Remove the ash container by hand and empty it. Using a vacuum cleaner of sufficient power (1000-1300W), remove all the ash accumulated in the combustion chamber, in the ash container and at the door. The inside of the section in which the ash container is located. After you've finished cleaning, re-assemble all the elements in reverse order from the order in which you removed them.
- Page 25 9. Once in a month, unlock the lock mechanism at back side of the stove, remove and clean up the chamber lid for collecting dust on the heat exchanger...
-
Page 26: Special Maintenance
Special maintenance Special cleaning and maintenance activities (types 2 and 3) help the furnace keep its heating and functional characteristics for longer. To ensure that the maintenance of the furnace is not in vain, it is necessary to maintain the system for removing smoke with the same diligence. -
Page 27: Check The Seals
Remove the four screws that hold the engine smoke. Tilt the engine smoke to remove it. Given that the engine smoke is connected to the furnace using an electrical cable, it cannot be removed from the furnace. For this reason, the cleaning activity described below must be carried out by placing the engine smoke on top of the furnace, with the use of all the necessary precautions (see diagram). -
Page 28: Cleaning The Exhaust Duct
CL EAN IN G T H E EXH AU ST DU CT It is recommended that you regularly clean the smoke pipe and stovepipe. These cleaning activities should be performed at least once a year, or more frequently if the appliance is used on a daily basis, or if the characteristics of the fuel used differ from the characteristics listed in section 1.7.
