Grill-Max 20C Operation Manual

Roller grills
Hide thumbs Also See for 20C:
Table of Contents

Advertisement

Quick Links

Download this manual
®
ROLLER
GRILLS
MODEL
20C, 30C, 45C, 45ST, 50C, 50ST, 75C
54IC/ISC, 90IC/ISC
Infinite and Electronic Controls
Installation and
Operation
Instructions
2M-Z8542 Rev. H 8/04/14
30SCBB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20C and is the answer not in the manual?

Questions and answers

Related Manuals for Grill-Max 20C

Summary of Contents for Grill-Max 20C

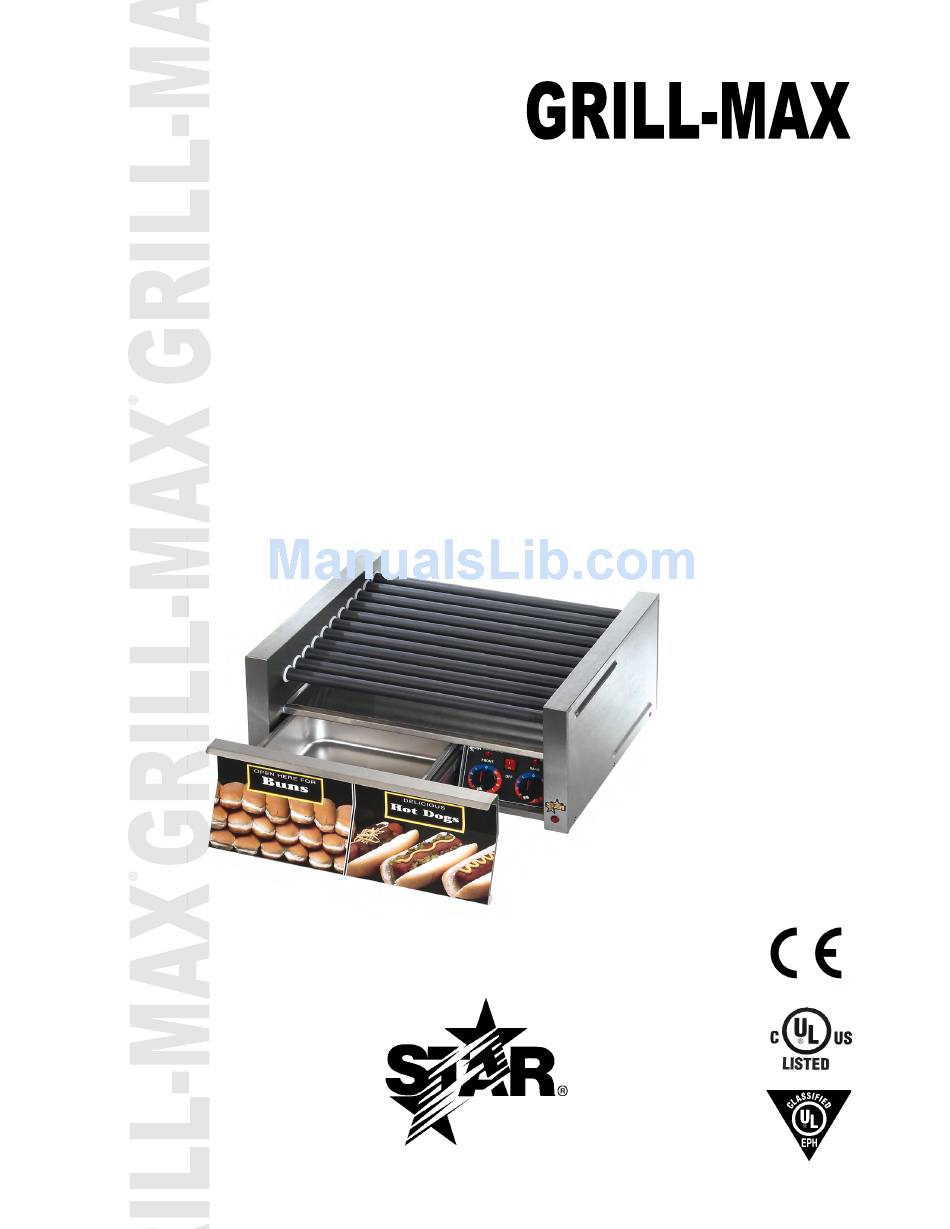

  • Page 1 ® ROLLER GRILLS MODEL 20C, 30C, 45C, 45ST, 50C, 50ST, 75C 54IC/ISC, 90IC/ISC Infinite and Electronic Controls Installation and Operation Instructions 2M-Z8542 Rev. H 8/04/14 30SCBB...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PAGE NUMBER GENERAL SAFTEY INFORMATION GENERAL INSTALLATION INFORMATION Connection Load GENERAL OPERATING INSTRUCTIONS Cleaning ELECTRONICALLY CONTROLLED: Start-up, Heating & Programing WARRANTY WIRING DIAGRAM 8-13 EXPLODED VIEW (C Series) 12, 13 PARTS LIST 20 MODEL SERIES 30 MODEL SERIES 15, 16 45 MODEL SERIES 17, 18...

  • Page 4: General Installation Information

    It will operate on alternating current only, however, the specified voltage must be applied. CONNECTION LOAD: ELECTRONIC CONTROL INFINITE CONTROL MODEL SERIES WATTAGE MODEL SERIES WATTAGE 20SCE 20C, 20SC 30C, 30SC, 30CF, 30SCF, 30CBB, 30CE, 30SCE, 30SCEX, 30CBBE 30CBBC, 30SCBB, 30CDV 1150 30SCBBE 1150 45C, 45SC, 45CBB, 45SCBB, 45CDV 1650...

  • Page 5: General Operating Instructions

    GENERAL OPERATING PROCEDURES The main switch located on the control panel controls all the power to the unit. With the main switch on, the rollers will turn, but no heat will be supplied unless the heat controls are turned on. For flexibility the heating section of the grill is divided into two individually controlled heat sections.

  • Page 6: Start-Up, Heating & Programing

    OPERATING PROCEDURES FOR ELECTRONIC GRILLS START-UP NOTE: Based on the product being heated, some When initially turning on power to the electronic experimentation is required to find the optimal HEAT controlled grill, it will be in the HOLD mode. The temperature and HEAT time to bring the product up displays will flash until the setpoint temperature to temperature in an acceptable amount of time.

  • Page 7: Warranty

    Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit.
  • Page 8 PILOT LIGHT REAR FRONT ALL MODELS EXCEPT 20, 20S, 30D, 30SD - 230V (AS VIEWED FROM REAR OF PANEL) MODEL: RG SERIES, INFINITE CONTROLS STAR MANUFACTURING INTERNATIONAL INC. THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED. 1/13/2011 SK1646 Rev E...

  • Page 9: Wiring Diagram

    MODEL NO. MATERIAL PART NO. 75AFV SK1917 STAR MANUFACTURING INTERNATIONAL INC. #10 SUNNEN DRIVE, ST. LOUIS, MO. 63143, USA FINISH TITLE WIRING DIAGRAM 75AFV-120V DATE 11/12/02 REVISIONS DATE DESCRIPTION OF CHANGE THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. TOLERANCES UNLESS OTHERWISE NOTED UPDATE PILOT LIGHTS AND 1/13/11...
  • Page 10 SIDE 2 REAR FRONT SIDE 1 FRONT REAR BLACK WHITE MODEL: IC/ISC ISLAND INFINITE CONTROL STAR MANUFACTURING INTERNATIONAL INC. THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. SK2132 Rev. A 1/14/2011 NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED. CONTROL BOARD REAR FRONT...

  • Page 14: Parts List

    PARTS LIST August 04, 2014, Rev. H Model: Grill-Max Roller Grills 20 Series Fig No Part No Description Application A5-RG2028 20CR/SCR BODY ASSY A5-RG2027 2OC/SC A5-Z2184 DRIP TRAY 20C/SC A5-Z8409 BACK-CHAIN RETAINER SPACER 20C/SC A5-Z8410 ANGLE CHAIN RETAINER UPPER 20C/SC...
  • Page 15 PARTS LIST August 04, 2014, Rev. H Model: Grill-Max Roller Grills 30 Series Fig No Part No Description Application A5-RG3062 30C/SC/STE A5-RG3070 30CBB/SCBB A5-RG3087 30CBBC/SCBBC BODY ASSY A5-RG3068 30CF/SCF A5-RG3066 30CR/SCR A5-RG3072 30CRBB/SCRBB A5-Z2185 DRIP TRAY 30C/SC A5-Z8409 BACK-CHAIN RETAINER SPACER...
  • Page 16 PARTS LIST August 04, 2014, Rev. H Model: Grill-Max Roller Grills 30 Series Fig No Part No Description Application 2M-Z8325 2M-Z8326 30CBB 2M-Z8328 30CBBE 2M-Z8327 30CE CONTROL PANEL LABEL 2M-Z8329 30SC 2M-Z8330 30SCBB 2M-Z8331 30SCBBE 2M-Z8332 30SCE/STE 2J-Z2329 PILOT LIGHT RED 30C/SC (120V &...
  • Page 17 PARTS LIST August 04, 2014, Rev. H Model: Grill-Max Roller Grills 45 Series Fig No Part No Description Application A5-RG4533 45C/SC A5-RG4536 45CBB/SCBB BODY ASSY A5-RG4534 45CR/SCR A5-RG4537 45CRBB/SCRBB A5-Z2186 DRIP TRAY 45C/SC A5-Z8411 BACK-CHAIN RETAINER SPACER 45C/SC A5-Z8412 ANGLE CHAIN RETAINER UPPER...
  • Page 18 PARTS LIST August 04, 2014, Rev. H Model: Grill-Max Roller Grills 45 Series Fig No Part No Description Application A5-Z7651 45C/SC A5-Z7753 45CBB/SCBB CONTROL PANEL A5-RG3069 45CE/SCE A5-RG3071 45CBBE/SCBBE 2M-Z8325 2M-Z8326 45CBB 2M-Z8327 CONTROL PANEL LABEL 45CE 2M-Z8329 45SC 2M-Z8330...
  • Page 19 PARTS LIST March 17, 2015, Rev. H Model: Grill-Max Roller Grills 50 Series Fig No. Part No Description Application A5-Z2305 DRIP TRAY 50C/SC A5-Z4273 DRIP TRAY 50SC-ST, 50SCE-ST, 50SC-STS A5-RG5012 DRIP TRAY ASSY 50SC-ST, 50SCE-ST, 50SC-STS, 50SCEQT A5-Z8409 BACK-CHAIN RETAINER SPACER...
  • Page 20 PARTS LIST March 17, 2015, Rev. H Model: Grill-Max Roller Grills 50 Series 2M-Z8333 2M-Z8334 50CBB 2M-Z8336 50CBBE 2M-Z8335 50CE CONTROL PANEL LABEL 2M-Z8337 50SC 2M-Z8338 50SCBB 2M-Z8340 50SCBBE 2M-Z8339 50SCE 2M-Z20304 50SCE-CT (FRENCH DECAL) 2J-Z2329 PILOT LIGHT RED 50C/SC (120V & 240V MODELS)
  • Page 21 PARTS LIST March 17, 2015, Rev. H Model: Grill-Max Roller Grills 75 Series Fig No. Part No Description Application A5-RG7545 75 C/SC A5-RG7546 75 CR/SCR A5-RG7547 75CF/SCF A5-RG7548 BODY ASSY 75CBB/SCBB A5-RG7549 75CRBB/SCRBB A5-RG7571 75CFV A5-RG7580 75SCESW A5-Z2306 DRIP TRAY...
  • Page 22 PARTS LIST March 17, 2015, Rev. H Model: Grill-Max Roller Grills 75 Series Fig No. Part No Description Application A5-RG7560 75CE/SCE A5-RG7561 75CE/SCE, BUN BOX CONTROL PANEL A5-Z7751 75C/SC A5-Z7850 75CBB/SCBB 2M-Z8333 2M-Z8334 75CBB 2M-Z8335 75CE 2M-Z8336 75CBBE CONTROL PANEL LABEL...
  • Page 25 PARTS LIST September 23, 2008 Rev. H Grill-Max Island Roller Grills 54IC Series MODEL Number Part Number Description & Model Designation Number Unit A5-RG3098 BODY ASSY 54IC/ISC A5-Z5185 DRIP TRAY A5-RG30105 DRIP PAN ASSY 54IC/ISC A5-Z8803 SIDE PANEL IC/ISC A5-Z9705...
  • Page 26 PARTS LIST September 23, 2008 Rev. H Grill-Max Island Roller Grills 54IC Series MODEL Number Part Number Description & Model Designation Number Unit 2P-Z1540 PLUG-HEYCO 5/16” DIA. IC/ISC 2P-Z1540 PLUG-HEYCO 5/16” DIA. ICE/ISCE A5-RG30115 ELEMENT RETAINER ASSY LOWER 1 ICE/ISCE...
  • Page 27 PARTS LIST September 23, 2008 Rev. H Grill-Max Island Roller Grills 90IC/ISC Series MODEL Number Part Number Description & Model Designation Number Unit A5-RG7575 BODY ASSY 90IC/ISC A5-Z9828 DRIP TRAY 90IC/ISC A5-RG7576 DRIP PAN ASSY 90IC/ISC A5-Z8803 SIDE PANEL IC/ISC...
  • Page 28 PARTS LIST September 23, 2008 Rev. H Grill-Max Island Roller Grills 90IC/ISC Series MODEL Number Part Number Description & Model Designation Number Unit 2R-Y5092 BLACK PLASTIC LEG 90IC/ISC 2P-Z1540 PLUG-HEYCO 5/16” DIA. IC/ISC 2P-Z1540 PLUG-HEYCO 5/16” DIA. ICE/ISCE A5-RG30115 ELEMENT RETAINER ASSY LOWER 1...
