ROLLER GRILLS
30
CBD, CBDE, CHD, CHDE,
SCBD, SCBDE,SCHD, SCHDE
45
50
75
SCBD, SCBDE, SCHD, SCHDE, SCHDEP
Infinite and Electronic Controls
Bun Drawer & Heated Bun Drawer
MODELS
CBD, CHD, SCBD,
SCBDE, SCHD
CBD, CBDE,CHD,CHDE,
SCBD, SCBDE, SCHD, CHDE
CBD, CBDE, CHD,CHDE,
Installation and
Operation
Instructions
2M-Z9666 Rev. G 3/02/12
®
Advertisement
Table of Contents
Related Manuals for Grill-Max 30 CBD
Summary of Contents for Grill-Max 30 CBD

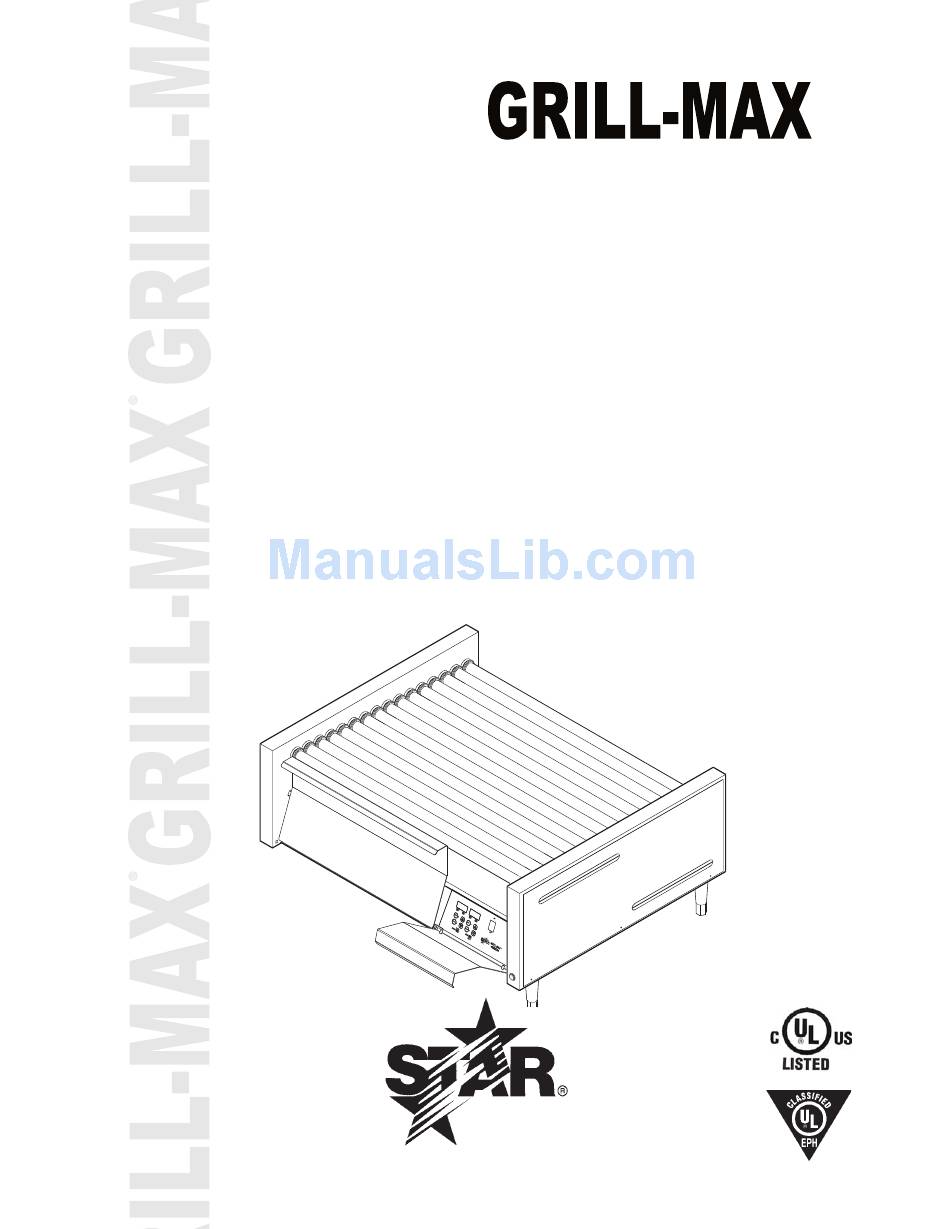

- Page 1 ® ROLLER GRILLS MODELS CBD, CBDE, CHD, CHDE, SCBD, SCBDE,SCHD, SCHDE 45 CBD, CHD, SCBD, SCBDE, SCHD CBD, CBDE,CHD,CHDE, SCBD, SCBDE, SCHD, CHDE CBD, CBDE, CHD,CHDE, SCBD, SCBDE, SCHD, SCHDE, SCHDEP Infinite and Electronic Controls Bun Drawer & Heated Bun Drawer Installation and Operation Instructions 2M-Z9666 Rev. G 3/02/12...
- Page 2 SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE NUMBER GENERAL SAFETY INFORMATION GENERAL INSTALLATION INFORMATION Connection Load GENERAL OPERATING INSTRUCTIONS Cleaning ELECTRONICALLY CONTROLLED: Start-up, Heating & Programing WARRANTY WIRING DIAGRAM 9 - 12 EXPLODED VIEW 14 - 15 PARTS LIST 30 MODEL SERIES 16 - 17 45 MODEL SERIES 18 - 19 50 MODEL SERIES 20 - 21 75 MODEL SERIES 22 - 23 GENERAL SAFETY INFORMATION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. CAUTION Before using your new equipment, read and understand all the instructions & labels associated with the unit prior to putting it into operation. Make sure all people associated with its use understand the units operation & safety before they use the unit. All shipping containers should be checked for freight damage both visible and concealed. This unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If equipment is received in damaged condition, either apparent or concealed, a claim must be made with the delivering carrier. -
Page 4: General Installation Information
GENERAL INSTALLATION INFORMATION The grill should be connected to a wall type receptacle, a direct line or individual branch circuit. An individual branch circuit is preferred. If connected to an overloaded circuit the grill will not operate properly. The unit should be level when installed. Models equipped with bun boxes must be level to utilize the self-closing feature of the bun drawer. Adjustable 4-inch legs are standard on the 75 series and available for all other models. This grill is equipped for the voltage shown on the nameplate. It will operate on alternating current only, however, the specified voltage must be applied. CONNECTION LOAD: ELECTRONIC CONTROL INFINITE CONTROL MODEL SERIES WATTAGE MODEL SERIES WATTAGE 30CBDE, 30SCBDE 1150 30CBD, 30SCBD 1150 30CHD, 30SCHD 1230 30CHDE, 30SCHDE 1230 45CBD, 45SCBD 1650 45CHDEP 1650 45CHD, 45SCHD 1730... -
Page 5: General Operating Instructions
GENERAL OPERATING INSTRUCTIONS For specific information regarding ELECTRONIC GRILL OPERATION see page 7. The main switch located on the control panel controls all the power to the unit. With the main switch on, the rollers will turn, heat will be supplied to the bun box, but no heat will be supplied to the rollers unless the heat controls are turned on. The switch is lighted to indicate when the unit is turned on. For flexibility the heating section of the grill is divided into two individually controlled heat sections. The right control regulates the heat to the rear section and the left control regulates the heat to the front section. On Infinite control grills a signal light is provided above each heat control and indicates when the heated section is on. An additional light is provided on the end housing of the unit that indicates the position of the main power switch. -
Page 6: Cleaning
CLEANING Before cooking for the first time, wash the rollers with mild soap and water using a soft cloth. Do not use metal utensils when cooking. Scratches and scrapes will hamper the ability to easily clean CAUTION the rollers. Never use steel wool or abrasive cleaners on the rollers. This will damage the finish and the roller bearings. The rollers clean most easily when hot. Use caution when cleaning to prevent burns and bodily injury. Clean the rollers with a clean wet cloth. Wipe from the ends to the center to prevent forcing debris into the roller seals. Do not allow the food product to build up and bake onto... -
Page 7: Start-Up, Heating & Programing
OPERATING PROCEDURES FOR ELECTRONIC GRILLS START-UP PROGRAM When initially turning on power to the electronically The electronic controls provide programmable HEAT controlled grill, it will be in the HOLD mode. The and HOLD settings for a variety of food products and display will flash until the set point temperature is installation conditions. reached. The grill will beep once when it is up to temperature. Infinite controlled grills have no notifi- To program the electronic roller grill: cation when operating temperature is reached. -
Page 8: Warranty
Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same. -
Page 15: Parts List
PARTS LIST March 2, 2012, Rev G Grill-Max Roller Grills 30 HD/BD Series MODEL Number Part Number Number Description & Model Designation Unit A5-RG30106 BODY ASSY A5-Z2185 DRIP TRAY A5-Z8409 BACK-CHAIN RETAINER SPACER A5-Z8410 ANGLE CHAIN RETAINER UPPER A5-Z2169 SIDE PANEL 2N-Z2178 ELEMENT 120V 30/45 120V 2N-Z2194 ELEMENT 230V 30/45 230V A5-Z6719 CHAIN GUIDE 2P-Z2242 CHAIN PS-RG3077 ROLLER ASSY CHROME PS-RG3078 ROLLER ASSY POLY (HI-GRIP) 2P-Z8392 IDLER SPROCKET... -
Page 16: Model Series
PARTS LIST March 2, 2012, Rev G Grill-Max Roller Grills 30 HD/BD Series MODEL Number Part Number Description & Model Designation Number Unit 2R-Z1854 KNOB W/SET SCREW 30CBD/SCBD/CHD/SCHD A5-Z2509 PANEL-INSULATOR 2P-Z6455 TUBE SEAL, SOLID 2I-Z2175 ORING SEAL 2P-Z2174 TUBE GUIDE 2R-Z5846 FOOT-ROLLER GRILLS 2K-Z2895 ANTI SHORT BUSHING A5-Z7650 ELEMENT RETAINER - UPPER A5-Z7656 ELEMENT RETAINER - LOWER 30CBD/SCBD/CHD/SCHD A5-RG30139 ELEMENT RETAINER ASSY - LOWER 30CHDE/SCHDE/CBDE/SCBDE/ CHDE/SCHDE 2N-Z2181 ELEMENT BUN BOX... - Page 17 PARTS LIST November 28, 2011, Rev G Grill-Max Roller Grills 45 HD/BD Series MODEL Number Part Number Unit Description & Model Designation Number A5-RG4562 BODY ASSY A5-Z2186 DRIP TRAY A5-Z8411 BACK-CHAIN RETAINER SPACER A5-Z8412 ANGLE CHAIN RETAINER UPPER A5-Z2265 SIDE PANEL 2N-Z2178 ELEMENT 120V 30/45 2N-Z2194 ELEMENT 230V 30/45 230V A5-Z6615 CHAIN GUIDE - LOWER 2P-Z2266 CHAIN PS-RG3077 ROLLER ASSY CHROME PS-RG3078 ROLLER ASSY POLY (HI-GRIP) 2P-Z8392 IDLER SPROCKET ASSEMBLY 2A-Z8017...
-
Page 18: Model Series
PARTS LIST November 28, 2011, Rev G Grill-Max Roller Grills 45 HD/BD Series MODEL Number Part Number Unit Description & Model Designation Number 2K-Z2895 ANTI SHORT BUSHING 2K-Z2895 ANTI SHORT BUSHING 230V A5-Z6619 ELEMENT RETAINER - UPPER A5-Z6622 ELEMENT RETAINER - LOWER 2N-Z2181 ELEMENT BUN BOX 120V 45CH/SCH 2T-Z8346 THERMOSTAT 115F-RG W/HB 45CH 2P-Y9176 SNAP-BUTTON A5-RG30110 CONTROL PANEL DOOR ASSY 2P-Z0315 DRAWER ROLLER W/SCREW A5-RG30109 BUN DRAWER FRAME ASSY 2R-Z9393 1 SET 14” DRAWER SLIDES 2D-Z5898 PAN 2/3 X 4” DEEP... - Page 19 PARTS LIST September 15, 2011, Rev G Grill-Max Roller Grills 50 HD/BD Series MODEL Number Part Number Unit Description & Model Designation Number A5-RG5053 BODY ASSY A5-Z2305 DRIP TRAY A5-Z8409 BACK-CHAIN RETAINER SPACER ALL A5-Z8410 ANGLE CHAIN RETAINER UPPER ALL A5-Z2169 SIDE PANEL 2N-Z2179 ELEMENT 120V 50 2N-Z2193 ELEMENT 230V 230V, 230/5 A5-Z6719 CHAIN GUIDE 2P-Z2242 CHAIN PS-RG7562 ROLLER ASSY CHROME PS-RG7563 ROLLER ASSY POLY (HI-GRIP) PS-RG7598...
-
Page 20: Model Series
PARTS LIST September 15, 2011, Rev G Grill-Max Roller Grills 50 HD/BD Series MODEL Number Part Number Unit Description & Model Designation Number 2P-Z6455 TUBE SEAL, SOLID 2I-Z2175 ORING SEAL 2P-Z2174 TUBE GUIDE 2R-Z5846 LEGS 2K-Z2895 ANTI SHORT BUSHING 2K-Z2895 ANTI SHORT BUSHING 230V, 230/5 A5-Z7650 ELEMENT RETAINER - UPPER A5-RG30139 ELEMENT RET + THERM MOUNT 50CBDE/CHDE A5-Z7656 ELEMENT RETAINER - LOWER 50CHD/CBD/SCHD/SCBD 2N-Z2178 ELEMENT, BUN BOX 120V 50CHD/CHDE/SCHD/SCHDE 2N-Z2194 ELEMENT, BUN BOX 230V... - Page 21 PARTS LIST May 31, 2011, Rev G Grill-Max Roller Grills 75 HD/BD Series cont'd MODEL Number Part Number Unit Description & Model Designation Number A5-RG7580 BODY ASSY A5-Z2306 DRIP TRAY A5-Z8411 BACK-CHAIN RETAINER SPACER ALL A5-Z8412 ANGLE CHAIN RETAINER UPPER ALL A5-Z2265 SIDE PANEL 2N-Z2193 ELEMENT 230V 50/75 240V, CE50 2N-Z2982 ELEMENT 120V 105 W 120V A5-Z6615 CHAIN GUIDE 2P-Z2266 CHAIN PS-RG7562 ROLLER ASSY CHROME PS-RG7563...
-
Page 22: Model Series
PARTS LIST May 31, 2011, Rev G Grill-Max Roller Grills 75 HD/BD Series cont'd MODEL Number Part Number Unit Description & Model Designation Number 2R-Z1854 KNOB W/SET SCREW 75CBD/CHD/SCBD/SCHD A5-Z2510 PANEL-INSULATOR 2P-Z6455 TUBE SEAL, SOLID 2I-Z2175 ORING SEAL 2P-Z2174 TUBE GUIDE 2R-Y5092 LEGS 4”, BLACK PLASTIC 2K-Z2895 ANTI SHORT BUSHING 2K-Z2895 ANTI SHORT BUSHING 240V, 75SCBDE-CE50 A5-Z6619 ELEMENT RETAINER - UPPER A5-RG4582 ELEMENT RET + THERM MOUNTS 75CBDE/CHDE/SCBDE/SCHDE A5-Z6622 ELEMENT RETAINER - LOWER 75CBD/CHD/SCBD/SCHD... - Page 24 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
