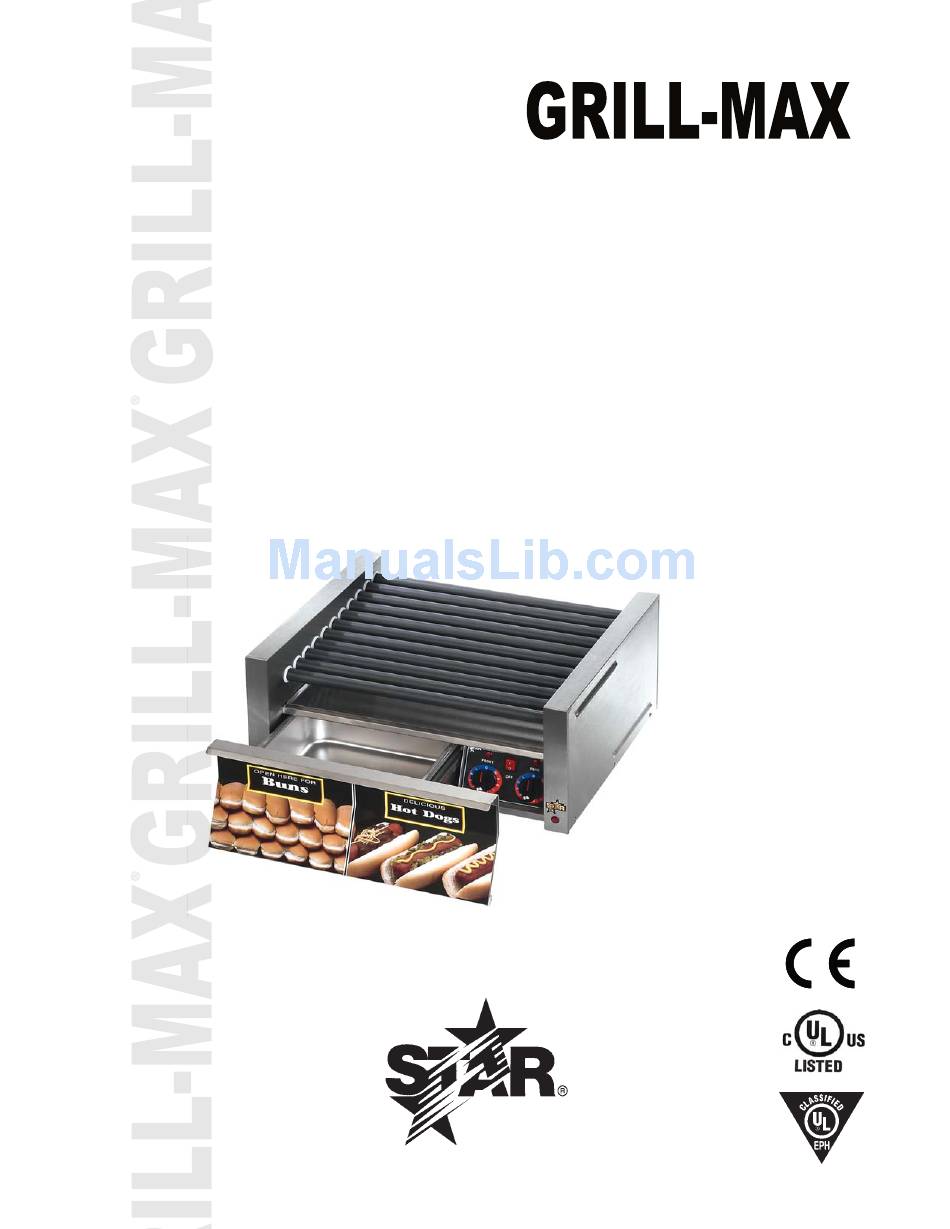

- Page 1 ® ROLLER GRILLS MODEL 20C, 30C, 45C, 50C & 75C Infinite and Electronic Controls Installation and Operation Instructions 2M-Z9106 Rev. C 5/08/06 30SCBB...
- Page 2 SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.
- Page 3 CAUTION DO NOT CONNECT TO DIRECT CURRENT (DC). CONNECTION LOAD: ELECTRONIC CONTROL INFINITE CONTROL MODEL SERIES WATTAGE MODEL SERIES WATTAGE 20C, 20SC 20SCE 30C, 30SC, 30CF, 30SCF, 30CBB, 30CBBC, 30CE, 30SCE, 30SCEX, 30CBBE 30SCBB, 30CDV 1150 30SCBBE 1150 45C, 45SC, 45CBB, 45SCBB, 45CDV 1650 45SCE, 45SCRE...
- Page 4 INSTALLATION (CONTINUED) The grill should be connected to a wall type receptacle, a direct line or individual branch circuit. An individual branch circuit is preferred. If connected to an overloaded circuit the grill will not operate properly. The unit should be level when installed. Models equipped with bun boxes must be level to utilize the self-closing feature of the bun drawer. Adjustable 4-inch legs are standard on the 75 series and available for all other models. GENERAL OPERATING PROCEDURES The main switch located on the control panel controls all the power to the unit. With the main switch on, the rollers will turn, but no heat will be supplied unless the heat controls are turned on. For flexibility the heating section of the grill is divided into two individually controlled heat sections. The right control regulates the heat to the rear section and the left control regulates the heat to the front section. The switch is lighted to indicate when the unit is turned on. On Infinite control grills a signal light is provided above each heat control and indicates when the heated section is on. An additional light is provided on the end housing of the unit. This light indicates the position of the main power switch when either the optional bun drawer front or merchandising door obstructs the control panel view. Bun...
- Page 5 OPERATING PROCEDURES FOR ELECTRONIC GRILLS START-UP NOTE: Based on the product being heated, some experimentation is required to find the optimal When initially turning on power to the electronic controlled grill, it will be in the HOLD mode. The HEAT temperature and HEAT time to bring the displays will flash until the setpoint temperature product up to temperature in an acceptable amount is reached. The grill will beep once when it is of time.
- Page 6 INTERNATIONAL ONE (1) YEAR EQUIPMENT WARRANTY All workmanship and materials in “STAR” products are warranted for a period of one year from the date shipped from the factory or one year from the date shown on the proof of purchase of the end-user when purchased through an authorized “STAR” dealer/dis- tributor in a commercial foodservice location.
-
Page 13: Parts List
20 Series MODEL Number Part Number Description & Model Designation Number Unit A5-RG2028 BODY ASSY 20CR/SCR A5-RG2027 BODY ASSY 2OC/SC A5-Z2184 DRIP TRAY 20C/SC A5-Z8409 BACK-CHAIN RETAINER SPACER 20C/SC A5-Z8410 ANGLE CHAIN RETAINER UPPER 20C/SC A5-Z2169 SIDE PANEL 20C/SC 2N-Z2181 ELEMENT 120V 20 20C-120V 2N-Z2611 ELEMENT 230V 20 20C-230V A5-Z6719 CHAIN GUIDE 20C/SC 2P-Z2242 CHAIN 20C/SC PS-RG2029... - Page 14 PARTS LIST May 8, 2006, Rev C Grill-Max Roller Grills 30 Series MODEL Number Part Unit Number Number Description & Model Designation A5-RG3062 BODY ASSY 30C/SC A5-RG3070 BODY ASSY 30CBB/SCBB A5-RG3087 BODY ASSY 30CBBC/SCBBC A5-RG3068 BODY ASSY 30CF/SCF A5-RG3066 BODY ASSY 30CR/SCR A5-RG3072 BODY ASSY 30CRBB/SCRBB A5-Z2185 DRIP TRAY 30C/SC A5-Z8409 BACK-CHAIN RETAINER SPACER 30C/SC A5-Z8410 ANGLE CHAIN RETAINER UPPER 30C/SC A5-Z2169 SIDE PANEL 30C/SC...
- Page 15 PARTS LIST May 8, 2006, Rev C Grill-Max Roller Grills 30 Series con't MODEL Number Part Number Unit Description & Model Designation Number 2M-Z8328 CONTROL PANEL LABEL 30CBBE 2M-Z8327 CONTROL PANEL LABEL 30CE 2M-Z8329 CONTROL PANEL LABEL 30SC 2M-Z8330 CONTROL PANEL LABEL 30SCBB 2M-Z8331 CONTROL PANEL LABEL 30SCBBE 2M-Z8332 CONTROL PANEL LABEL 30SCE 2J-Z2329 PILOT LIGHT RED 30C/SC (120V & 240V MODELS) 2J-Z3157 PILOT LIGHT YELLOW 30C/SC (230V MODELS) 2J-Z2329 PILOT LIGHT RED 30CE/SCE (120V & 240V MODELS) 2J-Z3157...
- Page 16 PARTS LIST May 8, 2006, Rev C Grill-Max Roller Grills 45 Series MODEL Number Part Number Unit Description & Model Designation Number A5-RG4533 BODY ASSY 45C/SC A5-RG4536 BODY ASSY 45CBB/SCBB A5-RG4534 BODY ASSY 45CR/SCR A5-RG4537 BODY ASSY 45CRBB/SCRBB A5-Z2186 DRIP TRAY 45C/SC A5-Z8411 BACK-CHAIN RETAINER SPACER 45C/SC A5-Z8412 ANGLE CHAIN RETAINER UPPER 45C/SC A5-Z2265 SIDE PANEL 45C/SC A5-Z5347 SIDE PANEL 45CF/SCF 2N-Z2178 ELEMENT 120V 30/45...
- Page 17 PARTS LIST May 8, 2006, Rev C Grill-Max Roller Grills 45 Series MODEL Number Part Number Unit Description & Model Designation Number 2M-Z8327 CONTROL PANEL LABEL 45CE 2M-Z8329 CONTROL PANEL LABEL 45SC 2M-Z8330 CONTROL PANEL LABEL 45SCBB 2J-Z2329 PILOT LIGHT RED 45C/SC (120V & 240V MODELS) 2J-Z3157 PILOT LIGHT YELLOW 45C/SC (230V MODELS) 2J-Z2329 PILOT LIGHT RED 45CE/SCE (120V & 240V MODELS) 2J-Z3157 PILOT LIGHT YELLOW 45CE/SCE (230V MODELS) 2E-Z1858 SWITCH-RED LIGHTED 120V & 240V MODELS 2E-Z3156 SWITCH-YELLOW LIGHTED 230V MODELS 2R-Z1854 KNOB W/SET SCREW...
- Page 18 PARTS LIST May 8, 2006, Rev C Grill-Max Roller Grills 50 Series MODEL Number Part Number Unit Description & Model Designation Number A5-RG5028 BODY ASSY 50 C/SC A5-RG5029 BODY ASSY 50 CR/SCR A5-RG5031 BODY ASSY 50CBB/SCBB A5-RG5037 BODY ASSY 50CBBC/SCBBC A5-RG5030 BODY ASSY 50CF/50SCF A5-RG5032 BODY ASSY 50CRBB/SCRBB A5-Z2305 DRIP TRAY 50C/SC A5-Z4273 DRIP TRAY 50SC-ST, 50SCE-ST, 50SC-STS A5-RG5012 DRIP TRAY ASSY 50SC-ST, 50SCE-ST, 50SC-STS A5-Z8409 BACK-CHAIN RETAINER SPACER 50C/SC...
- Page 19 PARTS LIST May 8, 2006, Rev C Grill-Max Roller Grills 50 Series MODEL Number Part Number Unit Description & Model Designation Number 2M-Z8334 CONTROL PANEL LABEL 50CBB 2M-Z8336 CONTROL PANEL LABEL 50CBBE 2M-Z8335 CONTROL PANEL LABEL 50CE 2M-Z8337 CONTROL PANEL LABEL 50SC 2M-Z8338 CONTROL PANEL LABEL 50SCBB 2M-Z8340 CONTROL PANEL LABEL 50SCBBE 2M-Z8339 CONTROL PANEL LABEL 50SCE 2J-Z2329 PILOT LIGHT RED 50C/SC (120V & 240V MODELS) 2J-Z3157 PILOT LIGHT YELLOW 50C/SC (230V MODELS) 2J-Z2329 PILOT LIGHT RED...
- Page 20 PARTS LIST May 8, 2006, Rev C Grill-Max Roller Grills 75 Series MODEL Number Part Number Unit Description & Model Designation Number A5-RG7549 BODY ASSY 75CRBB/SCRBB A5-RG7571 BODY ASSY 75CFV A5-RG7547 BODY ASSY 75CF/SCF A5-RG7548 BODY ASSY 75CBB/SCBB A5-RG7546 BODY ASSY 75 CR/SCR A5-RG7545 BODY ASSY 75 C/SC A5-Z2306 DRIP TRAY 75C/SC A5-Z8411 BACK-CHAIN RETAINER SPACER 75C/SC A5-Z8412 ANGLE CHAIN RETAINER UPPER 75C/SC A5-Z5347 SIDE PANEL 75CF/SCF...
- Page 21 PARTS LIST May 8, 2006, Rev C Grill-Max Roller Grills 75 Series MODEL Number Part Number Unit Description & Model Designation Number 2M-Z8338 CONTROL PANEL LABEL 75SCBB 2M-Z8337 CONTROL PANEL LABEL 75SC 2M-Z8335 CONTROL PANEL LABEL 75CE 2M-Z8336 CONTROL PANEL LABEL 75CBBE 2M-Z8334 CONTROL PANEL LABEL 75CBB 2M-Z8333 CONTROL PANEL LABEL 2J-Z3157 PILOT LIGHT YELLOW 75CE/SCE (230V MODELS) 2J-Z2329 PILOT LIGHT RED 75CE/SCE (120V & 240V MODELS) 2J-Z3157 PILOT LIGHT YELLOW 75C/SC (230V MODELS) 2J-Z2329 PILOT LIGHT RED 75C/SC (120V & 240V MODELS)
