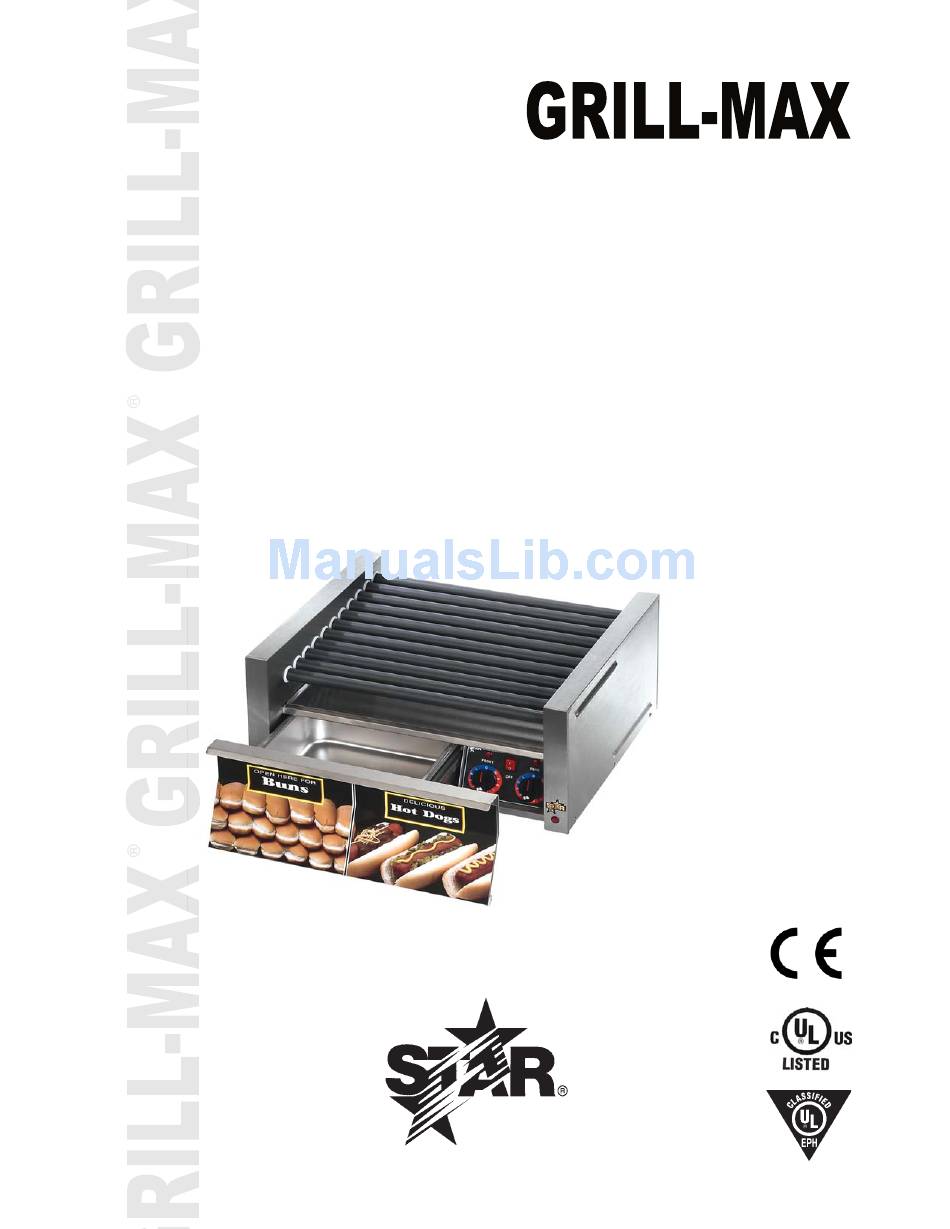

- Page 1 ® ROLLER GRILLS MODEL 20C, 30C, 45C, 50C & 75C 54IC/ISC, 90IC/ISC Infinite and Electronic Controls Installation and Operation Instructions 2M-Z8542 Rev. H 2/17/10 30SCBB...
- Page 2 SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE NUMBER GENERAL SAFTEY INFORMATION GENERAL INSTALLATION INFORMATION Connection Load GENERAL OPERATING INSTRUCTIONS Cleaning ELECTRONICALLY CONTROLLED: Start-up, Heating & Programing WARRANTY WIRING DIAGRAM 8-13 EXPLODED VIEW (C Series) 14, 15 PARTS LIST 20 MODEL SERIES 30 MODEL SERIES 17, 18 45 MODEL SERIES 19, 20 50 MODEL SERIES 21, 22 75 MODEL SERIES 23, 24 EXPLODED VIEW (iC/ISC Island Series) PARTS LIST 54 MODEL SERIES 27, 28 30 MODEL SERIES 29, 30 GENERAL SAFETY INFORMATION T his equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor CAUTION for use directly by the general public in food service locations. -
Page 4: General Installation Information
This grill is equipped for the voltage shown on the nameplate. It will operate on alternating current only, however, the specified voltage must be applied. CONNECTION LOAD: ELECTRONIC CONTROL INFINITE CONTROL MODEL SERIES WATTAGE MODEL SERIES WATTAGE 20SCE 20C, 20SC 30C, 30SC, 30CF, 30SCF, 30CBB, 30CE, 30SCE, 30SCEX, 30CBBE 30CBBC, 30SCBB, 30CDV 1150 30SCBBE 1150 45C, 45SC, 45CBB, 45SCBB, 45CDV 1650 45SCE, 45SCRE 1650... -
Page 5: General Operating Instructions
GENERAL OPERATING PROCEDURES The main switch located on the control panel controls all the power to the unit. With the main switch on, the rollers will turn, but no heat will be supplied unless the heat controls are turned on. For flexibility the heating section of the grill is divided into two individually controlled heat sections. The right control regulates the heat to the rear section and the left control regulates the heat to the front section. The switch is lighted to indicate when the unit is turned on. -
Page 6: Start-Up, Heating & Programing
OPERATING PROCEDURES FOR ELECTRONIC GRILLS START-UP NOTE: Based on the product being heated, some experimentation is required to find the optimal HEAT When initially turning on power to the electronic controlled grill, it will be in the HOLD mode. The temperature and HEAT time to bring the product up displays will flash until the setpoint temperature to temperature in an acceptable amount of time. is reached. The grill will beep once when it is PROGRAMMING up to temperature. -
Page 7: Warranty
Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same. -
Page 16: Parts List
20 Series MODEL Number Part Number Description & Model Designation Number Unit A5-RG2028 BODY ASSY 20CR/SCR A5-RG2027 BODY ASSY 2OC/SC A5-Z2184 DRIP TRAY 20C/SC A5-Z8409 BACK-CHAIN RETAINER SPACER 20C/SC A5-Z8410 ANGLE CHAIN RETAINER UPPER 20C/SC A5-Z2169 SIDE PANEL 20C/SC 2N-Z2181 ELEMENT 120V 20 20C-120V 2N-Z2611 ELEMENT 230V 20 20C-230V A5-Z6719 CHAIN GUIDE 20C/SC 2P-Z2242 CHAIN 20C/SC PS-RG2029... -
Page 17: Model Series
PARTS LIST November 16, 2009, Rev. H Grill-Max Roller Grills 30 Series MODEL Number Part Number Number Description & Model Designation Unit A5-RG3062 BODY ASSY 30C/SC A5-RG3070 BODY ASSY 30CBB/SCBB A5-RG3087 BODY ASSY 30CBBC/SCBBC A5-RG3068 BODY ASSY 30CF/SCF A5-RG3066 BODY ASSY 30CR/SCR A5-RG3072 BODY ASSY 30CRBB/SCRBB A5-Z2185 DRIP TRAY 30C/SC A5-Z8409 BACK-CHAIN RETAINER SPACER 30C/SC A5-Z8410 ANGLE CHAIN RETAINER UPPER 30C/SC... - Page 18 PARTS LIST November 16, 2009, Rev. H Grill-Max Roller Grills 30 Series con't MODEL Number Part Number Description & Model Designation Number Unit A5-Z7651 CONTROL PANEL 30C/SC A5-Z7753 CONTROL PANEL 30CBB/SCBB A5-RG3069 CONTROL PANEL 30CE/SCE A5-RG3071 CONTROL PANEL 30CBBE/SCBBE 2M-Z8325 CONTROL PANEL LABEL 2M-Z8326 CONTROL PANEL LABEL 30CBB 2M-Z8328 CONTROL PANEL LABEL 30CBBE 2M-Z8327 CONTROL PANEL LABEL 30CE 2M-Z8329 CONTROL PANEL LABEL...
-
Page 19: Model Series
PARTS LIST November 16, 2009, Rev. H Grill-Max Roller Grills 45 Series MODEL Number Part Number Description & Model Designation Number Unit A5-RG4533 BODY ASSY 45C/SC A5-RG4536 BODY ASSY 45CBB/SCBB A5-RG4534 BODY ASSY 45CR/SCR A5-RG4537 BODY ASSY 45CRBB/SCRBB A5-Z2186 DRIP TRAY 45C/SC A5-Z8411 BACK-CHAIN RETAINER SPACER 45C/SC A5-Z8412 ANGLE CHAIN RETAINER UPPER 45C/SC A5-Z2265 SIDE PANEL 45C/SC A5-Z5347 SIDE PANEL... - Page 20 PARTS LIST November 16, 2009, Rev. H Grill-Max Roller Grills 45 Series MODEL Number Part Number Description & Model Designation Number Unit 2M-Z8325 CONTROL PANEL LABEL 2M-Z8326 CONTROL PANEL LABEL 45CBB 2M-Z8327 CONTROL PANEL LABEL 45CE 2M-Z8329 CONTROL PANEL LABEL 45SC 2M-Z8330 CONTROL PANEL LABEL 45SCBB 2J-Z2329 PILOT LIGHT RED 45C/SC (120V & 240V MODELS) 2J-Z3157 PILOT LIGHT YELLOW 45C/SC (230V MODELS) 2J-Z2329 PILOT LIGHT RED 45CE/SCE (120V & 240V MODELS) 2J-Z3157 PILOT LIGHT YELLOW 45CE/SCE (230V MODELS)
-
Page 21: Model Series
PARTS LIST November 16, 2009, Rev. H Grill-Max Roller Grills 50 Series MODEL Number Part Number Description & Model Designation Number Unit A5-RG5028 BODY ASSY 50 C/SC A5-RG5029 BODY ASSY 50 CR/SCR A5-RG5031 BODY ASSY 50CBB/SCBB A5-RG5037 BODY ASSY 50CBBC/SCBBC A5-RG5030 BODY ASSY 50CF/50SCF A5-RG5032 BODY ASSY 50CRBB/SCRBB A5-Z2305 DRIP TRAY 50C/SC A5-Z4273 DRIP TRAY 50SC-ST, 50SCE-ST, 50SC-STS A5-RG5012 DRIP TRAY ASSY... - Page 22 PARTS LIST November 16, 2009, Rev. H Grill-Max Roller Grills 50 Series MODEL Number Part Number Description & Model Designation Number Unit A5-Z7751 CONTROL PANEL 50C/SC A5-Z7850 CONTROL PANEL ASSY 50CBB/SCBB A5-RG7560 CONTROL PANEL 50CBBE/SCBBE A5-RG7561 CONTROL PANEL 50CE/SCE 2M-Z8333 CONTROL PANEL LABEL 2M-Z8334 CONTROL PANEL LABEL 50CBB 2M-Z8336 CONTROL PANEL LABEL 50CBBE 2M-Z8335 CONTROL PANEL LABEL 50CE 2M-Z8337 CONTROL PANEL LABEL 50SC...
-
Page 23: Model Series
PARTS LIST December 17, 2010, Rev. H Grill-Max Roller Grills 75 Series MODEL Number Part Number Description & Model Designation Unit Number A5-RG7545 BODY ASSY 75 C/SC A5-RG7546 BODY ASSY 75 CR/SCR A5-RG7547 BODY ASSY 75CF/SCF A5-RG7548 BODY ASSY 75CBB/SCBB A5-RG7549 BODY ASSY 75CRBB/SCRBB A5-RG7571 BODY ASSY 75CFV A5-RG7580 BODY ASSY 75 RG/HD 75SCESW A5-Z2306 DRIP TRAY 75C/SC A5-Z8411 BACK-CHAIN RETAINER SPACER 75C/SC... - Page 24 PARTS LIST December 17, 2010, Rev. H Grill-Max Roller Grills 75 Series MODEL Number Part Number Description & Model Designation Number Unit A5-RG7560 CONTROL PANEL 75CE/SCE A5-RG7561 CONTROL PANEL 75CE/SCE, BUN BOX A5-Z7751 CONTROL PANEL 75C/SC A5-Z7850 CONTROL PANEL ASSY 75CBB/SCBB 2M-Z8333 CONTROL PANEL LABEL 2M-Z8334 CONTROL PANEL LABEL 75CBB 2M-Z8335 CONTROL PANEL LABEL 75CE 2M-Z8336 CONTROL PANEL LABEL 75CBBE 2M-Z8337 CONTROL PANEL LABEL 75SC 2M-Z8338...
-
Page 27: Model Series
PARTS LIST September 23, 2008 Rev. H Grill-Max Island Roller Grills 54IC Series MODEL Number Part Number Description & Model Designation Number Unit A5-RG3098 BODY ASSY 54IC/ISC A5-Z5185 DRIP TRAY A5-RG30105 DRIP PAN ASSY 54IC/ISC A5-Z8803 SIDE PANEL IC/ISC A5-Z9705 ELEMENT 90W 120V 54IC/ISC A5-Z8811 CHAIN GUIDE 2 A5-Z8810 CHAIN GUIDE 1 A5-Z8826 CHAIN RETAINER-ANGLE A5-Z8827 CHAIN RETAINER-FLAT 2P-Z8915 ROLLER CHAIN A5-RG3001 ROLLER ASSY CHROME 54IC... -
Page 29: Model Series
PARTS LIST September 23, 2008 Rev. H Grill-Max Island Roller Grills 90IC/ISC Series MODEL Number Part Number Description & Model Designation Number Unit A5-RG7575 BODY ASSY 90IC/ISC A5-Z9828 DRIP TRAY 90IC/ISC A5-RG7576 DRIP PAN ASSY 90IC/ISC A5-Z8803 SIDE PANEL IC/ISC 2N-Z2193 ELEMENT 135W, 230V 90IC/ISC A5-Z8811 CHAIN GUIDE 2 A5-Z8810 CHAIN GUIDE 1 A5-Z8826 CHAIN RETAINER-ANGLE A5-Z8827 CHAIN RETAINER-FLAT 2P-Z8915 ROLLER CHAIN A5-RG7501 ROLLER ASSY CHROME... - Page 30 PARTS LIST September 23, 2008 Rev. H Grill-Max Island Roller Grills 90IC/ISC Series MODEL Number Part Number Description & Model Designation Number Unit 2R-Y5092 BLACK PLASTIC LEG 90IC/ISC 2P-Z1540 PLUG-HEYCO 5/16” DIA. IC/ISC 2P-Z1540 PLUG-HEYCO 5/16” DIA. ICE/ISCE A5-RG30115 ELEMENT RETAINER ASSY LOWER 1 ICE/ISCE A5-Z8808 ELEMENT RETAINER-LOWER 1 IC/ISC A5-RG30116 ELEMENT RETAINER ASSY LOWER 2 ICE/ISCE A5-Z8809 ELEMENT RETAINER-LOWER 2 IC/ISC A5-Z8828 ELEMENT RETAINER-UPPER 1 A5-Z8829 ELEMENT RETAINER-UPPER 2 A5-Z8833...
- Page 32 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
