30SCHDM-120V, 50SCHDM-120V,
45SCHDEP-120V, 50SCHDEP-120V
50SCHDEM-120V, 75SCHDEM-120V
ROLLER GRILLS
75SCHDM-240V
Infinite Controls
& Heated Bun Drawer
Electronic Controls
& Heated Bun Drawer
Installation and
IL1541
®
MODELS
Operation
Instructions
2M-Z11808 Rev. B 7/30/12
Advertisement
Related Manuals for Grill-Max 30SCHDM-120V
Summary of Contents for Grill-Max 30SCHDM-120V

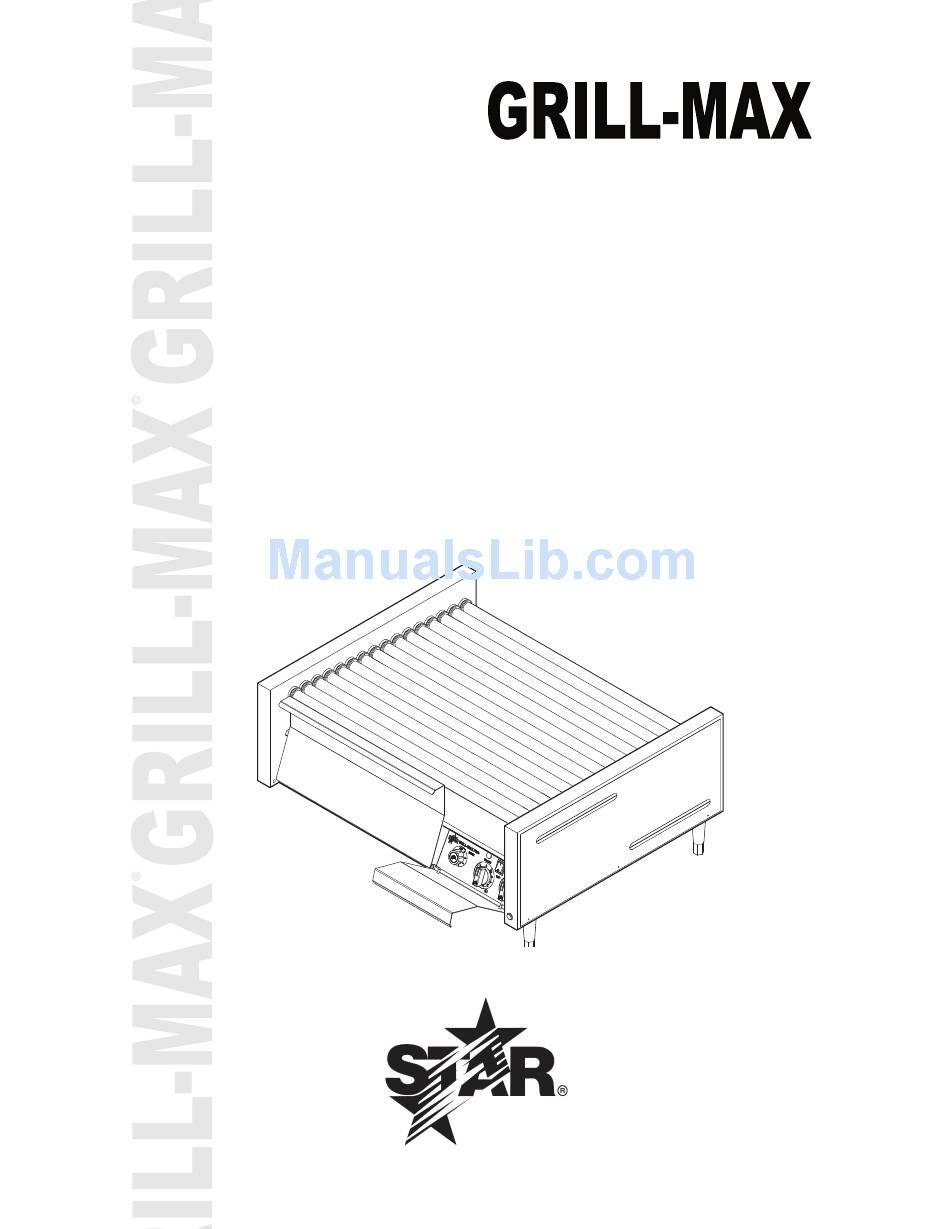

- Page 1 ® ROLLER GRILLS MODELS 30SCHDM-120V, 50SCHDM-120V, 75SCHDM-240V Infinite Controls & Heated Bun Drawer 45SCHDEP-120V, 50SCHDEP-120V 50SCHDEM-120V, 75SCHDEM-120V Electronic Controls & Heated Bun Drawer Installation and Operation Instructions 2M-Z11808 Rev. B 7/30/12 IL1541...
- Page 2 SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.
- Page 3 TABLE OF CONTENTS PAGE NUMBER GENERAL SAFETY INFORMATION GENERAL INSTALLATION INFORMATION Connection Load GENERAL OPERATING INSTRUCTIONS Bun Box Infinite Controls Electronic Controls Cleaning WARRANTY Outside the United States United States WIRING DIAGRAM EXPLODED VIEW 10 - 11 PARTS LIST 50 MODEL SERIES 12 - 13 GENERAL SAFETY INFORMATION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. Before using your new equipment, read and understand all the instructions & labels associated with the CAUTION unit prior to putting it into operation. Make sure all people associated with its use understand the units operation & safety before they use the unit. All shipping containers should be checked for freight damage both visible and concealed. This unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If equipment is received in damaged condition, either apparent or concealed, a claim must be made with the delivering carrier. Concealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a request for inspection of concealed damage must be made with carrier within 15 days. Be certain to retain all contents plus external and internal packaging materials for inspection. The carrier will make an inspection and will supply necessary claim forms.
- Page 4 GENERAL OPERATING INSTRUCTIONS BUN WARMER Operating the bun drawer requires filling the pan with fresh buns and removing the stale buns as required. The heated bun drawer is not meant to toast the buns and the temperature should be at 122°F (50°C). To determine the correct setting, set the Bun Box Knob to #3, using a thermometer, adjust until the correct setting is reached. NO WATER IS REQUIRED OR RECOMMENDED. All units are equipped with an easily removed bun pan which can be removed by lifting out of the open bun drawer. This makes daily cleaning of the pan easy. It is necessary to remove the bun drawer before attempting to remove the drip tray when access to the rear of the unit is obstructed. To remove the bun drawer, first allow the unit to cool, remove bun pan, then grab the drawer by both sides and pull it out all the way. Lift the front to unhook the drawer slide from rear drawer roller. Pull the drawer the remainder of the way out. Use caution not to drop the drawer when reaching the end of the drawer slide travel. To reinsert the drawer, first hook the drawer slide over the first right side roller then push the drawer in until the second roller drops in, doing one side at a time. Repeat for left side rollers. Reinsert bun pan. Do not operate the grill without the drip tray in place. OPERATING PROCEDURES FOR INFINITE CONTROL GRILLS The main switch located on the control panel controls all the power to the unit. With the main switch on, the rollers will turn, heat will be supplied to the bun box, but no heat will be supplied to the rollers unless the heat controls are turned on. The switch is lighted to indicate when the unit is turned on. For flexibility the heating section of the grill is divided into two individually controlled heat sections. The right control regulates the heat to the rear section and the left control regulates the heat to the front section. On Infinite control grills a signal light is provided above each heat control and indicates when the heated section is on. An additional light is provided on the end housing of the unit that indicates the position of the main power switch. IL1540 Front Power Rear Bun Warmer Control...
- Page 5 OPERATING PROCEDURES FOR ELECTRONIC GRILLS START-UP PROGRAMMING When initially turning on power to the electronic controlled The electronic controls provide programmable HEAT and grill, it will be in the HOLD mode. The displays will flash until HOLD settings for a variety of food products and installation the setpoint temperature is reached, heat will be supplied conditions. to the bun box. The grill will beep once when it is up to To program the electronic roller grill: temperature. Infinite controlled grills have no notification With the grill on, push and hold the and on the...
- Page 6 USE ONLY PLASTIC OR COATED UTENSILS FOR HANDLING THE FOOD PRODUCT. METAL WILL SCRATCH THE ROLLER COATING AND AFFECT THE ABILITY TO CLEAN THE ROLLERS. CAUTION INTERNAL DRAWER COMPONENTS & DRAWER CAVITY ARE HEATED. ALLOW THE DRAWER & CAVITY TO COOL DOWN BEFORE SERVICING OR CLEANING. DO NOT USE STEEL WOOL OR ABRASIVE CLEANERS ON THE ROLLERS.
- Page 7 INTERNATIONAL ONE (1) YEAR EQUIPMENT WARRANTY All workmanship and materials in “STAR” products are warranted for a period of one year from the date shipped from the factory or one year from the date shown on the proof of purchase of the end-user when purchased through an authorized “STAR” dealer/dis- tributor in a commercial foodservice location.
- Page 8 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit.
- Page 10 BUN BOX ELEMENT REAR THERMISTOR FRONT THERMISTOR PILOT LIGHT 15 AMP PLUG (NEMA 5-15P) FRONT LINE NEUTRAL GRILL REAR BUN BOX GRILL T-STAT GREEN RIBBON CABLE WHITE BLACK ON / OFF CONTROL SWITCH BOARD WIRE DIAGRAM, 45SCHDEP-120 & 50SCHDEP STAR MANUFACTURING INTERNATIONAL INC. SK2440 Rev - 9/24/2009...
-
Page 13: Parts List
MOTOR MOUNTING ASSY A5-RG2041 CORD SET ASSY 120V CSA 50SCHDM-120V A5-RG2036 CORD SET 120V W/TERMINALS 30SCHMDM-120V, 50SCHDEP-120, 50SCHDEM-120 2K-Y2968 BUSHING - HEYCO 7W-2 30SCHDM-120V, 50SCHDM-120V 2K-Y3240 BUSHING HEYCO SR 17-2 50SCHDEP-120, 50SCHDEM-120, 75SCHDM-240 2K-8043 BUSHING HEYCO SB-875-10 A5-Z5335 BOTTOM COVER PLATE A5-Z9344... - Page 14 2R-Y5092 4” BLACK PLASTIC LEG 45SCHDE4P120, 50SCHDE4P120, 75SCHDEM 2P-Z6455 TUBE SEAL, SOLID 45SCHDEP, 75SCHDM, 75SCHDEM 2I-Z2175 ORING SEAL 30SCHDM-120V, 50SCHDEP-120, 50SCHDM-120V 45SCHDEP, 75SCHDM, 75SCHDEM 2P-Z2174 TUBE GUIDE 30SCHDM-120V, 50SCHDEP-120, 50SCHDM-120V 2C-Z5182 SCREW, THUMB-1/4-20 X 1/2 A5-Z13072 HD ELEMENT GUARD 30/45...
- Page 15 45SCHDEP-120 A5-RG5048 BUN DRAWER FRAME ASSY 50SCHDEP-120, 50SCHDM-120V A5-RG7569 DRAWER AWWY 50/75HB 75SCHDM, 75SCHDEM 2D-Z5898 PAN 2/3” X 4” DEEP 30SCHDM-120V, 45SCHDEP-120V 2D-Z5899 PAN FULL X 4” DEEP 50SCHDEP-120, 50SCHDM-120V, 75SCHDM, 75SCHDEM A5-Z9539 50SCHDEP-120, 50SCHDM-120V HD PAN COVER A5-Z9538 45SCHDEP-120 2K-Z1971 SPACER .257X.75X.25 NYLON...
