With option of USB connector for networking to other equipment, computer, LAN
and so the internet.
C r e a t e C D q u a l i t y s o u n d f r o m c o m p u t e r & I n t e r n e t t h r o u g h t h e U S B l i n k i n g s y s t e m
d e s i g n e d i n A M C I A S y s t e m
XIA
STEREO INTEGRATED
AMPLIFIER
IA
LAN & Internet
NOTE BOOK
USB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XIA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMC XIA

Summary of Contents for AMC XIA

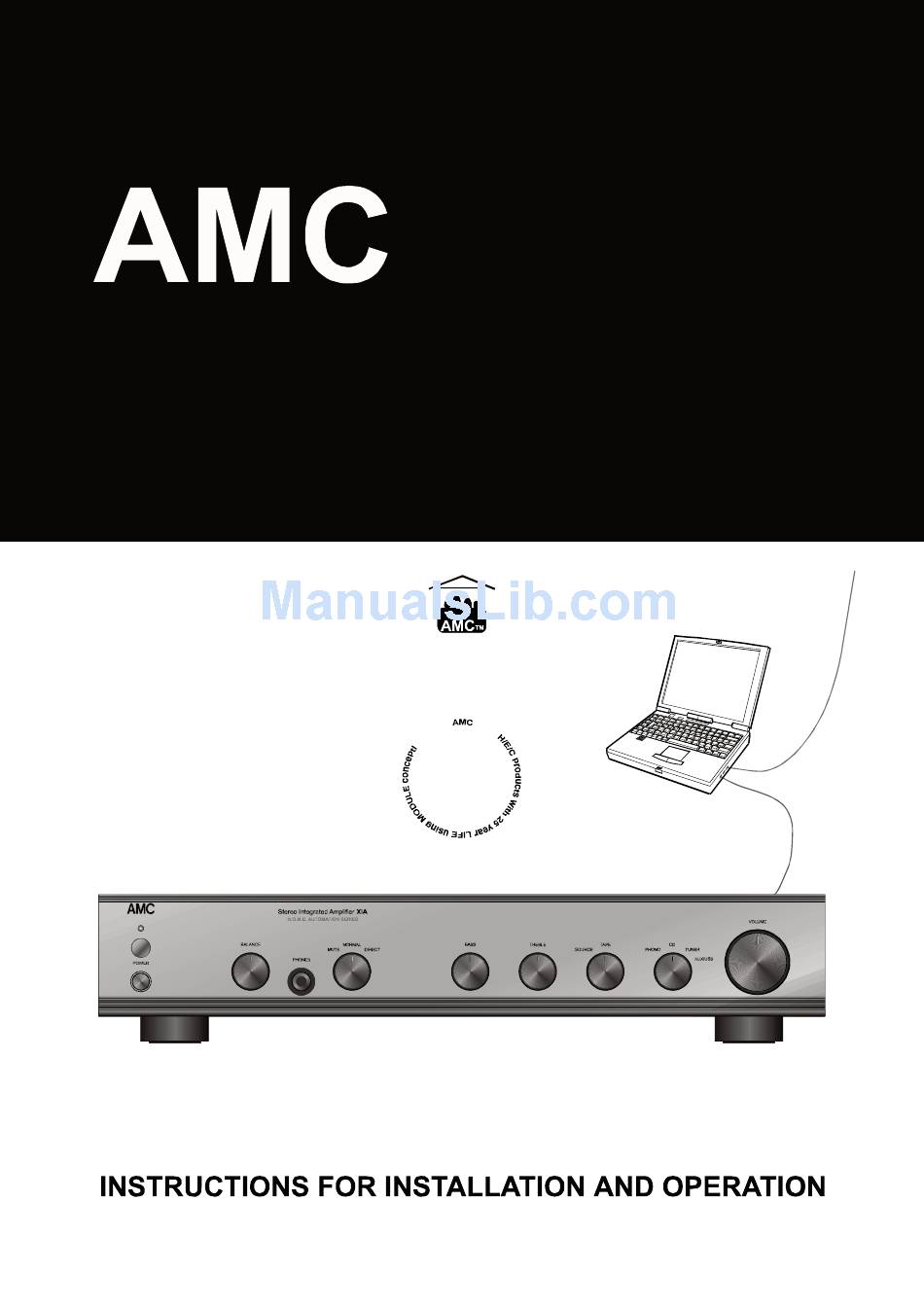

  • Page 1 STEREO INTEGRATED AMPLIFIER With option of USB connector for networking to other equipment, computer, LAN and so the internet. LAN & Internet NOTE BOOK C r e a t e C D q u a l i t y s o u n d f r o m c o m p u t e r & I n t e r n e t t h r o u g h t h e U S B l i n k i n g s y s t e m d e s i g n e d i n A M C I A S y s t e m...

  • Page 3: Installation

    *Special designed passive Tone control who has a f u l l knowledge o f AMC circuit to give natural sound quality. products and their use in a variety of *Uses audiophile grade components systems.
  • Page 4 REAR PANEL CONNECTIONS/FRONT PANEL CONTROLS REAR PANEL 1.USB 8.TAPE INPUT 2.PHONO MM/MC INPUT SELECTION SWITCH 9.TAPE OUTPUT 3.PHONO GROUND TERMINAL 10. PRE OUT/MAIN IN 4.PHONO INPUT 11. LOUDSPEAKER TERMINALS 5.AUX INPUT 12.AC SELECT SWITCH 6.TUNER INPUT 13.AC SWITCHED OUTLET 7.CD INPUT 14.AC RECEPTACLE FRONT PANEL 1.POWER SWITCH...
  • Page 5 AUXILIARY INPUT 4-8 ohms. The Auxiliary input is suitable for use with However, XIA c a n only drive 4 ohm any extra source processing a line level speakers by switching the impedance output, perhaps a second tuner or CD...

  • Page 6: Loudspeaker Connections

    Voltage selector set to the voltage of the good clean contact. country you will use XIA or not and set to U N D E R N O C I R C U M S T A N C E S correct voltage.

  • Page 7: Front Panel Controls

    TONE CONTROLS Adjust the Balance Control to produce a The tone controls on your AMC amplifier natural spread of sound across the space use low colouration passive circuitry to b e t w e e n t h e s p e a k e r s , w i t h a n y...
  • Page 8 MUTING By turning the Direct/Mute switch to "Mute" it is possible to cut the output to your loudspeakers, a feature which will prove useful in situations where a lower volume level may be required for short periods(e.g. for a phone call ect.) TAPE RECORDING All sources, Phono, CD, Tuner and Aux/USB can be recorded via the tape...

  • Page 9: Volume Control

    1.INPUT SELECTOR 2.VOLUME CONTROL These buttons select any one of the eight sources that are connected to the i n p u t s o f t h e X I A ( P H O N O , C D , TUNER, AUX/USB).

  • Page 10: Specifications

    SPECIFICATIONS Rated Power into 8/4 ohms................45/60W With both channels driven Rated T.H.D.20Hz-20KHz..................0.05% 1KHz clipping power into 8/4 ohms............48/65W Input Sensitivity for 1W/Rated Power into 8 ohms: High level inputs..................23mV/150mV Phono input MM..............0.5mV/2.7mV MC................0.05mV/0.27mV Input impedance: High level inputs..................20K ohms Phono input MM/MC................47 ohms/100pF Frequency response: Tone bypass 20Hz-20KHz.................+/-0.5dB...

  • Page 11: Safety Instruction

    National Electrical Code AvailablefromLibrary,book 15. SERVICING stores, or National FireProtection Association (Batterymarch Park, Quincy. MA 02269). The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing AMC 21-3004 shouldbereferredtoqualified service personnel.
  • Page 12 PN: 21-4160...
