Summary of Contents for AMC XIA30

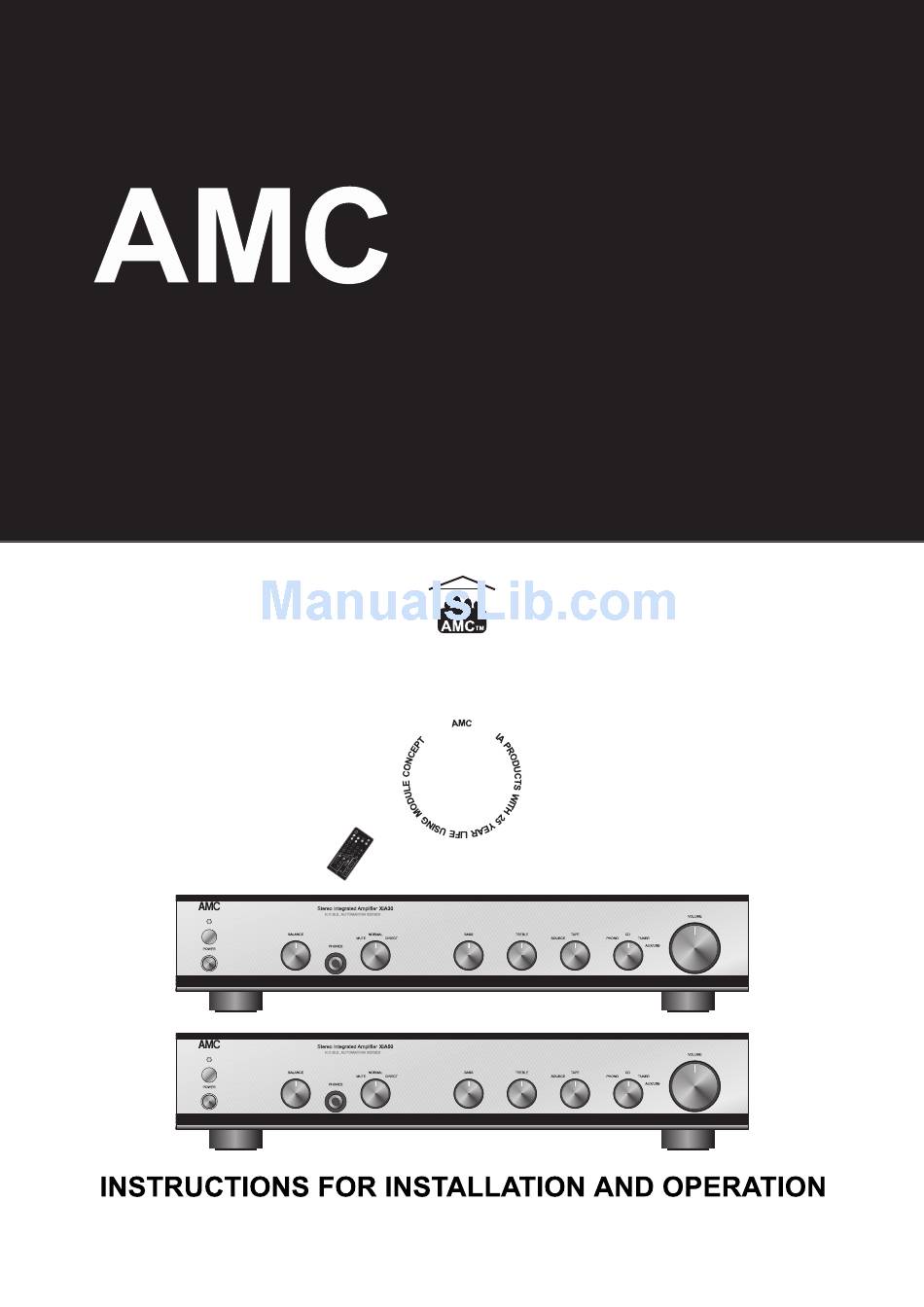

- Page 1 XIA30 XIA50 STEREO INTEGRATED AMPLIFIER...
- Page 4 *Uses audiophile grade components who has a full knowledge of AMC throughout, providing exceptional products and their use in a variety of accuracy to phono and tone control systems.
-
Page 5: Rear Panel
XIA50 1.PHONO GROUND TERMINAL 9.PRE OUT/MAIN IN 2.PHONO MM/MC INPUT SELECTION SWITCH 10.LOUDSPEAKER TERMINALS 3.PHONO INPUT 11.SPEAKER IMPEDANCE SELECTION 4.AUX INPUT SWITCH (XIA30 ONLY) 5.TUNER INPUT 12.AC SELECT SWITCH 6.CD INPUT 13.AC SWITCHED OUTLET 7.TAPE INPUT 14.AC RECEPTACLE 8.TAPE OUTPUT... -

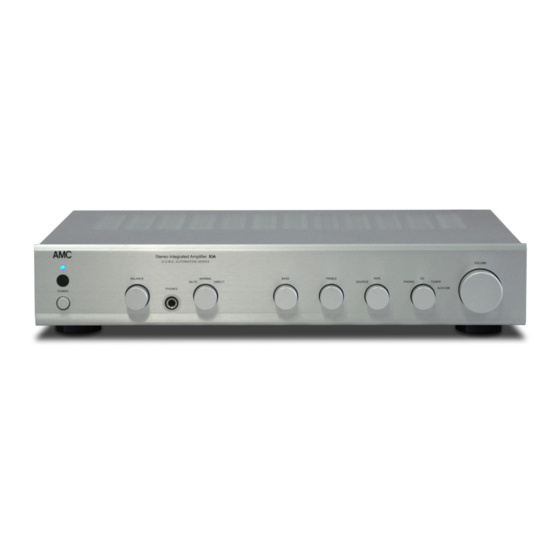

Page 6: Front Panel
FRONT PANEL 1.POWER SWITCH 6.BASS CONTROL 2.INFRARED RECEIVER 7.TREBLE CONTROL. 3.BALANCE CONTROL 8.TAPE MONITOR SWITCH 4.PHONES 9.INPUT SELECTION SWITCH 5.MUTE/NORMAL/DIRECT 10.VOLUME CONTROL SWITCH... -
Page 7: Your Warranty
OPENED BY ANYONE OTHER THAN A QUALIFIED ENGINEER, AS DANGEROUS VOLTAGES ARE PRESENT INSIDE. ANY The PHONO can be replaced with AMC UNAUTHORIZED REPAIR MAY INVALIDATE proprietary designed DAC to convert the YOUR WARRANTY. -
Page 8: Pre Out/Main In
The AC Selector will be set to the AC power voltage of your country from The loudspeaker output terminals will factory. But in case if your XIA30/XIA50 is accept 4mm(banana)plugs, spade not received directly from factory or you connectors, pin connectors or bare wires. - Page 9 AC outlet, please always check if the Voltage selector set to the voltage of the country you will use XIA30/XIA50 or not and set to correct voltage. When the AC Selector is set to 115VAC, the XIA30/XIA50 can be used in countries with AC Power Voltage between 110V and 120V.
-
Page 10: Front Panel Controls
TONE CONTROLS Adjust the Balance Control to produce a The tone controls on your AMC amplifier natural spread of sound across the space use low colouration passive circuitry to between the speakers, with any... -
Page 11: Tape Recording
With the Direct/Mute switch in the "normal" position, the tone controls will cut their respective frequencies when turned anti-clockwise and boost them when turned clockwise. The flattest response is found when the controls are in the "12 o'clock position. PHONES The headphone socket will accept any headphones fitted with a standard 1/4"(6.35mm) stereo jack plug. - Page 12 AMC Amps Remote Code List Customer Code: 07FC Function Type Product(s) Tuner Input XIA30/XIA50,XIA100/XIA150 Input XIA30/XIA50,XIA100/XIA150 Video Input XIA100/XIA150 Phono/Option Input XIA30/XIA50,XIA100/XIA150 Input XIA30/XIA50,XIA100/XIA150 iPod/DAC Input XIA100/XIA150 Master Volume Up > General XIA30/XIA50,XIA100/XIA150 Master Volume Dn < General XIA30/XIA50,XIA100/XIA150...
-
Page 13: Input Sources
PRESET RC-S8 1.INPUT SOURCES 2.VOLUME CONTROL PHONO, iPod/DAC, CD, TUNER, : VOLUME UP VIDEO, AUX - 3100MKII, 3150MKII, : VOLUME DOWN CVT3030MKII, CVT1030MKII PHONO, CD, TUNER, AUX - XIA30, XIA50, XIA, 306d XT - Zone key is deleted in RC-S8. -
Page 14: Specifications
SPECIFICATIONS XIA30 XIA50 Rated Power into 8/4 ohms ......30/30W 45/60W With both channels driven Rated T.H.D.20Hz-20KHz ........ 0.05% 0.05% 1KHz clipping power into 8/4 ohms ..... 36/36W 48/65W Input Sensitivity for 1W/Rated Power into 8 ohms: High level inputs ......... 23mV/150mV 23mV/150mV Phono input MM ........ -
Page 15: Safety Instruction
15. SERVICING stores, or National Fire Protection Association (Batterymarch Park, Quincy. MA 02269). The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing AMC 21-3004 should be referred to qualified service personnel. - Page 16 21R- XI A30_S8 PN: 21R-XIA30_S8...
