Summary of Contents for AMC XG

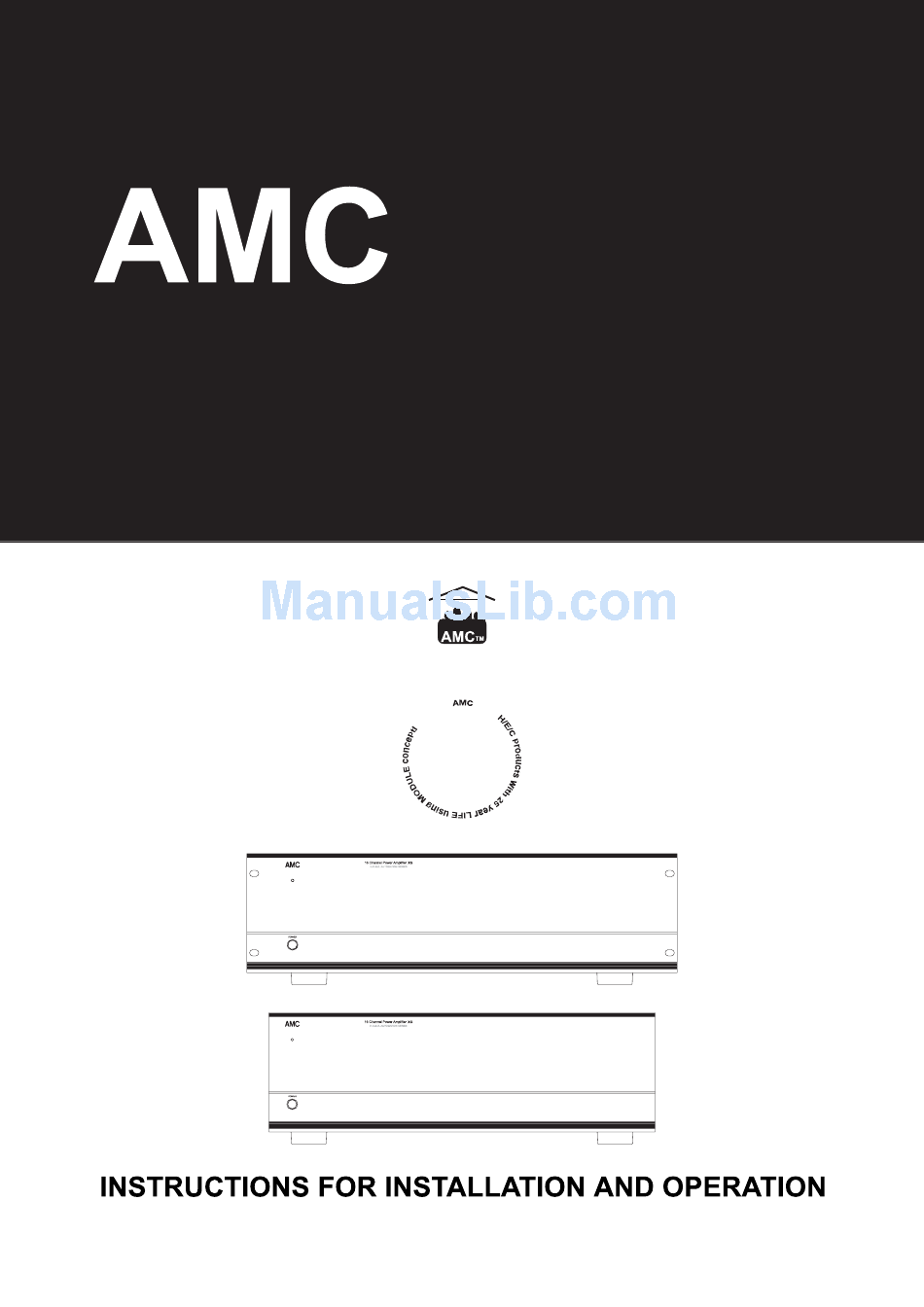

  • Page 1 16 CHANNEL POWER AMPLIFIER...
  • Page 4: Installation Notes

    1. Although the AMC XG is designed with high efficiency digital amplifiers, it still generates modest amounts of heat, adequate ventilation is required. We therefore recommend users not to place the XG amplifier on a soft surface such as a carpeted surface, etc.
  • Page 5: F Ont Panel

    REAR PANEL CONNECTIONS/FRONT PANEL CONTROLS EA PANEL 1. AC INLET 7. RS232 Connector 2. 2CH/BRIDGE SWITCHES x 8 8. IR IN & IR OUT 3. INPUTS x 16 9. AUDIO SENSE/ TRIGGER/ 4. INPUT LEVEL ADJ's x 16 CONSTANT SWITCH 5.
  • Page 6 Outputs & Input Level Adjusts are on L independent level control. Before turning Channel. In this mode, the XG can be on the XG for the first time, make sure used as a high power, audiophile quality, that all level controls are set to their fully 8 channel power amplifier.
  • Page 7: Audio Sense

    3.5mm mini 2 CH MODE. When the MODE SWITCH IR IN jack on the rear panel of XG. So, of the XG are set to 2 CH operation, XG can be controlled by the IR remote...
  • Page 8: Front Panel

    When the external voltage is 0.2mA. set to 0V, the XG will be in standby mode and the voltage from the trigger output The XG is also provided with a trigger socket will likewise be 0V.
  • Page 9: Specifications

    SPECIFICATIONS BRIDGE MODE Power output into 8 ohms (20Hz~20KHz) ............100W Rated THD......................0.05% Damping factor ....................>100 Input sensitivity for 1W/100W into 8 ohm ..........110mV/1.1V 2 CHANNEL MODE Power output into 4 ohms (20Hz-20KHz) ............50W With all channels driven Rated THD......................0.05% Damping factor ....................>100 Input sensitivity for 1W/50W into 4 ohms ..........100mV/700mV Input impedance ................R=10K C=200pf...
  • Page 10: Appendix I - Serial Communication Specifications

    APPENDIX I - SERIAL COMMUNICATION System Commands SPECIFICATIONS Display unit identity: HARDWARE SPECIFICATION *RS232 asynchronous serial Display the brand name of this unit: communication *9600 bps, 8 bits, 1 stop bit, no parity BRAND<CR> *no flow control Display the model name of this unit: SOFTWARE SPECIFICATION Full command format: MODEL<CR>...
  • Page 11: Safety Instruction

    SAFETY INSTRUCTION . READ INSTRUCTIONS 6. DAMAGE REQUIRING SERVICE ll the safety and operating instructions should be read The appliance should be serviced by qualified service before the appliance is operated. personnel when: a) The power-supply cord or the plug has been damaged; or 2.
