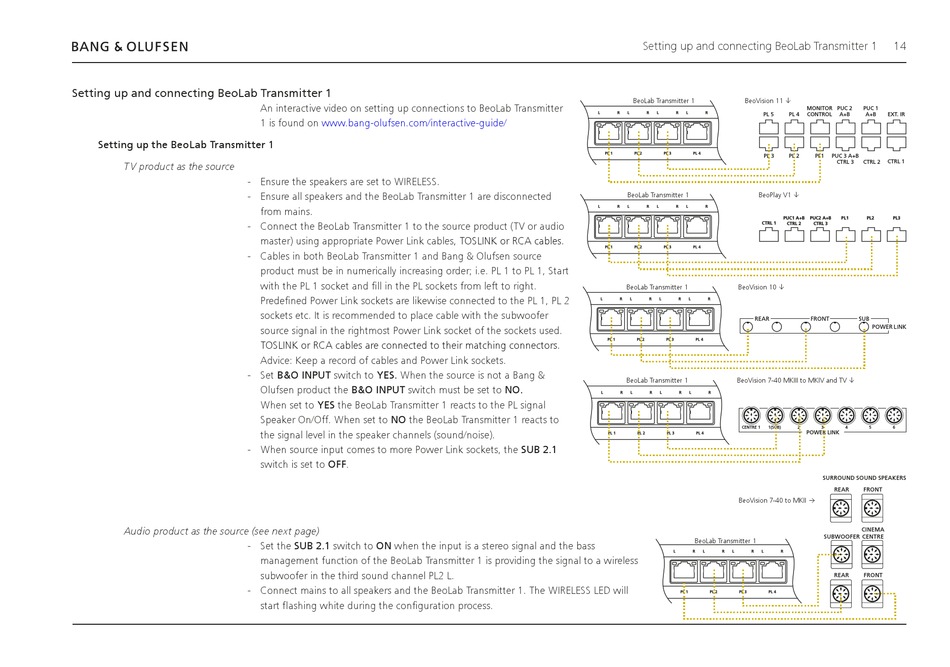

Setting up and connecting BeoLab Transmitter 1

Setting up the BeoLab Transmitter 1
TV product as the source
- Ensure the speakers are set to WIRELESS.
- Ensure all speakers and the BeoLab Transmitter 1 are disconnected
- Connect the BeoLab Transmitter 1 to the source product (TV or audio
- Cables in both BeoLab Transmitter 1 and Bang & Olufsen source
- Set B&O INPUT switch to YES. When the source is not a Bang &
- When source input comes to more Power Link sockets, the SUB 2.1
Audio product as the source (see next page)
- Set the SUB 2.1 switch to ON when the input is a stereo signal and the bass
- Connect mains to all speakers and the BeoLab Transmitter 1. The WIRELESS LED will
An interactive video on setting up connections to BeoLab Transmitter
1 is found on www.bang-olufsen.com/interactive-guide/
from mains.
master) using appropriate Power Link cables, TOSLINK or RCA cables.
product must be in numerically increasing order; i.e. PL 1 to PL 1, Start
with the PL 1 socket and fill in the PL sockets from left to right.
Predefined Power Link sockets are likewise connected to the PL 1, PL 2
sockets etc. It is recommended to place cable with the subwoofer
source signal in the rightmost Power Link socket of the sockets used.
TOSLINK or RCA cables are connected to their matching connectors.
Advice: Keep a record of cables and Power Link sockets.
Olufsen product the B&O INPUT switch must be set to NO.
When set to YES the BeoLab Transmitter 1 reacts to the PL signal
Speaker On/Off. When set to NO the BeoLab Transmitter 1 reacts to
the signal level in the speaker channels (sound/noise).
switch is set to OFF.
management function of the BeoLab Transmitter 1 is providing the signal to a wireless
subwoofer in the third sound channel PL2 L.
start flashing white during the configuration process.
Setting up and connecting BeoLab Transmitter 1
BeoLab Transmitter 1 BeoVision 11 
PL 5 PL 4
PL 3 PL 2
BeoLab Transmitter 1 BeoPlay V1 
PUC1 A+B
CTRL 1
CTRL 2
BeoLab Transmitter 1 BeoVision 10 
BeoLab Transmitter 1 BeoVision 7-40 MKIII to MKIV and TV 
CENTRE 1 1(SUB) 2
BeoVision 7-40 to MKII 
BeoLab Transmitter 1
14
MONITOR PUC 2 PUC 1
CONTROL A+B A+B EXT. IR
PL1 PUC 3 A+B
CTRL 3 CTRL 2 CTRL 1
PUC2 A+B PL1 PL2 PL3
CTRL 3
3 4 5 6
POWER LINK
SURROUND SOUND SPEAKERS
REAR FRONT
CINEMA
SUBWOOFER CENTRE
REAR FRONT
