Summary of Contents for Fresh Breeze SKIP ONE

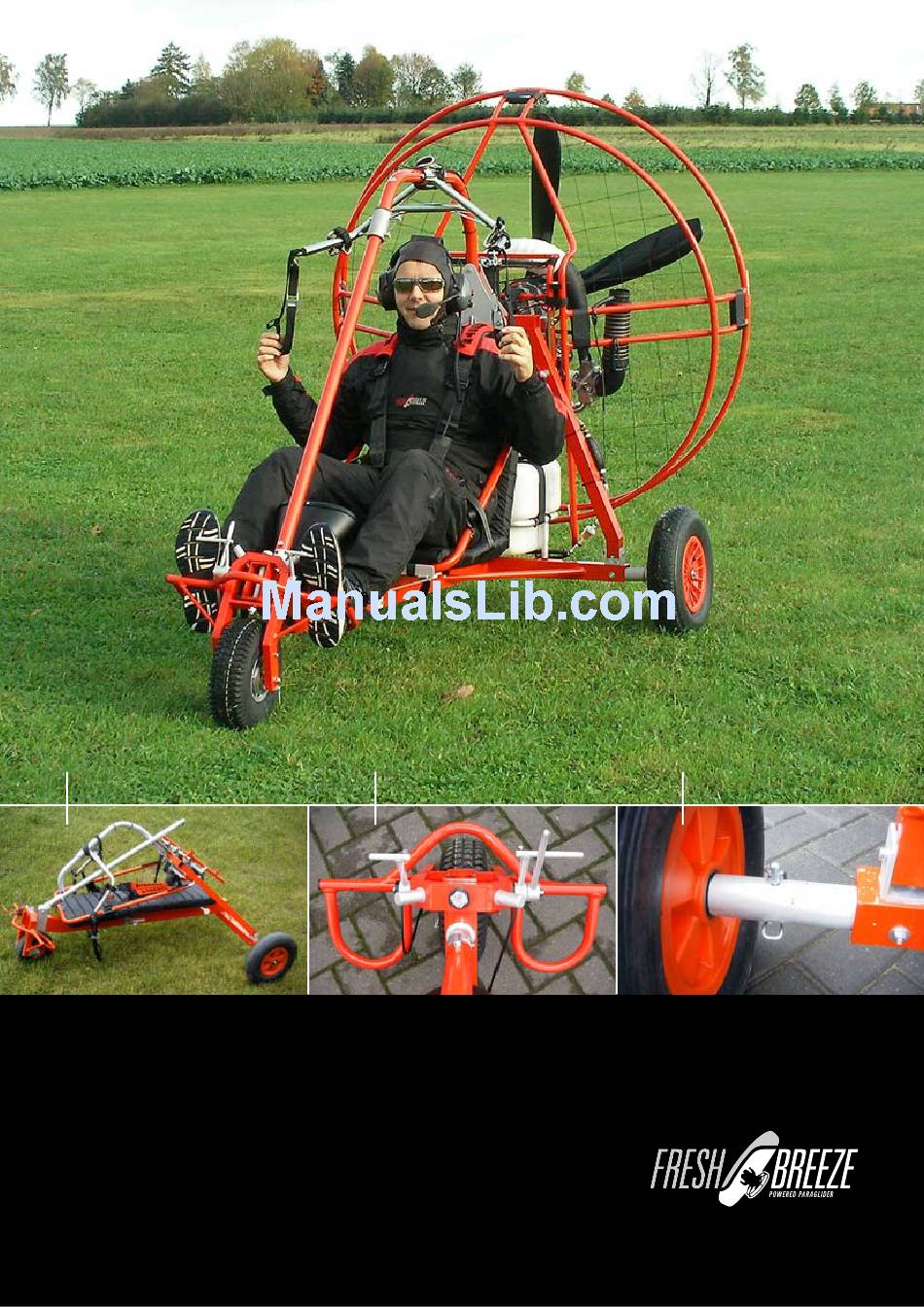

- Page 1 ASSEMBLY OPERATION MAINTENANCE SKIP ONE MANUAL...
-
Page 2: Table Of Contents
04. MOUNTING THE RESQUE DEVICE 05. STARTING AID FOR THE CANOPY 06. LAUNCH, FLIGHT & LANDING 07. FLIGHTS UNDER SPECIAL CONDITIONS 08. LATERAL VIEW 09. FRONTAL VIEW 10. TECHNICAL SPECIFICATIONS 11. OPTIONAL EQUIPMENT 10. PRE-FLIGHT CHECKLIST TABLE OF CONTENTS SKIP ONE MANUAL... -
Page 3: Dear Pilot
“microlight flight”. In addition, operation is subject to individual components, the manufacturer has to be the annual re-examination obligation for microlight aircraft contacted before the aircraft is put into operation again. DEAR PILOT SKIP ONE SKIP ONE MANUAL MANUAL... - Page 4 See figure 2 and 3 in this regard. Figure 3 shows the collapsed trike. The trike has a height of Figure 3 1400 mm, in a collapsed state of 750 mm. ASSEMBLING AND DISSASSEMBLING THE TRIKE SKIP ONE SKIP ONE MANUAL MANUAL...
- Page 5 The two straps must be used for fastening. There are two straps on the left and right (figure 6) and one in the middle. Strap on the left and right. ASSEMBLING AND DISSASSEMBLING THE TRIKE SKIP ONE SKIP ONE MANUAL MANUAL...
-
Page 6: Controls
If you will operate the Skip One with foot-pedal-throttle Figure 7 the normal throttlelever can fixed with velcro in the bars from pilotsuspension. Figure 8 Cruising throttle lock Frontbrake Foot-pedal-throttle CONTROLS SKIP ONE SKIP ONE MANUAL MANUAL... -
Page 7: Mounting The Resque Device
The rescue device should be fastened on the seat brace Figure 9 (figure 9) and connected with the V-line that is included in the supply. Point of attachment for the rescue device’s connecting line. Figure 10 MOUNTING THE RESQUE DEVICE SKIP ONE SKIP ONE MANUAL MANUAL... -
Page 8: Starting Aid For The Canopy
The adjustment is made by means of Change the carabiner from the pilotsuspension each 100 h the folding buckles (see figure 11). Figure 11 Hooks for starting aid Single-pass friction buckle STARTING AID FOR THE CANOPY SKIP ONE SKIP ONE MANUAL MANUAL... -
Page 9: Launch, Flight & Landing
• Once the chassis has touched the ground, no fast changes in direction should be carried out. If the trike is steered against the canopy’s direction, the trike threatens to be levered out and topple over. LAUNCH, FLIGHT & LANDING SKIP ONE SKIP ONE MANUAL... -
Page 10: Flights Under Special Conditions
If you still do not succeed in getting out of the deep stall, it is recom- mended to push the A-risers forward. FLIGHT UNDER SPECIAL CONDITIONS SKIP ONE SKIP ONE MANUAL MANUAL... -
Page 11: Lateral View
LATERAL VIEW SKIP ONE SKIP ONE MANUAL MANUAL... -
Page 12: Frontal View
FRONTAL VIEW SKIP ONE SKIP ONE MANUAL MANUAL... -
Page 13: Technical Specifications
Type Trike „Skip One“ Seats Weight 27 kg Height assembled 1400 mm Width assembled 1200 mm Height disassembled 750 mm Width disassembled 1200 mm Construction aluminium Maximum pilot weight 100 kg Ascending rate with Monster 2 m/s Engine types to be used... -
Page 14: Optional Equipment
20 Liter Tank Instrument panel OPTIONAL EQUIPMENT SKIP ONE SKIP ONE MANUAL MANUAL... -
Page 15: Pre-Flight Checklist
06. Function test kill switch ü 07. Canopy properly hooked in ü 08. Starting aid properly hooked in and adjusted ü 09. Pilot buckled up ü 10. Wind speed and direction ok ü 11. Length of take-off field clear PRE-FLIGHT CHECKLIST SKIP ONE MANUAL...
