Fresh Breeze X-Light F 23 Flight Manual

Doppelseater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Flight Manual
Doppelseater
Version1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-Light F 23 and is the answer not in the manual?

Questions and answers

Related Manuals for Fresh Breeze X-Light F 23

Summary of Contents for Fresh Breeze X-Light F 23

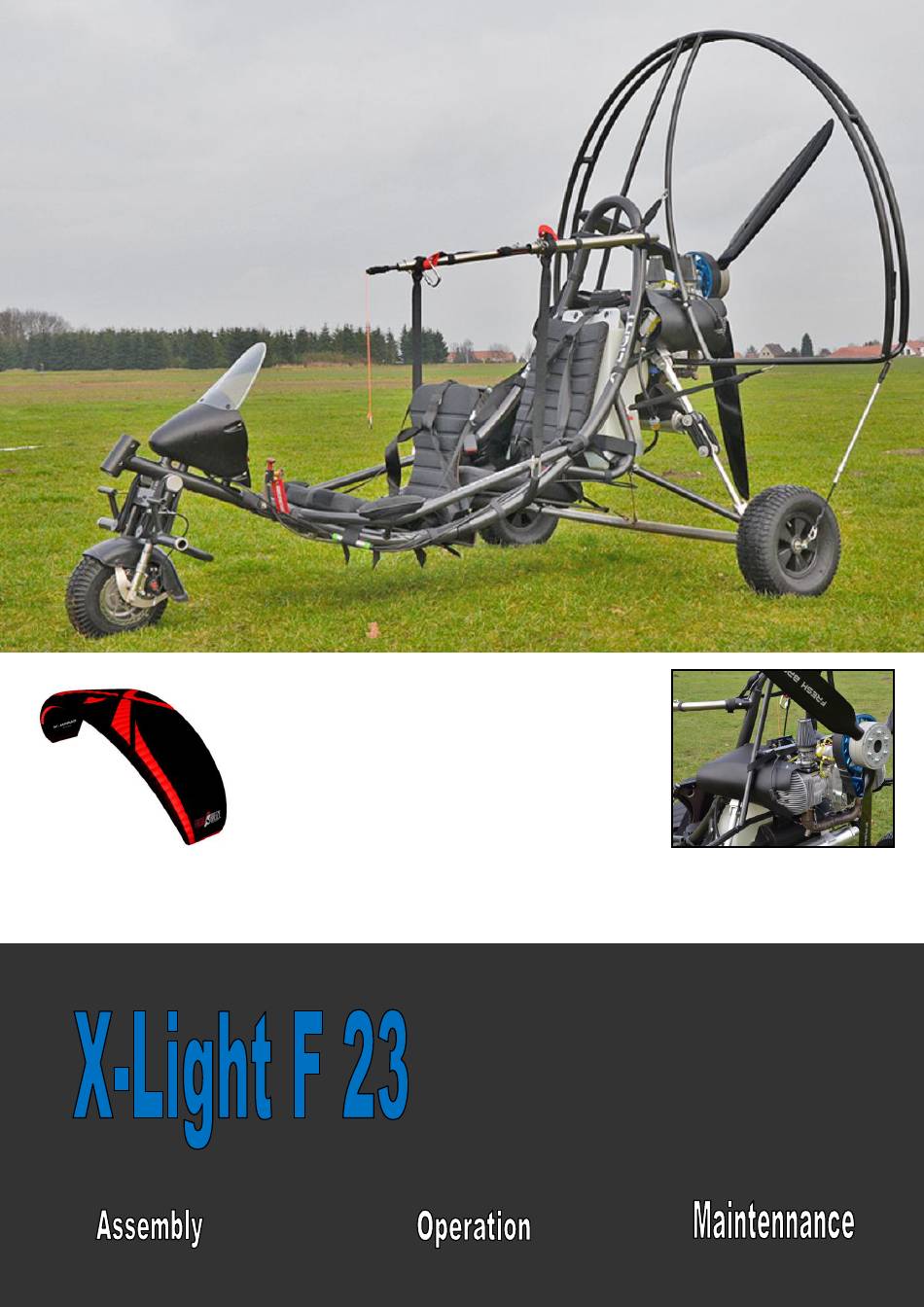

  • Page 1 Flight Manual Doppelseater Version1.1...

  • Page 2: Flight Operations

    INTRODUCTION This manual has been prepared to provide pilots and instructors information to contribute safe and efficient operation of this paramotor trike. It contains important legal information, additional information from the manufacturer of the trike. To fly this aircraft a licens for paramotor trike is required and the authorization for two-seater flying when a passenger is on board.

  • Page 3: Warnings & Precautions

    1.1 WARNINGS, PRECAUTIONS The following definitions are used in this guide for warnings, precautions and remarks. The meaning and their meanings are explained below. WARNING: The following definitions are used in this guide for warnings, precautions and remarks. Meaning and significance explained below. CAUTION: Means that missing or failure for non-observance procedure reduce the durability of aviation safety.
  • Page 4 2070 1360 2700 1870 1710...

  • Page 5: Operating Limits

    Operating limits Following in the manual you'll find information for the safe operation and mandatory limits Even for the Trike,engine, glider and standard systems. It contains the during flight testing practically flown operating limits.Calculated and verified by experiments limits. The X-Light is like all Ultralight not approved for aerobatics. Curves with angle of more than 60 °...
  • Page 6 The maximum take-off weight of the X-LIGHT is 330 kg ( 2 x 100 kg Pilot/Passenger). This means empty weight plus mass pilot plus fuel and plus baggage. Shall subsequently equipment installed which increase the empty weight, the load must be reduced. The pilot is responsible for compliance with the maximum takeoff weight.
  • Page 7 Use minimun 95 Octane Thie engine is a 2 stroker and need fuel with oil mixture 2%. Or in other word 1:50 Please use only full synthetic oil. Our Special Blue with it´s specification: API,ISO-L-EGD is blue colored. You can always see if the gasoline is mixed with oil Made in Germany The F 23 has no liquid cooling...

  • Page 8: Fuel Filter

    Throttle Pedal Brake Pedal Benzinfilter Fuel Filter Cruise Control...
  • Page 9 Cockpit CHT right Voltage EGT right CHT left EGT left Push to start Tanklevel Zündung / Ignition/Stop  The maximum Cylinder Head Temperature (CHT) is 235 ° C. The head temperature does not have to be the same on both sides. ...
  • Page 10 The propeller cage separates into 2 halves for easy transport. The mounts are located under the engine and right and left sides of the motor sustain. The cage halves are secured with Velcro.
  • Page 11 The cage is additionally secured even with 4 straps. This must always be pulled tight. An additional pipe is designed to protect the cage lines at start and landing. After installation of the cage they must hanging in the hub of the rear wheels.
  • Page 12 We recommend the rockets rescue system Magnum 250. In case of emergency the recue opens very fast.The survival chance is greatly increased The container is mounted laterally on the trike The shooting direction also takes place to the side. WARNING The trigger handle is equipped with a cotter pin and secure against accidental release.
  • Page 13 In order to reduce the braking forces, the brake line is deflected around a roller. !So the force is half but the way is double!
  • Page 14 Brake Line with roller Half Force- Double Way Trim Lever Trimmer Belt Brake Handle...
  • Page 15 Pulley system for easy brake force Trimm´s fast In order to reduce the braking forces, the brake line is equipped with a pulley system...
  • Page 16 OPERATION AND FLYING PARAGLIDER UNFOLD AND PRE FLIGHT CHECK Unfold Place the paraglider with the top surface to the bottom and spread so that the leading edge is draped in a big curve Carefully separate all the lines and make sure that no lines are underneath the canopy, tangled or somewhere to hang.
  • Page 17 6-POINT CHECK Just before the start we recommend the 6-point check: Is the canopy arranged in a half round, and all entry ports are open? Are all the lines untangled there are no lines under the canopy? Are the clothes and the helmet closed , the seat belt is applied ist die Lehne des vorderen Sitzes gesichert? Trimm´s closed, Brake handle ready to hand? Wind strength and direction in order for safe flight?
  • Page 18 Adjusting Bake Lines Note! The main brake lines must be checked by an expert before the first test of the paraglider. Correct Adjust Properly installed brake lines have almost no flow. This means you have to pull the brakes down a little until the trailing edge of the canopy starts to move downwards and start braking.

  • Page 19: Start Up Device

    TRIMMS Accident risk! With increased speed disorders (collapses) affect more drastic than in unaccelerated flightIn turbulent weather conditions do not fly close to the ground when the trim´s are open. The trim´s are operated by the lever The trim´s should be adjusted so that the X-Light in cruise flies straight. Start Up Device The glider starts easier when the start up device is activated.
  • Page 20 ROLL The nose wheel steering is easy to learn. Do some taxi tests at yourself. Get familiar before your first flight. When rolling get control by means of pedals. If the glider is in the air, you have the control coordinates as well by using the brake lines. START AND CLIMBING Start agianst the wind.

  • Page 21: Ground Handling

    CRUISE The torque effect can be compensated by means of the trimmer (Pic. Page 13 ) . Speed control maintains the travel speed constant ((Pic. Page 8 ). LANDING The landing should always be against the wind. Close the trims and reduce the engine speed. Take the brake handles, Start with the braking in 5-8 m height If the brakes started too early can be landed with engine support The glider should after landing fall behind the Trike PARK...

  • Page 22: Flights Under Special Conditions

    FLIGHTS UNDER SPECIAL CONDITIONS Rain Basically belongs to every conscientious flight preparation the look of the weather situation, so that "really" no flights in rain should be necessary. Nevertheless, each pilot can fall into worse unpredictable weather conditions. In general: No flights in the rain, as soon as possible to land! In very light rain the flight can be continued at first.
  • Page 23 Start,Flight,Landing: Here are some supplements that goes beyond the description of the first flight If the glider falls too far on the side, do not continue the take off procedure. It is better to cancel two times the start than one time to get up side down. If the glider is already collapsed while pulling up try to get clear by pumping the brake lines.
  • Page 24 FLYING UNDER TURBULENT CONDITIONS Note! Take care crossing your own vortexes! Though the tendency to collapse is significantly reduced due to the high wing load of the X-LIGHT, in turbulent air you should fly it with the trim system set to slow. The stabilizing effect of the increased pressure inside the wing at higher speeds is more than counteracted by the smaller angle of attack.
  • Page 25 LANDING WITH ENGINE SHUT OFF In principle landing with the engine shut off is the same as if it is still running – always facing the wind. But the speed should be kept up high enough for a prop flaring. So hold the brake lines up until you are roughly 2 m high. You should win them 1x around your hand to have more brake travel.

  • Page 26: Rapid Descents

    RAPID DESCENTS There are many situations when you need to lose altitude rapidly to avoid potential dangers e.g. pulled up from a cumulus cloud, an approaching cold front, a storm front etc. Below we explain various ways to make a rapid descent which can be carried out safely with the X-LIGHT if the pilot has the necessary knowledge and if they are correctly executed.

  • Page 27: Deep Stall

    INSTRUCTIONS FOR EXTREME FLYING AND DANGEROUS SITUATIONS DANGEROUS SITUATIONS Extreme flying with a motor trike and full gas are extremely dangerous and therefore cannot be tested. They must be avoided at all costs. Problems do not arise during a normal flight. However, pilot error during the flight or extreme wind conditions may force the wing into an unusual flying position.

  • Page 28: Full Stall

    Caution! Accident risk! Counter-braking too strongly can result in a stall on the inflated side. FULL STALL A full stall could occur if full brake is applied during the flight. The paraglider slows down, surges backwards and deflates. If the brakes are held down, the canopy comes up over the pilot again.

  • Page 29: Break-In Phase

    Break-In Phase The engine should no longer run at full load for the first 2 hours of operation Revolution The engine is set so that the maximum engine speed is 6300 rpm. If the maximum speed is higher or lower, this can be adjusted via the pitch on the propeller.
  • Page 30 Before the engine can be started, the ball pump # 1 must be used to pump gasoline from the tank to the carburettor. At the same time the tipper # 2 is pressed on the carburettor. Pump each per carburetor for one second.

  • Page 31: Daily Inspection

    DAILY INSPECTION The safety of an aircraft depends on his regular, diligent inspection and maintenance. Engine: Pay attention to leaks Check propeller for tightness and damage. Check the frame and cage for cracking, paying particular attention to the areas of the belt and the engine mount.

  • Page 32: Periodic Tests

    Check Intake rubber manifold Each 300 hours Replace the carb membrane Each 500 hours Replace Neadle bearing from the piston Replace piston rings Each 1000 hours Every moving part should should are replaced. Every Year Complete check at Fresh Breeze or partner...
  • Page 33 The belt is tensioned by an eccentric cam which varying the distance from crankshaft to hub shaft. Here first the screw (1) must be loosened. With a hexagon socket (2) (12 mm), the eccentric is twisted and tightened or loosened the belt.
  • Page 34 The Boxer is equipped with 2 diaphragm carburettors WB 37. The carburetors do not need to be synchronized because both cylinders are seated on a non-separated crankcase. Nevertheless, the adjusting screws 1, 2 and 3 should be as synchronous as possible. 1 = Throttle valve stop for idle adjustment 2 = partial setting (basic setting 1 turn) 3 = full setting (basic setting 1 turn)
