- Page 1 FiDO Series Mini-Converter SDI/Optical Fiber Installation & Operation Guide Version 1.0r1 Published: April 8, 2015...
-
Page 2: Table Of Contents
Limited Warranty ..............21 FiDO Series Mini-Converter v1.0r1 www.aja.com... -
Page 3: Notices
AJA®, lo®, Ki Pro®, KONA®, KUMO®,T-TAP®, Because it matters.® and ROI® are registered trademarks of AJA Video Systems, Inc. in the United States. AJA and Ki Pro are trademarks of AJA Video Systems, Inc. registered in other countries. AJA Control Room™, CION™, Corvid Ultra™, FiDO™, Science of the Beautiful™, TruScale™, TruZoom™, V2Analog™... -
Page 4: Chapter 1: Introduction

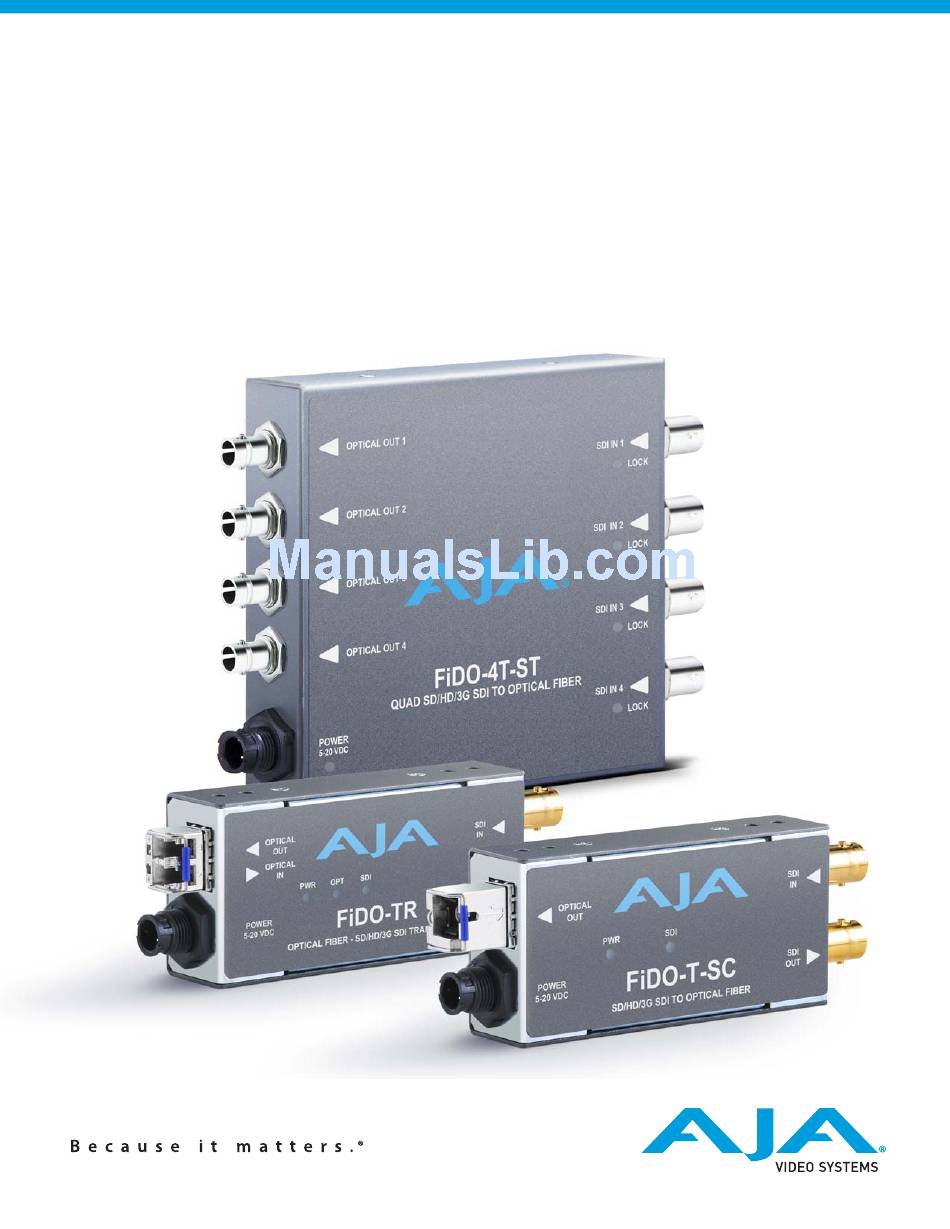

• FiDO-T: Single channel SDI to LC Fiber converter with looping SDI output • FiDO-R: Single channel LC Fiber to SDI converter with dual SDI outputs • FiDO-T-SC: Single channel SDI to SC Fiber converter with looping SDI output • FiDO-R-SC: Single channel SC Fiber to SDI converter with dual SDI outputs •... -
Page 5: Accessories
Accessories • Rack mount bracket FiDO Converter Simplified Block Diagrams FiDO-T, FiDO-T-SC, and FiDO-T-ST Optical 3G-SDI Optical Equalize & Transmitter Fiber Reclock Input 3G-SDI Re-clocked Loop Thru Output FiDO-R, FiDO-R-SC, and FiDO-R-ST Optical Optical 3G-SDI Equalize & Fiber Receiver Output... -
Page 6: Fido Converter I/O Connections
OPTICAL connection Input connection OPTICAL Output (SC connector) (SC connector) Reclocked Second SDI POWER FiDO-T-SC POWER FiDO-R-SC 5-20 VDC loop-thru of 5-20 VDC Output SDI input (DA: same signal) SD/HD/3G SDI TO OPTICAL FIBER OPTICAL FIBER TO SD/HD/3G SDI simplex... -
Page 7: Installation
Installation NOTE: AJA does not support use of any SFP modules other than our own; use of any non-AJA SFP module will void the warranty. Installation consists of the following steps: 1. Connect video equipment to the FiDO converter BNCs. -
Page 8: Operation
FiDO-T 5-20 VDC SD/HD/3G SDI TO OPTICAL FI 7. Apply +5VDC power to the converter (AJA power supply included). Operation FiDO series converters have no user controls. No configuration or settings are required. Once powered, the FiDO converters will begin converting applied fiber/SDI signals. -
Page 9: Appendix A: Specifications
• 3Gb, 1.5Gb, 270Mb, Auto Select, SDI (SMPTE 259/292/424) Connectors FiDO-T, FiDO-R : • 2x BNC, 1x Single mode optical fiber, LC connector FiDO-T-SC, FiDO-R-SC: • 2x BNC, 1x Single mode optical fiber, SC connector FiDO-T-ST, FiDO-R-ST: • 2x BNC, 1x Single mode optical fiber, ST connector FiDO-TR, FiDO-2T, FiDO-2TR: •... -
Page 10: Physical
Physical Power • AJA external power supply model DWP-U-R1 (included): • 100-240V, 50/60Hz universal input FiDO-T, FiDO-R (all models): • +5 to 20V DC regulated, 2 watts max FiDO-TR, FiDO-2T, • +5 to 20V DC regulated, 3 watts max FiDO-2T-CWDM,... -
Page 11: Appendix B: Safety And Compliance
Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe B prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. FiDO Series Mini-Converter v1.0r1 www.aja.com... -
Page 12: European Union And European Free Trade Association (Efta)
EN 61000-3-2: 2009, EN 61000-3-3:2008 Immunity: EN 55103-2: 2009 EN 61000-4-2:2009, EN 61000-4-3:2010, EN 61000-4-4:2010, EN 61000-4-5:2005, EN 61000-4-6:2009 EN 61000-4-11:2004 The product is also licensed for additional country specific standards as required for the International Marketplace. FiDO Series Mini-Converter v1.0r1 www.aja.com... -
Page 13: Recycling Notice
This is a Class B product based on the standard of the VCCI Council. If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual. FiDO Series Mini-Converter v1.0r1 www.aja.com... -
Page 14: Translated Warning And Caution Messages
¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un paño seco. Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano seco. Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un panno asciutto. FiDO Series Mini-Converter v1.0r1 www.aja.com... - Page 15 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore. FiDO Series Mini-Converter v1.0r1 www.aja.com...
- Page 16 Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta. FiDO Series Mini-Converter v1.0r1 www.aja.com...
- Page 17 Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo. FiDO Series Mini-Converter v1.0r1 www.aja.com...
- Page 18 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto. FiDO Series Mini-Converter v1.0r1 www.aja.com...
- Page 19 Warning! Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility. Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis ne peut être réparé...
- Page 20 FiDO-TR, CLASS 1 LASER FiDO-T, FiDO-2T, FiDO-4T-ST, FiDO-T-SC, or FiDO-T-ST; these models are Class 1 Laser PRODUCT Products. Avertissement! Les câbles fibre optique émettent des radiations invisibles à l’oeil humain.
-
Page 21: Warranty Information
Warranty Information Limited Warranty AJA Video Systems, Inc. (AJA Video) warrants that this product will be free from defects in materials and workmanship for a period of five years from the date of purchase. If a product proves to be defective during this warranty period, AJA Video, at its option, will either repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
