- Page 1 FiDO Series SDI/Optical Fiber Mini Converters FiDO-R-SC FiDO-R FiDO-T-SC FiDO-2R FiDO-R-ST FiDO-T FiDO-T-SC FiDO-2T FiDO-TR Published: 6/22/2011 Installation and Operation Guide B e c a u s e m a t t e r s .
-
Page 2: Contacting Support
Video parts or supplies, or d) to service a product that has been modified or integrated with other products when the effect of such a modification or integration increases the time or difficulty of servicing the product. -
Page 3: Fido Models

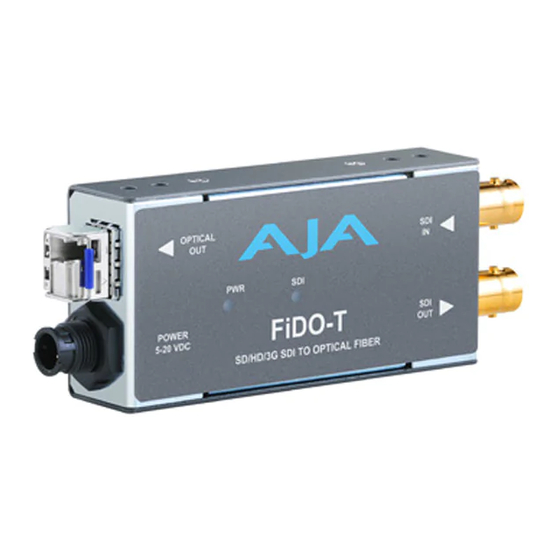

AJA FiDO-Series SDI/Optical Fiber Converters, User Manual — Introduction Introduction FiDO is a family of SDI/Optical Fiber converters. FiDO allows the transport of SDI, HD-SDI, and 3G SDI over distances up to 10km using standard single-mode fiber optic cable. Models are available with either LC, SC or ST connectors. FiDO converters meet all relevant SMPTE specifications and are rugged, versatile, and... -
Page 4: Block Diagrams
Block Diagrams FiDO-T, FiDO-T-SC, and FiDO-T-ST Optical SD-SDI, HD-SDI, or 3G-SDI Optical Equalize & Transmitter Fiber Reclock Input SD-SDI, HD-SDI, or 3G-SDI Re-clocked Loop Thru Output FiDO-2T Optical SD-SDI, HD-SDI, or 3G-SDI Equalize & Optical Transmitter Reclock Fiber Input 1 Out 1 Optical SD-SDI, HD-SDI, or 3G-SDI... -
Page 5: Installation
Installation Note: AJA does not support use of any SFP modules other than our own; use of any non-AJA SFP module will void the warranty. Installation consists of the following steps: 1. Connect video equipment to the FiDO convertor Optical fiber connector and BNCs. - Page 6 2. Apply +5 to 20VDC power to the converter (AJA power supply model DWP or DWP-U recommended). No configuration or settings are required. Once powered, the FiDO converters will begin converting applied fiber/SDI signals. Warning! Active fiber-optic cables emit radiation invisible to the human eye. Do not look directly at the end of an active fiber-optic cable or the fiber...
-
Page 7: Specifications
AJA FiDO-Series SDI/Optical Fiber Converters, User Manual — Specifications Specifications Item Specification Formats 3Gb, 1.5Gb, 270Mb, Auto Select Video Inputs/Outputs SDI (SMPTE 259/292/296/424), 2x BNC I x Single mode optical fiber: LC connector (FiDO-R, FiDO-T) SC connector (FiDO-R-SC, FiDO-T-SC) ST connector (FiDO-R-ST, FiDO-T-ST) 2x Single mode optical fiber:... -
Page 9: Federal Communications Commission (Fcc) Compliance Notices
All other trademarks are the property of their respective holders. Notice Copyright © 2011 AJA Video, Inc. All rights reserved. All information in this manual is subject to change without notice. No part of the document may be reproduced or transmitted in any form, or by any means, electronic or mechanical, including photocopying or recording, without the express written permission of AJA Inc. -
Page 10: Canadian Ices Statement
FCC Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 11: Korea Kcc Compliance Statement
FiDO Safety and Compliance — Korea KCC Compliance Statement The product is also licensed for additional country specific standards as required for the International Marketplace. Warning! This is a Class A product. In a domestic environment, this product may cause radio interference, in which case, the user may be required to take appropriate measures. -
Page 12: Translated Caution Statements, Warning Conventions And Warning Messages
In order to obtain service under this warranty, you the Customer, must notify AJA Video of the defect before the expiration of the warranty period and make suitable arrangements for the performance of service. - Page 13 FiDO Safety and Compliance — Before operating your FiDO unit, please Before operating your FiDO unit, please read the instructions in this document Warning! Read and follow all warning notices and instructions marked on the product or included in the documentation. Avertissement ! Lisez et conformez-vous à...
- Page 14 Warnung! Nicht in der Nähe von Wärmequellen wie Heizkörpern, Heizregistern, Öfen oder anderen Wärme erzeugenden Geräten (einschließlich Verstärkern) aufstellen. ¡Advertencia! No instale cerca de fuentes de calor tales como radiadores, registros de calor, estufas u otros aparatos (incluidos amplificadores) que generan calor. Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor.
- Page 15 FiDO Safety and Compliance — Before operating your FiDO unit, please Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di sconnessione, deve rimane prontamente accessibile e operabile. Warning! Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the device.
- Page 16 Betrieb vorgenommen. ¡Advertencia! No abra el chasis. El interior no contiene piezas reparables por el usuario. El abrir el chasis anulará la garantía a menos que se lo haga en un centro de servicio AJA o en un local autorizado.
- Page 17 Abrir o chassi anula a garantia, a menos que a abertura seja realizada por uma central de serviços da AJA ou por um local autorizado. Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili dall’utente. L’apertura dello chassis invaliderà...
- Page 18 A-10 Avvertenza! I cavi a fibre ottiche emettono radiazioni invisibili all'occhio umano. Non guardare direttamente l'estremità di un cavo in fibra ottica attivo o il connettore in fibra su un FiDO-TR, FiDO-T, FiDO-2T, FiDO-T-SC, o FiDO-T-ST; questi modelli sono prodotti laser di classe...
