Summary of Contents for AJA FS3

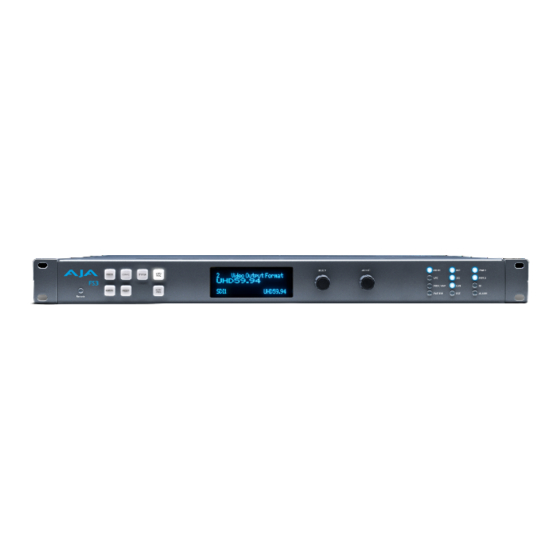

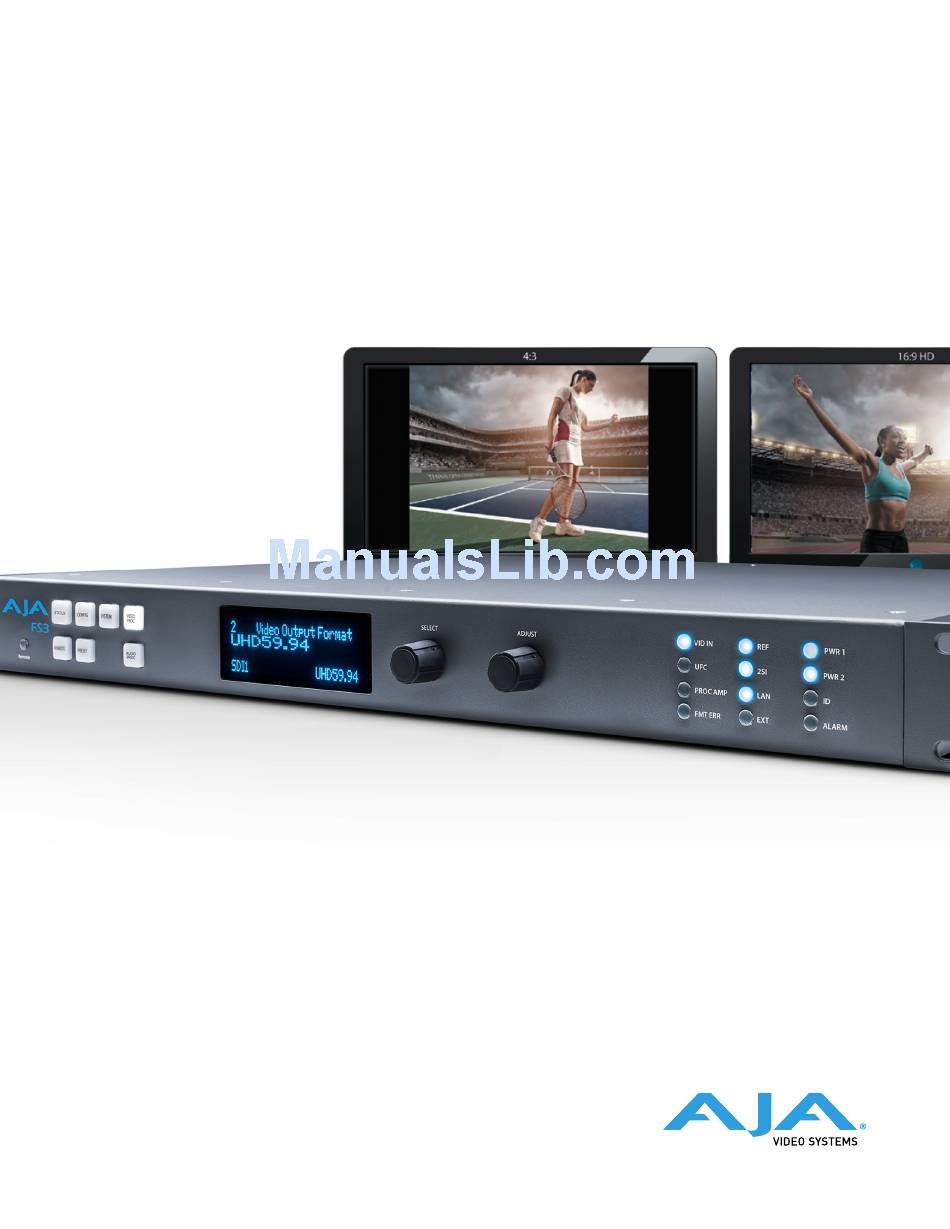

- Page 1 Frame Synchronizer/Converter Installation and Operation Guide Version 1.1r1 Published May 17, 2017...
-
Page 2: Notices
AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc. -
Page 3: Table Of Contents
Optional FS3 Features........9... - Page 4 Internal Test Signals To All Outputs ......30 FS3 Processing Examples ....... . . 30 HD to UltraHD 4-Link Quadrant 59.94 .
- Page 5 Chapter 5 – Browser Remote Control ....71 Remote FS3 Control Via a Web Browser ......71 General Web Browser Screen Description .
- Page 6 FS3 SDI Formats ........
-
Page 7: Chapter 1 - Introduction
The growth of 5.1 and 7.1 audio has increased the number of audio channels that must be managed in a production. FS3 accepts embedded SDI audio on all four SDI inputs (two coax and two optional fiber), and has an internal 64x64 audio matrix that allows routing of all embedded audio channels. -
Page 8: Audio Features
Front Panel Control The FS3 front panel offers the most direct control, ideal for use in machine rooms or wherever quick changes and status checks must be made. The buttons and knobs control menus in the display, allowing you to fully configure the system according to your purposes. -
Page 9: Snmp Interface Monitoring
• Single Output SC connector • Dual Input LC connectors • Dual Output LC connectors FS3’s Fiber I/O supports the 3G/HD/SD SDI protocol. Only AJA modules are supported; use of other manufacturers’ modules is not supported and may void the warranty. -
Page 10: Video Processor
Proc Amp controls and RGB color correction. Audio Processor The FS3 can accept and route any embedded audio input to the logical SDI1 thru SDI4 outputs. Audio on SDI1 thru SDI4 outputs is duplicated on SDI5 thru SDI8 and Fiber1 thru Fiber4 outputs. -
Page 11: Sidebar Video Keying
That Mapped Output Format is recalled if the frame rate selection is changed. Forty different presets are available that can be used to restore the FS3 to a previous state. Many parameters can be individually reset to factory values using individual menus, or the entire FS3 can be reset to defaults (with the PRESET, Factory Preset menu). -
Page 12: Chapter 2 - Controls, Indicators, And Connections
ALARM Alphanumeric Display The FS3’s control system is designed to be quick and easy to use. The four-line alphanumeric display shows menus that are numbered and grouped by function. The menu groups are easily accessed using pushbuttons which correspond one- to-one with the groups (one button per menu group). -
Page 13: Button Operation Rules
• System Name display • Alarms REMOTE Displays the Remote Menu Group, which lets you select how to control the FS3: • Control by local front panel only, remote sources only, or local and remote • Authentication • GPI input and output behavior FS3 Frame Synchronizer/Converter v1.1r1... - Page 14 CONFIG Displays the Config Menu Group, which lets you configure the FS3 for your environment: • System Name setting • IP settings, MAC address • SNMP settings • Alarm control • Hidden Menus, Screen Saver, and Display intensity • Fan speed •...
-
Page 15: Control Knobs
100x speed - Hold down button (turns blue), momentarily release and press button again (turns light blue) and turn ADJUST. Reset a value to the factory default value. Hold down ADJUST. Set a number to the default value (typically zero). FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 16: Led Indicators
LEDs must be lit to indicate redundant power is available. ID (blue) Blinks on and off when you right-click on an FS3 system name and choose Identify in the web interface Network list. This action helps identify which system FS3 Frame Synchronizer/Converter v1.1r1... -
Page 17: Incompatibility Alarms
Alarm Suppress parameters.) Incompatibility Alarms The FS3 produces signal incompatibility alarms for a number of reasons. For example, incompatible conversion alarms can occur because the FS3 cannot convert between frame rate families (59.94/29.97/23.98, or 50/25, or 24). -
Page 18: Rear Panel Description
Using the REMOTE menu group, you can program the actions of the GPI inputs and outputs individually. Contact closures on the inputs can trigger a wide variety of FS3 functions. Alarms or loss of video can trigger the GPI outputs. 10/100/1000 LAN This RJ-45 connector provides an Ethernet 10/100/1000 port for connection directly to a computer or to a LAN through an Ethernet hub or switch. - Page 19 NOTE: For proper operation the input Reference signal must be stable and properly terminated using a 75-ohm terminator on either the unused loop connector or the last piece of downstream equipment to which the Ref Video is connected. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com...
-
Page 20: Chapter 3 - Installation & Configuration
Chapter 3 – Installation & Configuration Installation Overview The installation and set up of an FS3 is very simple. Plug both AC supply cords into AC mains power (separate branch circuits for redundancy), connect the LAN connector to a LAN, WAN or local computer with a web-browser, and then connect source and destination video and audio equipment. -
Page 21: Unpacking
If you find shipping damage, contact your AJA dealer or distributor for details on how to have your FS3 repaired or replaced. NOTE: Save packing materials and the shipping box. If your FS3 ever requires service or you move your system, use the packaging materials and box for safe shipment. -
Page 22: Fs3 Chassis Installation
FS3 units. Note the location of cooling vents on all equipment next to the FS3 and ensure none are obstructed. NOTE: FS3 units can be stacked vertically without limit as long as there is an adequate supply of cool air around the FS3 vents. -
Page 23: Fs3 Default Network Settings
Networking Using DHCP or Default Static IP The FS3 factory default configuration automatically looks for a DHCP server to issue an IP address. If your network includes a DHCP server, plug the FS3 into the network and connect with the unit as follows: 1. -
Page 24: Networking The Fs3 Using Your Own Static Ip
If the FS3 cannot get an address from the network DHCP server, the FS3 will automatically use a preset factory static IP address of 192.168.0.2. You can access the FS3 using the default static address as follows: 1. Set your computer’s IP address to whatever address you prefer in the 192.168.0 (class C) network. -
Page 25: Using Ping To Test The Network Connection
Using Ping to Test the Network Connection If you have connected the FS3 to a computer and set up the IP address and still do not see the FS3 screens in your browser, you can ping the network to verify the connection. -
Page 26: Web Browser Control
To control the FS3 from a web browser on a network attached computer, enter the FS3 IP address as a URL in the browser. For example, if the FS3 IP address were “90.0.6.31”, you would then type into the web browser: http://90.0.6.31. This topic is explained in greater detail in Chapter 5: Browser Remote Control. -
Page 27: Unpack The Software
FS3 web screens. If the FS3 did not update successfully, run through the update steps again. NOTE: The configuration of the FS3 prior to the upgrade is preserved. The unit returns to service exactly as it was before the upgrade. -
Page 28: System Cabling
"GPI Pinouts" on page 93 for information on how to wire the GPI connector to work with external devices that you want to use to control the FS3 or that you want the FS3 to control. Stand Alone Tests The stand alone tests can be performed without a computer, using the FS3 front panel controls and rear connections. - Page 29 Procedure 1. Connect both FS3 power cords to mains AC and allow time for the unit to boot up. Observe the front panel LEDs. • The ALARM LED will light red, indicating an alarm condition, and the REF LED will be off. By default the FS3 is configured to operate genlocked to an external reference signal.
-
Page 30: Internal Test Signals To All Outputs
Once connected the FS3 front panel REF LED will light. • Connect a 1080i59.94 HD SDI signal to the SDI1 input on the rear of the FS3. Once connected the FS3 front panel VID IN LED will light. -
Page 31: Sd To 4K 4-Link 2Si 50 With Sidebar Matte
Once connected the FS3 front panel REF LED will light. • Connect a 625i SD SDI signal to the SDI1 input on the rear of the FS3. Once connected the FS3 front panel VID IN LED will light. - Page 32 • If vertical black bars exist between the matte and up-converted image, you can go to 9 Sidebar Edge and adjust the matte to the edge of the image. This workflow confirms the FS3 up-converts incoming video with sidebar matting. FS3 Frame Synchronizer/Converter v1.1r1...
-
Page 33: Chapter 4 - Display Menus
Chapter 4 – Display Menus Overview The FS3 can be controlled in two different ways: (1) direct control using the front panel buttons, knobs, and display menus, (2) remote control using a web browser. This chapter describes the first, using the front panel controls, which is the most direct way to configure and use an FS3. - Page 34 1. Press the VIDEO PROC Menu Group button. 2. Turn the SELECT knob as necessary to display menu ProcAmp. 3. Turn the ADJUST knob to change the value setting from OFF (default) to ON. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com...
- Page 35 9. Push the ADJUST knob quickly to confirm all settings. Alternatively, you can scroll counterclockwise back through the fields, stopping on any of them to change them. They must be blinking before they can be changed. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com...
-
Page 36: Status Menu Group
OK. If selections are incompatible, the status of the affected signal shows incompat. Display Description Input Source Status Video input source alarm status. BKGD Backgd Source Status Selected Background video source alarm status. Genlock Source Status Selected Genlock source alarm status. Status Selected output format/alarm status. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 37: Power/Temp Alarm Status
STATUS screen is the more correct. REMOTE Menu Group The REMOTE Menu Group lets you set up how you want the FS3 to be controlled. Control options include the front panel, a remote computer running a browser, and GPI inputs and outputs. -
Page 38: Remote Control
The setting of this parameter determines what happens when a GPI trigger is received at the FS3’s GPI Inputs (1–4). A GPI Trigger is defined as a TTL low voltage level (0 to 0.8V with respect to its isolated ground pin). The GPI interface pinout and specifications are discussed in "GPI Pinouts"... -
Page 39: Gpi 1-4 Out
GPI IN 1 Response setting of No Action. If you trigger GPI IN 1 later, expecting to recall Preset 1 again, the FS3 instead performs No Action. To prevent unexpected changes in the GPI IN Response parameters, set these parameters as desired before storing presets;... -
Page 40: Config Menu Group
SNMP, alarm, and screen saver configurations. 1 System Name This parameter defines a unique name for the FS3. This same name is used both when displaying systems via the web interface and when displaying the FS3’s screen saver. -
Page 41: Subnet Mask
Without a properly configured default gateway (whether you have a router/ gateway or not), the FS3 will be unable to see other FS units on the network, although you may still be able to control this unit via a web browser. Also, without a proper gateway defined, the discovery feature on the Network web page will fail to list other FS units on the network. -
Page 42: Video Format Alarm
Alarm will not be triggered by a format incompatibility. 7 Reference Alarm This parameter controls how the FS3 responds when the Video Processors has a format that is incompatible with the Reference video signal. When set to NORMAL, the alarm triggers if the Reference signal is not detected or is incompatible with the processor format. -
Page 43: Fan Speed
The PRESET Menu Group provides the means of saving, editing the names of, and loading FS3 presets. A preset is a set of all System, Video, Audio, and most Config parameters as they were set at the time the preset was stored. -
Page 44: 1.40 Presets #1-#40
1. 1 -1.40 Presets #1-#40 These parameters let you recall, edit the name of, and store an FS3 preset configuration for the selected storage register. Forty storage registers are available. Preset #1–#40 Shows the currently selected preset register number. Turn SELECT choose the desired register. -
Page 45: Sdi2 Input Protect
2 physical input. Choosing Auto Detect or Dual Stream in SDI1 3G Detect does not switch away from the physical input. In the Dual Stream setting, the FS3 assumes both channels of Dual Stream 3G video are muxed onto a single wire at the SDI1 input. The SDI 2 video signal is then taken internally from the SDI 1 Stream 2 signal instead of the SDI2 In connector. -
Page 46: Genlock Source
Input Use the input signal as the genlock source. Free run Free run mode (FS3 syncs to its own timebase, not locked to an external source). 6 Output Frame Rates This parameter selects the HD video frame rate associated with the video standard. -
Page 47: Video Output Format
The output is the test pattern generator. NOTE: Normal output can be a version of its currently selected input, a Sidebar or Letterbox display, a Freeze of last good video, or Black, depending on the current configuration. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 48: Loss Of Input
2639 -562 1080p29.97, 1080p30 2199 -562 1080p50 2639 -562 1080p59.94, 1080p60 2199 -562 1080psf23.98, 1080psf24 2749 -562 1080psf25 2639 -562 1080psf29.97, 1080psf30 2199 -562 2Kx1080p23.98, 2Kx1080p24 2749 -562 2Kx1080p25 2639 -562 2Kx1080p29.97, 2Kx1080p30 2199 -562 FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 49: Output Timing H
Video Output Mode selection is Sidebars, this parameter selects the video source for the Sidebars. Black (default) Selects black as the background fill video. Matte Selects matte as the background fill video. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 50: Upconvert Mode
DTV receivers and/or intermediate professional video equipment regarding the display of video of one aspect ratio on a display of another aspect ratio.” FS3 AFD processing (passing, removing, and re-inserting) occurs based on the setting of parameter "AFD" on page Auto AFD mode fully defines the size, position, and aspect ratio of the output raster. -
Page 51: Cfg Hi Frm Rate Out
11.2 Matte Chroma This parameter determines the Matte Chroma level of the background fill. 50% (default) Sets the matte chrominance level to the default 50% value. 0–100% (Variable) Sets the matte chrominance level from 0–100%. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 52: Proc Amp Controls (Yuv)
This parameter adjusts the video color saturation from black and white to 1.5 times chroma in steps of 0.01. Variable Adjusts Proc Amp Saturation from 0 (black & white) to 1.5 (Chroma) in steps of 0.01. Default: 1.0 FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 53: Color Corrector Controls (Rgb)
Custom selection for those modes. Custom settings are stored separately for each Conversion Mode. Values for each of the Upconvert Modes and SD Aspect Ratio modes (excluding OFF), plus no conversion (or HD CrossConvert), are independently stored. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... - Page 54 Enables changing the left side position. 14.6 Custom Right Crop This parameter changes the Right picture crop position. 100% (default) Maintains the normal right side position of the selected format. +10.0% to +100.0% Enables changing the right side position. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com...
-
Page 55: Region Of Interest (Roi) Controls
15. 1 ROI Left This parameter sets the left boundary of the ROI. Variable (default=100%) Sets ROI left boundary to 10-100% of full screen in 0.1% increments. For 1% increments, hold down the Video button. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 56: Video Legalizer
When the Video Legalizer mode is YUV, this parameter limits the maximum chroma level to the adjusted limit. The limit can be set from +60% to +140%,. Variable Adjusts chroma clip level from +60% to +140% in 0.5 steps. Default (unity): 100 IRE FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 57: Afd
These determines whether the Video Processor inserts an AFD packet into the output video. OFF (default) The FS3 does not insert an AFD code into the output. Auto If there is no AFD code on the input video, a “Full Frame” (8) code is inserted. -
Page 58: Input Scan Format
(even if there is SMPTE 352 data to the contrary) 20 SD Line 21 Blanking This parameter determines whether the FS3 blanks line 21 closed captioning data prior to video processing of an SD 525i video input. (Line 21 normally occurs at FS3 Frame Synchronizer/Converter v1.1r1... -
Page 59: Test Pattern
(18 Caption Xlator must be Off). Pass In Pass mode, the FS3 does not blank line 21 of the SD video input and passes the unaltered video to the Video Processor for transformation. This is the setting to use if there is no captioning data present on line 21 of a 525i video input. -
Page 60: Reverse Telecine
• The Reverse Telecine parameter must be set to Auto. • PsF supported output> Under the conditions above, the FS3 will automatically detect the type of film cadence (3:2 or 2:3:3:2), identify and remove the duplicate fields, and perform motion detection and de-interlacing processing to create high quality output with clean frames. - Page 61 In the FS3 Downconverter, the AFD code on the video input can be used to guide the Downconverter in choosing which mode to use to best display the important content of the input 16:9 HD video on the 4:3 SD output.
-
Page 62: Sd Aspect Ratio Convert
Converts 4:3 Standard video to 16:9 Anamorphic video. See "9 Sidebar Edge" on page 50 for edge adjustments. V Crop Converts Letterbox video to 16:9 Anamorphic video. 14:9 Converts 16:9 Anamorphic video to 14:9 Cropped video. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 63: Audio Proc Menu Group
AUDIO PROC Menu Group The following descriptions explain the Audio Proc Menu Groups, which allows you to make adjustments to the audio inputs to the FS3 audio processor, and to control audio routing. The Audio Proc Menus are formatted as follows... -
Page 64: Sdi1 Phase
• Each of the individual eight SDI1 audio input channel pair delay values are applied to the input delay of each channel pair. • The range of delay is -16ms (-768 samples) to +256ms (+12288 samples). 48 samples = 1 millisecond. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 65: 5.0/6.0 Sdi 2 Level, Phase, Delay
When set to 5.1 or 7.1 Channel Mode, additional menus follow that are used to select the source of the incoming multi-channel audio, adjust the levels of each of the incoming channels to the Left and Right outputs, and adjust the gain of the Left and Right output channels. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... - Page 66 Multi-channel audio, typically embedded in an SDI signal, can be passed through the FS3 converter unchanged. The multi-channel sound can also be mixed down to stereo, using the two Mix Down Modules built into the FS3 audio processor. The default 5.1 to 2 ch. mix-down equation is:...
-
Page 67: Mix Down Reset
No embedded audio (HANC) is generated. About Audio Routing The SDI1 through SDI4 Audio Output menu titles refer to portions of the FS3 SDI embedded audio output signal (embedded audio groups), not the SDI 1-4 BNC connectors. The selected input source audio is routed to all the corresponding FS3 output connectors. - Page 68 4K and UltraHD video can carry four groups of 16 channels (64 total) of embedded audio. The FS3 can receive up to 64 audio channels, 16 on each input connector, and can route these incoming audio channels to the embedded audio outputs, via the internal embedded audio groups, called SDI1-SDI4.
-
Page 69: Sdi1 Audio Output
Select the source to route to the selected output from the following through sources: SDI1 Output Ch 16 -SDI1 Ch1 - Ch16 -SDI2 Ch1 - Ch16 -Fiber1 Ch1 - Ch16 -Fiber2 Ch1 - Ch16 -Mix Down L - R -Sig Gen 1kHz -Sig Gen 400Hz -Mute FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 70: 20.0 Sdi2-4 Audio Out
"17.0 SDI1 Audio Output" on page 69 21 Global Audio Output This parameter allows routing the same source or set of sources to all the FS3 outputs. The rules used for Audio Out apply if the number of outputs do not match the number of inputs. -
Page 71: Chapter 5 - Browser Remote Control
If the browser fails to connect, make sure CONFIG settings for IP, Subnet, and Gateway match the network setup of the browser host. You can either make the computer match the FS3, or make the FS3 match your computer. -
Page 72: Controlling Multiple Fs3S
The right side of the screen lists AJA systems on the network. The network panel is divided into two sections by the white line- above the line will be a list of FS3 models on the network- below the line will be a list of other AJA devices (such as Cion and other FS models) If you right-click any system in the list and select Identify, the ID LEDs on the unit will blink to identify it. -
Page 73: Resetting Values To Factory Default Settings
NOTE: The FS3 you control may be running a different software version, so screens may look different. It’s a good idea to have all your devices running the most current software and the same version. Also, if the Default Gateway (parameter 2.4) is not configured properly, other AJA devices will not be visible. -
Page 74: Network Pane And Network Configuration Screen
Network Pane and Network Configuration Screen The Network pane on the right side of any screen lists the AJA FS devices that appear on the network. This pane includes three additional controls: • Hover the cursor over any system name to see its IP address. -
Page 75: Ip Address
Without a properly configured default gateway (whether you have a router/ gateway or not), the FS3 will be unable to see other AJA FS devices on the network, although you may still be able to control this FS3 via a web browser. -
Page 76: Alarm Configuration Screen
To close the window, press the ESC key, or click the X in the upper right corner. The Alarm Configuration display provides control over these alarm settings: • "5 Power Supply Alarm" on page • "6 Video Format Alarm" on page • "7 Reference Alarm" on page Status Screen FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 77: System Screen
System Screen The SYSTEM web interface screen includes parameters for setting up various FS3 system related features (video formats, audio level standards, etc.). The System screen parameters are identical to those available on the FS3 front panel. These include: •... -
Page 78: Config Screen
UPnP. System Name The System Name parameter sets the name of the FS3 system. To change the System Name, click on and drag the cursor across the displayed name, and type in a new name. -
Page 79: Hidden Menus
Windows network through the FS3. When enabled, the FS3 acts as a proxy for all the AJA devices that it is able to connect to that have not already been discovered on the network. The devices will be listed in the FS3 Network window. -
Page 80: Presets Screen
Presets Screen The Presets screen allows you to save FS3 Preset Configurations into 40 separate memory registers and recall the presets whenever needed. This screen also includes Export and Import functions that allow exporting one or all FS3 presets to your computer as files and importing exported preset files from your computer. -
Page 81: Interaction Of Presets And Gpis
A dialog box warns you that the operation will overwrite the current preset contents with the file contents. You can only import presets from a FS3. Export Presets 1–40 (All) Export All lets you save the contents of all presets to a file on your computer. -
Page 82: Video Screen
Video Screen The Video screen controls the FS3’s video signal processing. The parameters available on the Video browser screen is essentially identical to the front panel display menus. The only difference is parameters are set using webpage controls (drop down menus, slider adjustments) instead of control knobs. Complete... -
Page 83: Audio Screen
• "17.0 SDI1 Audio Output" on page 69 • "21 Global Audio Output" on page 70 • "22 Reset Mapped Output" on page 70 FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 84: Remote Screen
Remote Screen The REMOTE screen contains parameters that affect how the FS3 is controlled. Control options include the front panel, a remote computer running a browser, and GPI inputs and outputs. NOTE: The Remote Menu Group parameters available on the front panel interact with the browser parameters available on an attached computer, and vice versa. - Page 85 The Update Firmware screen allows you to download and install a firmware update from AJA. The FS3 Update Page link on the Firmware screen will take you to the correct AJA website page. Or you can visit the AJA website (aja.com) to locate and download the updated software.
-
Page 86: Chapter 6 - Snmp
FS3. Besides activating SNMP, trap destinations must also be defined with fixed IP addresses. When SNMP is enabled, one or more of these alarms may be sent by the FS3 to the client network management system (NMS) as a trap message: •... -
Page 87: Web Browser
Disabled (default) When set to Disabled, the FS3 will not issue SNMP trap messages. Enable 1 When set to Enable 1, the FS3 issues SNMP trap messages to Trap Destination 1 (parameter 4.1) and as defined in the MIB. Enable Both When set to Enable Both, the FS3 issues SNMP trap messages to Trap Destination 1 and 2 (parameters 4.1 and 4.3) and as defined in the MIB. -
Page 88: Snmp Trap Port 1
4.3 SNMP Trap Destination 2 This parameter determines the secondary SNMP Trap Destination IP address where trap messages issued by the FS3 will be sent (if desired). This parameter is similar to"4.1 SNMP Trap Destination 1" on page 87”. -
Page 89: Appendix A - Specifications
• Single Link SD/HD/3G-SDI (12 copies on single SDI) • Fiber SDI, SMPTE-297, 8 or 10-bits (optional) • Dual Channel LC connector modules • Single Channel LC connector modules • Single Channel SC connector modules FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... - Page 90 Convert any supported input HD/SD format to any supported 4K/UltraHD/HD/SD output format, as long as the input and output frame rates are of the same frame rate family. These three families are: • 59.94, 29.97, 23.98 • 50, 25 • 24 FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com...
- Page 91 • 5.1 or 7.1 to stereo mixdown with gain adjust • Audio test generator Timecode • SDI RP188 via SDI BNC Reference Input • Blackburst or tri-level sync • Looping, nonterminating Network Interface • 10/100/1000 Ethernet (RJ-45) • Embedded web server for remote control FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com...
- Page 92 • Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F) • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F) • Operating Relative Humidity: 10-90% noncondensing • Operating Altitude: <3,000 meters (<10,000 feet) FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com...
-
Page 93: Appendix B - Fs3 Pinouts
Ground The GPI inputs and outputs are electrically isolated from power and ground on the FS3 frame. There are four inputs and four outputs. Electrical isolation is provided for up to four pieces of external equipment. The following guidelines apply to the four GPI inputs and outputs: •... - Page 94 Figure 18. Typical GPI Input and Output Connections GND 1 In 1 Optical Relay (SSR) xmit+ GPI GND 4 To Tally Lamp etc. GPI Out 4 xmit- FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com...
-
Page 95: Appendix C - About Sdi Video Formats
The method used to transport this even higher data rate is similar to the above, with one approach specifying four 1.5Gb links that require four separate cables (Quad Link 1.5G SDI). These four links are called SDI1-SDI4. With the 3G transport FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 96: Fs3 Sdi Formats
This makes it possible to monitor the entire image on just one of the links, though at lower resolution. FS3 SDI Formats The FS3 can create the following different types of 4K/UltraHD video data structures: High Frame Rate (1080p above 30fps) •... -
Page 97: Appendix D - Safety & Compliance
Community throughout this document: AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY, SWITZERLAND FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 98: Declaration Of Conformity
For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 99: Korea Kcc Compliance Statement
This product meets the requirements of implementation rules for compulsory certification (REF NO. CNCA-01C-17:2014) under certificate number 2016010805841604. Translated Warning and Caution Messages The following caution statements, warning conventions, and warning messages apply to this product and manual. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... -
Page 100: Before Operation Please Read These Instructions
Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com... - Page 101 Aviso! Dado que a ficha principal é utilizada como a desconexão para o dispositivo, esta deve manter-se prontamente acessível e funcional. Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di sconnessione, deve rimane prontamente accessibile e operabile. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com...
- Page 102 Aviso! Desconecte este dispositivo da tomada durante trovoadas ou quando não é utilizado durante longos períodos de tempo. Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal produttore, quali il treppiedi e l'esoscheletro. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com...
- Page 103 Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura seja realizada por uma central de serviços da AJA ou por um local autorizado. Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili dall’utente.
- Page 104 Cuidado! Para atender aos regulamentos de segurança para correntes de fuga, conecte as fontes duplas a circuitos elétricos separados. Attenzione! Per soddisfare le norme di sicurezza sulla corrente di perdita, collegare i doppi alimentatori a circuiti derivati separati. FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com...
- Page 105 ¡Advertencia! Los cables de fibra óptica activos emiten radiación invisible al ojo humano. No mire directamente hacia el extremo de un cable de fibra óptica activo o hacia el conector de fibra óptica del FS1-X, FS2, FS3, o FS4; estos modelos están clasificados como Productos Láser Clase 1.
-
Page 106: Warranty Information
Video parts or supplies, or d) to service a product that has been modified or integrated with other products when the effect of such a modification or integration increases the time or difficulty of servicing the product. -
Page 107: Index
Low Frame Rate 96 Front Panel Control 8 Supported 71 Front Panel Description 12 Button Operation Rules 13 FS3 Front Panel Figure 12 FS3 Rear Panel Figure 18 Mix Down 5.1 Default 66 Mix Down 7.1 Default 66 Cabling Requirements 22... - Page 108 SELECT Knob Operation 15 Test Signal To All Outputs 30 Shipping Contents 21 Sidebar Video Keying 11 Slider Operation 73 SNMP 9 Trap Message 86 SNMP Description 86 Software Download 26 Software Update 26 Source Memory 11 FS3 Frame Synchronizer/Converter v1.1r1 www.aja.com...
