GST I-9101 Quick Start Manual

The Intelligent Solution
Features

Electronically addressed.

Built-in microprocessor stores 14 history data.

Drift compensation to suit environment changing
extensively.

Combined smoke and heat algorithm greatly
improves detector performance.

Self-diagnostic.

Removable innovative sensing chamber, easy for
maintenance.

Reporting dirt fault for contaminated chamber.

Remote indicator output available.

Designed to comply with EN 54-5/EN 54-7
standards.
Description

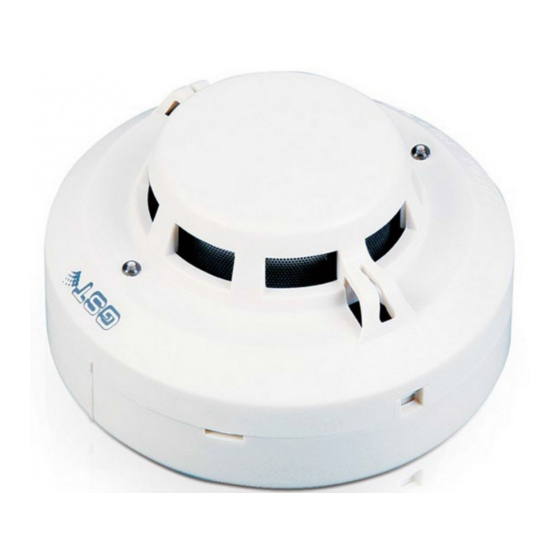

I-9101 Intelligent Combination
Smoke Detector integrates photoelectric detection and
fixed temperature and rate of rise detection technology
by combining smoke sensor and heat sensor in
mechanism and circuitry structure. Just because of the
combination of smoke detection and heat detection,
I-9101 detector not only overcomes the disadvantage
that detectors using common infrared scattering
technology are insensitive to black smoke with small
particles, but also can pick up fire with obvious rise of
temperature such as alcohol flame, thus extending its
application range.
Connection and Cabling

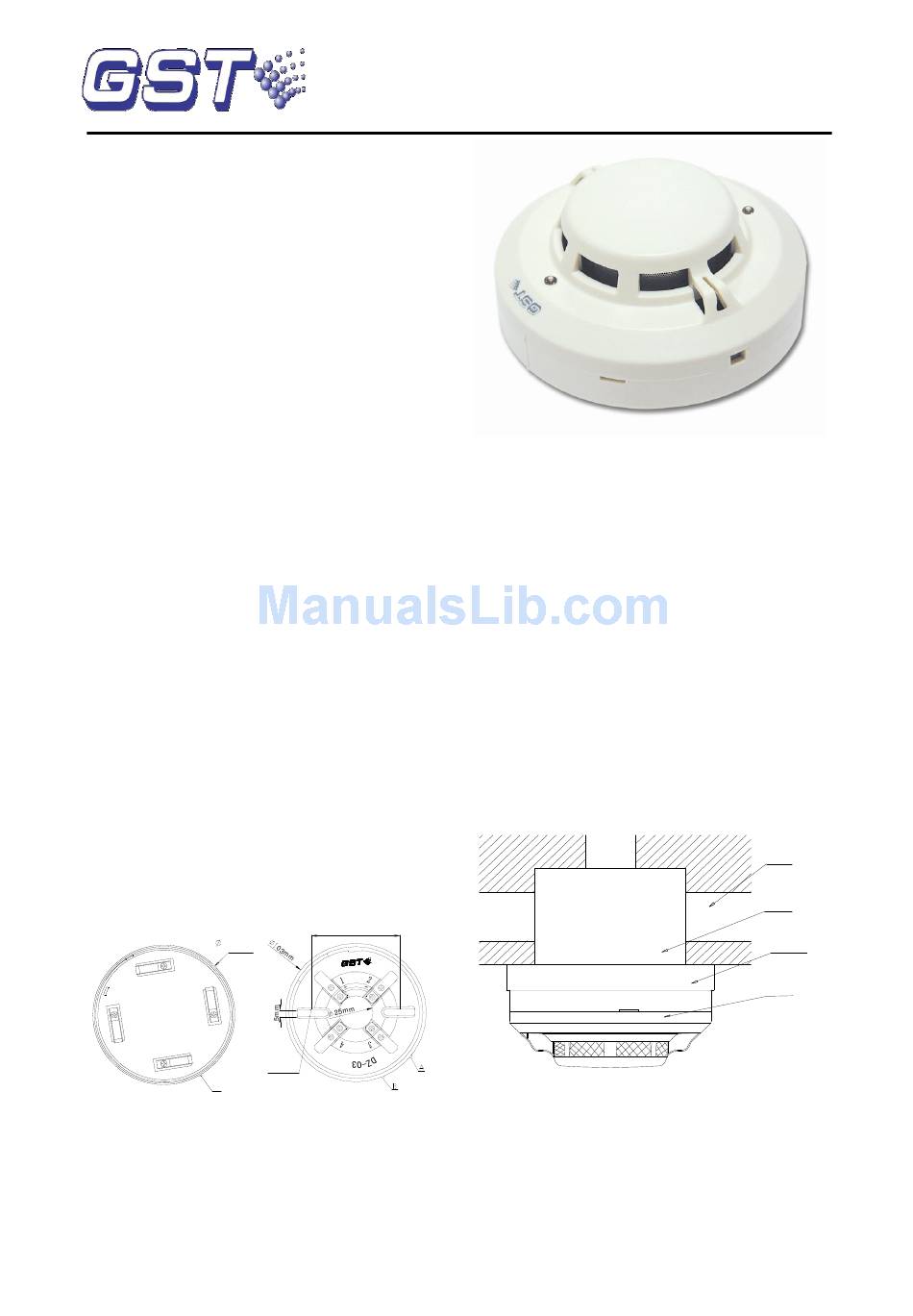

Fig. 1 shows the detector bottom and Fig. 2 the base.
100mm
C
Fig.1
There are four terminals with numbers on the base.
1&3: Loop connection (non-polarized)
2: Positive terminal of remote indicator
4: Negative terminal of remote indicator
30307848
Heat/Photoelectric Smoke Detector
Heat/Photoelectric
45mm~75mm
Mounting
Hole
Fig.2
I-9101 Intelligent Combination
Recommended Cabling
2
1.0 mm or above fire cable for detector loop, laid out
through metal conduit or flame-retardant conduit.
Subject to local codes.
Installation
A fixed installation direction is ensured by the location
elements on the detector and the base. Fix the base
with two tapping screws, and then align mark C on the
detector with A on the base, rotate the detector to align
mark C with mark B (Refer to Fig. 1 and 2 for the
position of the marks), the detector will be fitted to the
base.
Mounting of the detector is shown in Fig. 3.
Application
The detector can be electronically addressed by a
programmer. Please refer to P-9910B Hand Held
Programmer Installation and Operation Manual for
details.
Conduit
Back Box
Base
Detector
Fig.3
Issue 1.01
