- Page 1 E-MAIL: hombi@hombi.ru HTTP://GSTRU.RU HTTP://WWW.HOMBI.RU...
-
Page 2: Table Of Contents
I-9106 Intelligent Linear Cable Heat Detector Installation and Operation Manual The Intelligent Solution CONTENTS General......................1 Features ......................1 Technical Specifications..................1 Structure and Operation Principle..............2 Mounting and Wiring..................3 Designs and Applications................... 8 Testing ......................10 VIII Troubleshooting ....................11 Maintenance .....................11... -
Page 3: I General

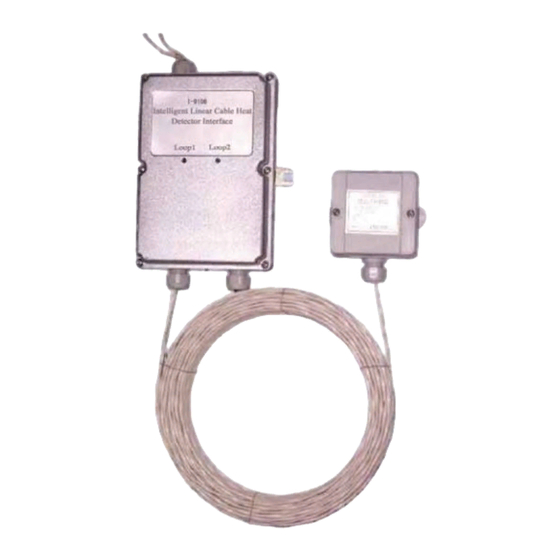

The Intelligent Solution General I-9106 Intelligent Linear Cable Heat Detector （ the detector ） consists of I-9106 Intelligent Linear Cable Heat Detector Interface（the interface）, P-9106 Intelligent Linear Cable Heat Detector Terminal (the terminal) and series linear heat cables. It is a fixed temperature detector well designed and developed by GST, with the features of easy mounting and stable operating. -
Page 4: Structure And Operation Principle
I-9106 Intelligent Linear Cable Heat Detector Installation and Operation Manual The Intelligent Solution Linear Heat Cable (1) Response time ≤20s（heat within 1m） (2) Operating Environment Temperature: T: -40℃≤T≤Rated action temperature falling down 30％ (3) Insulated resistance≥500MΩ (4) Maximum curve radius: 150mm (5) Anti-voltage ability: 500VAC, for 1 minutes (6) Relative error: Action temperature error±10％... -
Page 5: Mounting And Wiring
I-9106 Intelligent Linear Cable Heat Detector Installation and Operation Manual The Intelligent Solution P-9106 End of Line Unit GWDL1,GWDL2 ： Connecting with sensor cable , non-polarized Production Date ： Batch No ： Serial No ： Fig. 2 Dimension of the terminal Operation Principle The interface has a built-in microprocessor and be programmed electronically. - Page 6 I-9106 Intelligent Linear Cable Heat Detector Installation and Operation Manual The Intelligent Solution Fig. 3 Top view of the interface Rack mounted: Remove the mounting board from the back cover, then fix the back cover to the rack with M4×12. Fig. 4 shows its mounting.
- Page 7 I-9106 Intelligent Linear Cable Heat Detector Installation and Operation Manual The Intelligent Solution cable sockets on the top are to connect with loops, those ones on the bottom with heat cable. When the interface connects with incomings and outgoings, remove the waterproof plug, replaced with spare cable socket to connect with another pair of loops.
- Page 8 I-9106 Intelligent Linear Cable Heat Detector Installation and Operation Manual The Intelligent Solution Ceiling and Supporting Wire Retaining Clip Linear Heat Cable Fig. 8Mounting of the Linear Heat Cable The spacing between heat cables and with walls are shown in Fig. 9.
- Page 9 I-9106 Intelligent Linear Cable Heat Detector Installation and Operation Manual The Intelligent Solution should be made according to Table 1). Table 1 Tray Width （m） Coefficient of Multiplying Power 1.75 1.50 1.25 1.15 When the heat cable is mounted on the power cable in sane wave type, the number of retaining clip can be calculated by the formula: The number of retaining clip＝The number of half sine wave×2＋1...
-
Page 10: Designs And Applications
I-9106 Intelligent Linear Cable Heat Detector Installation and Operation Manual The Intelligent Solution Retaining Clip Fig. 12 Mounting of the Heat Cable （4） Mounting on the Power Control Equipment Take the heat cable mounting on the dynamo panel as an example. The whole devices can be secured by reliable string prick. - Page 11 I-9106 Intelligent Linear Cable Heat Detector Installation and Operation Manual The Intelligent Solution tunnels. It is applicable to power plant, transformer substation, steel mills, chemical factories and ancient buildings. Those places can be classified as follows according to the protected subjects.
-
Page 12: Testing
I-9106 Intelligent Linear Cable Heat Detector Installation and Operation Manual The Intelligent Solution (1) The address number of the interface should be programmed by hand held programmer by project’s request before it is used to the system. The interface is defaulted two loop, so it has two address numbers-- ×× and ×× +1. If the address number is required to change, modify the address number of Loop I ，... -
Page 13: Troubleshooting
If there is no problem with the address number and device type, check the loop voltage and impedance, see if there is circuit fault. （2） For the interface with fault, please contact local office of GST or GST Company. -
Page 14: Cautions
I-9106 Intelligent Linear Cable Heat Detector Installation and Operation Manual The Intelligent Solution Each loop should be tested once every year for manual fire alarm or simulation fire alarm. Every five years, each time should be made bulge test without breakage. If there is breakage, replace the heat cable. - Page 15 GST China Gulf Security Technology Co., Ltd. No. 80, Changjiang East Road, QETDZ, Qinhuangdao, Hebei, P. R. China 066004 Tel: +86 (0) 335 8502528 Fax: +86 (0) 335 8508942 Email: sales@gst.com.cn www.gst.com.cn GST UK Global System Technology PLC Lion Court, Staunton Harold Hall,...
