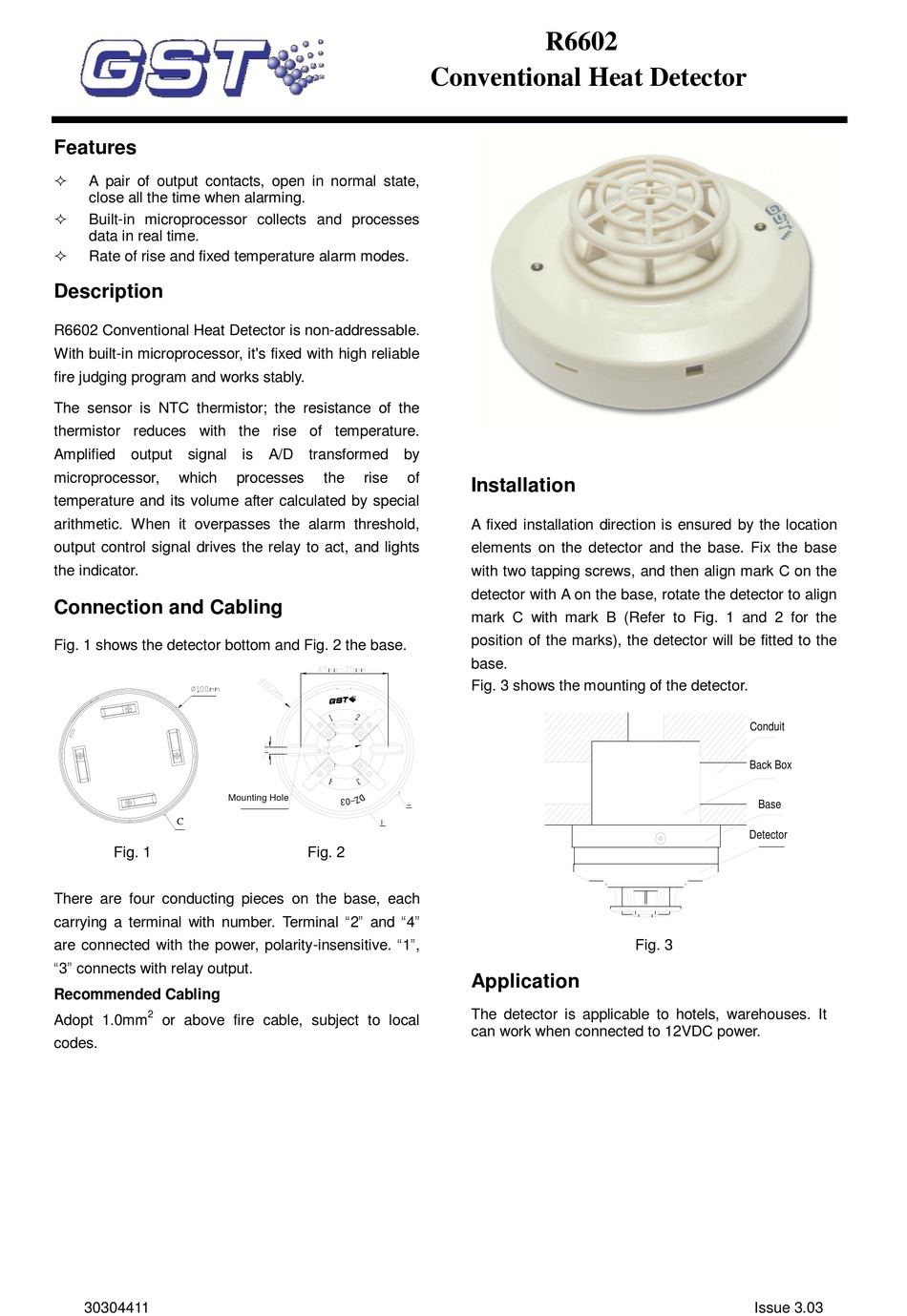

GST R6602 Quick Start Manual

Features


A pair of output contacts, open in normal state,
close all the time when alarming.

Built-in microprocessor collects and processes
data in real time.

Rate of rise and fixed temperature alarm modes.

Description

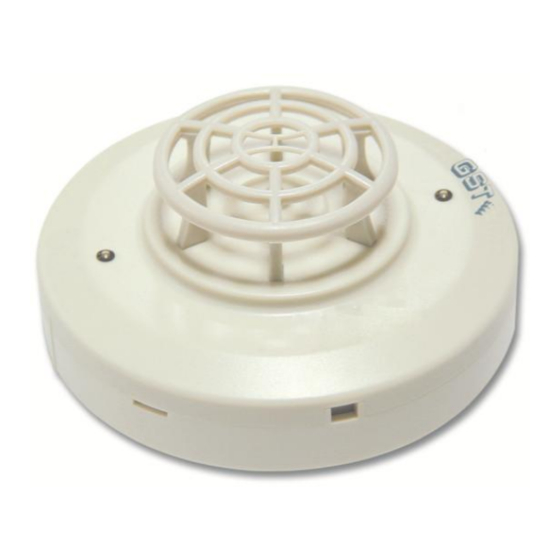

R6602 Conventional Heat Detector is non-addressable.
With built-in microprocessor, it's fixed with high reliable
fire judging program and works stably.
The sensor is NTC thermistor; the resistance of the
thermistor reduces with the rise of temperature.
Amplified output signal is A/D transformed by
microprocessor, which
temperature and its volume after calculated by special
arithmetic. When it overpasses the alarm threshold,
output control signal drives the relay to act, and lights
the indicator.

Connection and Cabling

Fig. 1 shows the detector bottom and Fig. 2 the base.
C
Fig. 1
There are four conducting pieces on the base, each
carrying a terminal with number. Terminal "2" and "4"
are connected with the power, polarity-insensitive. "1",
"3" connects with relay output.
Recommended Cabling
2
Adopt 1.0mm or above fire cable, subject to local
codes.
30304411
processes the rise
Mounting Hole
Fig. 2
R6602
Conventional Heat Detector
of

Installation

A fixed installation direction is ensured by the location
elements on the detector and the base. Fix the base
with two tapping screws, and then align mark C on the
detector with A on the base, rotate the detector to align
mark C with mark B (Refer to Fig. 1 and 2 for the
position of the marks), the detector will be fitted to the
base.
Fig. 3 shows the mounting of the detector.

Application

The detector is applicable to hotels, warehouses. It
can work when connected to 12VDC power.
Conduit
Back Box
Base
Detector
Fig. 3
Issue 3.03
