INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.

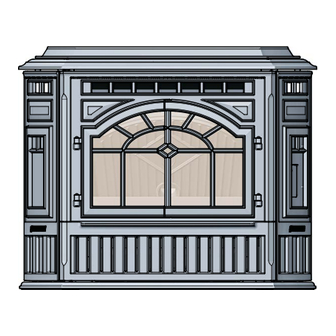

MT. VERNON INSERT
PELLET STOVE E2
Model(s):
MTVI-E2-MBK
MTVI-E2-CSB
MTVI-E2-PMH
Please read this entire manual before installation and use of this
pellet fuel-burning room heater. Failure to follow these instructions
could result in property damage, bodily injury or even death.
CAUTION
Tested and approved for wood pellets only
CAUTION
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and na-
tional codes and regulations.
• Consult local building, fi re offi cials or authorities having juris-
diction about restrictions, installation inspection, and permits.
1
Installation Manual
Installation & Appliance Set-Up
NOTICE: DO NOT DISCARD THIS MANUAL
Portland
Tested and
O-T L
Oregon USA
Listed by
C
US
OMNI-Test Laboratories, Inc.
061-S-84-2
If the information in these instruc-
tions is not followed exactly, a
fi re could result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfi re - If heater or chimney con-
nector glows, you are overfi ring. Overfi ring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specifi ed. Failure to
comply may cause house fi re.
Hot glass will cause burns.
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
fi replace.
•
Alert children and adults to hazards of high temperatures
•
High temperatures may ignite clothing or other
fl ammable materials.
•
Keep clothing, furniture, draperies and other fl ammable
materials away.
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafi re.com
Pour obtenir une traduction française de ce manuel, s'il vous
plaît contacter votre revendeur ou visitez www.quadrafi re.com
7082-131C
WARNING
WARNING
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
NOTE
June 18, 2014

Advertisement

Table of Contents
loading

Related Manuals for Quadra-Fire MTVI-E2-MBK

Summary of Contents for Quadra-Fire MTVI-E2-MBK

  • Page 1 PELLET STOVE E2 damage, personal injury, or death. Model(s): • Do not store or use gasoline or other fl am- MTVI-E2-MBK mable vapors and liquids in the vicinity of this or any other appliance. MTVI-E2-CSB • Do not overfi re - If heater or chimney con- MTVI-E2-PMH nector glows, you are overfi...

  • Page 2: Table Of Contents

    I. Power Cord .................21 F. Removing Metal Floor of Factory-Built Firebox ....10 Mobile Home Installation ....22 G. Prefabricated Metal Chimney ...........11 Accessory List ........23 H. Altering the Factory-Built Fireplace........11 Quadra-Fire is a registered trademark of Hearth & Home Technologies. 7082-131C June 18, 2014...

  • Page 3: Important Safety Information

    Materials reported as passing ASTM E 136, Standard Test Method for Behavior of Metals, in a Vertical Tube The Quadra-Fire Mt. Vernon E2 Insert Pellet Stove meets the Furnace of 750° C. U.S. Environmental Protection Agency’s 1990 particulate emission standards.

  • Page 4: Getting Started

    MT VERNON E2 INSERT Install Guide Getting Started A. Design, Installation & Location Considerations Since pellet exhaust can contain ash, soot or sparks, you must consider the location of: 1. Appliance Location • Windows NOTICE: Check building codes prior to installation. •...

  • Page 5: Remote Thermostat Location

    MT VERNON E2 INSERT B. Remote Thermostat Location D. Inspect Appliance and Components The thermostat wall control’s location will have some affect • Open the appliance and remove all the parts and articles on the appliance’s operation. packed inside the Component Pack. Inspect all the parts and glass for shipping damage.

  • Page 6: Install Checklist

    Location of Fireplace: Installer: Dealer/ Distributor Phone #: Serial #: Model (circle one): MTVI-E2-MBK MTVI-E2-CSB MTVI-E2-PMH WARNING! Risk of Fire or Explosion! Failure to install fi replace according to these instructions can lead to a fi re or explosion. Appliance Install IF NO, WHY? Required non-combustible fl...

  • Page 7: Dimensions And Clearances

    MT VERNON E2 INSERT Dimensions and Clearances A. Appliance Dimensions 32 [812] 23-7/8 [606] [23] [382] 29-3/4 [756] 23-7/8 [605] 13-1/8 [333] 26-1/4 [667] 26-7/8 [683] Figure 7.1 - Top View Figure 7.2 - Side View 36-5/8 [930] [838] 34-7/8 [886] 50 [1270] 46-1/8 [1171]...

  • Page 8: Clearance To Combustibles, Us & Canada

    MT VERNON E2 INSERT B. Clearance To Combustibles, US & Canada Built-in Unit - Rear Vent Figure 8.1 Location Confi guration Inches Millimeters Side of Outside Skin Top or Rear Vent Vent Pipe to Combustible Top or Rear Vent Cast Side to Side Wall Top or Rear Vent WARNING Built-in Unit - Rear Vent with Outside Air...

  • Page 9: Masonry & Zero Clearance Fireplaces

    MT VERNON E2 INSERT Built-In Vertical D. Floor Protection Location Inches Millimeters Floor protection hearth extension from door opening Floor protection to the side of door 3 in opening [76mm] • Use a non-combustible fl oor protector, extending beneath appliance and to the front, and sides as indicated. •...

  • Page 10: Removing Metal Floor Of Factory-Built Firebox

    MT VERNON E2 INSERT F. Removing Metal Floor of Factory-Built Use 2 x 4 from insert Firebox packaging to support insert • The fi rebrick (refractory), glass doors, screen rails, screen mesh and log grates can be removed from a fac- tory-built fi...

  • Page 11: Prefabricated Metal Chimney

    MT VERNON E2 INSERT G. Prefabricated Metal Chimney the fi replace may be removed providing they can be stored on or within the fi replace for reassembly if the insert is The chimney can be new or existing, masonry or prefabricated removed.

  • Page 12: Vent Information

    MT VERNON E2 INSERT Vent Information A. Venting Termination Minimum Requirements Electrical Service Inside Corner FIXED FIXED OPEN CLOSED CLOSED OPEN J or K Figure 12.1 Termination Cap Air Supply Inlet Restricted Area Gas Meter All minimum clearances are listed with an Outside Air Kit (OAK) installed, unless otherwise noted in table below. 12 in.

  • Page 13: Avoiding Smoke And Odors

    MT VERNON E2 INSERT B. Avoiding Smoke and Odors Vent Confi gurations Negative Pressure, Shut-Down and Electrical Power To reduce probability of reverse drafting during shut-down Failure conditions Hearth & Home Technologies strongly recom- To reduce the probability of back-drafting or burn-back in mends: the pellet appliance during power failure or shut down con- •...

  • Page 14: Negative Pressure

    2. Mobile Home: Approved for all Listed pellet vent. If using the 3 • Range hoods to 6 inch (76-152mm) Top Vent Offset Adapter, use Listed double wall fl ue connector. A Quadra-Fire Outside Air Kit (OAK-3) must • Combustion air requirements for furnaces, water heaters be used with manufactured home installations.

  • Page 15: Equivalent Feet Of Pipe

    MT VERNON E2 INSERT F. Equivalent Feet of Pipe WARNING The table below can help you calculate the equivalent feet of pipe which is a method used to determine pellet vent size. Vent surfaces get HOT, can cause burns if Figure 15.1.

  • Page 16: Venting Systems

    MT VERNON E2 INSERT Venting Systems A. Full Reline With Outside Air - Horizontal WARNING Fire Risk. CAUTION Inspection of Chimney: • Masonry chimney must be in good condition. Never draw outside combustion air from: • Meets minimum standard of NFPA 211 •...

  • Page 17: Full Reline With Outside Air - Vertical

    MT VERNON E2 INSERT B. Full Reline With Outside Air - Vertical NOTE: In Canada only a full reline is allowed per ULC NOTE: Check clearances carefully for this type of instal- S628, ORD ULC C1482-M1990. lation to ensure adequate room for outside air venting. 12 in [305mm] min.

  • Page 18: Appliance Set-Up

    MT VERNON E2 INSERT Appliance Set-Up A. Leveling System The leveling bolts are located on the sides of the appliance, front and rear. To access the bolts, remove the front access panels. Reach in and turn the bolt to the desired height to level the appliance.

  • Page 19: Removal Of Cast Sides

    MT VERNON E2 INSERT E. Surround and Trim Set - Cast Included in Surround Kit: (2) side panels, left and right; 3 inch high Set (1) panel top; (1) fastener package. Attach Trim to Insert from inside Insert. Included in Cast Trim Kit: (2) cast trim legs, left and right; (1) cast trim header;...

  • Page 20: Surround & Trim Set, Basic

    MT VERNON E2 INSERT F. Surround & Trim Set, Basic G. Optional Log Set Placement Instructions Included in Surround & Trim Kit: (2) corner brackets and set 2 PIECE LOG SET INSTALLATION screws; (1) trim set, 3 piece; (2) side panels; (1) top panel; 1.

  • Page 21: Remote Thermostat Installation

    MT VERNON E2 INSERT H. Remote Thermostat Installation I. Power Cord When mounting the thermostat on the wall, be sure to 1. Prior to installing the power cord, turn the dial control follow your remote thermostat’s installation instructions “OFF”. carefully. 2.

  • Page 22: Mobile Home Installation

    MT VERNON E2 INSERT Mobile Home Installation You must use a Quadra-Fire Outside Air Kit CAUTION for installation in a mobile home. THE STRUCTURAL INTEGRITY OF THE MOBILE HOME An outside air inlet must be provided for the combustion air and FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED must remain clear of leaves, debris, ice and/or snow.

  • Page 23: Accessory List

    MT VERNON E2 INSERT Accessory List Accessories Adjustable Hearth Support ADJSPT-12 Damper, 3 Inch - Tall Vertical Installs Only PEL-DAMP3 Damper, 4 Inch - Tall Vertical Installs Only PEL-DAMP4 Firescreen SCR-7005 Hearth Support ZCSPT-MVI Log Set (2 Pc) Sold as set only LOGS-60-AE-B Outside Air Kit OAK-3...
  • Page 24 Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafi re.com CAUTION DO NOT DISCARD THIS MANUAL...
