Quadra-Fire MTVI-E2-MBK Owner's Manual

Mt. vernon insert
Hide thumbs Also See for MTVI-E2-MBK:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual, Manual
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions regarding installation, operation or service.
NOTICE: DO NOT DISCARD THIS MANUAL

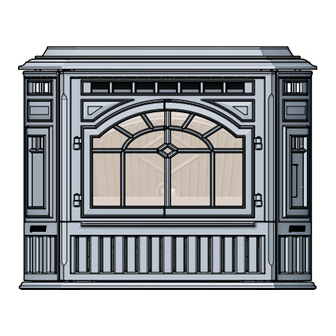

MT. VERNON INSERT
PELLET STOVE E2
Model(s):
MTVI-E2-MBK
MTVI-E2-CSB
MTVI-E2-PMH
Please read this entire manual before installation and use
of this pellet fuel-burning room heater. Failure to follow
these instructions could result in property damage, bodily
injury or even death
CAUTION
Tested and approved for wood pellets only.
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafi re.com
Pour obtenir une traduction française de ce manuel, s'il vous
00
plaît contacter votre revendeur ou visitez www.quadrafi re.com
1
Owner's Manual
Operation & Care
Tested and
O-T L
Listed by
C
US
OMNI-Test Laboratories, Inc.
061-S-84-2
NOTE
Please read this entire manual
before use of this pellet fuel-burning
room heater. Failure to follow these
instructions could result in property
damage, bodily injury, or death.
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do NOT burn garbage or fl ammable fl uids
such as gasoline, naphtha, or engine oil in
room heater.
• Do not overfi re - If heater or chimney con-
nector glows, you are overfi ring. Overfi ring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specifi ed. Failure to
comply may cause house fi re.
Hot glass will cause burns.
Portland
Oregon USA
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
fi replace.
•
Alert children and adults to hazards of high temperatures
•
High temperatures may ignite clothing or other
fl ammable materials.
•
Keep clothing, furniture, draperies and other fl ammable
materials away.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and na-
tional codes and regulations.
• Consult local building, fi re offi cials or authorities having juris-
diction about restrictions, installation inspection, and permits.
7082-132C
WARNING
WARNING
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
CAUTION
June 18, 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTVI-E2-MBK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quadra-Fire MTVI-E2-MBK

Summary of Contents for Quadra-Fire MTVI-E2-MBK

  • Page 1 • Do not store or use gasoline or other fl am- Model(s): mable vapors and liquids in the vicinity of MTVI-E2-MBK this or any other appliance. • Do NOT burn garbage or fl ammable fl uids MTVI-E2-CSB...

  • Page 2: Congratulations

    Hearth & Home Technologies welcomes you to our tradition old-fashioned when it comes to craftsmanship. Each unit of excellence! In choosing a Quadra-Fire appliance, you is meticulously fabricated and gold and nickel surfaces are have our assurance of commitment to quality, durability, and hand-fi...

  • Page 3: Table Of Contents

    MT. VERNON E2 INSERT Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. • WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury. •...

  • Page 4: Warranty Policy

    MT. VERNON E2 INSERT C. Warranty Policy Hearth & Home Technologies Inc. LIMITED LIFETIME WARRANTY Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. WARRANTY COVERAGE: HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance...

  • Page 5: Warranty Conditions

    MT. VERNON E2 INSERT WARRANTY CONDITIONS: ‡ 7KLV ZDUUDQW\ RQO\ FRYHUV ++7 DSSOLDQFHV WKDW DUH SXUFKDVHG WKURXJK DQ ++7 DXWKRUL]HG GHDOHU RU GLVWULEXWRU $ OLVW RI ++7 DXWKRUL]HG GHDOHUV LV DYDLODEOH RQ WKH ++7 EUDQGHG ZHEVLWHV ‡ 7KLV ZDUUDQW\ LV RQO\ YDOLG ZKLOH WKH ++7 DSSOLDQFH UHPDLQV DW WKH VLWH RI RULJLQDO LQVWDOODWLRQ ‡...

  • Page 6: Quick Start Guide

    MT. VERNON E2 INSERT D. Quick Start Guide 1. Empty Firebox Add pellets and close lid Turn DIAL to OFF Plug in the appliance • Exhaust blower will run for about 45 Seconds (wait for it to stop before priming) •...

  • Page 7: Listing And Code Approvals

    (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING The Quadra-Fire Mt. Vernon E2 Insert Pellet Stove meets Fire Risk. the U.S. Environmental Protection Agency’s 1990 particulate emission standards. Hearth & Home Technologies disclaims any...

  • Page 8: Operating Instructions

    MT. VERNON E2 INSERT User Guide Operating Instructions Fuel Material WARNING • Made from sawdust or wood by-products Fire Risk. • Depending on the source material it may have a high or • Do not operate appliance before reading and low ash content.

  • Page 9: Before Your First Fire

    MT. VERNON E2 INSERT E. Before Your First Fire This startup cycle continues until the unit senses ignition by 1. First, make sure your appliance has been properly a rise in the exhaust temperature or the unit times out. Fol- installed and that all safety requirements have been met.

  • Page 10: Fire Characteristics

    MT. VERNON E2 INSERT K. Fire Characteristics WARNING The overall height of the fl ame will vary throughout the burn HOT SURFACES! for a couple of reasons: The fl ame will vary based on type of fuel or batch of Glass and other surfaces are hot during fuel.

  • Page 11: Led Color Coding Chart And Explanation

    MT. VERNON E2 INSERT M. LED Color Coding Chart and Explanation The number of fl ashes between pauses is per one second unless otherwise indicated. No. of Flashes Description Notes Color between pauses Steady ON while Feed Motor is running When priming the feed system and fi...

  • Page 12: Restarting The Appliance

    MT. VERNON E2 INSERT N. Restarting the Appliance Restart Process 1. When the unit has run out of fuel and the “empty hopper” error code illuminates, add pellet fuel to the hopper. 2. Dump the ashes and clinkers built up in the fi repot by More Air &...

  • Page 13: Bypassing The Remote System (Manual Mode)

    MT. VERNON E2 INSERT Remote Thermostat: Fahrenheit / Celsius Error Code consisting of a series of rapid “beeps” for 1. Temperatures will show either °F or °C displayed on the a period of 10 seconds and the appliance will shut screen.

  • Page 14: Frequently Asked Questions

    MT. VERNON E2 INSERT S. Frequently Asked Questions What is the metal object with the bend in it that came inside the plastic bag? What causes my glass to become dirty? It is a clean-out tool used to help clean the fi repot and If the glass has white ash build up it is normal and the remove any jams in the rare event they occur in the feed glass should be cleaned.

  • Page 15: Maintenance And Service

    MT. VERNON E2 INSERT Maintenance and Service When properly maintained, your fi replace will give you CAUTION many years of trouble-free service. Contact your dealer to answer questions regarding proper operation, trou- Shock and Smoke Hazard bleshooting and service for your appliance. Visit www. quadrafi...

  • Page 16: General Maintenance And Cleaning

    MT. VERNON E2 INSERT 2. Cleaning Ash Pan C. General Maintenance and Cleaning • Frequency: Weekly or every 3-5 bags • By: Homeowner 1. Cleaning Firepot using Lever a. Locate the ash pan underneath the fi repot. • Frequency: Daily b.
  • Page 17 MT. VERNON E2 INSERT 4. Cleaning Heat Exchanger & Drop Tube • Frequency: Monthly or every ton of fuel (50 bags). • By: Homeowner NOTE: Heavy duty vacuum cleaners may be obtained, spe- cifi cally designed for solid fuel appliance cleaning. Tools Needed: A Shop Vacuum and generic micro cleaning kit;...
  • Page 18 MT. VERNON E2 INSERT 5. Ash Removal System Inspection & Cleaning • Frequency: Monthly or after burning 50 bags of fuel. • By: Homeowner a. Be sure the appliance is allowed to cool. b. Open the front cast door and cycle the ash removal handle - these should be inspected for functionality c.
  • Page 19 MT. VERNON E2 INSERT 5. Cleaning the Hopper 8. Cleaning Exhaust System - Requires No Lubrication • Frequency: See chart on pg. 15 • By: Homeowner • Frequency: See chart on pg. 15 • By: Homeowner a. Be sure the appliance is allowed to cool. a.

  • Page 20: Soot Or Creosote Fire Awareness

    MT. VERNON E2 INSERT 12. Preparing Firebox for Non-Burn Season • Frequency: See chart on pg. 15 Pellets Back-Up • By: Homeowner in Feed Tube a. The appliance must be in complete shutdown and allow Firepot Overfills the appliance to completely cool down. b.

  • Page 21: Glass Replacement

    MT. VERNON E2 INSERT 4. Disconnect the wire from the control board connection WARNING and hall effect switch/housing. 5. Using an 7mm socket wrench or nut driver, loosen the Cast iron is a very heavy material. The baffl e nuts securing the motor and impeller to the housing. is made of cast iron and therefore is heavy and Rotate the blower and remove from housing.

  • Page 22: Troubleshooting Guide

    MT. VERNON E2 INSERT Troubleshooting Guide With proper installation, operation, and maintenance your appliance will provide years of trouble-free service. If you do experience a prob- lem, this troubleshooting guide will assist a qualifi ed service person in the diagnosis of a problem and the corrective action to be taken. This troubleshooting guide can only be used by a qualifi...
  • Page 23 MT. VERNON E2 INSERT Symptom Possible Cause Corrective Action Area where the thermostat is placed Check thermostat proximity to doors affects temperature. and windows Thermostat located in tight spaces Inspect remote thermostat location Appliance starts and stops frequently effecting the on/off cycling of the and make sure it is not close to a when operating in the remote mode appliance.
  • Page 24 MT. VERNON E2 INSERT Symptom Possible Cause Corrective Action Clean unit including the fi repot, Dirty appliance or venting exhaust path, and venting system Purge old fuel and use higher quality Poor fuel quality, high ash content. / or brand of fuel Large, lazy fl...
  • Page 25 MT. VERNON E2 INSERT Following correction of any Alarm, turn the dial control to the OFF position, wait 10 seconds and turn back to desired setting OR unplug the unit, wait 10 seconds then restore power. Alarm Possible Cause Corrective Action (LED Flashing RED) Hopper empty Fill the hopper...

  • Page 26: Reference Materials

    MT. VERNON E2 INSERT Reference Materials When describing the location of a component, it is A. Component Functions always AS YOU FACE THE FRONT OF THE APPLIANCE. 1. Exhaust Blower panel. Both snap discs have a reset button. If the fi re tries to The combustion (exhaust) blower is mounted in the bottom right burn back into the feed system, the drop tube snap disc will rear of appliance.

  • Page 27: Exploded Drawings

    MT. VERNON E2 INSERT B. Exploded Drawings MT VERNON INSERT-E2 Service Parts Pellet Insert Beginning Manufacturing Date: Dec 2014 Ending Manufacturing Date: Active MTVI-E2-CSB, MTVI-E2-MBK, MTVI-E2-PMH Part number list on following pages. 11/13 June 18, 2014 7082-132C...

  • Page 28: Parts List

    MT. VERNON E2 INSERT C. Parts List MT VERNON INSERT-E2 Service Parts Beginning Manufacturing Date: Dec 2014 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
  • Page 29 MT. VERNON E2 INSERT MT VERNON INSERT-E2 Service Parts Beginning Manufacturing Date: Dec 2014 Ending Manufacturing Date: Active #19 Door Assembly #23 Firepot Riser Assembly 23.1 19.1 19.2 23.2 19.3 23.8 23.3 23.4 23.5 23.7 19.4 23.6 IMPORTANT: THIS IS DATED INFORMATION .
  • Page 30 MT. VERNON E2 INSERT MT VERNON INSERT-E2 Service Parts Beginning Manufacturing Date: Dec 2014 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Stocked Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
  • Page 31 MT. VERNON E2 INSERT MT VERNON INSERT-E2 Service Parts Beginning Manufacturing Date: Dec 2014 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
  • Page 32 Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafi re.com CAUTION DO NOT DISCARD THIS MANUAL...
