Appendix B
Cable Specifications

61-300026-03 Communication Cable, DB25 Plug to DB9 Socket

The 61-300026-03 Communication Cable, DB25 Plug to DB9 Socket is a
shielded RS-232 cable ending in a 25-pin D-sub plug and a 9-pin D-sub socket.

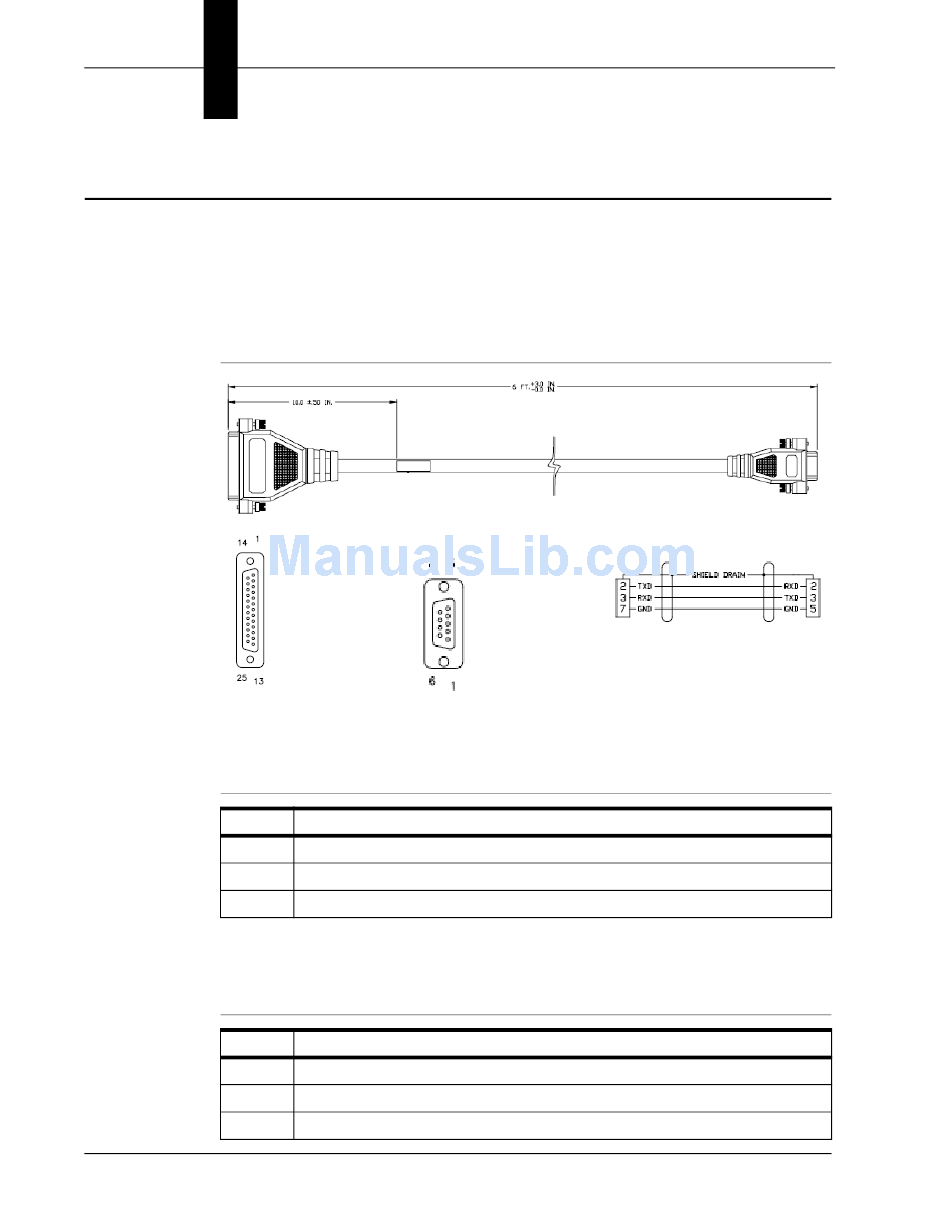

Figure B-4 shows the 61-300026-03 Communication Cable, DB25 Plug to
DB9 Socket.
FIGURE B–4.
Table B-5 describes the signals for the 61-300026-03 Communication
Cable, DB25 Plug.
TABLE B–5.
Pin
2
3
7
Table B-6 describes the signals for the 61-300026-03 Communication
Cable, DB9 Socket.
TABLE B–6.
Pin
2
3
5
B-6
Communication Cable, DB25 Plug to DB9 Socket
25-Pin D-sub
Plug
Communication Cable, DB25 Plug Pin Assignments
Function
TxD
RxD
Ground
Communication Cable, DB9 Socket Pin Assignments
Function
RxD
TxD
Ground
61-300026-03 Schematic
9-Pin D-sub
Socket
Vision MINI Smart Camera Guide
