Appendix A
Connector Pinouts

Vision MINI Smart Camera Connectors

USB and I/O Cable

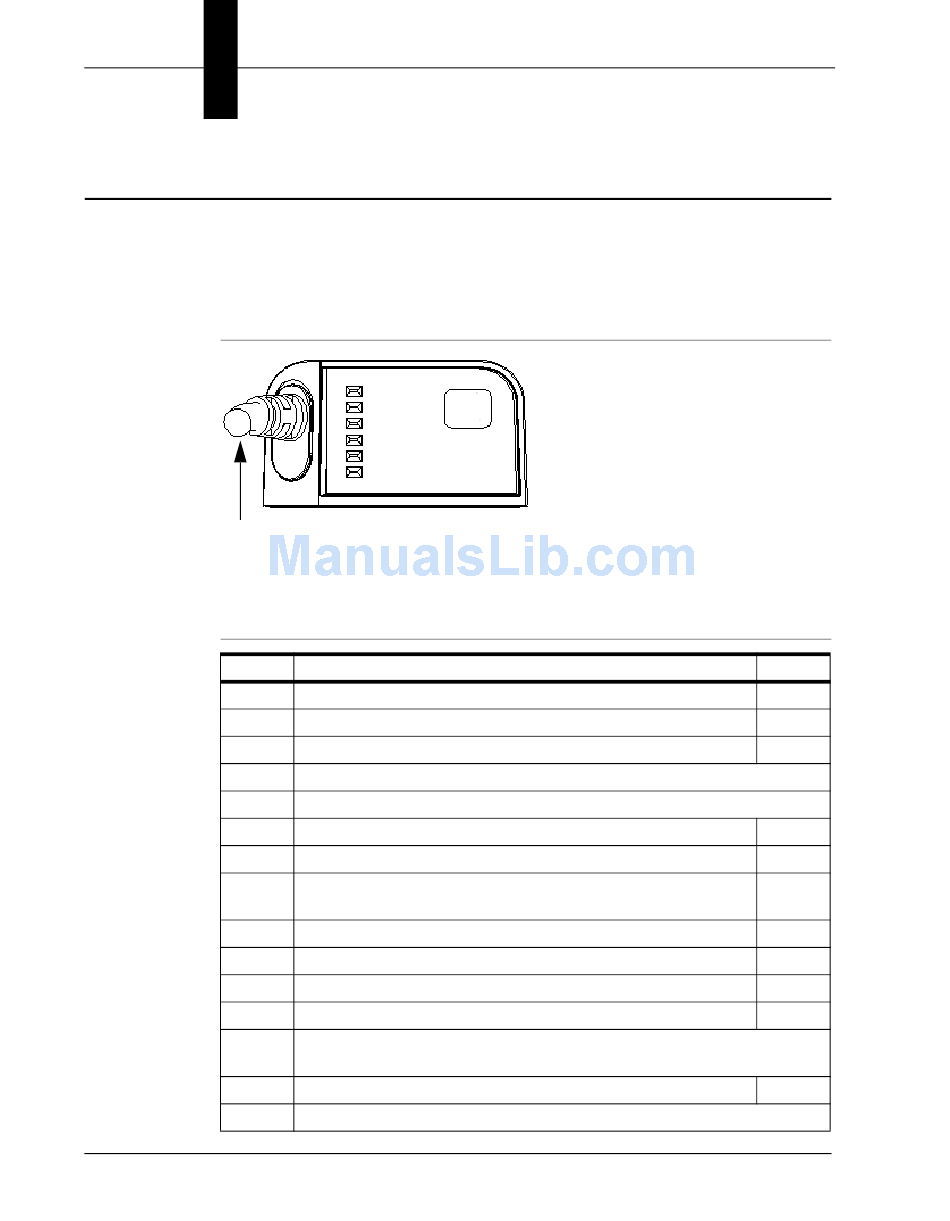

Figure A–1 shows the location of the USB and I/O cable.
FIGURE A–1.
USB / I/O Cable (attached)
TABLE A–1. and TABLE A-2. describe the USB and I/O cable signals.
TABLE A–1.
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
A-2
USB and I/O Cable
USB and I/O Cable Pin Assignments (15-pin D-sub Socket)
Host RS-232
Power +5VDC
TxD
RxD
Power/Signal Ground
NC
NC
Output 1 TTL (Can sink 10mA and souce 10mA)
Default configuration (activated by connecting pin 8 to ground
pin 4)
Trigger
NC
Output 3 TTL (Can sink 10mA and souce 10mA)
Input 1 (NPN)
Chassis ground (Connects chassis body to earth ground only. Do not
use as power or signal return.)
Output 2 TTL (Can sink 10mA and souce 10mA)
NC
Vision MINI Smart Camera Guide
In/Out
In
Out
In
Out
Out
In
In
In
Out
In
Out
