Wiring Diagrams

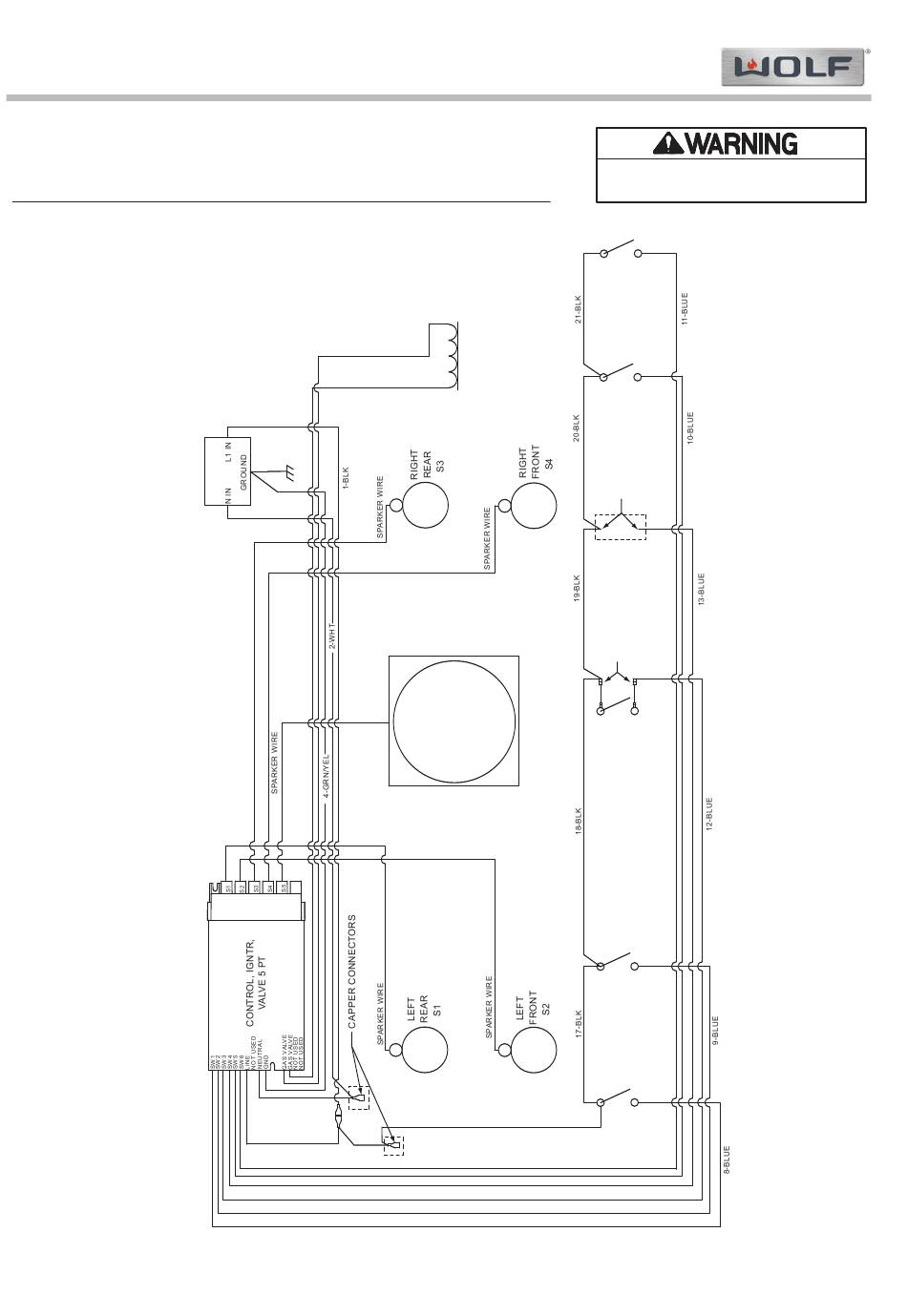

WIRING SCHEMATIC Model: ICBSRT484F
230 V
50 CYCLES
#820376 - Revision A - October, 2011
ICB Sealed Burner Rangetop (ICBSRT) Series
ICB Sealed Burner Rangetop (ICBSRT) Series
7-ORN
6-ORN
3-GRN/YEL
FRENCHTOP
5-WHT
14-BLK
15-BLK
RIGHT FRONT
10 VDC
SOLENOID
RIGHT REAR
CONNECTORS
JUMPER
FRENCHTOP
S5
LEFT FRONT
16-BLK
7-8
- This wiring information is provided for use by qualified service personnel only.
- Disconnect appliance from electrical supply before beginning service.
- Be sure all grounding devices are connected when service is complete.
- Failure to observe the above warnings may result in severe electrical shock.
SWITCH
SW4
SWITCH
SW3
CAPPER
SWITCH
SW5
SWITCH
SW2
LEFT REAR
SWITCH
SW1
