Wolf ICBSRT304 Installation Instructions Manual page 18

Wiring Diagrams

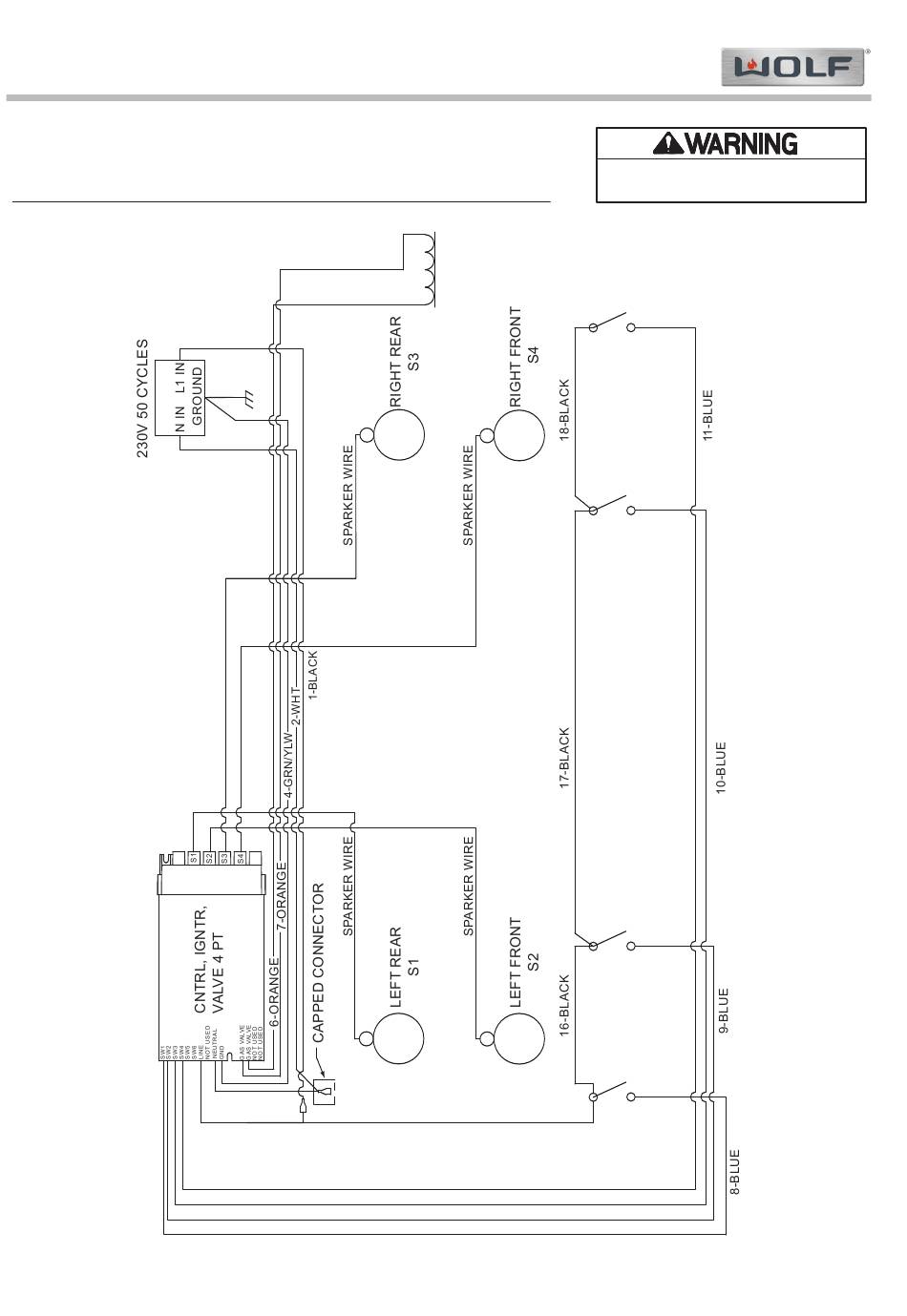

WIRING SCHEMATIC Model: ICBSRT304
#820376 - Revision A - October, 2011
ICB Sealed Burner Rangetop (ICBSRT) Series
ICB Sealed Burner Rangetop (ICBSRT) Series
3-GRN/YLW
5-WHITE
14-BLACK
10 VDC SOLENOID
15-BLACK
7-2
- This wiring information is provided for use by qualified service personnel only.
- Disconnect appliance from electrical supply before beginning service.
- Be sure all grounding devices are connected when service is complete.
- Failure to observe the above warnings may result in severe electrical shock.
RIGHT FRONT
SWITCH SW4
RIGHT REAR
SWITCH SW3
LEFT FRONT
SWITCH SW2
LEFT REAR
SWITCH SW1
