Wolf ICBSRT304 Installation Instructions Manual page 19

ICB Sealed Burner Rangetop (ICBSRT) Series
ICB Sealed Burner Rangetop (ICBSRT) Series

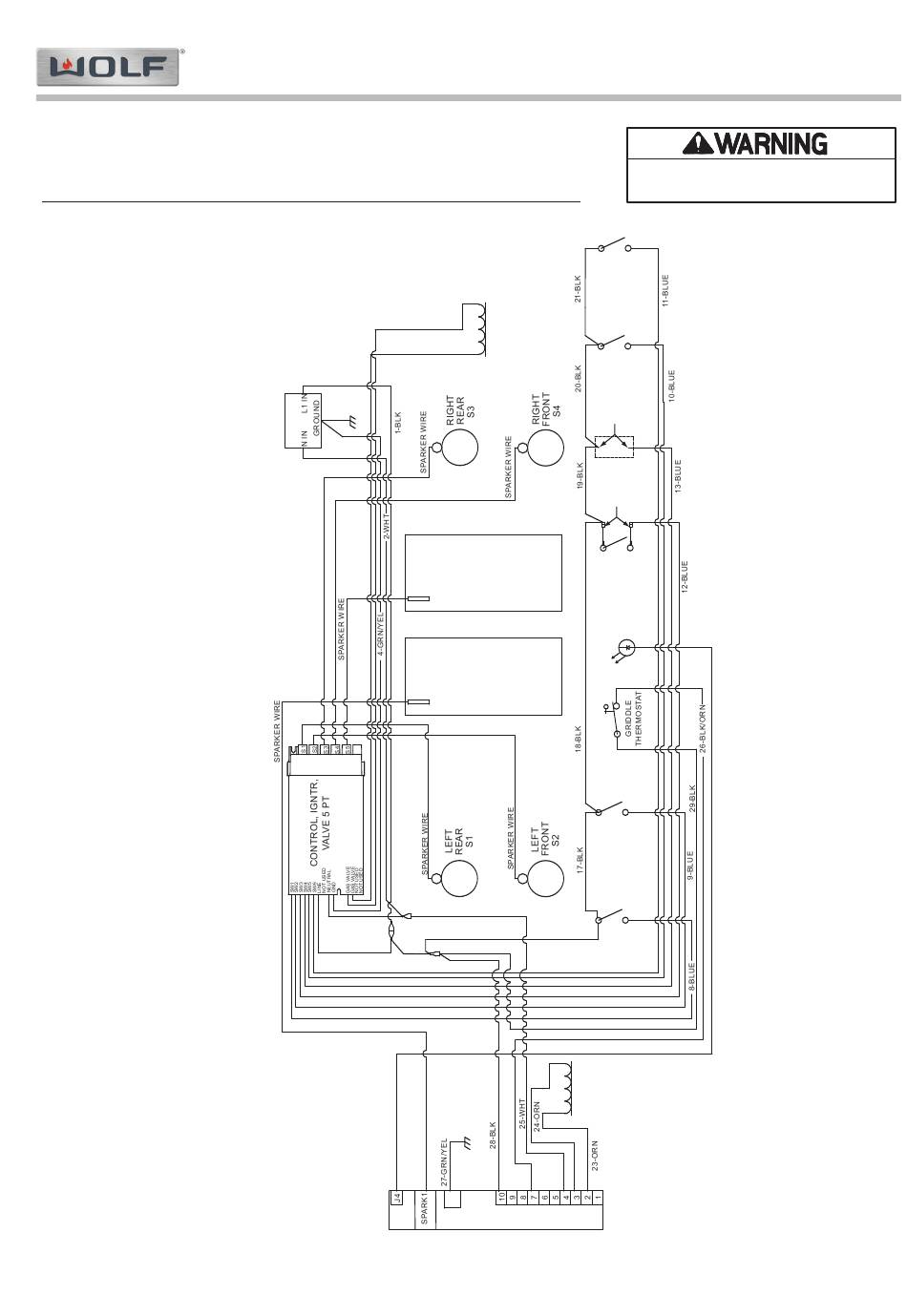

WIRING SCHEMATIC Model: ICBSRT484CG
3-GRN/YEL
230 V
50 CYCLES
5-WHT
14-BLK
10 VDC
7-ORN
SOLENOID
6-ORN
CHARBROILER
S5
GRIDDLE
DIRECT
SPARK IGNITOR
MODULE
16-BLK
15-BLK
GND
7-7
Wiring Diagrams
- This wiring information is provided for use by qualified service personnel only.
- Disconnect appliance from electrical supply before beginning service.
- Be sure all grounding devices are connected when service is complete.
- Failure to observe the above warnings may result in severe electrical shock.
RIGHT FRONT
SWITCH
SW4
RIGHT REAR
SWITCH
SW3
CAPPER
CONNECTORS
JUMPER
CHARBRLR
SWITCH
SW5
2 VDC
INDICATOR
LED
LEFT FRONT
SWITCH
SW2
LFT REAR
SWITCH
SW1
10 VDC
SOLENOID
DIRECT SPARK
IGNITOR MODULE
#820376 - Revision A - October, 2011
