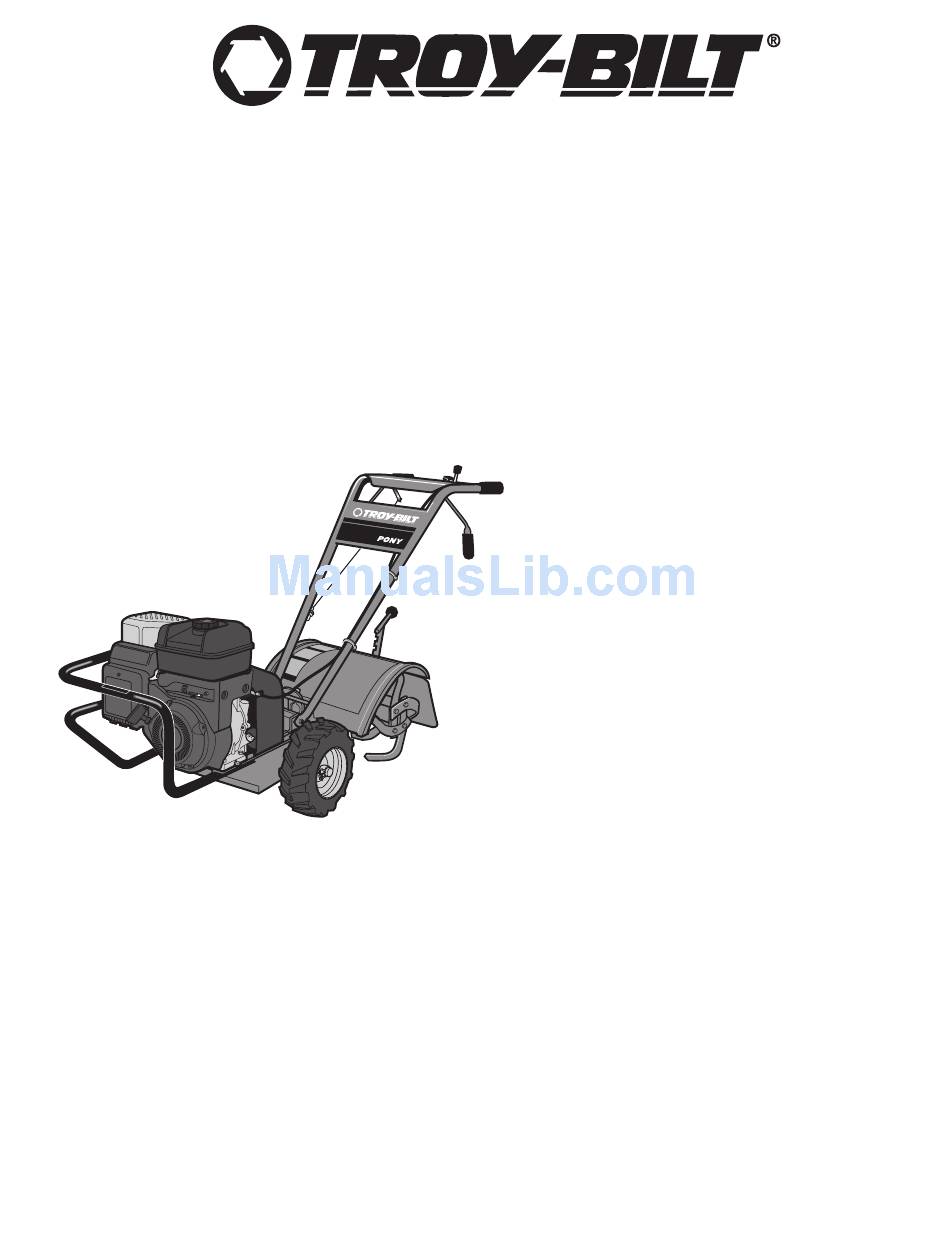

Engine styles vary by model
IMPORTANT:READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-
covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law
(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester
for the muffler is available by contacting the service department at Troy-B­ilt LLC, P.O. B­ox 361131 Cleveland, Ohio 44136-0019.
TROY-BILT LLC, P.O. BOX 361131, CLEVELAND, OH 44136-0019
PRINTE­D IN USA
Operator's Manual
Rear-tine Tiller Model
663B­ —Pony
663E­ —Pony
665B­ —ProLine
E­663E­ —Pony
FROM NO. 770-10597E­
®
®
®
®
E­S
10/20/2006

Advertisement

loading

Summary of Contents for Troy-Bilt 663B

  • Page 1 (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available by contacting the service department at Troy-B­ilt LLC, P.O. B­ox 361131 Cleveland, Ohio 44136-0019. TROY-BILT LLC, P.O. BOX 361131, CLEVELAND, OH 44136-0019 PRINTE­D IN USA FROM NO.
  • Page 2 Parts List Models 663B, 663E, 665B & E663E HANDLEBAR ASSEmBLy and CoNTRoL LEvERS...
  • Page 3: Parts List

    Parts List Models 663B, 663E, 665B & E663E HANDLEBAR ASSEmBLy and CoNTRoL LEvERS REF. pART REF. pART DESCRIpTIoN QTy. DESCRIpTIoN QTy. 1918801 Handlebars .......... GW-9057 Knob, Wheel Gear Control Lever ..= Grip 1186211 Hex Nut, 5/16-24 ......... 777I22624 De cal, Control Panel ......
  • Page 4 Parts List Models 663B, 663E, 665B & E663E ENGINE, SUppoRT BRACkETS, pULLEyS, BELTS, BELT CovER Reverse Clutch Cable 8,43 11,32 20,45 (Screw, Ref. 47, secures Forward Clutch Cable – page 28, Ref. 10)
  • Page 5 Parts List Models 663B, 663E, 665B & E663E ENGINE, SUppoRT BRACkETS, pULLEyS, BELTS, BELT CovER REF. pART REF. pART DESCRIpTIoN QTy. DESCRIpTIoN QTy. 710-0539 Screw, 3/8-24 x 1.75 (A) ....710-04459 Self-tapping Screw, #10-32 x 1/2, ..710-04458 Screw, 5/16-24 x 1.125 (B) ....
  • Page 6 Parts List Models 663B, 663E, 665B & E663E TRANSmISSIoN HoUSING, CovERS, SEALS, GASkETS, pLUGS NOTE 1: These screws are a special sealing screw that cannot be reused without risking the loss of transmission oil. If these screws are loosened or removed, they must be replaced with new screws.
  • Page 7 Parts List Models 663B, 663E, 665B & E663E DRIvE SHAFT, INpUT pINIoN SHAFT and GEAR ASSEmBLIES REF. pART REF. pART DESCRIpTIoN QTy. DESCRIpTIoN QTy. mAIN DRIvE SHAFT INpUT pINIoN SHAFT & GEAR ASSEmBLy GW-1714 Bearing, Tapered Roller with Race ..
  • Page 8 Parts List Models 663B, 663E, 665B & E663E WHEEL SHAFT, ECCENTRIC SHAFT and TILLER SHAFT ASSEmBLIES REF. pART REF. pART DESCRIpTIoN QTy. DESCRIpTIoN QTy. 721-04031 Oil Seal ..........GW-20712 Wheel Drive Clutch (cast-iron) ..1909950 Retaining Ring (heavy-duty, external) 611-04002 Eccentric Shaft ........
  • Page 9 Parts List Models 663B, 663E, 665B & E663E BoLo TINES, WHEELS Hold With Blunt End Facing You NOTE 1: Custom Tilling Tines are available for your tiller. These are special hard-faced tines that are thicker than standard tines. Left-Hand Tine...
  • Page 10 Parts List Models 663B, 663E, 665B & E663E BUmpER ATTACHmENT pART DESCRIpTIoN QTy. 749-04193 Bumper ..........712-04063 Lock Nut–Hex, Nylon, 5/16-18* ..710-0395 Screw–hex hd., 5/16-18 x 2-1/4 ..736-0119 Lockwasher–5/16 ......712-04063 Lock Nut–Hex, Nylon, 5/16-18* ..
  • Page 11 Parts List Models 663B, 663E, 665B & E663E HooD, BRACkET and DEpTH REGULAToR Transmission 618-04359 REF. pART REF. pART DESCRIpTIoN QTy. DESCRIpTIoN QTy. 686-04078 Tine Hood ..........GW-9120 Retaining Ring (tolerance ring) ... 710-0169 Lockwasher, 3/8 ........GW-9119 Knob, Depth Regulator (Incl. Ref. 11) .
  • Page 12 Parts List Model E663E...
  • Page 13: Electric Start Assembly

    Parts List Model E663E ELECTRIC START ASSEmBLy REF. pART REF. pART DESCRIpTIoN QTy. DESCRIpTIoN QTy. 1186073 Carriage Screw, 1/4-20 x 1.25 ... 686-04024 Battery Bracket Assembly, Pony ..1186211 Hex Nut, 5/16-24 ....... 710-0599 Self-tapping Screw, 1/4-20 x .5 ..1186309 Flange Screw, 1/4-20 x .625 ....
