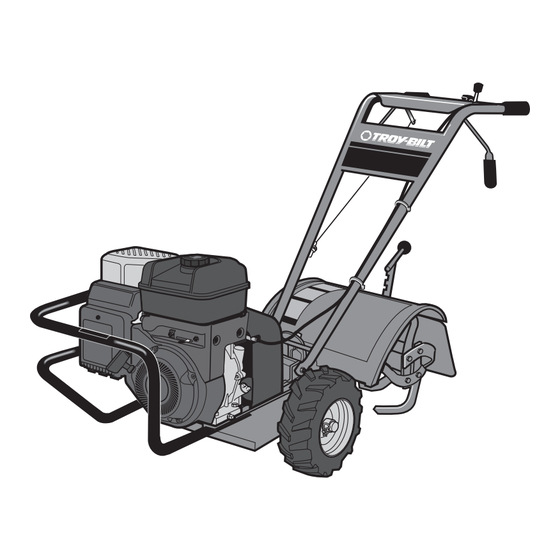

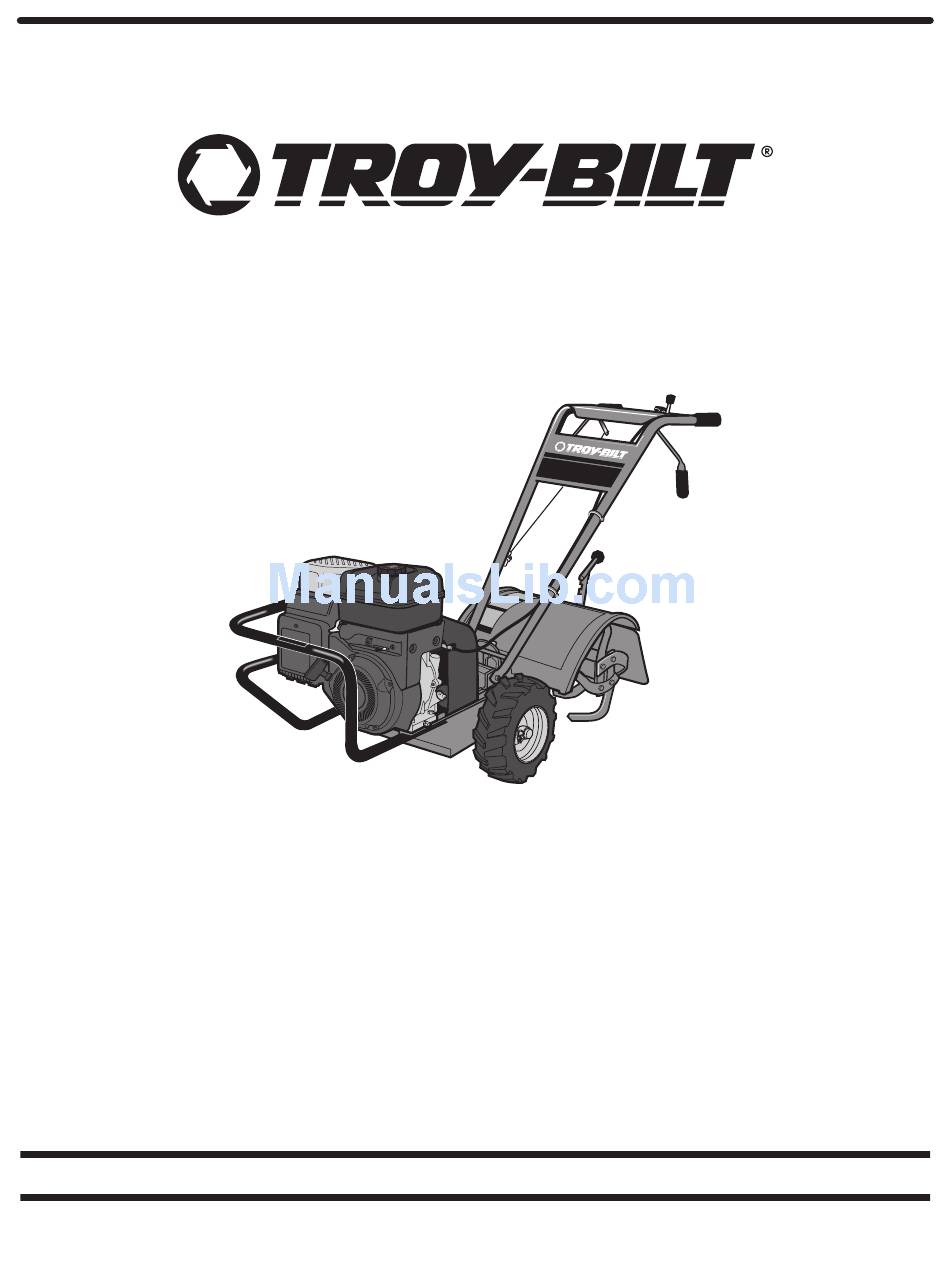

- Page 1 Mid Frame Tiller — 660 Series TROY-BILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 Printed In USA Form No. 769-03825 (January 22, 2008)
- Page 2 660 Series Handle & Tine Shield Transmission 20 24 Transmission Top Cover...
- Page 3 Depth Regulator Knob 710-3005 Hex Head Screw, 3⁄8-16 x 1-1⁄4 GW-1113-1 Drag Bar Bushing 712-04065 Hex Nut, 3⁄8-16 GW-20775 Drag Bar 710-0759 Self-tapping Screw, 5⁄16-18 x 5⁄8 710-0599 Self-tapping Screw , 1⁄4-20 x 1⁄2 660 Series Handle & Tine Shield...
- Page 4 640 & 650 Series Drive System 20 38 36 32 21 51...
- Page 5 710-04043 Hex Flange Screw, 5⁄16-18 x 3⁄4 786-04066 Engine Support Bracket (left side) A — Model 662 B — Model 663 C — Model 665 660 Series Drive System Ref. Part Number Description 786-04067 Engine Support Bracket (right side) 714-04042 Key, 3⁄16 x 1.50...
- Page 6 660 Series Transmission Assembly 11 18...
- Page 7 * — The flat washers listed are used as required to obtain .005 to .030 in allowable end play on the wheel shaft and tine shaft and a .005 to .015 in end play on the drive shaft. 660 Series Transmission Assembly Ref. Part Number...
- Page 8 660 Series Electric Start (Pony ES Only) ( - ) ( + )
- Page 9 660 Series Electric Start (Pony ES Only) Ref. Part Number Description 1186073 Carriage Screw 1⁄4-20 x 1.25 1186211 Hex Nut 5⁄16-24 1186309 Flange Screw 1⁄4-20 x .625 1186389 Hex Locknut 1⁄4-20 1901202 Cable (Ground Wire) 725-04346 Wire Harness Assembly With connector to large solenoid —...
- Page 10 Notes...
- Page 11 otes...
- Page 12 To order replacement parts or locate your nearest service dealer call Customer Support at (800) 828-5500. or visit www.troybilt.com to find the nearest authorized dealer in your area. TROY-BILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019...
