Ozito RSH-100 Instruction Manual

Ozito RSH-100 Instruction Manual

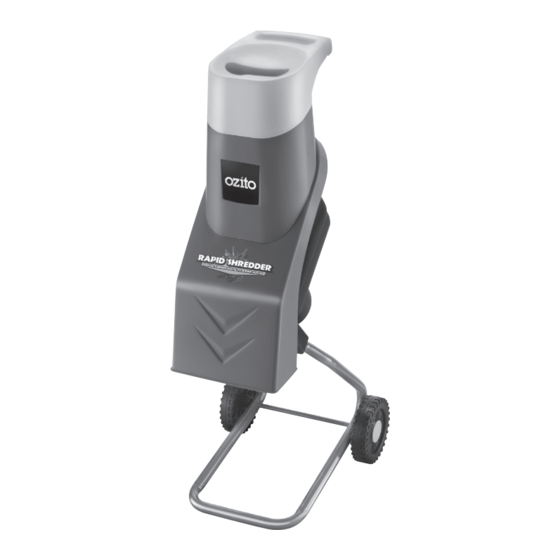

Rapid shredder 2400w
Hide thumbs Also See for RSH-100:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
Rapid Shredder
2400W
Instruction Manual
2 Year Replacement Warranty
RSH-100
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
313
www.ozito.com.au
To view the full range visit:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSH-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Ozito RSH-100

Summary of Contents for Ozito RSH-100

  • Page 1 2400W Instruction Manual 2 Year Replacement Warranty RSH-100 WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 2: Specifications

    SPECIFICATIONS - MODEL NO. RSH-100 2400W (S1 2000W / S6 (40%) 2400W) Motor: Duty type S1: continuous running duty S6: continuous-operation / periodic duty (4 min. Full load, 6 min. No load) 230-240V ~ 50Hz Input: No load speed: 3910/min...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS………………………………………… Page 1 KNOW YOUR PRODUCT……………………………….. Page 1 INTRODUCTION…………………………………………. Page 3 ELECTRICAL SAFETY……………………………………. Page 3 GENERAL SAFETY INSTRUCTIONS…………………… Page 4 ADDITIONAL SAFETY INSTRUCTIONS FOR SHREDDERS ………………………………………. Page 6 ASSEMBLY………………………………………………… Page 7 OPERATION……………………………………………… Page 9 MAINTENANCE…………………………………………. Page 13 TROUBLESHOOTING…………………………………...

  • Page 4: Introduction

    The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

  • Page 5: General Safety Instructions

    GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 6 GENERAL POWER TOOL SAFETY WARNINGS (cont.) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

  • Page 7: Additional Safety Instructions For Shredders

    ADDITIONAL SAFETY INSTRUCTIONS FOR SHREDDERS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 8: Assembly

    ASSEMBLY WARNING!The shredder may require a two person lift. Keep your feet apart so that you have a stable position, bend at the knees and keep your back straight. After removing the shredder from the carton check that the shredder has not been damaged.
  • Page 9 ASSEMBLY (cont.) 5. Place the bush bearing (15) onto the wheel axle (17) (Fig. 5). Fig. 5 6. Insert the wheel (7) over the bush bearing (15) ensuring that the larger inner diameter of the wheel is facing outwards. This allows the wheel cap (8) to be fitted. Fig.

  • Page 10: Operation

    OPERATION Starting the Shredder WARNING! Prior to starting the motor ensure the shredder is empty. Ensure you wear safety gloves, safety glasses and earmuffs when the shredder is in use. 1. Connect the power cord (6) to an appropriate extension cord and plug the extension cord into the mains power point (Fig.
  • Page 11 OPERATION (cont.) Safety Interlock The shredder is fitted with a safety switch on the closure between the shredder housing and motor housing (Fig. 13). This acts as a safety mechanism to prevent the shredder from operating if it is not closed correctly. - If the housing is not closed correctly and secured with the locking knob (3), the safety switch will prevent the shredder Fig.
  • Page 12 OPERATION (cont.) 4. The screws may be tight due to corrosion and dirt buildup. Ensure that the supplied hex key (11) is a good fit into the screw and that the hex key is held firmly and at right angles to the blade plate. Remove the 2 blade securing screws (21) by rotating the hex key (11) in the anti-clockwise direction (Fig.
  • Page 13 OPERATION (cont.) 1. Feed the material to be shredded into the feeding hopper (1) (Fig. 18). Fig. 18 2. The shredder will automatically pull the material through the feeding hopper. The push stick (9) can be used to assist in feeding the garden material (Fig. 19). Note: The shredder may clog if too much fine material is fed in.

  • Page 14: Maintenance

    • Store the shredder upright in a dry place. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool. Cleaning Clean the shredder after each use.
  • Page 15 MAINTENANCE (cont.) 3. Carefully clean out the cutting and discharge area. Ensure that all debris is removed to prevent the blades from clogging. The discharge area should be free of all organic matter (Fig. 22). If the shredder is full of organic matter Fig.

  • Page 16: Troubleshooting

    TROUBLESHOOTING Cause Problem Solutions The motor does not run The shredder may • Turn the shredder off and have been overloaded. allow it to cool down for 1-5 minutes. Press the reset button and turn on the shredder. The closure between •...

  • Page 17: Spare Parts

    SPARE PARTS Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to order the required spare parts. Most common spare parts listed below Spare Part/Accessories Part No. Blades (set of 2) SPRSH100-18A Carbon Brush Pair SPRSH100-42 Carbon Brush Holder SPRSH100-43...

  • Page 18: Contents

    Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Rapid Shredder RSH-100 1 x Wheel axle 2 x Wheels 1 x Leg stand...

  • Page 19: Warranty

    If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
