Summary of Contents for Ozito RSH-100
-
Page 2: Specifications

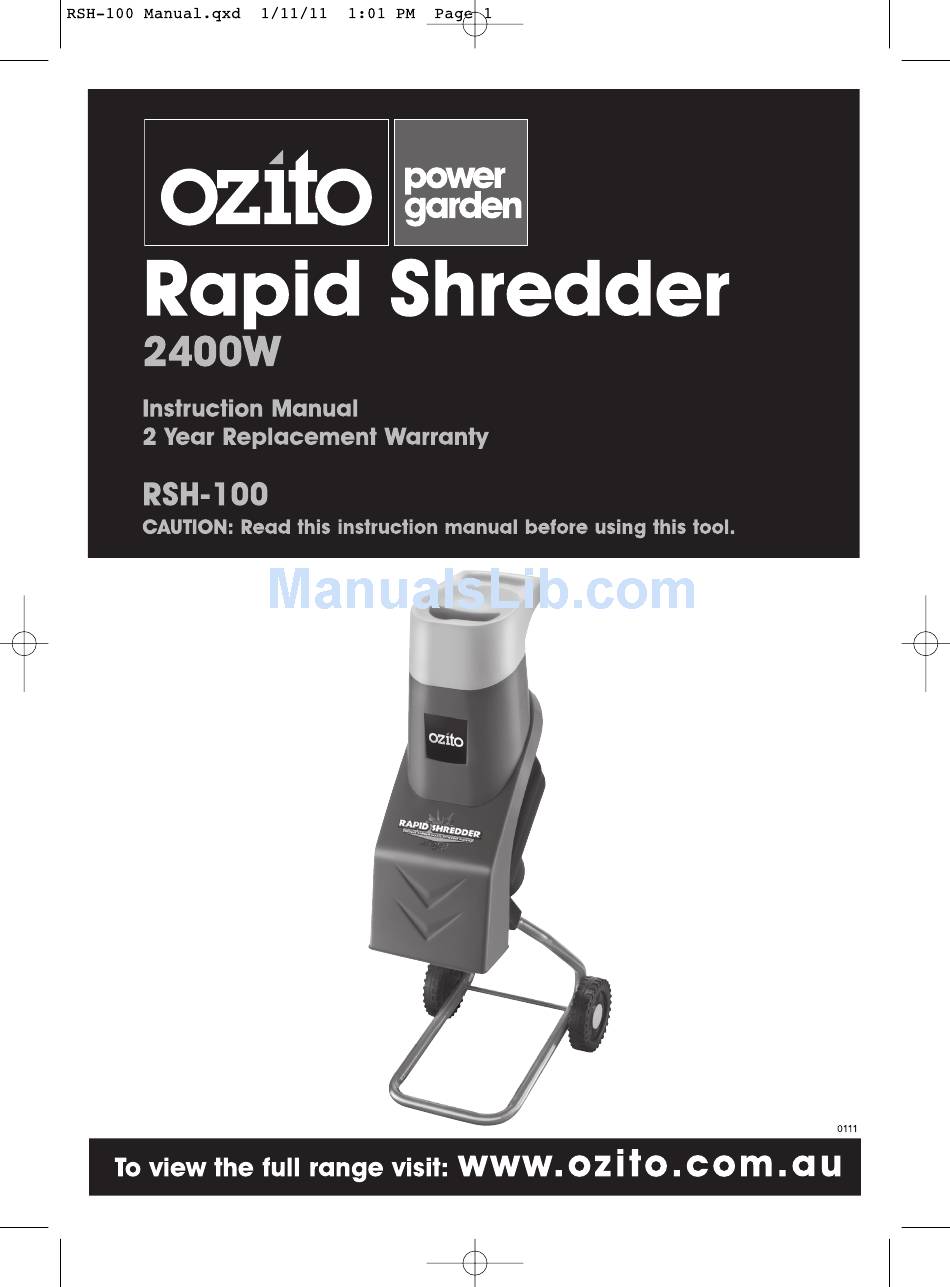

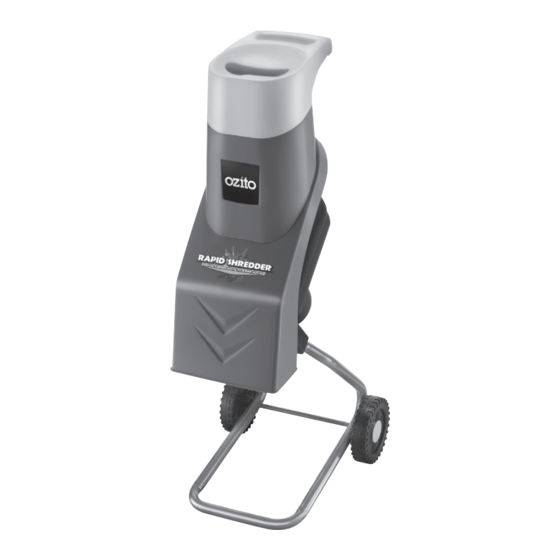

RSH-100 Manual.qxd 1/11/11 1:01 PM Page 2 SPECIFICATIONS - MODEL NO. RSH-100 2400W (S1 2000W / S6 (40%) 2400W) Motor: Duty type S1: continuous running duty S6: continuous-operation / periodic duty (4 min. Full load, 6 min. No load) 230-240V ~ 50Hz... -
Page 3: Table Of Contents
RSH-100 Manual.qxd 1/11/11 1:01 PM Page 3 TABLE OF CONTENTS SPECIFICATIONS………………………………………… Page 1 KNOW YOUR PRODUCT……………………………….. Page 1 INTRODUCTION…………………………………………. Page 3 ELECTRICAL SAFETY……………………………………. Page 3 GENERAL SAFETY INSTRUCTIONS…………………… Page 4 ADDITIONAL SAFETY INSTRUCTIONS FOR SHREDDERS ………………………………………. Page 6 ASSEMBLY………………………………………………… Page 7 OPERATION………………………………………………... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: General Safety Instructions
RSH-100 Manual.qxd 1/11/11 1:01 PM Page 5 GENERAL SAFETY INSTRUCTIONS WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool. - Page 6 RSH-100 Manual.qxd 1/11/11 1:01 PM Page 6 GENERAL SAFETY INSTRUCTIONS (cont.) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
-
Page 7: Additional Safety Instructions For Shredders
RSH-100 Manual.qxd 1/11/11 1:01 PM Page 7 ADDITIONAL SAFETY INSTRUCTIONS FOR SHREDDERS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 8: Assembly
RSH-100 Manual.qxd 1/11/11 1:01 PM Page 8 ASSEMBLY WARNING!The shredder may require a two person lift. Keep your feet apart so that you have a stable position, bend at the knees and keep your back straight. After removing the shredder from the carton check that the shredder has not been damaged. - Page 9 RSH-100 Manual.qxd 1/11/11 1:01 PM Page 9 ASSEMBLY (cont.) 5. Place the bush bearing (15) onto the wheel axle (17) (Fig. 5). Fig. 5 6. Insert the wheel (7) over the bush bearing (15) ensuring that the larger inner diameter of the wheel is facing outwards.
-
Page 10: Operation
RSH-100 Manual.qxd 1/11/11 1:01 PM Page 10 OPERATION Starting the Shredder WARNING! Prior to starting the motor ensure the shredder is empty. Ensure you wear safety gloves, safety glasses and earmuffs when the shredder is in use. 1. Connect the power cord (6) to an appropriate extension cord and plug the extension cord into the mains power point (Fig. - Page 11 RSH-100 Manual.qxd 1/11/11 1:01 PM Page 11 OPERATION (cont.) Safety Interlock The shredder is fitted with a safety switch on the closure between the shredder housing and motor housing (Fig. 13). This acts as a safety mechanism to prevent the shredder from operating if it is not closed correctly.
- Page 12 RSH-100 Manual.qxd 1/11/11 1:01 PM Page 12 OPERATION (cont.) 4. Remove the 2 screws securing the blade using the allen key (11) by rotating in an anticlockwise direction (Fig. 17). 5. Remove the screws and either reverse the blades or insert new blades.
- Page 13 RSH-100 Manual.qxd 1/11/11 1:01 PM Page 13 OPERATION (cont.) 2. The shredder will automatically pull the material through the feeding hopper. The push stick (9) can be used to assist in feeding the garden material (Fig. 19). Fig. 19 Following the below procedures will improve operation and prolong the life of the shredder.
-
Page 14: Maintenance
• Store the shredder upright in a dry place. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool. Cleaning Clean the shredder after each use. - Page 15 RSH-100 Manual.qxd 1/11/11 1:01 PM Page 15 MAINTENANCE (cont.) 3. Carefully clean out the cutting and discharge area. Ensure that all debris is removed to prevent the blades from clogging. The discharge area should be free of all organic matter (Fig. 22). If the shredder is full of organic matter Fig.
-
Page 16: Troubleshooting
RSH-100 Manual.qxd 1/11/11 1:01 PM Page 16 TROUBLESHOOTING Problem Cause Solutions The motor does not run The shredder may • Turn the shredder off and have been overloaded. allow it to cool down for 1-5 minutes. Press the reset button and turn on the shredder. -
Page 17: Spare Parts
RSH-100 Manual.qxd 1/11/11 1:01 PM Page 17 SPARE PARTS Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to order the required spare parts. Most common spare parts listed below Spare Part/Accessories Part No. -
Page 18: Contents
Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Rapid Shredder RSH-100 1 x Wheel axle 2 x Wheels 1 x Leg stand... - Page 19 RSH-100 Manual.qxd 1/11/11 1:01 PM Page 19...
-
Page 20: Warranty
PURCHASED FROM:__________________________________________________ DATE PURCHASED: __________________________________________________ 2 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 24 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
