Ozito RSH-100 Instruction Manual

Ozito RSH-100 Instruction Manual

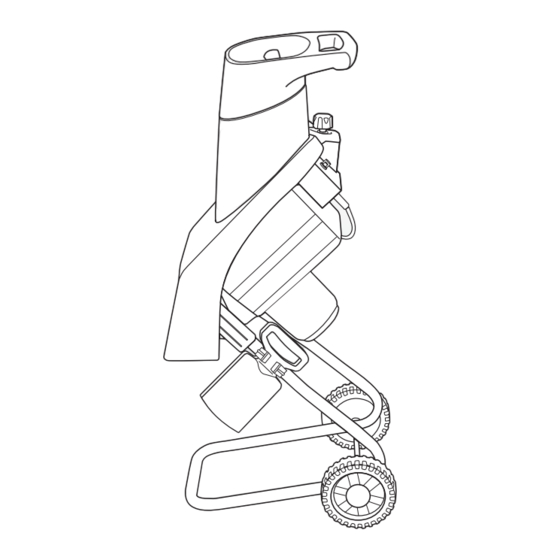

Rapid shredder
Hide thumbs Also See for RSH-100:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
RAPID
SHREDDER
2400W
INSTRUCTION MANUAL
SPECIFICATIONS
Motor Power:
2400W
Input Voltage:
230V – 240V ~ 50Hz
No Load Speed:
3910/min
Max Cutting Ø:
35mm
Noise Level:
108
dB
Blades:
Reversible
Weight:
13 kg
ozito.com.au
WHAT'S IN THE BOX
Stand
Hopper
Wheels
Wheel Axle
Wheel Caps x 2
Push Stick
Holder
Push Stick
Washers (12.5 & 8.2mm) x 2
Bush Bearing x 2
Locking Nuts x 2
Screw & Washers x 2
Spanner/Screwdriver
Hex Key
RSH-100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSH-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ozito RSH-100

Summary of Contents for Ozito RSH-100

  • Page 1 230V – 240V ~ 50Hz No Load Speed: 3910/min Washers (12.5 & 8.2mm) x 2 Max Cutting Ø: 35mm Noise Level: Blades: Reversible Bush Bearing x 2 Locking Nuts x 2 Weight: 13 kg ozito.com.au Screw & Washers x 2 Spanner/Screwdriver Hex Key RSH-100...

  • Page 2: Know Your Product

    KNOW YOUR PRODUCT ASSEMBLY RAPID SHREDDER 1. WHEELS & STAND 1. Hopper 6. Power cord 2. Transport handle 7. Push stick holder 3. Reset button 8. Wheel cap WARNING! THE SHREDDER MAY REQUIRE A TWO 4. Locking knob 9. Wheel PERSON LIFT.

  • Page 3: Operation

    OPERATION 2. STARTING 5. Place the bush bearing onto WARNING! THE POWER SUPPLY FOR THIS the wheel axle. PRODUCT SHOULD BE PROTECTED BY A RESIDUAL CURRENT DEVICE RATED AT 30MA OR LESS. Starting the shredder WARNING! PRIOR TO STARTING THE MOTOR ENSURE THE SHREDDER IS EMPTY.
  • Page 4 3. OPERATING THE SHREDDER Shredding Overload Protection 1. The shredder is equipped with a built in motor protection system that WARNING! THE SHREDDER IS NOT SUITABLE FOR prevents the motor from being overloaded. The motor will switch off MATERIALS INCLUDING GLASS, METAL, PLASTIC automatically in the event of overloading.

  • Page 5: Maintenance

    U recess of the cover plate, allowing you to access both screws. Lock the blade plate in this position by placing the supplied spanner/ screwdriver through the hole in the cover plate and passing through the slot in the blade plate. RSH-100...
  • Page 6 • Store the shredder upright in a dry place. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool.

  • Page 7: Troubleshooting

    Carbon Brush Pair: SPRSH100-42 Carbon Brush Holder: SPRSH100-43 Switch: SPRSH100-54 Plastic Pin Pair: SPRSH100-60 For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service: Australia 1800 069 486 New Zealand 0508 069 486 E-mail: enquires@ozito.com.au...
  • Page 8 Model No. RSH-100 Tool: Rapid Shredder SPARE PARTS Model No. RSH-100 The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No. Description Part No. Locking Knob Assembly...

  • Page 9: Electrical Safety

    ELECTRICAL SAFETY WARNING! When using mains-powered tools, basic safety precautions, including The power supply for this product should be protected by a residual current device (rated at the following, should always be followed to reduce risk of fire, electric shock, 30mA or less).

  • Page 10: Warranty

    • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. • Professional, industrial or high frequency use. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0914...
