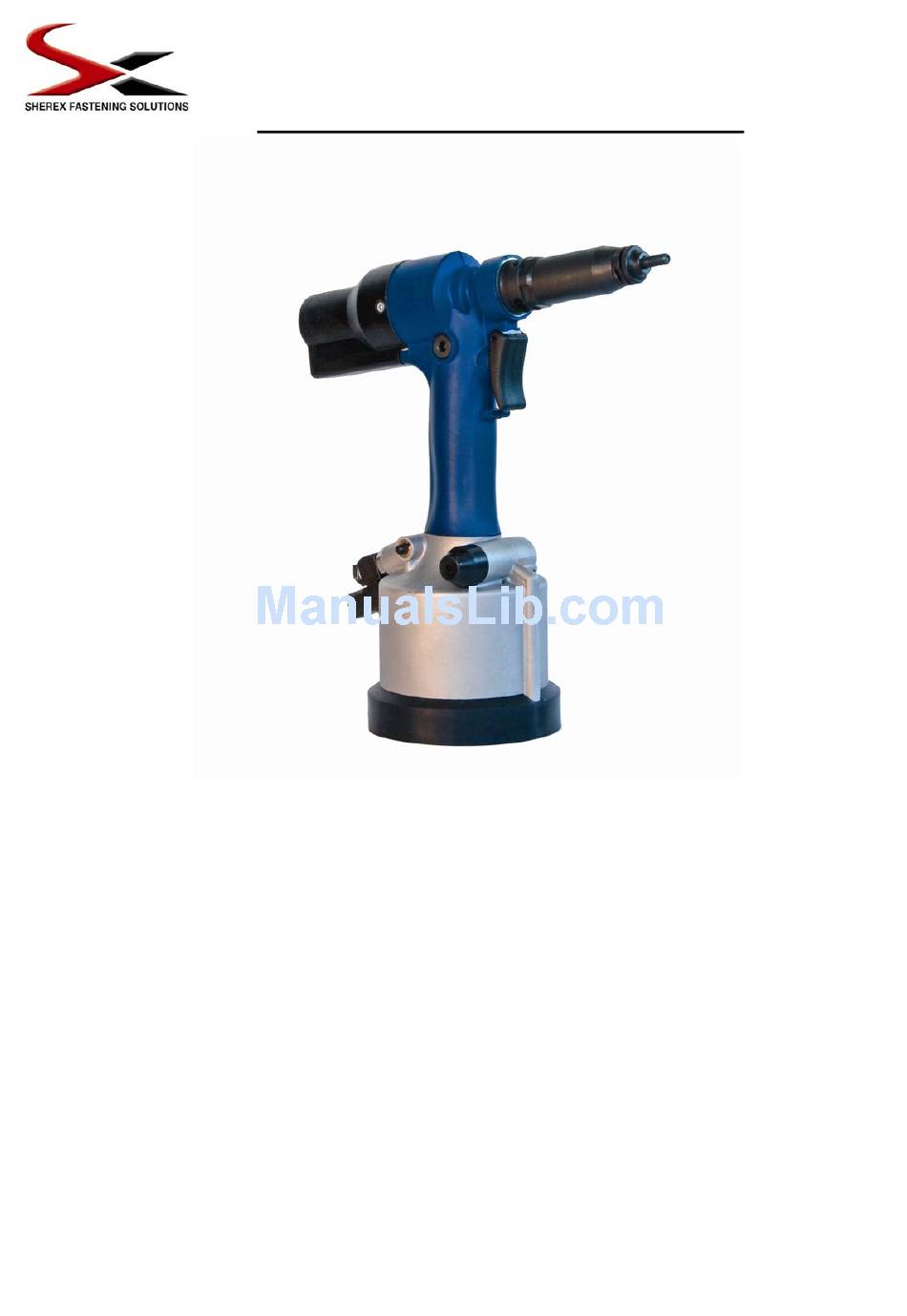

Quick Start Manual
FLEX‐5S
Threaded Insert Power Tool
Pull to Stroke Set Up
Part of the FLEX family of modular‐based tooling.
FLEX tooling has the capability to be upgraded from the original base tool.
Upgrades include process‐monitoring, conversion to in‐line tool,
conversion to a split tool with a remote booster,
and conversion to a pull to pressure tool.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sherex FLEX?5S
Summary of Contents for Sherex FLEX?5S
- Page 1 Quick Start Manual FLEX‐5S Threaded Insert Power Tool Pull to Stroke Set Up Part of the FLEX family of modular‐based tooling. FLEX tooling has the capability to be upgraded from the original base tool. Upgrades include process‐monitoring, conversion to in‐line tool, conversion to a split tool with a remote booster, and conversion to a pull to pressure tool. ...
-
Page 2: Table Of Contents
SHEREX SHOWCASE..............................10 Sherex Warranty Sherex Fastening Solutions FLEX-5S carries a 6 month warranty against defects that are caused by faulty materials or workmanship. Sherex warranty period commences from the date of delivery which is confirmed either by the invoice or delivery note. The warranty becomes invalidated if the installation tool is misused or not serviced, maintained, and operated according to the instructions in the Quick Start and Repair Manuals. -
Page 3: Safety
DO NOT USE THIS TOOL FOR ANY PURPOSE OTHER THAN THOSE SPECIFIED. DO NOT USE ANY EQUIPMENT ALONG WITH THE TOOL THAT HAS NOT BEEN RECOMMENDED OR PROVIDED BY SHEREX FASTENING SOLUTIONS. ▪ Failure to do so could result in voided warranty and/or personal injury... -
Page 4: Tool Overview
OOL OVERVIEW The FLEX-5S tool is designed for installing Sherex threaded insert/rivet nuts. The tool utilizes a pull to stroke installation method. The advantage with this method is that the pulling distance of the tool can be set to a specified distance ensuring the rivet nut insert is pulled to the same position (distance) with each actuation of the tool (contact Sherex for the conversion instructions for changing this tool to a pull to pressure installation method). -
Page 5: Tool Specifications
PLACING FEATURES M3 – M10 # 6-32 – 3/8-24 Contact Sherex should you require a pull to stroke setup for this tool (FLEX 5P) F L E X T O O L D I M E N S I O N S 10.24 ... -
Page 6: Air Service
2 against nose casing. Nose assemblies should be serviced weekly. Any damaged or worn out parts should be replaced. Check for mandrel wear and replace when necessary. Sherex recommends using high quality socket head cap screws such as Unbrako® and Holo-Krome®. -
Page 7: Nose Assembly Components
FL5-HS-2520S FL5-HS-S0848 FL5-HS-S2520 FL5-HS-01010 XXXX ¼-28 UNF Stud FL5-HS-2528S FL5-HS-S0848 FL5-HS-S2528 FL5-HS-01010 XXXX 5/16-18 UNC Stud FL5-HS-3118S FL5-HS-S0840 FL5-HS-S3118 FL5-HS-01010 XXXX FL5-HS-S0840 5/16-24 UNF Stud FL5-HS-3124S FL5-HS-S3124 FL5-HS-01010 XXXX www.sherex.com 866-4SHEREX 400 Riverwalk Pkwy, Suite 600 ~ Tonawanda, NY, 14150... -
Page 8: Pull Force Regulation
Stroke Adjustment (3) and style of rivet nut insert you are using for your application material thickness. Contact Sherex should you require assistance determining the appropriate stroke. Warning** A stroke setting that is too large for the application may cause an over installed installation condition which may damage the mandrel, the base material, and/or the rivet nut insert. -
Page 9: Maintenance
® assembly. Only a trained technician should service the Flex 5S tool. Should the Flex 5S tool require repair, the tool can be sent to the Sherex authorized repair center: Alcorn Industrial, Inc 5412 Rock Hampton Court Indianapolis, IN 46268 sales@alcornindustrial.com... -
Page 10: Troubleshooting
Insufficient distance between Set distance between 1.5 and 2 mm locknut and spindle ⇒ Air motor jammed ⇒ Lubricate through air inlet or if required contact Sherex authorized repair center www.sherex.com 866-4SHEREX 400 Riverwalk Pkwy, Suite 600 ~ Tonawanda, NY, 14150... -
Page 11: Sherex Showcase
Internally Floating Threads CLINCH NUTS Sherex offers three different kinds of clinch nuts to meet the specific requirements of the customer’s application. Sherex clinch nuts can be used in various high strength steels such as dual phase alloy, HSLA, and TRIPS to meet class 10 nut strength requirements. - Page 12 No. 201, Sandong Road, Chungli City Tao-Tuan Hsien, Taiwan, R.O.C. Phone: 011-886 3 4988689 Fax: 011-886 3 4989395 Email: sales@sherex.com.tw www.sherex.com.tw SHEREX MEXICO S. de R. L. de C.V. Av. Constituyentes 47, Desp 104 Col. El Pocito Corregidora, Queretaro C.P. 76910 Mexico Phone: 52 (442) 196-8075 Email: ventasmexico@sherex.com...
