Summary of Contents for Sherex FLEX-18

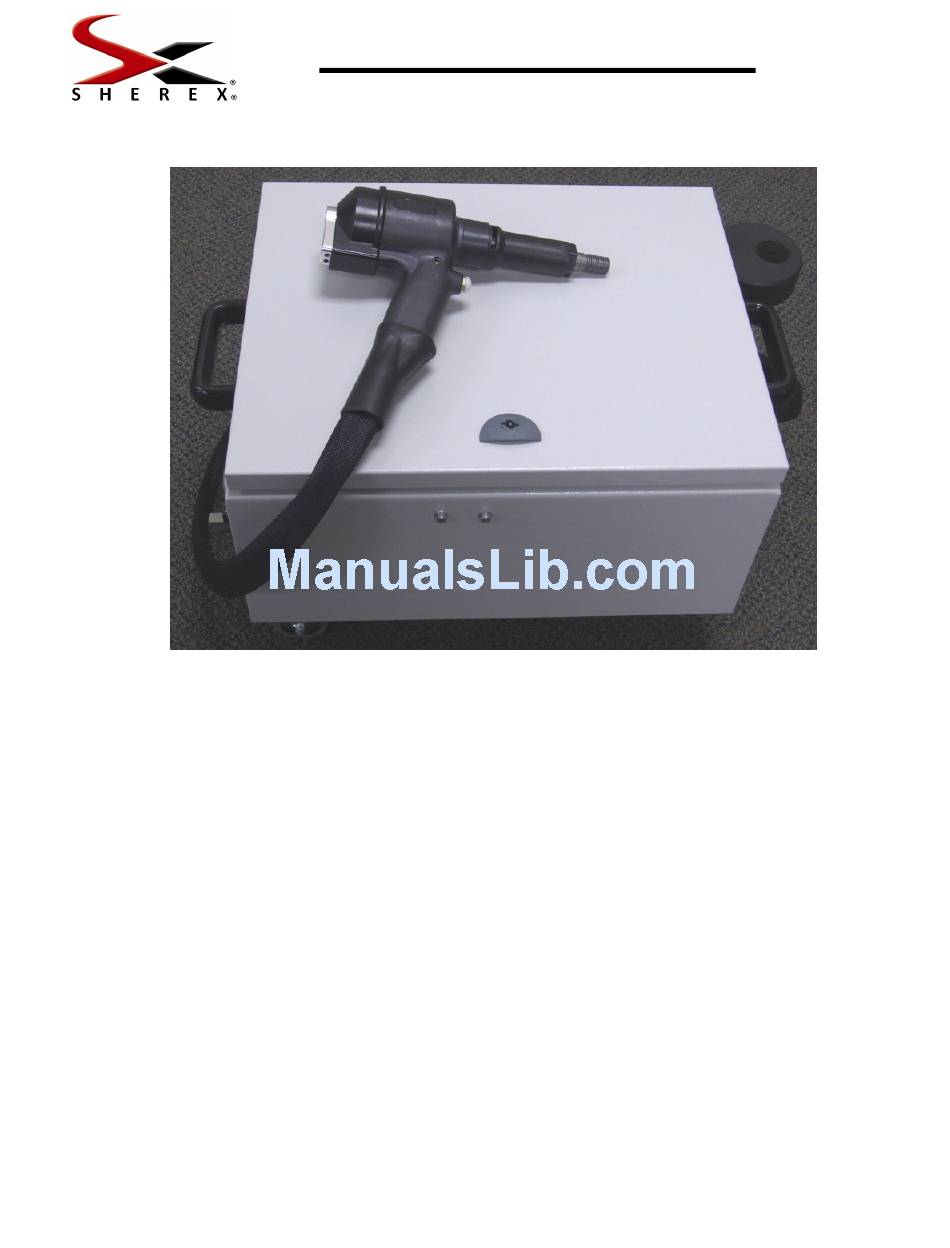

- Page 1 Quick Start Manual FLEX‐18 Threaded Insert Power Tool Part of the FLEX family of modular‐based tooling. FLEX tooling has the capability to be upgraded from the original base tool. Upgrades include process‐monitoring. ...
-
Page 2: Table Of Contents
SHEREX PRODUCT LINE SHOWCASE........................14 Sherex Warranty Sherex Fastening Solutions FLEX-18 carries a 6 month warranty against defects that are caused by faulty materials or workmanship. Sherex warranty period commences from the date of delivery which is confirmed either by the invoice or delivery note. The warranty becomes invalidated if the installation tool is misused or not serviced, maintained, and operated according to the instructions in the Quick Start and Repair Manuals. -
Page 3: Safety
ALWAYS DISCONNECT THE AIR SUPPLY BEFORE SET UP, ADJUSTMENT, OR REMOVAL OF THE NOSE ASSEMBLY. AIR INLET SHALL NOT EXCEED 7 BAR (102 PSI). DO NOT USE THE TOOL WITHOUT OIL PLUG IN PLACE. SHEREX® ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150 ~ 866-4SHEREX ~ www.sherex.com... -
Page 4: Tool Overview
OOL OVERVIEW The FLEX-18 tool is designed for installing Sherex threaded insert/rivet nuts. The tool has the ability to utilize a pull to pressure or pull to stroke installation method depending on the application. The advantage with the pull to pressure method is that the same insert can be installed into different material thicknesses (within the part grip range) without any adjustments to the tool once the proper pulling pressure (force) has been set. -
Page 5: Tool Specifications
Extended Hose Length - 22 Feet (670.56 cm) 13.50 34.3 19.75 15.75 50.2 40.0 Dimensions shown in bold are in inches. The other dimensions are in centimeters. SHEREX® ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150 ~ 866-4SHEREX ~ www.sherex.com... -
Page 6: Air Service
Head Sets should be serviced weekly. Any damaged or worn out parts should be replaced. Check for mandrel wear and replace when necessary. Sherex recommends using high quality socket head cap screws such as Unbrako® and Holo-Krome®. SHEREX® ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150 ~ 866-4SHEREX ~ www.sherex.com... -
Page 7: Large Thread Head Set Assembly
Nose assemblies should be serviced weekly. Any damaged or worn out parts should be replaced. Check for mandrel wear and replace when necessary. Sherex recommends using high quality socket head cap screws such as Unbrako® and Holo-Krome®. SHEREX® ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150 ~ 866-4SHEREX ~ www.sherex.com... -
Page 8: Head Set Components
THREAD SIZE COMPLETE HEAD SET ANVIL MANDREL FL18-HS-M16 FL18-HS-00916 M-M16-FL18 5/8-11 FL18-HS-6211 FL18-HS-00962 M-6211-FL18 ¾-10 UNC FL18-HS-7510 FL18-HS-00975 M-7510-FL18 Contact Sherex for FLEX-18 Repair Part Numbers SHEREX® ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150 ~ 866-4SHEREX ~ www.sherex.com... -
Page 9: Tool Setup
At this point you must determine the proper installation method for installing the rivet nuts. Feel free to call Sherex to discuss your application and proper installation method, but included below is a brief outline of considerations for tool set up. -
Page 10: Force Adjustment
Manual Reverse Button Should the mandrel bind in the application (manual reverse button will not work), use the included tool to reverse the mandrel from the insert. SHEREX® ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150 ~ 866-4SHEREX ~ www.sherex.com... -
Page 11: Stroke Adjustment
Should the mandrel bind in the application (manual reverse button will not work), use the included tool to reverse the mandrel from the insert. Manual Reverse Button SHEREX® ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150 ~ 866-4SHEREX ~ www.sherex.com... -
Page 12: Operation
If this occurs, press the red button on the top of the booster box for manual reverse. IMPORTANT Do not push the mandrel without a rivet nut as this will cause the mandrel to spin automatically. Ensure pressure settings are correct. SHEREX® ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150 ~ 866-4SHEREX ~ www.sherex.com... -
Page 13: Maintenance
O rings should be replaced and lubricated with Molykote 55M grease before ® assembly. Only a trained technician should service the Flex-18 tool. Should the Flex-18 tool require repair please contact Sherex. SHEREX® ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150 ~ 866-4SHEREX ~ www.sherex.com... -
Page 14: Troubleshooting
Auto reverse stops Oil level Check oil level and if low add more oil to working but the the tool manual reverse does work SHEREX® ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150 ~ 866-4SHEREX ~ www.sherex.com... -
Page 15: Sherex Product Line Showcase
Whether you are using 10,000 pieces or 10 million pieces, Sherex offers different levels of automation and fastener capability to meet both your budget and performance requirements. SHEREX® ~ 400 Riverwalk Pkwy, Suite 600 Tonawanda, NY, 14150 ~ 866-4SHEREX ~ www.sherex.com... - Page 16 No. 201, Sandong Road, Chungli City Tao-Tuan Hsien, Taiwan, R.O.C. Phone: 011-886 3 4988689 Fax: 011-886 3 4989395 Email: sales@sherex.com.tw www.sherex.com.tw SHEREX MEXICO S. de R. L. de C.V. Riego 6 Col. Los Arquitos Queretaro, Queretaro C.P. 76090 Mexico Phone: 52 (442) 196-8075 Email: ventasmexico@sherex.com...
