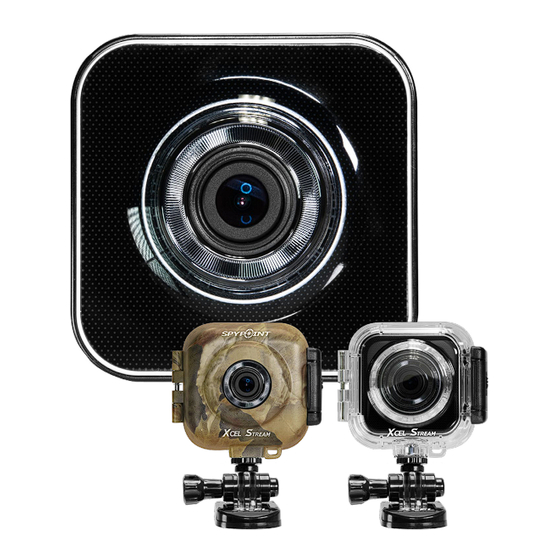

USER MANUAL
ACTION CAMERA
Model:
XCEL STREAM
v1.3
support.spypoint.com
1-888-779-7646
tech@spypoint.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XCEL STREAM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Spypoint XCEL STREAM

  • Page 1 USER MANUAL ACTION CAMERA Model: XCEL STREAM v1.3 support.spypoint.com 1-888-779-7646 tech@spypoint.com   ...
  • Page 2 Our priority is to provide outstanding customer service. If you need product promotion. Our priority is to provide outstanding multilin- support for your product, please contact the SPYPOINT-XCEL tech- gual customer service. nical service or visit our website.
  • Page 3: Table Of Contents

    MicroSD card ..............6 Charging the camera ............6 Attaching to XCEL mounts ............ 7 Camera menu ..............8 XCEL STREAM application ..........9 Local ................10 Internet ................13 Transferring files to a computer ........15 Viewing on a television ........... 16 Maintenance of the camera ..........
  • Page 4: Package Contents

    Package contents ACCESSORIES INCLUDED: 12V charger XCEL mount Slider Strap slider Flat adhesive Low quick release stand adaptor mount with safety ring USB cable Lens cleaning Strap cloth Hunting camo SPYPOINT waterproof housing stickers (3) Clear waterproof XCEL housing stickers (3)
  • Page 5: Components

    Components BACK VIEW LEFT VIEW RIGHT VIEW Power button Speaker Indicator Record button LCD screen Lens Microphone MicroSD card slot Micro-USB port Micro HDMI port...
  • Page 6: Microsd Card

    Getting started INSERTING THE MICROSD CARD A USB power source (e.g. a computer) Insert a microSD memory card in the card slot,  gold contacts facing up. The card is inserted correctly when a click is heard.   REMOVING THE MICROSD CARD A wall socket, using the USB power adaptor (XHD-A sold separately) Lightly press the memory card into the camera once to pop it out of the slot and remove it.
  • Page 7: Gettings Started

    Getting started ATTACHING THE CAMERA TO XCEL MOUNTS INSTALLING THE QUICK RELEASE STAND WITH SAFETY RING The XCEL mount adaptor is necessary to attach the camera and the housing to any XCEL mount. Installation With housing: Screw the XCEL Without housing: Insert the slider mount adaptor into...
  • Page 8: Camera Menu

    Camera menu CAMERA MENU OPERATION MODES To enter the menu, press in the preview screen. camera recording modes; Dash Action Cam. Dash Cam mode is set by default. Modes can be switched from the to navigate the menu and to select. camera menu.
  • Page 9: Xcel Stream Application

    ID (ex: R2-...) Wait for the end of the installation before using your phone to control the camera or to live stream over the web. Run the XCEL STREAM app. APP FUNCTION Tap on the Local icon, and then select your camera.
  • Page 10 XCEL STREAM Application "LOCAL" VIEW Starts/stops video recording. Files are saved to the camera microSD card only. Your_camera Home Starts/stops video recording or takes photos. Files are saved to the smart phone only. ALBUM Allows to view and manage videos stored in the camera microSD card.
  • Page 11 XCEL STREAM Application "LOCAL" Allows to choose the video resolution (Full HD or Super HD). Here is a SETUP table showing the different resolutions depending on the recording type. Allows to configure the advanced settings. There are three categories of...
  • Page 12 XCEL STREAM Application "LOCAL" CAR DVR SETTINGS (DASH CAM) Allows to automatically record emergency videos in case of impact. These settings are available in Dash cam mode only. H: Small impacts will trigger an emergency video. L: Impacts have to be important in order to trigger an emergency video.
  • Page 13: Internet

    STREAMING (CONNECTING THE CAMERA TO THE CLOUD SERVER) (CONNECTING A SMARTPHONE TO THE CLOUD SERVER) In order to view live streaming from a smartphone, the XCEL STREAM With your smartphone, open the App in "Local" then click on "Setup". Ver.1.5 app must be installed.
  • Page 14 XCEL STREAM Application "INTERNET" LIVE STREAMING SCREEN DISPLAY R2-29WFK59U Home 0 0 :0 3 :3 6 Indicates the signal strength of the camera. Indicates that the camera and the application are connected via the cloud server. If the icon does not appear, it means that the camera is connected directly to the smartphone.
  • Page 15: Transferring Files To A Computer

    Transferring files to a computer TRANSFERRING FILES TO A COMPUTER Allows to transfer or to view videos using a computer. 1. Connecting the camera to a computer using the USB cable included. 2. The computer will detect the camera and install the driver automatically. 3.
  • Page 16: Viewing On A Television

    Viewing on a television VIEWING ON A TELEVISION Allows the user to view videos directly on a television. 1. Turn the camera off. 2. Connect the camera and the TV with an audio-video cable (sold separately). HDMI 3. Turn the camera on. 4.
  • Page 17: Maintenance Of The Camera

    Maintenance of the camera CLEANING THE LENS WARNINGS To clean the lens, use an air blower to remove dirt such as dust or sand. • Never place the camera inside or above a heating device such as a mi- Then gently wipe the lens tissue (included) on the lens. crowave oven, a stove or a radiator.
  • Page 18: Troubleshooting

    Troubleshooting/ Error messages TROUBLESHOOTING Impossible to connect • When recording a video on the camera SD to the application. card, the connection will fail if the mobile is Message: "Camera is put in Sleep mode. Problem Possible solutions in recording mode". •...
  • Page 19: Available Accessories

    Available accessories To obtain more information on the available accessories, go to xcelcam.com / spypoint.com. Here are the accessories available for the XCEL cameras. KITS XHD-BM XHD-CM XHD-CHM Bow mount Cap mount Chest mount XHD-BJM XHD-HK Ball joint mount and...
  • Page 20 Available accessories XHD-SSM XHD-TPM Sling stud Tripod mount mount MEMORY M E M O HIGH SPEED HAUTE VITESSE Adapter Adaptateur MICROSD 16GB/32GB PROTECTION AND OTHERS ACCESSORIES XHD-FOG XHD-TL Anti-fog inserts Tether leash...
  • Page 21: Specifications Xcel Stream

    Specifications • XCEL STREAM Video recording Video resolution FHD: 1080p /30 fps SHD: 1296p /30 fps File format .MP4 Photo Recording Photo resolution 2 MP File format Lens Optical field of view • 160° wide angle Audio Sound recording Stereo, MPEG AAC codec...
  • Page 22: Regulation

    Hereby, GG Telecom declares that this camera is in compliance with the essential requirements and other relevant provisions of Directive 99/5/EC. The user can obtain a copy of the Declaration of Conformity by e-mail at info@spypoint.com.
  • Page 23: Limited Warranty

    The customer is liable for loss or damage to the product that may occur during the transport to GG Telecom. We recommend you to use a traceable method of shipping to ensure your protection. WWW.XCELCAM.COM WWW.SPYPOINT.COM...
