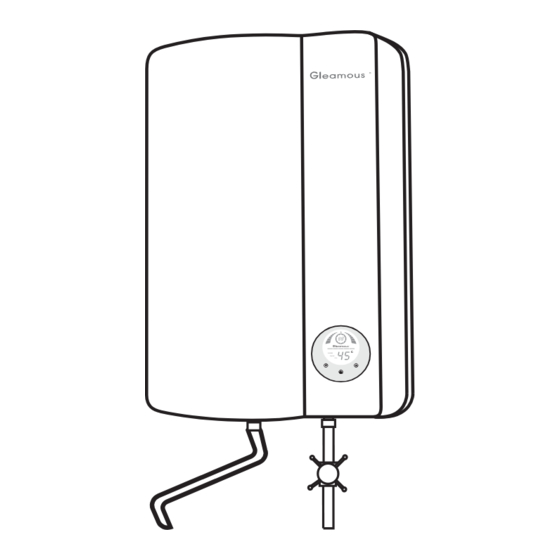

- Page 1 Instruction Manual DSL - 30N Storage Boiling Water Heater For proper operation and maintenance please Read the instruction manual before installation. Instant Hot Water Heater www.gleamoushotwater.com.au...
- Page 2 Thank you for choosing the DSL 30N boiling hot water unit. To enjoy the service of this unit, please read this manual carefully and follow the instruction. I. S afety G uida n c e f or u ser 1.The unit shall only be installed and maintained by an authorized service provider or a qualified electrician.
- Page 3 I II. P a rt D e s i gna t i on a n d I nst a llat i on D i a gram 1. C o v e r 2. Di s p l a y S creen 3.
- Page 4 The Installation shall comply with AS/NZS 3500.4 出水温度 状态显示 开 关 开/关 F i g .2 Hot water outlet Cold water inlet LED display type 1)Switch on the unit, the buzzer sounds once the unit is in standby mode. 2)Press the ON/ OFF button, the screen will light and the unit starts heating; press the button once again to stop heating.
- Page 5 Rated Rated Dimension Number Voltage Power Breaker Capacity Pressure DSL-30N 240V 25/32 Amps 0KPa 441*250*162mm V . S c h em ati c W i rin g D i ag r am Thermal protecor PC B J K1 J K2...
- Page 6 V I I . T r oubl e s hoo t i ng Trouble Inspection Solution No water output Che ck t h e w at e r s up p ly f or f ai lure . I ns pec tio n Low flow rate Chec k t h at a l l v a lv e s a re o pe ne d.
- Page 7 We warrant parts for Two (2) years Domestic use and One (1) year for commercial use from date of purchase, Gleamous (model GL5 / DSL / DSK) be free from defects in material and workmanship under normal use and service. The obligation of Gleamous...
- Page 8 www.gleamoushotwater.com.au...
