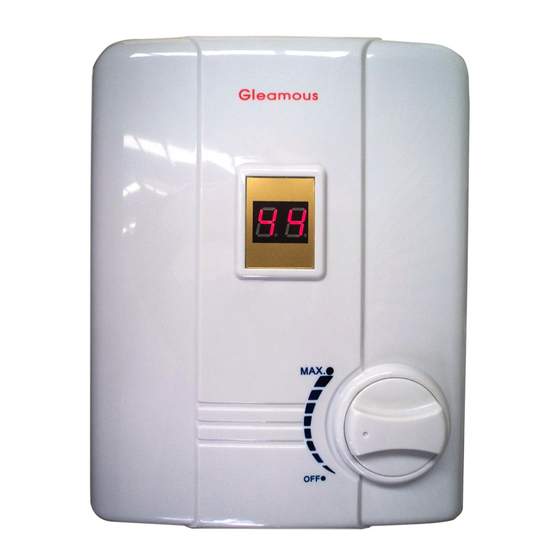

- Page 1 Instruction Manual DSK - 45EP Instant Hot Water Heater For proper operation and maintenance please Read the instruction manual before installation. Instant Hot Water Heater www.gleamoushotwater.com.au...
- Page 2 1. Energy-saving 4. Endless Hot warter 2. Supply hot water 5. 240 volt 15amp on-demand 3. Easy operation 6. LED Temperature display II. SCHEMATIC WIRING DIAGRAM FOR DSK-45EP Control PCB 240V~ 50Hz SCHEMATIC WIRING DIAGRAM FOR DSK-45EP ． TECHNICAL PARAMETERS...
-
Page 3: Installation Diagram
Plaster board Expansion Bolt ￠8mm x 25mm Fixing Holes for fixed water Heater Installation diagram of DSK-45EP Fig2 V. Installation procedure The unit must only be installed by a licenced Electrical Contractor. A earth leakage circuit breaker with 30mA is required to install for the circuit controlling this unit. - Page 4 6-8mm out of the wall. Mount the unit and determine the position of the hole for the expansion bolt to fixed the unit, then drill the hole and fasten the bolt. The cold water supply to this unit must be portable & be within the guidelines of the local authority.
- Page 5 VII. Precaution & Maintenance （ ） The product uses separate 240V~, 50Hz power supply 15A above ℃. The maximum temperature of the hot water from the heater is 50 When the unit is turned off and turned on again some care should be taken as some extremely hot water will be in lines.
- Page 6 Cut off the power and Power supply is short circuiting contact your Electrical Tripping or electric current leakage Contractor for repairs Screen display E1 Electric current Leakage Screen display E2 Contact your dealer for repair Temperature sensor is short circuit Temperature sensor is open circuit Screen display E3 IX Packing List:...
- Page 7 We warrant parts for Two (2) years Domestic use and One (1) year for commercial use from date of purchase, Gleamous (model GL5 / DSL / DSK) be free from defects in material and workmanship under normal use and service. The obligation of Gleamous...
- Page 8 www.gleamoushotwater.com.au...
