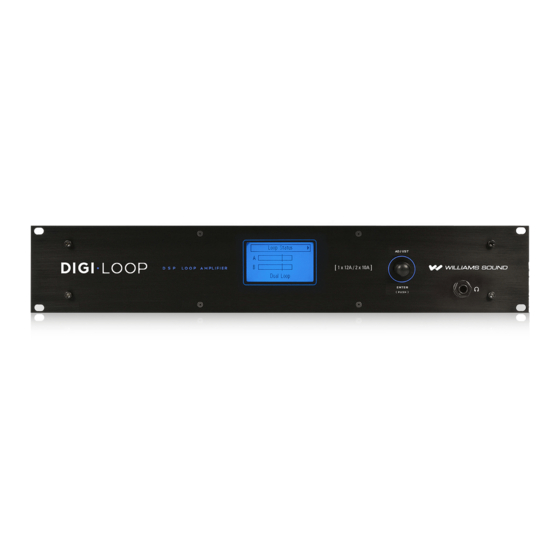

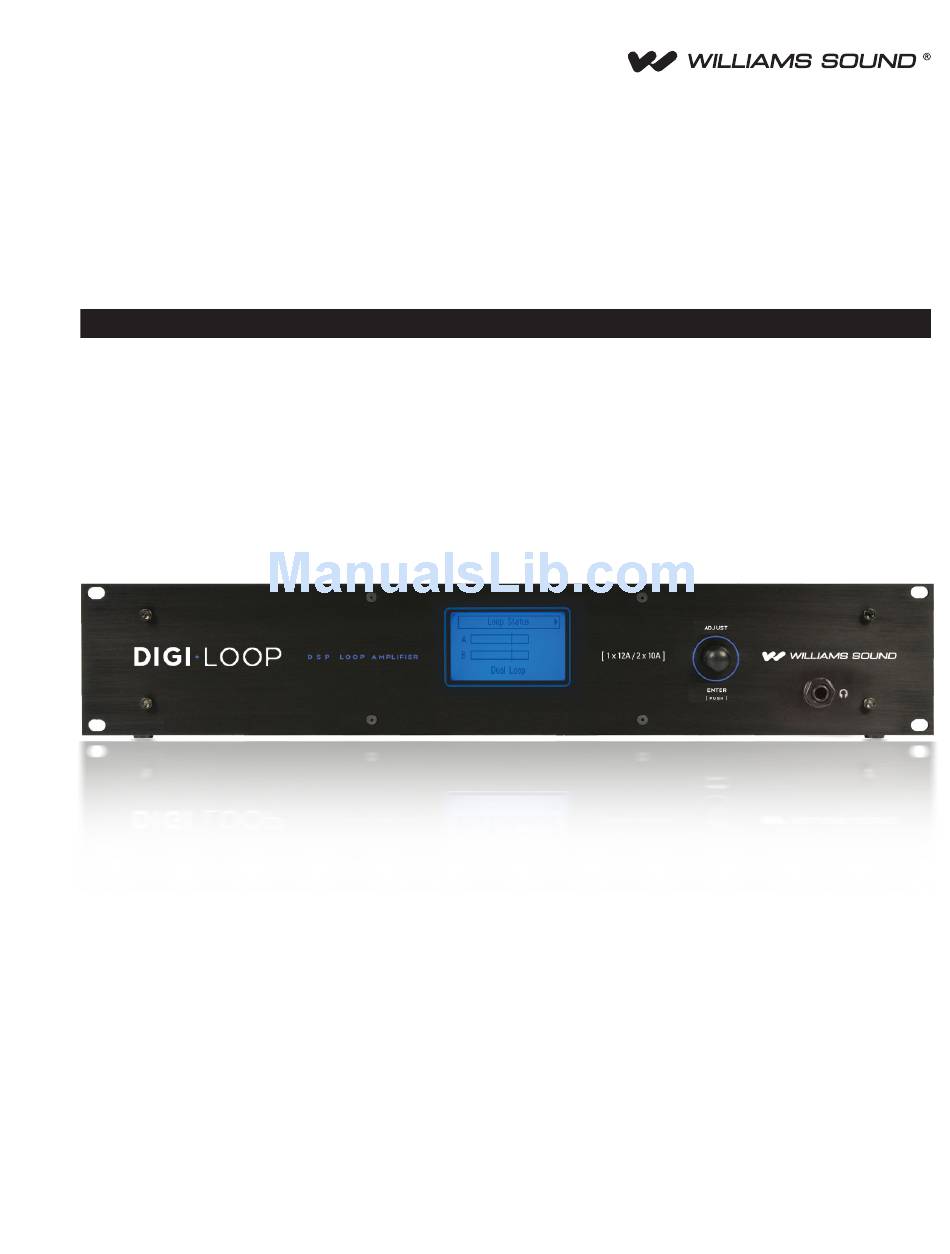

- Page 1 PLA DL210NET and PLA DL210NET-D Digi-Loop DSP Induction Loop Amplifiers ™ USER Manual MAN 179D...
-
Page 2: Table Of Contents
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier Table of Contents Safety Warnings and Instructions System Overview Crestron Control Dante Controls and Connectors Typical Connections Rack Installation Setup and Calibration Procedure Single Perimeter Loop Configuration using front LCD (Dual Loop Mode) Dual Loop Calibration using front LCD (Dual Loop Mode) Phased-Array Calibration using front LCD (Phased Array Mode) One Speaker + Single Loop Calibration using front LCD (Speaker Mode) - Page 3 PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier 7b. RS-232 ....................................22 7c. Ethernet ....................................23 7e1-2. Security - Set Password, Password Timeout ........................23 7f1-2. Power Save - Auto Sleep, Threshold ..........................23 7g. Tech Tools .................................... 24 7g1a-c. Calibrate - Output, Frequency, Volume ......................... 24 7g2.
-
Page 4: Safety Warnings And Instructions
(servicing) instructions in the literature accompanying the appliance. POWER CORD NOTICE FOR INTERNATIONAL OPERATION - Please call Williams Sound Customer Service at 800.328.6190 to order the appropriate power cord for the country of use. - Page 5 PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn. 16. Wall or ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer. 17.
-
Page 6: System Overview
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier System Overview Thank you for purchasing the PLA DL210 Digi-Loop™ DSP Induction Loop Amplifier. This is the latest in induction loop technology. An induction loop system uses a large copper loop, usually run on the floor around the inside perimeter of a room, to transmit electromagnetic signals to a receiving device that picks up the broadcast. -
Page 7: Crestron Control
1.144 or greater. For more information, or to download the module, visit Crestron’s website and download the Williams Sound PLA DL210NET Loop Amplifier control module. For instructions on how to upgrade the firmware of the loop amplifier, please see the section in this manual “Upgrading Firmware”. -
Page 8: Typical Connections
ETHERNET - FOR PC APP AND DANTE CONTROL ONLY MATRIX FIRMWARE UPDATES CANNOT BE DONE THROUGH ETHERNET DANTE CONNECTION AVAILABLE ON PLA DL210NET-D MODEL ONLY USB - FOR FIRMWARE UPDATES ONLY PLA DL210NET PROFESSIONAL INDUCTION LOOP AMPLIFIER WITH DIGITAL SIGNAL PROCESSING... -
Page 9: Rack Installation
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier Rack Installation Install into a 19” rack using 10-32 rack screws. Leave 1U rack space above for ventilation. A surge protector or power conditioner is highly recommended. Use a grounded outlet. Connect all input/outputs before applying power. Plug in the power cord and turn on the unit. -
Page 10: Setup And Calibration Procedure
When set correctly, the overall output (bottom right VU meters) should pulse to around 0dB on average. Once all of these adjustments have been finalized, use a loop receiver such as the Williams Sound PLR BP1 or PLR SR1 to listen to the loop(s). -
Page 11: Single Perimeter Loop Configuration Using Front Lcd (Dual Loop Mode)
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier Single Perimeter Loop Configuration using front LCD (Dual Loop Mode) Define the area needed for the loop layout. DC resistance of the loop and lead wire should be between .5 and 1.5 Ohms. Connect loop wire to the DL210 Phoenix connector and insert to Loop Output A. -
Page 12: Dual Loop Calibration Using Front Lcd (Dual Loop Mode)
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier Dual Loop Calibration using front LCD (Dual Loop Mode) Note: this mode is also used for a single loop; in this case steps referring to Loop B can be skipped. Define the areas needed for the loop layout. DC resistance for each separate loop with lead wire should be between .5 and 1.5 Ohms. -
Page 13: Phased-Array Calibration Using Front Lcd (Phased Array Mode)
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier Phased-Array Calibration using front LCD (Phased Array Mode) Master and Slave loop wire layout should follow parameters defined by blueprints and site survey findings. Loop wire and lead wire DC resistance should be between .5 and 1.5 Ohms on both the Master and Slave loops. Connect the Master Loop wire to the DL210 Phoenix connector and connect to Loop Output A. - Page 14 PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier One Speaker + Single Loop Calibration using front LCD (Speaker Mode) Define the area needed for the loop layout. Loop and lead in wire DC resistance should be between .5 and 1.5 Ohms. Connect loop wire to the DL210 Phoenix connector and insert to Loop Output B.
-
Page 15: Front Lcd Screen Menu Tree
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier Front LCD Screen Menu Tree The following is an overview of the on-screen menu. The numbers by each block refer to the Front Menu Detail Section (next page). Figure I: Front Screen Menu Tree Loop Status Headphone Monitor Load Preset... -
Page 16: Front Menu Detail
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier Front Menu Detail The entire on-screen menu is accessed by either rotating the control knob to the left or right (to view), or pushing it in (to select). See the Menu Tree (previous page) for an overview of the entire menu structure. 1. -
Page 17: Configuration Menu
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier 4. CONFIGURATION MENU The configuration menu is where most of the amplifier settings and fine-tuning is performed. This menu is where Inputs and Outputs are configured and system parameters are set up, stored and recalled. 5. -
Page 18: 5A3. Eq
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier 5a3. EQ This is a 3-band parametric equalizer providing adjustment for Low, Mid-Band, and High frequency. The center or cutoff frequency for each band is chosen under the Advanced Settings. The first screen (below) shows the level adjustment for each of the bands (midrange highlighted). -
Page 19: Output Configuration
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier 6. OUTPUT CONFIGURATION Each of the outputs can be configured individually. To set up Ouput 1, enter “Output Configuration”. Ouput 1 is the first input you can adjust, so it is already selected. To get to the next input, rotate the knob to the right. 6a. -
Page 20: 6D. Agc
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier 6d. AGC Automatic Gain Control measures the average level of the signal and applies gain reactively to keep the output level constant. It also limits the output power and reduces or eliminates distortion due to clipping that would normally occur without AGC. 6d1-6. -
Page 21: 6E. Delay
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier 6e. Delay Delay is the amount of time between the input signal and the output signal of the amplifier. This is often useful in a loop system when a PA system is also being used, so that the audio being heard through the loop (receiver or hearing aid) matches that of the PA System speakers. -
Page 22: System Configuration
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier 7. SYSTEM CONFIGURATION 7a1-3. Presets - Load Preset, Save Preset, Change Name Presets allow the user to store all of the current amplifier settings into one easy-to-access Preset, and recall the Preset when needed. -
Page 23: 7C. Ethernet
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier 7c. Ethernet Ethernet settings provides the ability to choose dynamic IP addressing or specify a static IP Address for the amplifier. The amplifier’s default state is dynamic (DHCP). If using DHCP (choosing “No” for Static IP in the second screen below) you need to go to a different screen to find out what the assigned IP Address is (See 7g5, IP Address under Tech Tools). -
Page 24: 7G. Tech Tools
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier 7g. Tech Tools Tech Tools provides the ability to calibrate the amplifier through use of a test tone, perform an open loop test, check the firmware version(s) of the ICs, name the amplifier, set a static or dynamic IP address, and reset the amplifier to factory default settings. 7g1a-c. -
Page 25: 7G5. Net Info
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier 7g5. NET Info This screen is for viewing Ethernet and Dante parameters of the amplifier. No changes can be made from this screen. Four parameters can be viewed here: (1) Ethernet Address and MAC address of the ethernet card, (2) Ethernet Address and MAC address of the Dante card, (3) the Dante Card Name, and (4) the Default Dante Card Name. -
Page 26: Pc Mixer Application And Ipad App Initial Setup
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier PC Mixer Application and iPad App Initial Setup SYSTEM REQUIREMENTS PC App: The PC Mixer App can be used to communicate with the amplifier through the Ethernet, USB, or RS-232 Ports. The ethernet connection is recommended when using the PC App for best performance. -
Page 27: Using The Pc Mixer Application And Ipad App
(using the amplifier’s internal tone generator), adjusting the frequency and output level, and measuring the signal level of the loop with a field-strength meter. Note: The field strength meter can be purchased through Williams Sound, model PLM FSMP. Please see our website for more information. - Page 28 PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier PC MIXER APP MAIN SCREEN Mix Gain - Allows an additional point of control to mix individual inputs as required for each output. (Click on the dial, then slide up/ down to adjust) Line/Mic/Phantom Mic Select - Switches between a Line-level signal, dynamic microphone or 48v condenser microphone.* Input Trim - Provides fine trim of the input gain.
- Page 29 PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier INPUT EFFECTS Equalizer Hz (Bass/Mid/Treble Pole Freq) - Sets the center frequency for the gain adjustment of each band. (Click then slide up/down to adjust) dB (Bass/Mid/Treble Pole Freq Gain Adjust)- Adjusts the amount of gain at the pole frequency. This is adjustable from -96.0dB to 0.0dB in 0.5dB steps.
-
Page 30: Low Pass Filter
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier OUTPUT EFFECTS Equalizer Hz (Bass/Mid/Treble Pole Freq) - Sets the center frequency for the gain adjustment of each band. dB (Pole Freq Gain Adjust)- Adjusts the amount of gain at the pole frequency. Metal Compensation - Metal loss occurs when the environment contains metal that absorbs the energy from the loop, reducing the frequency response at high frequency. - Page 31 PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier STATUS BOX AND AMPLIFIER STATUS WINDOW The status box shows loop status at a glance. For more detail, open the Amplifier Status Window. Figure P: Amplifier Status Window Status Box. Click inside the box to open the Ampli er Status Window.
-
Page 32: Upgrading Firmware
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier Upgrading Firmware Generally the firmware should not need to be upgraded. On those rare occasions where it has been determined the firmware needs upgrading, here is the procedure. Power OFF the Loop Amplifier. On the PC that will be used to upgrade the firmware, download the “PLA DL210NET PC Mixer App and Firmware Install”... -
Page 33: Specifications
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier Specifications Dimensions 2U rackmount, 19” W x 3.5” H x 12” D. Chassis is 17” W. Weight 14.3 lbs (6.5 kg) Color Case: Black, white and blue legends on front, white legends on back. LCD: Backlit Blue. Fan Cooling Variable Speed, Temperature Controlled Power... -
Page 34: Troubleshooting
PLA DL210NET Digi-Loop™ DSP Induction Loop Amplifier Troubleshooting Problem Solution - Check to see that the loop amplifier is on. - Make sure the input source is on/playing. - On the “Loop Status” screen, the horizontal bar graph should be pulsing with the audio from the input source. -
Page 35: 2-Year Warranty
Williams Sound shall not be liable to any person or... - Page 36 10300 Valley View Rd · Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 · FAX: 952-943-2174 www.williamssound.com Copyright 2015 Williams Sound LLC MAN 179D...
