AVACSPL12+18Ninstructions
12/3/08
09:06
Page 1

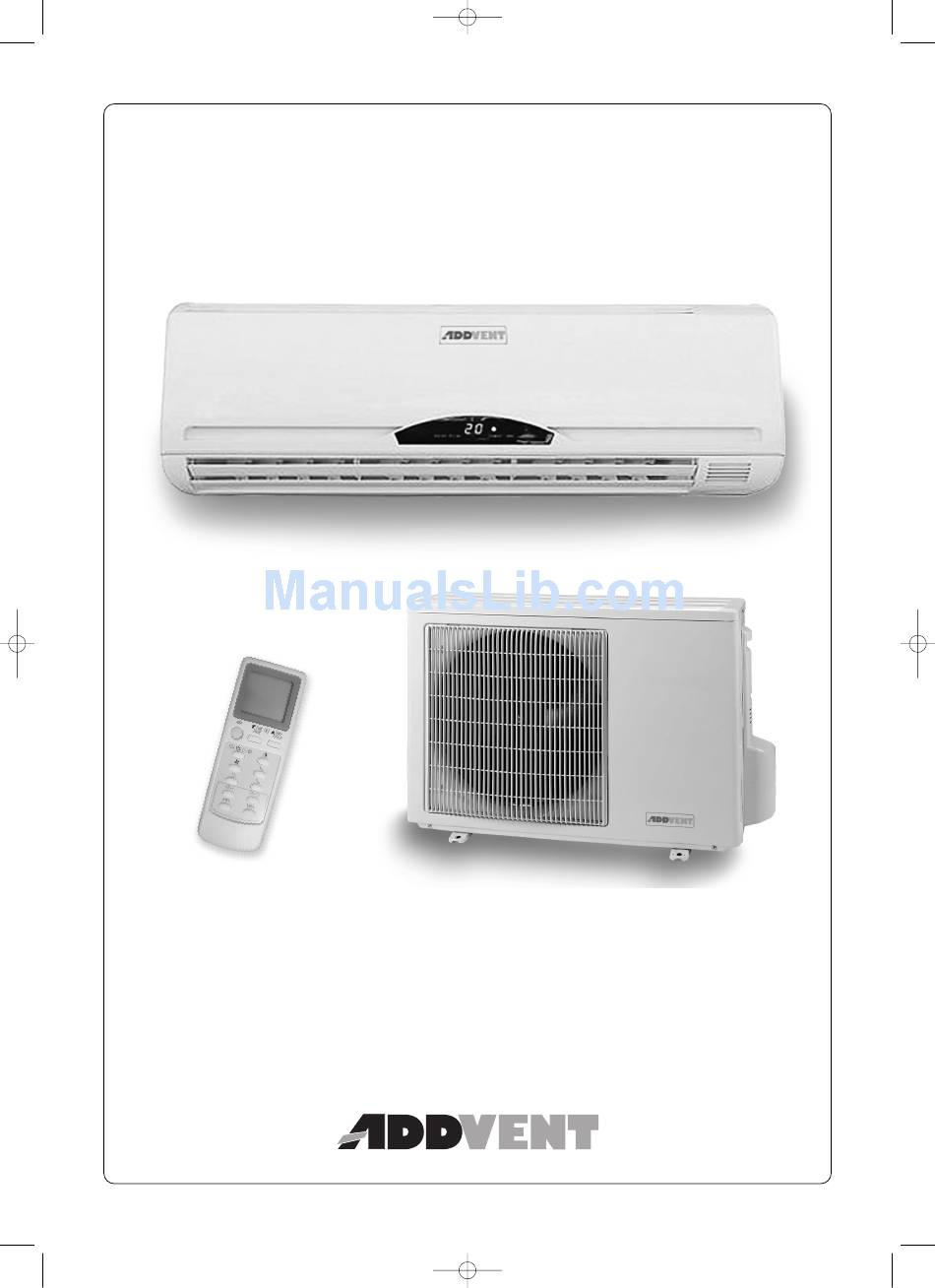

AVACSPL12N and AVACSPL18N
Split Air Conditioners
Installation Instructions and User Guide
IMPORTANT SAFEGUARDS
WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY PRECAUTIONS
SHOULD ALWAYS BE FOLLOWED.
PLEASE READ ALL INSTRUCTIONS CAREFULLY
AND RETAIN FOR FUTURE REFERENCE
Advertisement
Table of Contents
Related Manuals for Addvent AVACSPL12N
Summary of Contents for Addvent AVACSPL12N
- Page 1 AVACSPL12+18Ninstructions 12/3/08 09:06 Page 1 AVACSPL12N and AVACSPL18N Split Air Conditioners Installation Instructions and User Guide IMPORTANT SAFEGUARDS WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED. PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE...
-
Page 2: Parts List
AVACSPL12+18Ninstructions 12/3/08 09:06 Page 2 CONTENTS Features and part list Safety Awareness Installation Technical features Operation The Remote Control and the display screen Preparing to use the appliance Automatic Operation Select Operation Mode (cooling, dehumidifying and heating) Air Speed and Air Flow Adjustment Sleep Mode Sweep Operation Timer Operation (ON/OFF Timer) -
Page 3: Important Safeguards
AVACSPL12+18Ninstructions 12/3/08 09:06 Page 3 SAFETY IMPORTANT SAFEGUARDS WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED. PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE This manual should be read before the appliance is installed. Please read the DOs and DON’Ts listed below before undertaking the installation of this appliance Isolate the power before cleaning this appliance. - Page 4 AVACSPL12+18Ninstructions 12/3/08 09:06 Page 4 INSTALLATION Figure 4 For correct installation, read this manual before starting Figure 5 installation. Choosing the installation position Locate the indoor unit in: a place where there is no obstacle near the inlet and outlet area.
-
Page 5: Installing The Indoor Unit
Indoor unit electrical wiring G The indoor unit electrical wiring is already connected to the indoor unit during manufacture. G If the wiring or any other part is damaged, please contact Addvent on 0117 923 5375. Figure 8 Wrap the pipe and wiring. -
Page 6: Installing The Outdoor Unit
AVACSPL12+18Ninstructions 12/3/08 09:06 Page 6 Installing the outdoor unit Install the connection pipe to the outdoor unit G Remove the protection cover before connecting the coupling pipe and electric wiring. Install the connection pipe with quick-coupling G Take off the plastic nuts at the outdoor unit and connection pipe quick couplings G Align the centre of the outdoor unit quick coupling and screw the quick coupling pipe by hand Do not use torque wrench to turn the nuts as it may cause leakage. - Page 7 AVACSPL12+18Ninstructions 12/3/08 09:06 Page 7 Installing the outdoor unit Quick coupling installation procedure continued G Check for leakage using soapy water Connect the electric wiring at the outdoor unit Before connecting the electric wiring at the outdoor unit, make sure the power of indoor unit is unplugged. G Remove the cable clamp G Connect the electric wiring to outdoor unit with the wiring connector 13 14...
-
Page 8: Technical Features
AVACSPL12+18Ninstructions 12/3/08 09:06 Page 8 Technical Features Automatic Function: This unit is equipped with fuzzy logic control. This Technology allows the appliance to sense the conditions within the room to give you the most comfortable atmosphere at any given time. It works through optimal program design, which makes control clearer avoiding unnecessary over cooling or overheating, resulting in greater energy savings. -
Page 9: The Remote Control
AVACSPL12+18Ninstructions 12/3/08 09:06 Page 9 The Remote Control Figure 9 Operation see figure 9 To turn ON/OFF LED display simply by pressing the button. NOTE: G Indoor LED display can be turned ON/OFF whether the unit is running or not. When the LED is turned ON and the unit is OFF, the LED display will show indoor temperature;... - Page 10 AVACSPL12+18Ninstructions 12/3/08 09:06 Page 10 The Display Figure 10a Cooling Figure 10b Heating Instruction of Display see figure 10a and 10b G Power is supplied (standby): Number LED indicates room temperature. G Operating: Operating LED, Operation mode LED and indoor fan speed LED flash, Number LED indicates room temperature.
-
Page 11: Indoor Unit
AVACSPL12+18Ninstructions 12/3/08 09:06 Page 11 Preparing to use the appliance Prior to operation Indoor unit Figure 11 Before starting to programme the remote control: Plug into the mains, press the power switch on the indoor unit. Remote control Setting real-time Open back cover, put in batteries Press reset button see figure 12. -
Page 12: Operating Modes
AVACSPL12+18Ninstructions 12/3/08 09:06 Page 12 Operation Auto Operation see figure 15 Figure 15 To select the Auto Operation Function press the MODE button. A slight touch can initiate Auto Operation, effectively turns the room ambient to its most comfortable condition. Start operation Press I/O button, When AUTO operation is displayed, the air conditioner will set the room... -
Page 13: Air Flow Adjustment
AVACSPL12+18Ninstructions 12/3/08 09:06 Page 13 Operation Note: Heating operation Figure 18 The system may get overloaded if the air conditioner absorbs too much heat from air. The fan of the outdoor unit stops automatically to protect air conditioner as controlled by the microprocessor. Dehumidifying operation When the fan of the outdoor unit stops, it may show frost. -
Page 14: Sweep Operation
AVACSPL12+18Ninstructions 12/3/08 09:06 Page 14 Operation Sweep Operation see figure 22 Figure 22 By starting the sweep operation, every part of your room will receive cooled air. To select this operation. Press To release this operation Press again. Timer operation see figure 23 Timer ‘ON’... -
Page 15: Maintenance
AVACSPL12+18Ninstructions 12/3/08 09:06 Page 15 Tips for operation Cooling How to make cooling more efficient Close windows and reduce sunlight to increase the cooling effect. Position the outdoor unit where it will be shielded from direct sunlight. This will reduce running costs. Heating A comfortable heat level lies in the difference with outside temperature. -
Page 16: Specifications
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice Telephone: 0117 923 5375 Fax: 0117 923 5374 Victoria Road, Avonmouth, Bristol BS11 9DB www.addvent.co.uk ISSUE 1/0108...
