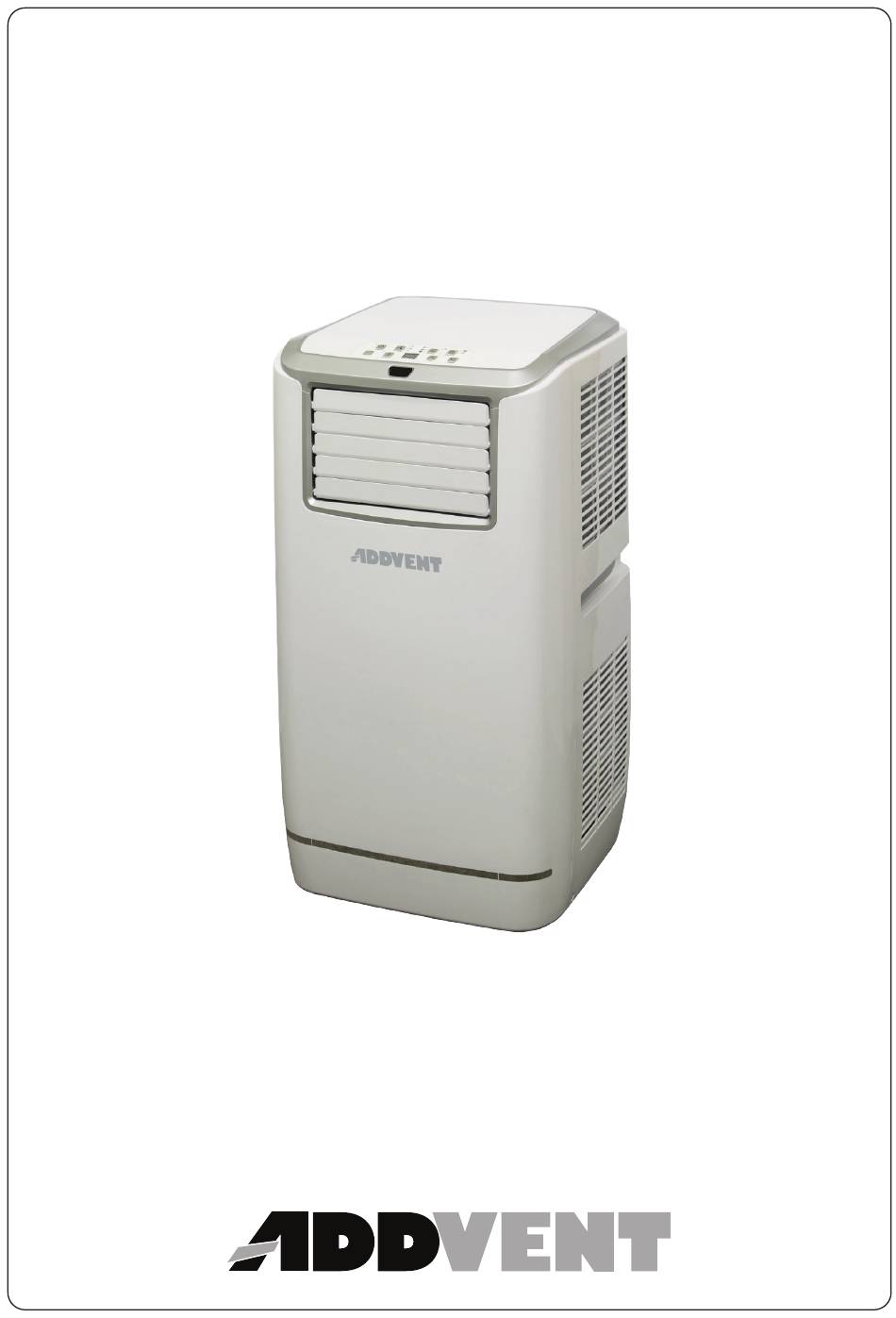

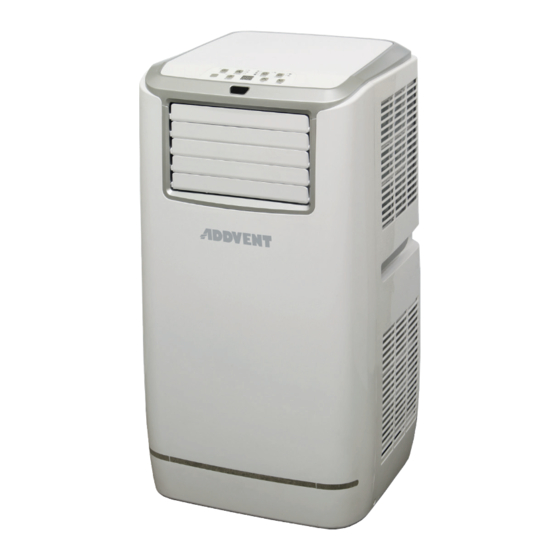

- Page 1 AVAC12000 Portable Air Conditioner Installation Instructions User Guide IMPORTANT SAFEGUARDS WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED. PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE...
-
Page 2: Before Use
BEFORE USE These symbols on your device mean: This appliance is filled with Propane gas R290. Follow strictly the manufacturer’s instruction concerning use and repairs! Before using the machine, read carefully the entire instruction manual. Do not install, operate or store the device in a room smaller than 13m GENERAL CAUTIONS FOR INDOOR USE ONLY. - Page 3 water. Closely supervise any children and pets when the unit is in use. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 4 THE MACHINE IS TO BE USED ONLY FOR ITS PRESCRIBED PURPOSE. ANY OTHER USE IS DEEMED TO BE A CASE OF MISUSE. THE USER/ OPERATOR, NOT THE MANUFACTURER WILL BE LIABLE FOR ANY DAMAGE OR INJURIES OF ANY KIND CAUSED AS A RESULT OF THIS. SAFETY RELATING TO REFRIGERANT R290: Read these warnings carefully.
- Page 5 Components Front Back Fig 1. Fig 2 1. Control Panel 7. Air filter (air inlet) 2. Remote control receiver 8. Cord compartment 3. Air vent 9. Exhaust air outlet 4. Carrying handle 10. Drainage knob / drainage point 5. Water gate (for energy saving) 11.
-
Page 6: Installation
Installation The unit is a portable air conditioner that may be moved from room to room. Using the extendable slide Fig 4. Extendable slide Window kit Offer window spacer to the window gap and adjust the length as you need. Feed exhaust hose through the window spacer and slide window across so that spacer is held securely. -
Page 7: Mounting Of The Exhaust Hose
Mounting of the exhaust hose Use only the hose provided FIG. 5 and clip exhaust hose and unit adaptor to the back of the air conditioner. FIG. 6 Avoid kinks and bends in the exhaust hose as this will cause expelled moist air to build up causing the unit to overheat and shut down. -
Page 8: Installation Of The Carbon Filter
Installation of the carbon filter This machine is equipped with the active carbon filter. The activated carbon is charcoal that has been treated with oxygen to open up millions of tiny pores between the carbon atoms. It is used to get rid of unwanted odours (smoke, fumes, and animal odour). -
Page 9: Operation
Operation Control panel FIG. 11 A. TIMER button 1. Timer indicator B. SPEED (ventilation) button 2. High fan speed indicator C. MODE button 3. Medium fan speed indicator D. ON/OFF (POWER) button 4. Low fan speed indicator E. IONIZER / TIO2 button (only 5. - Page 10 Adjust the air vent Before using the unit, please do FIG. 12 open the horizontal louver! Adjust the louvers to your FIG. 12 desired direction Turning ON/OFF Press ON/OFF button, the unit will start in AUTO (automatic) mode. Automatic mode In automatic mode, the unit can cool , ventilate or heat depending on ambient temperature and setpoint adjustment.
-
Page 11: Setting Mode/Function
Setpoint setting in automatic cooling mode 18-32°C If you set the setpoint at 24°C the unit starts to cool at 27°C (Setpoint + 3°C). It cools down to 25°C (Setpoint +1°C) and then switches back to the ventilation. FIG 14 °C Time Setting mode/function... -
Page 12: Sleep Function
Setting ventilation speed Press SPEED button to choose the ventilation speed you need, high, medium or low. The sign of high or low ventilation will light on at the same time. Setting timer 1. Press TIMER button to set the operating hours you desired (1 to 24 hours, the sign of timer will light on). -
Page 13: Self-Diagnosis
This machine is equipped with self-diagnosis function. If something is wrong in the machine, the LED will show the word “E1” or “E2”. At this time, please contact Addvent (0117 938 6402). Please DO NOT dismantle the machine by yourselves in any case. - Page 14 NOTE 1. This efficiency feature by adding water is proposed to do after one hour operation and the water should NOT be over 2.5L, otherwise, the “water full” indicator will light in red and the unit will stop working. ✩ This action should only be performed while the power is on, in order the “water full”...
- Page 15 Drainage When the unit is operating in Cooling or Dehumidify ( DRY) mode, humidity extracted from the air is collected in an internal tank. If the tank reaches full, the compressor and motor cut out automatically. At the same time, the “Water Full” indicator comes on.
- Page 16 Please note 1. The drain must be at a lower level than the drain hole on the unit. 2. Flashing ‘Water Full’ indicator will not function in this mode of drainage. 3. If you want to extend the water tube, you can connect it with another tube (OD: 18mm).
-
Page 17: Maintenance
Maintenance Always unplug the air conditioner from the mains before cleaning. To maximize the efficiency of the air conditioner, clean the unit regularly. Cleaning the housing Use a soft, damp cloth to wipe the body clean. Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions. -
Page 18: Fault Check List
Fault Check List The air conditioner does not run Is the air conditioner plugged in? I s there a power failure? Is the ‘full water’ indicator flashing? Is the room temperature below the set temperature? The machine seems to do little Is there direct sunshine? (Please put down the curtain.) Are too many windows or doors... -
Page 19: Specification
Specification Model no. AVAC12000 Power supply 230V/50Hz Cooling capacity 12000BTU/3.4kW Power/Ampere consumption 1300W/5.8A Dehumidify capacity 31L/day Air Volume (max. speed) 510m³/hr Refrigerant R290/270g Fan speed Timer 1~24 hours Working temperature 18 ° C- 32 ° C Exhaust hose Ø 150 x 1500mm N.W.
