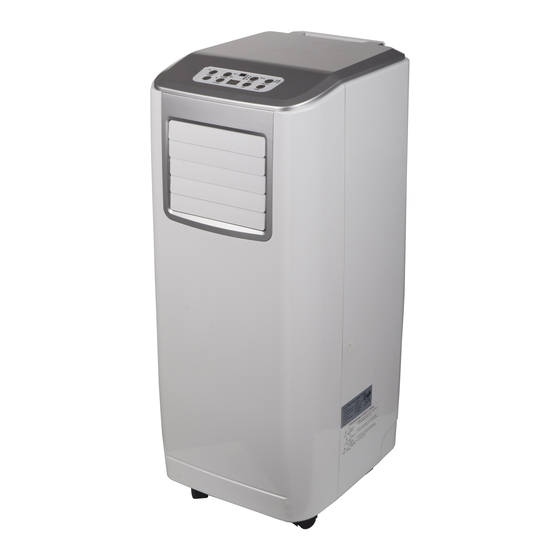

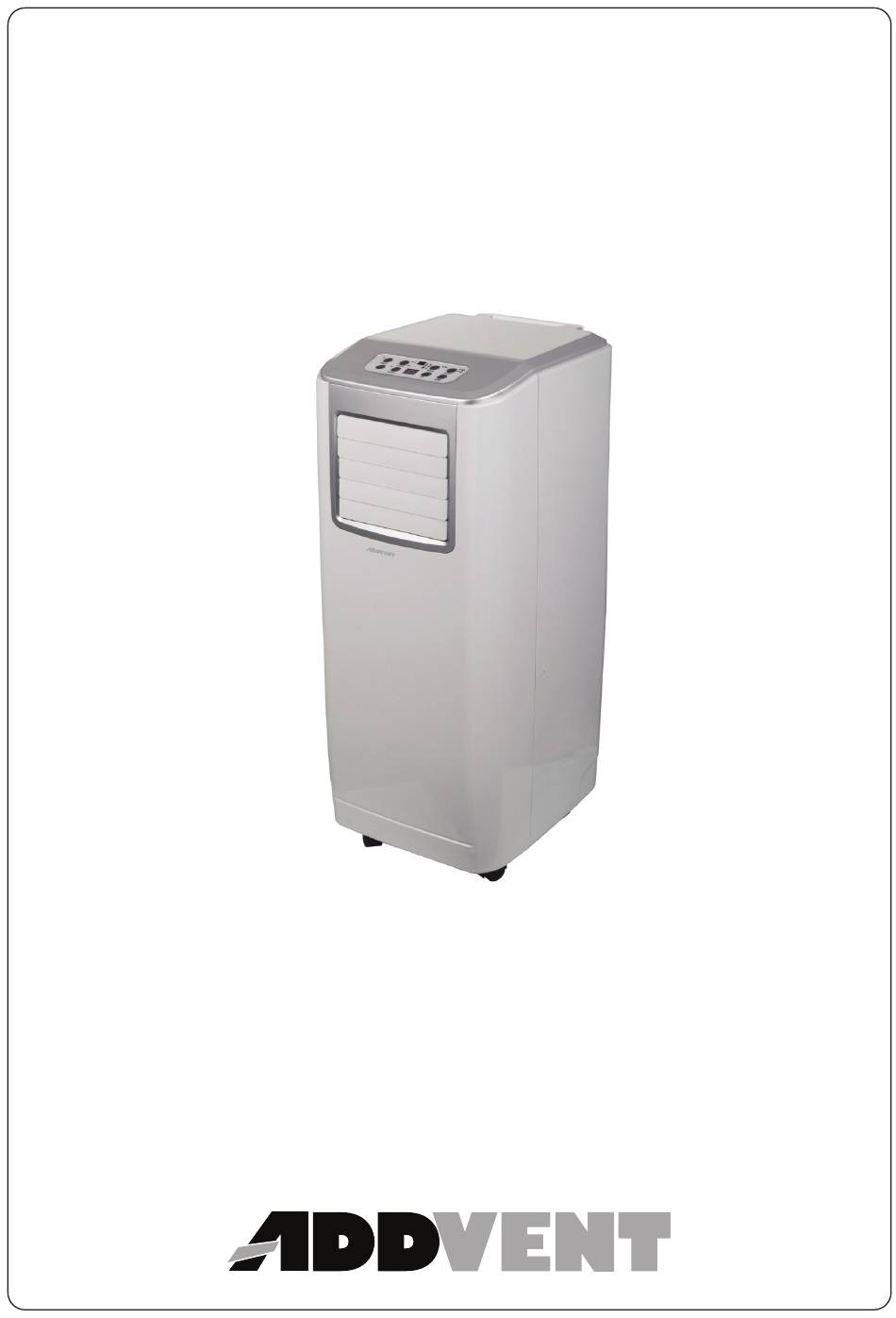

- Page 1 AVAC9000 Portable Air Conditioner Installation Instructions User Guide IMPORTANT SAFEGUARDS WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED. PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE...
-
Page 2: Before Use
BEFORE USE These symbols on your device mean: This appliance is filled with Propane gas R290. Follow strictly the manufacturer’s instruction concerning use and repairs! Before using the machine, read carefully the entire instruction manual. Do not install, operate or store the device in a room smaller than 11m... -
Page 3: Safety Instructions
Safety Instructions WARNING This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 4 To turn on your unit, insert the plug into the socket and press the power button. Do not bend or crush the exhaust hose. Do not place the power cord under a carpet. This appliance is for ordinary indoor use. Never use the appliance in the immediate surroundings of a bath, a shower, a swimming pool or a greenhouse.
- Page 5 SAFETY RELATING TO REFRIGERANT R290 Read these warnings carefully. This appliance contains the refrigerant R290. R290 is a refrigerant that complies with the relevant European Directives. Never perforate the refrigerant circuit. R290 is flammable (GWP3)! Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
- Page 6 Components 1. Control panel 5. Exhaust air outlet 8. Air inlet 2. Carrying handle 6. Air filter 9. Cord storage 3. Air outlet 7. Water stopper/ 10. Air inlet drainage point 4. Air filter Accessories 11. Exhaust hose 12. Flat Type Adaptor - for insertion over hose &...
-
Page 7: Installation
Installation Before using your air conditioner, you will need to install the exhaust hose so that the heat (hot air) from the appliance are released onto an outside, open-air area. To install the exhaust hose, feed the end of the hose through any available window and secure it into place using the included adapter. -
Page 8: Mounting Of The Exhaust Hose
Mounting of the exhaust hose Use only the hose provided FIG. 7 and attach exhaust hose to the back of the air conditioner. FIG. 8 Avoid kinks and bends in the exhaust hose as this will cause expelled moist air to build up causing the unit to overheat and shut down. -
Page 9: Installation Of The Carbon Filter
Installation of the carbon filter FIG. 11 1. Remove the filter frame from the unit. 2. Remove the active carbon filter from its plastic bag. 3. Insert the active carbon filter into the back of the unit. 4. Re-fit the filter frame inside the unit. ... -
Page 10: Operation
Operation Control panel FIG. 13 ON/OFF (power) button Display window Mode (function) option Receiver for remote control button High ventilation indicator Speed (ventilation)button Low ventilation indicator “Timer” button Automatic mode indicator ‘Temperature down ‘ button Cooling mode indicator ‘Temperature up’ button Fan mode indicator “Sleep”... -
Page 11: Turning On/Off
Turning ON/OFF 1. Press ON/OFF button, the unit will start in AUTO (automatic) mode. Automatic mode In automatic mode, the unit can cool or ventilate depending on ambient temperature and setpoint adjustment. The unit is preset as follows: If ambient temperature is above 23°C the unit is in automatic cooling mode and is running according to the setpoint (Default setting 24°C). -
Page 12: Setting Mode/Function
Setting mode/function Press MODE button to select required working mode: automatic, cooling, fan or dehumidify. The indicator of your selected mode is displayed. Setting temperature 1. Press ‘Temperature up’ or ‘Temperature down’ button to regulate the temperature desired. 2. The display window will show the temperature set as you press the ‘Temperature up’... -
Page 13: Self-Diagnosis
“continuous drainage”, please also refer to page 12. Self-diagnosis This machine is equipped with a self-diagnosis function. If a fault develops, the display window will display “E1” or “E2”. At this time, please contact Addvent (0117 9235375). All the above functions can also be performed with the supplied remote control. - Page 14 Drainage During the process of cooling, some water will be extracted from the air into the unit. If the reservoir is full, both the compressor and motor will stop and the unit will make an audible sound (you can press any button to stop the audible sound).
- Page 15 The drain tube may be extended by adding an extension tube and using a suitable connector. FIG. 17 Please note 1. The drain must be at or below the outlet level. 2. Flashing ‘full water’ indicator will not function in this mode of drainage.
-
Page 16: Maintenance
Maintenance Always unplug the air conditioner from the mains before cleaning. To maximize the efficiency of the air conditioner, clean regularly. Cleaning the housing Use a soft, damp cloth to wipe the body clean. Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions. -
Page 17: Fault Check List
Fault Check List The air conditioner does not run. Is the air conditioner plugged in? Is there a power failure? Is the ‘full water’ indicator flashing? Is the room temperature below the set temperature? The air conditioner does not run Is the filter dirty, contaminated? efficiently. -
Page 18: Specification
Specification Model no. AVAC9000 220-240V~, 50Hz Power supply 9000BTU/ 2.6KW Cooling capacity 1000W/4.5A Power/Ampere consumption 24 L/day Dehumidify capacity 360m Air Volume (max. speed) rotary Compressor R290 Refrigerant Fan speed 1~24 hours Timer 18 ° C- 32 ° C Working temperature Ø...
